1efg

THE CRYSTAL STRUCTURE OF ELONGATION FACTOR G COMPLEXED WITH GDP, AT 2.7 ANGSTROMS RESOLUTION

Method: X-RAY DIFFRACTION D_max: 110.3 Å Quality: GOOD

SAXS Profile

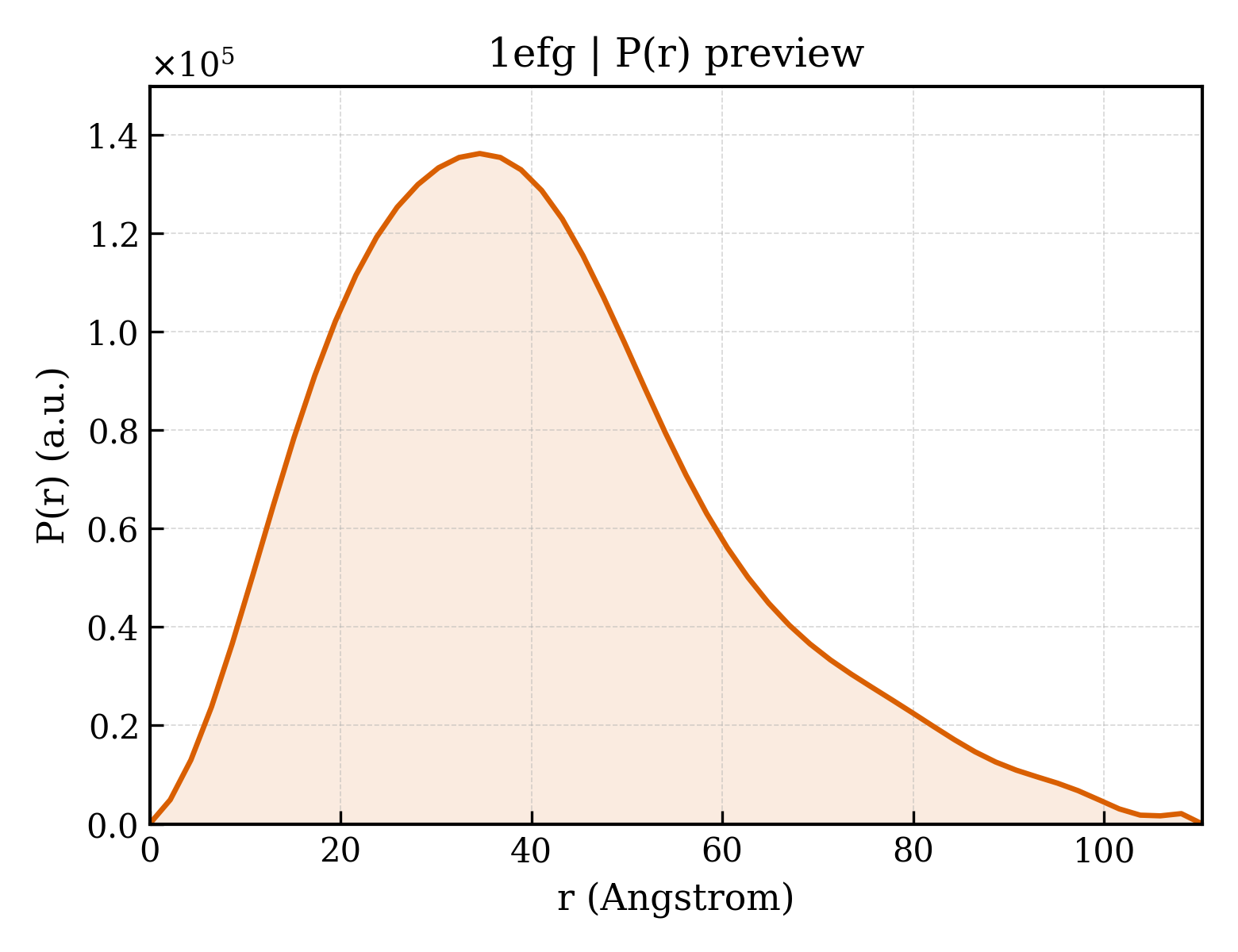

P(r) Distribution

▼

1. Structure Basics

entry_id	1efg
deposition_date	1994-10-17
title	THE CRYSTAL STRUCTURE OF ELONGATION FACTOR G COMPLEXED WITH GDP, AT 2.7 ANGSTROMS RESOLUTION
keywords	ELONGATION FACTOR; ELONGATION FACTOR
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	31.29 Å
rg_electron	31.39 Å
i0	80928100.00
molecular_weight	73359.0 kDa
excluded_volume	95681 Å³
envelope_volume	74132 Å³
shell_volume	23048 Å³
envelope_diameter	114.2 Å
shell_rg	32.70 Å
envelope_rg	29.81 Å
shape_rg	31.24 Å
total_rg	31.47 Å
total_atoms	28
n_residues	—
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	110.3 Å
rg_real	31.62 Å
rg_real_error	1.00 Å
i0_real	8.0920e+07
i0_real_error	1.2910e+06
rg_reciprocal	31.48 Å
i0_reciprocal	80920000.0000
total_estimate	0.8289
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	34.6 Å
skewness	0.646
kurtosis	0.133
angular_range	— – 0.2550 Å⁻¹
current_alpha	0.0000
highest_alpha	8526000.0000
n_real_points	52
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.729; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.762; Smooth: 0.824

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	ELONGATION FACTOR G
formula_weight	76963.1 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	684

MAVKVEYDLKRLRNIGIAAHIDAGKTTTTERILYYTGRIHKIGEVHEGAATMDFMEQERERGITITAAVTTCFWKDHRINIIDTPGHVDFTIEVERSMRVLDGAIVVFDSSQGVEPQSETVWRQAEKYKVPRIAFANKMDKTGADLWLVIRTMQERLGARPVVMQLPIGREDTFSGIIDVLRMKAYTYGNDLGTDIREIPIPEEYLDNAREYHEKLVEVAADFDENIMLKYLEGEEPTEEELVAAIRKGTIDLKITPVFLGSALKNKGVQLLLDAVVDYLPSPLDIPPIKGTTPEGEVVEIHPDPNGPLAALAFKIMADPYVGRLTFIRVYSGTLTSGSYVYNTTKGRKERVARLLRMHANHREEVEELKAGDLGAVVGLKETITGDTLVGEDAPRVILESIEVPEPVIDVAIEPKTKADQEKLSQALARLAEEDPTFRVSTHPETGQTIISGMGELHLEIIVDRLKREFKVDANVGKPQVAYRETITKPVDVEGKFIRQTGGRGQYGHVKIKVEPLPRGSGFEFVNAIVGGVIPKEYIPAVQKGIEEAMQSGPLIGFPVVDIKVTLYDGSYHEVDSSEMAFKIAGSMAIKEAVQKGDPVILEPIMRVEVTTPEEYMGDVIGDLNARRGQILGMEPRGNAQVIRAFVPLAEMFGYATDLRSKTQGRGSFVMFFDHYQEVPKQVQEKLIKGQ

Entity 2 polymer

description	ELONGATION FACTOR G
formula_weight	3081.8 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 3 polymer

description	ELONGATION FACTOR G
formula_weight	2401.0 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

XXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 4 non-polymer

description	GUANOSINE-5'-DIPHOSPHATE
formula_weight	443.2 kDa
src_method	syn
entity_count	1

▶

6. Citations (2)

▶

length_a	77.269 Å
length_b	115.447 Å
length_c	106.224 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	2.700 Å
resolution_low	10.000 Å
r_factor	0.2670
r_work	0.2670
r_free	0.3960

fit	/app/data/saxs_computation/ef/1efg/1efg.fit
pddf	/app/data/pr_computation/ef/1efg/1efg.pr.out
profile	/app/data/saxs_computation/ef/1efg/1efg.dat
