1jqs

Fitting of L11 protein and elongation factor G (domain G' and V) in the cryo-em map of E. coli 70S ribosome bound with EF-G and GMPPCP, a nonhydrolysable GTP analog

Method: ELECTRON MICROSCOPY Dmax: 89.3 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

50S Ribosomal protein L11

OrganismNot specified

UniProt P29395

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain A； UniProt 1–139 Not recorded Elongation Factor G × 1 （P13551） Elongation Factor G × 1 （P13551） ELECTRON MICROSCOPY mmCIF provides none of the parsed experimental conditions Resolution 18.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1JQS Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1EG0 FITTING OF COMPONENTS WITH KNOWN STRUCTURE INTO AN 11.5 A CRYO-EM MAP OF THE E.COLI 70S RIBOSOME Deposited 2000-02-11 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 11 PDB declaration: pentadecameric
Chain K 1–140（140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；20 mM Hepes, 6 mM Mg(CH3COO)2 150 mM NH4Cl, 4 mM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 11.50 Å
1JQM Fitting of L11 protein and elongation factor G (EF-G) in the cryo-em map of e. coli 70S ribosome bound with EF-G, GDP and fusidic acid Deposited 2001-08-07 Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–139（139 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
Resolution 18.00 Å
1JQT Fitting of L11 protein in the low resolution cryo-EM map of E.coli 70S ribosome Deposited 2001-08-07 Different oligomeric state Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–139（139 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 18.00 Å
1MMS Crystal structure of the ribosomal PROTEIN L11-RNA complex Deposited 1999-04-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric
Chain A 1–140（140 aa）
Not recorded CD CADMIUM ION × 5 MG MAGNESIUM ION × 10 MMC METHYL MERCURY ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；277 K；25% GLYCEROL, 15% PEG 4000, 50 MM TRIS PH 7.5, 50 MM MGCL2, 20 MM CDCL2, 0.2 M KCL, 1 MM DITHIOTHREITOL, 4 DEGREES C, pH 8.3, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.57 Å R-free 0.254
1MMS Crystal structure of the ribosomal PROTEIN L11-RNA complex Deposited 1999-04-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric
Chain B 1–140（140 aa）
Not recorded CD CADMIUM ION × 3 MG MAGNESIUM ION × 9 MMC METHYL MERCURY ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；277 K；25% GLYCEROL, 15% PEG 4000, 50 MM TRIS PH 7.5, 50 MM MGCL2, 20 MM CDCL2, 0.2 M KCL, 1 MM DITHIOTHREITOL, 4 DEGREES C, pH 8.3, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.57 Å R-free 0.254
1MVR Decoding Center & Peptidyl transferase center from the X-ray structure of the Thermus thermophilus 70S ribosome, aligned to the low resolution Cryo-EM map of E.coli 70S Ribosome Deposited 2002-09-26 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: octameric
Chain L 1–140（140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer polymix buffer；pH 7.5；polymix buffer
cryo-EM vitrification conditions Cryogen ETHANE；Rapid-freezing in liquid ethane
Resolution 12.80 Å
1OLN Model for thiostrepton antibiotic binding to L11 substrate from 50S ribosomal RNA Deposited 2003-08-08 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric
Chain A 2–141（140 aa）
Not recorded No recorded non-water small molecule Experimental method not declared
NMR measurement conditions pH 6.2；303 K；Ionic strength (raw mmCIF value) 100 MM NACL, 5 MM MGCL2；Pressure 1
Resolution not provided
1PN7 Coordinates of S12, L11 proteins and P-tRNA, from the 70S X-ray structure aligned to the 70S Cryo-EM map of E.coli ribosome Deposited 2003-06-12 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric
Chain L 7–139（133 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Rapid-freezing in liquid ethane
Resolution 10.80 Å
1PN8 Coordinates of S12, L11 proteins and E-site tRNA from 70S crystal structure separately fitted into the Cryo-EM map of E.coli 70S.EF-G.GDPNP complex. The atomic coordinates originally from the E-site tRNA were fitted in the position of the hybrid P/E-site tRNA. Deposited 2003-06-12 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric
Chain L 7–139（133 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Rapid-freezing in liquid ethane
Resolution 10.80 Å
1R2W Coordinates of L11 with 58nts of 23S rRNA fitted into the cryo-EM map of the 70S ribosome Deposited 2003-09-30 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric
Chain A 1–140（140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer Polymix buffer；pH 7.5；Polymix buffer
cryo-EM vitrification conditions Cryogen ETHANE；Rapid freezing in liquid ethane
Resolution 9.00 Å
1R2X Coordinates of L11 with 58nts of 23S rRNA fitted into the cryo-EM map of EF-Tu ternary complex (GDP.Kirromycin) bound 70S ribosome Deposited 2003-09-30 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric
Chain A 1–140（140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer Polymix buffer；pH 7.5；Polymix buffer
cryo-EM vitrification conditions Cryogen ETHANE；Rapid freezing in liquid ethane
Resolution 9.00 Å
2BCW Coordinates of the N-terminal domain of ribosomal protein L11,C-terminal domain of ribosomal protein L7/L12 and a portion of the G' domain of elongation factor G, as fitted into cryo-em map of an Escherichia coli 70S*EF-G*GDP*fusidic acid complex Deposited 2005-10-19 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 7–71（65 aa） Fragment：N-terminal domain
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20mM HEPES-KOH (pH 7.5), 6mM MgCl2, and 150 mM NH4Cl, 2mM spermidine, 0.4 mM spermine；pH 7.5；20mM HEPES-KOH (pH 7.5), 6mM MgCl2, and 150 mM NH4Cl, 2mM spermidine, 0.4 mM spermine
cryo-EM vitrification conditions RAPID-FREEZING IN LIQUID ETHANE
Resolution 11.20 Å
2JQ7 Model for thiostrepton binding to the ribosomal L11-RNA Deposited 2007-05-30 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric
Chain A 1–141（141 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.1；298 K；Ionic strength (raw mmCIF value) 220；Pressure 1
NMR sample composition 0.3 MM [U-13C, U-15N U-2H] RIBOSOMAL PROTEIN L11, 0.3 MM RIBOSOMAL RNA, 0.3 MM THIOSTREPTON ANTIBIOTIC, 20 MM POTASSIUM PHOSPHATE, 200 MM POTASSIUM CHLORIDE, 95% H2O/5% D2O | 95% H2O/5% D2O
Resolution not provided
2K3F Ribosomal protein L11 from Thermotoga maritima Deposited 2008-05-06 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–141（141 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.1；298 K；Ionic strength (raw mmCIF value) 70；Pressure ambient
NMR sample composition 1.2 mM [U-100% 15N] L11, 20 mM potassium phosphate, 50 mM potassium chloride, 10 % [U-100% 2H] D2O, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
487D SEVEN RIBOSOMAL PROTEINS FITTED TO A CRYO-ELECTRON MICROSCOPIC MAP OF THE LARGE 50S SUBUNIT AT 7.5 ANGSTROMS RESOLUTION Deposited 2000-02-23 Different construct Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain L 8–140（133 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 7.50 Å
4V42 Crystal structure of the ribosome at 5.5 A resolution. Deposited 2001-03-30 Different construct Different oligomeric state Different experimental method Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 42 PDB declaration: 49-meric
Chain BL 1–141（141 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 5.50 Å

15 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RL11_THEMA
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–139； UniProt 1–139

Elongation Factor G

OrganismNot specified

UniProt P13551

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain B； UniProt 220–251 Chain C； UniProt 606–673 Fragment：;part of domain G' ; Fragment：domain V 50S Ribosomal protein L11 × 1 （P29395） ELECTRON MICROSCOPY mmCIF provides none of the parsed experimental conditions Resolution 18.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1JQS Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1EFG THE CRYSTAL STRUCTURE OF ELONGATION FACTOR G COMPLEXED WITH GDP, AT 2.7 ANGSTROMS RESOLUTION Deposited 1994-10-17 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–691（691 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.8；277 K；pH 7.8, temperature 277K
Resolution 2.70 Å R-free 0.396
1FNM STRUCTURE OF THERMUS THERMOPHILUS EF-G H573A Deposited 2000-08-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–691（691 aa）
Mutation：H573A MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；PEG 8000 (Fluka), guanosine 5'-diphophate, magnesium chloride , pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 2.80 Å R-free 0.295
1JQM Fitting of L11 protein and elongation factor G (EF-G) in the cryo-em map of e. coli 70S ribosome bound with EF-G, GDP and fusidic acid Deposited 2001-08-07 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–691（691 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
Resolution 18.00 Å
1KTV Crystal Structure of Elongation Factor G Dimer Without Nucleotide Deposited 2002-01-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–691（691 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；PEG 8000, HEPES, Tris, Dithiothreitol, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.80 Å R-free 0.374
1KTV Crystal Structure of Elongation Factor G Dimer Without Nucleotide Deposited 2002-01-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–691（691 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；PEG 8000, HEPES, Tris, Dithiothreitol, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.80 Å R-free 0.374
1PN6 Domain-wise fitting of the crystal structure of T.thermophilus EF-G into the low resolution map of the release complex.Puromycin.EFG.GDPNP of E.coli 70S ribosome. Deposited 2003-06-12 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–691（691 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Rapid-freezing in liquid ethane
Resolution 10.80 Å
2BCW Coordinates of the N-terminal domain of ribosomal protein L11,C-terminal domain of ribosomal protein L7/L12 and a portion of the G' domain of elongation factor G, as fitted into cryo-em map of an Escherichia coli 70S*EF-G*GDP*fusidic acid complex Deposited 2005-10-19 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 200–257（58 aa） Fragment：;A portion of G' domain' ;
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20mM HEPES-KOH (pH 7.5), 6mM MgCl2, and 150 mM NH4Cl, 2mM spermidine, 0.4 mM spermine；pH 7.5；20mM HEPES-KOH (pH 7.5), 6mM MgCl2, and 150 mM NH4Cl, 2mM spermidine, 0.4 mM spermine
cryo-EM vitrification conditions RAPID-FREEZING IN LIQUID ETHANE
Resolution 11.20 Å
2BM0 Ribosomal elongation factor G (EF-G) Fusidic acid resistant mutant T84A Deposited 2005-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–691（691 aa）
Mutation：YES GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；17% PEG 8000 100 MM HEPES 46 MM TRIS-HCL PH 7.3
Resolution 2.40 Å R-free 0.274
2BM1 Ribosomal elongation factor G (EF-G) Fusidic acid resistant mutant G16V Deposited 2005-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–691（691 aa）
Mutation：YES GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；17 % PEG8000 100 MM HEPES 46 MM TRIS-HCL PH 7.3 10 MM MAGNESIUM CHLORIDE
Resolution 2.60 Å R-free 0.297
2BV3 Crystal structure of a mutant elongation factor G trapped with a GTP analogue Deposited 2005-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–691（691 aa）
Mutation：YES GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；17 % PEG8000, 10 MM MGCL2, 100 MM GDPNP, 46 MM TRIS, 100 MM HEPES, pH 7.30
Resolution 2.50 Å R-free 0.270
2EFG TRANSLATIONAL ELONGATION FACTOR G COMPLEXED WITH GDP Deposited 1998-09-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–691（691 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；18% W/V PEG8000, 20MM TRIS-HCL, 20MM AMMONIUM ACETATE, 2MM DTT, 1MM SODIUM AZIDE, 1MM GDP, pH 7.8, VAPOR DIFFUSION, HANGING DROP
Resolution 2.60 Å R-free 0.279
2J7K Crystal structure of the T84A mutant EF-G:GDPCP complex Deposited 2006-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–691（691 aa）
Mutation：YES GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.3；17 % PEG8000 100 MM HEPES 46 MM TRIS 10 MM MGCL2 10 MM GDPCP, pH 7.3
Resolution 2.90 Å R-free 0.288
2OM7 Structural Basis for Interaction of the Ribosome with the Switch Regions of GTP-bound Elongation Factors Deposited 2007-01-21 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: tetradecameric
Chain L 1–691（691 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 0.3 mM GMPPNP, 10 mM Hepes-KOH (pH 7.8), 10 mM Mg acetate, 60 mM NH4Cl, and 6 mM B-mercaptoethanol；pH 7.8；0.3 mM GMPPNP, 10 mM Hepes-KOH (pH 7.8), 10 mM Mg acetate, 60 mM NH4Cl, and 6 mM B-mercaptoethanol
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.30 Å
3IZP Conformation of EF-G during translocation Deposited 2010-11-15 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 1–688（688 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5 mM potassium phosphate, 5 mM magnesium acetate, 5 mM ammonium chloride, 95 mM potassium chloride, 0.5 mM calcium chloride, 8 mM putrescine, 1 mM spermidine, and 1 mM dithioerythritol
cryo-EM vitrification conditions two-face blotting for 1 second；90 K；Cryogen ETHANE
Resolution not provided
4M1K Crystal structure of elongation factor G (EFG) Deposited 2013-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–691（691 aa）
Mutation：Q500L MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；5mM Tris-HCl (pH 7.6), 10mM MgCl2, 5mM GDP, 20-23% PEG8000, 0.1M Tris-Cl PH7.5-7.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.95 Å R-free 0.292
4MYT Crystal structure of elongation factor G (EFG) Deposited 2013-09-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–691（691 aa）
Mutation：E579A MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；5 mM Tris-HCl (pH 7.6), 10mM MgCl2, 5mM GDP, 20-23% PEG 8000, 0.1M Tris-Cl (PH 7.5-7.6), VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 3.50 Å R-free 0.308
4MYU Crystal structure of elongation factor G mutant(EFG) Deposited 2013-09-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–691（691 aa）
Mutation：H573K MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；5mM Tris-HCl (pH 7.6), 10mM MgCl2, 5mM GDP, 20-23% PEG 8000, 0.1M Tris-Cl (PH 7.5-7.6), VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 3.00 Å R-free 0.271

16 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name EFG_THETH
Isoform —
PDB entities 2, 3
Chains and sequence ranges Author chain B； PDBConstruct 1–32； UniProt 220–251 Author chain C； PDBConstruct 1–68； UniProt 606–673

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

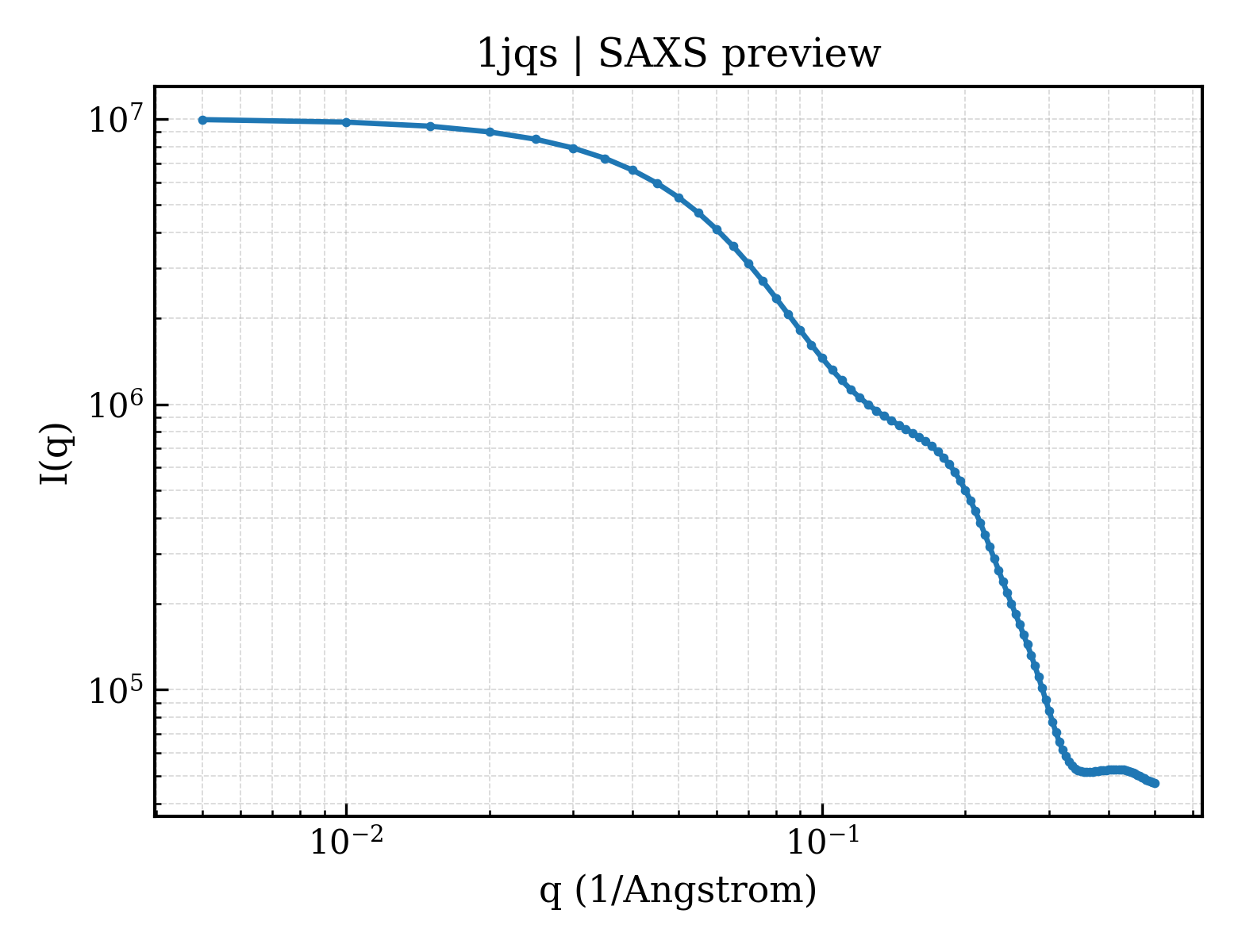

SAXS scattering curve SAXS Profile

SAXS profile for 1jqs

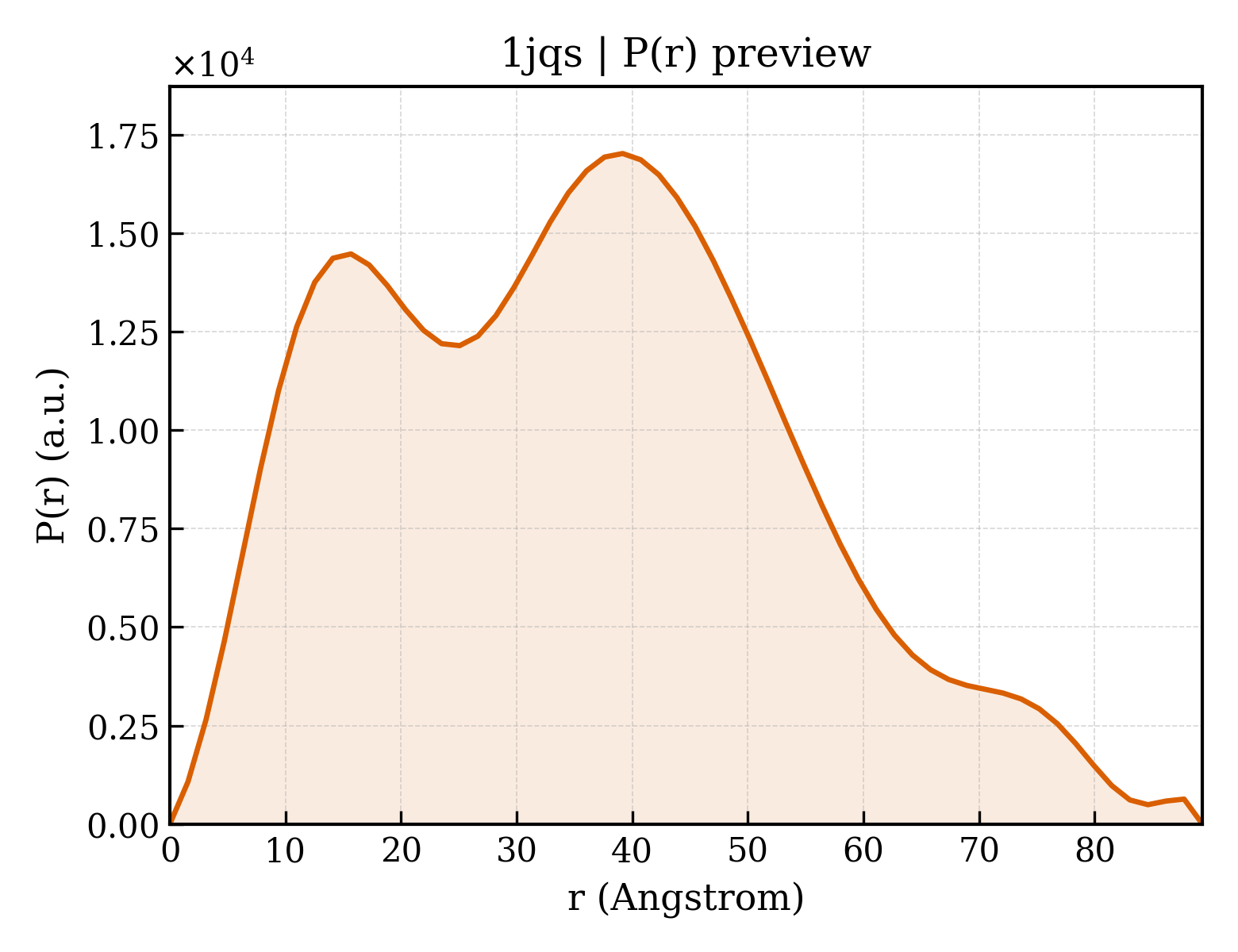

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1jqs
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1jqs
Deposition date deposition_date2001-08-07
Structure title titleFitting of L11 protein and elongation factor G (domain G' and V) in the cryo-em map of E. coli 70S ribosome bound with EF-G and GMPPCP, a nonhydrolysable GTP analog
Keywords keywordsL11, EF-G, cryo-EM, 70S E.coli ribosome, GTP state, RIBOSOME; RIBOSOME
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier27.94 Å
Radius of gyration Rg (electron density) rg_electron27.79 Å
Forward intensity I(0) i010000500.00
Molecular weight molecular_weight25500.0 kDa
Excluded volume excluded_volume31514 ų
Envelope volume envelope_volume27351 ų
Hydration-shell volume shell_volume10463 ų
Envelope diameter envelope_diameter91.0 Å
Shell Rg shell_rg27.84 Å
Envelope Rg envelope_rg26.12 Å
Shape Rg shape_rg27.66 Å
Total Rg total_rg27.80 Å
Total atoms total_atoms—
Residues n_residues—
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax89.3 Å
Rg (real space) rg_real28.19 Å
Rg uncertainty (real space) rg_real_error0.68 Å
I(0) (real space) i0_real1.0000e+07
I(0) uncertainty (real space) i0_real_error1.3830e+05
Rg (reciprocal space) rg_reciprocal28.12 Å
I(0) (reciprocal space) i0_reciprocal10000000.0000
Solution quality estimate total_estimate0.8037
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks3
Primary peak position r_peak_primary39.2 Å
Skewness Skewness skewness0.326
Kurtosis Kurtosis kurtosis-0.486
Angular range angular_range— – 0.2850 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha400300.0000
Real-space data points n_real_points58
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.650; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.646; Smooth: 0.854
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (3 domains)

Domain ID domain_idd1jqsa_
Class classi — Low resolution protein structures
Fold Fold foldi.1 — Ribosome and ribosomal fragments
Superfamily Superfamily superfamilyi.1.1 — Ribosome and ribosomal fragments
Family Family familyi.1.1.1 — Ribosome complexes
Domain ID domain_idd1jqsb_
Class classi — Low resolution protein structures
Fold Fold foldi.1 — Ribosome and ribosomal fragments
Superfamily Superfamily superfamilyi.1.1 — Ribosome and ribosomal fragments
Family Family familyi.1.1.1 — Ribosome complexes
Domain ID domain_idd1jqsc_
Class classi — Low resolution protein structures
Fold Fold foldi.1 — Ribosome and ribosomal fragments
Superfamily Superfamily superfamilyi.1.1 — Ribosome and ribosomal fragments
Family Family familyi.1.1.1 — Ribosome complexes
▶

8. Citations (6)

▶

9. Files and Curves (10)
