1ege

STRUCTURE OF T255E, E376G MUTANT OF HUMAN MEDIUM CHAIN ACYL-COA DEHYDROGENASE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MEDIUM CHAIN ACYL-COA DEHYDROGENASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	FLAVIN-ADENINE DINUCLEOTIDE × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACADM_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–396； UniProt 26–421 Author chain B； PDBConstruct 1–396； UniProt 26–421 Author chain C； PDBConstruct 1–396； UniProt 26–421 Author chain D； PDBConstruct 1–396； UniProt 26–421

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ege
Deposition date deposition_date	1996-04-11
Structure title title	STRUCTURE OF T255E, E376G MUTANT OF HUMAN MEDIUM CHAIN ACYL-COA DEHYDROGENASE
Keywords keywords	ACYL-COA DEHYDROGENASE, FLAVOPROTEIN, ELECTRON TRANSFER; ELECTRON TRANSFER
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ege__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ege__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

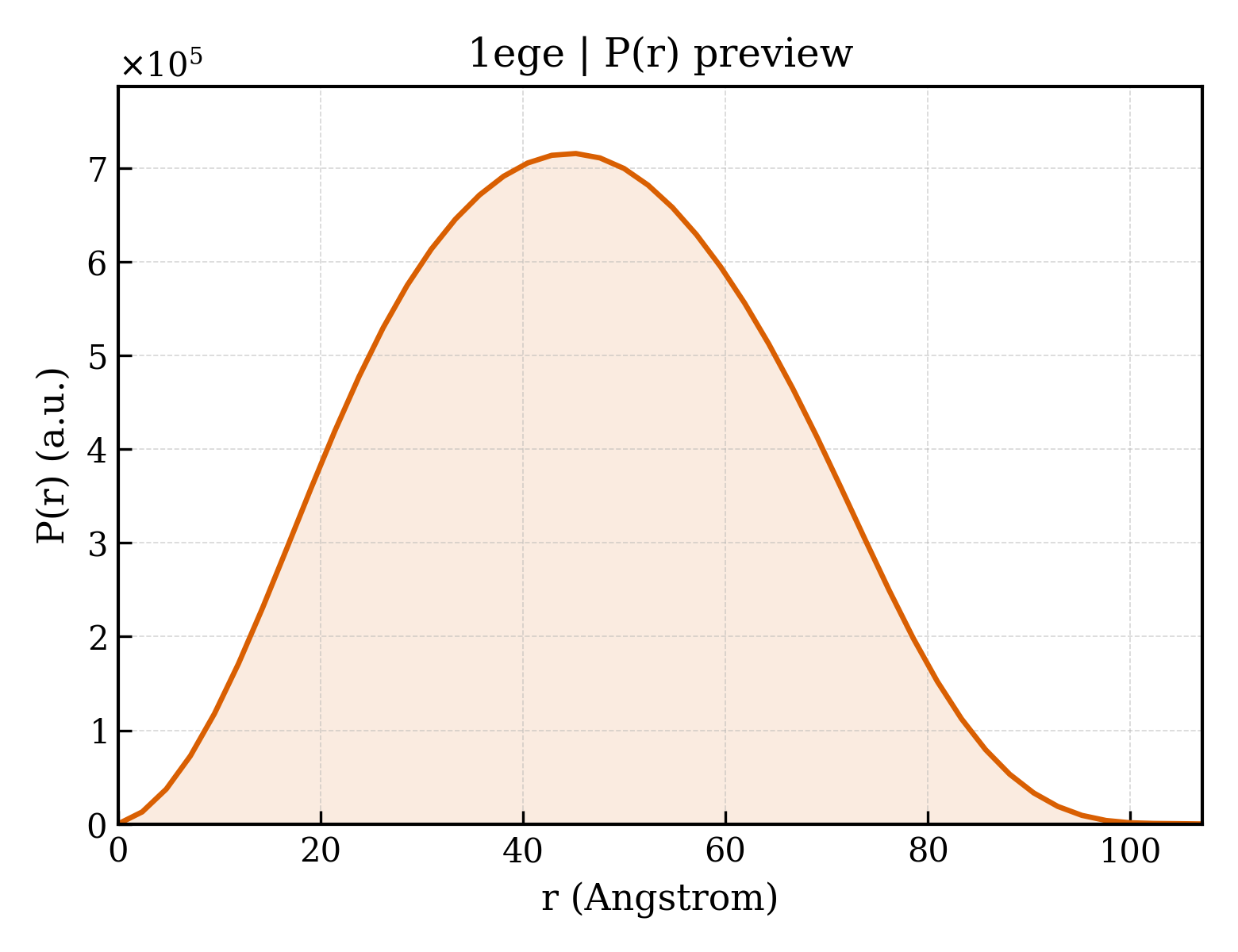

1ege__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.08 Å
Rg (electron density)	34.42 Å
Total Rg	34.91 Å
Atom count	12184
Residues	1548
Excluded volume	216550 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ege__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1egea1
Class class	a — All alpha proteins
Fold Fold fold	a.29 — Bromodomain-like
Superfamily Superfamily superfamily	a.29.3 — Acyl-CoA dehydrogenase C-terminal domain-like
Family Family family	a.29.3.1 — Medium chain acyl-CoA dehydrogenase-like, C-terminal domain

Domain ID domain_id	d1egea2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.6 — Acyl-CoA dehydrogenase NM domain-like
Superfamily Superfamily superfamily	e.6.1 — Acyl-CoA dehydrogenase NM domain-like
Family Family family	e.6.1.1 — Medium chain acyl-CoA dehydrogenase, NM (N-terminal and middle) domains

Domain ID domain_id	d1egeb1
Class class	a — All alpha proteins
Fold Fold fold	a.29 — Bromodomain-like
Superfamily Superfamily superfamily	a.29.3 — Acyl-CoA dehydrogenase C-terminal domain-like
Family Family family	a.29.3.1 — Medium chain acyl-CoA dehydrogenase-like, C-terminal domain

Domain ID domain_id	d1egeb2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.6 — Acyl-CoA dehydrogenase NM domain-like
Superfamily Superfamily superfamily	e.6.1 — Acyl-CoA dehydrogenase NM domain-like
Family Family family	e.6.1.1 — Medium chain acyl-CoA dehydrogenase, NM (N-terminal and middle) domains

Domain ID domain_id	d1egec1
Class class	a — All alpha proteins
Fold Fold fold	a.29 — Bromodomain-like
Superfamily Superfamily superfamily	a.29.3 — Acyl-CoA dehydrogenase C-terminal domain-like
Family Family family	a.29.3.1 — Medium chain acyl-CoA dehydrogenase-like, C-terminal domain

Domain ID domain_id	d1egec2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.6 — Acyl-CoA dehydrogenase NM domain-like
Superfamily Superfamily superfamily	e.6.1 — Acyl-CoA dehydrogenase NM domain-like
Family Family family	e.6.1.1 — Medium chain acyl-CoA dehydrogenase, NM (N-terminal and middle) domains

Domain ID domain_id	d1eged1
Class class	a — All alpha proteins
Fold Fold fold	a.29 — Bromodomain-like
Superfamily Superfamily superfamily	a.29.3 — Acyl-CoA dehydrogenase C-terminal domain-like
Family Family family	a.29.3.1 — Medium chain acyl-CoA dehydrogenase-like, C-terminal domain

Domain ID domain_id	d1eged2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.6 — Acyl-CoA dehydrogenase NM domain-like
Superfamily Superfamily superfamily	e.6.1 — Acyl-CoA dehydrogenase NM domain-like
Family Family family	e.6.1.1 — Medium chain acyl-CoA dehydrogenase, NM (N-terminal and middle) domains

CATH v4.4 (12 domains)

Domain ID domain_id	1egeA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	540 — Butyryl-Coa Dehydrogenase, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acyl-CoA dehydrogenase/oxidase, N-terminal domain

Domain ID domain_id	1egeA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	110 — Butyryl-CoA Dehydrogenase, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 2

Domain ID domain_id	1egeA03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

Domain ID domain_id	1egeB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	540 — Butyryl-Coa Dehydrogenase, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acyl-CoA dehydrogenase/oxidase, N-terminal domain

Domain ID domain_id	1egeB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	110 — Butyryl-CoA Dehydrogenase, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 2

Domain ID domain_id	1egeB03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

Domain ID domain_id	1egeC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	540 — Butyryl-Coa Dehydrogenase, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acyl-CoA dehydrogenase/oxidase, N-terminal domain

Domain ID domain_id	1egeC02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	110 — Butyryl-CoA Dehydrogenase, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 2

Domain ID domain_id	1egeC03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

Domain ID domain_id	1egeD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	540 — Butyryl-Coa Dehydrogenase, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acyl-CoA dehydrogenase/oxidase, N-terminal domain

Domain ID domain_id	1egeD02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	110 — Butyryl-CoA Dehydrogenase, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 2

Domain ID domain_id	1egeD03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

▶

Unit-cell length a length_a	169.590 Å
Unit-cell length b length_b	169.590 Å
Unit-cell length c length_c	151.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.750 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2210
R_work r_work	0.2210
R_free r_free	—

Description description	MEDIUM CHAIN ACYL-COA DEHYDROGENASE
Molecular weight formula_weight	43695.8 kDa
EC 编号 ec_number	1.3.99.3
Source method src_method	nat
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	12184

STRUCTURE OF T255E, E376G MUTANT OF HUMAN MEDIUM CHAIN ACYL-COA DEHYDROGENASE

1. Protein Identity and Related Structures Protein Identity & Related Structures

MEDIUM CHAIN ACYL-COA DEHYDROGENASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1ege__assembly_1__model_1

1ege__assembly_1__model_1 | I(q)

1ege__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

6. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (8 domains)

CATH v4.4 (12 domains)

7. Citations (1)

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	4
