1egg
STRUCTURE OF A C-TYPE CARBOHYDRATE-RECOGNITION DOMAIN (CRD-4) FROM THE MACROPHAGE MANNOSE RECEPTOR
SAXS Profile

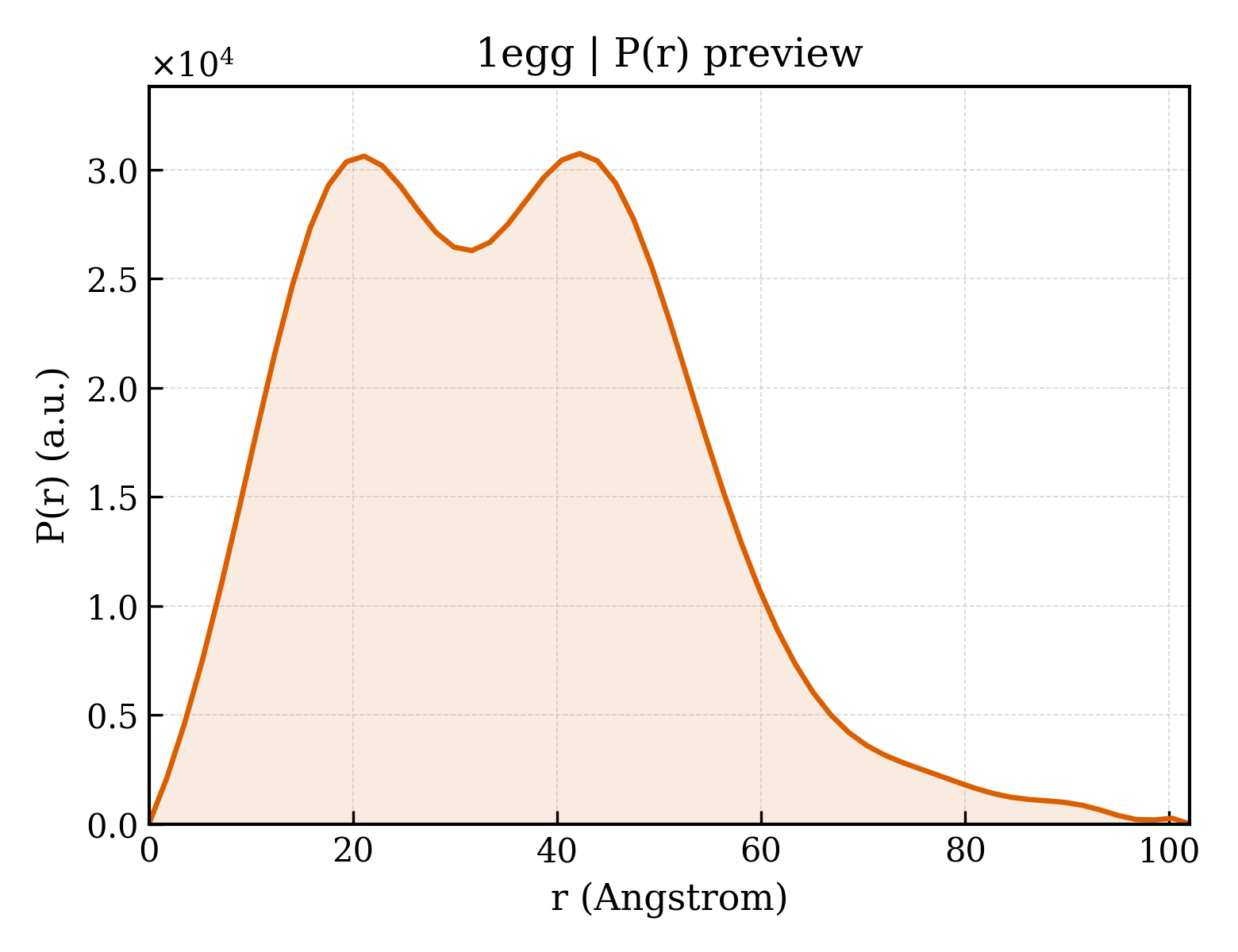

P(r) Distribution
1. Structure Basics
| entry_id | 1egg |
| deposition_date | 2000-02-15 |
| title | STRUCTURE OF A C-TYPE CARBOHYDRATE-RECOGNITION DOMAIN (CRD-4) FROM THE MACROPHAGE MANNOSE RECEPTOR |
| keywords | C-type lectin, mannose receptor, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.38 Å |
| rg_electron | 27.04 Å |
| i0 | 18416600.00 |
| molecular_weight | 31798.0 kDa |
| excluded_volume | 39263 ų |
| envelope_volume | 58087 ų |
| shell_volume | 19067 ų |
| envelope_diameter | 105.1 Å |
| shell_rg | 31.36 Å |
| envelope_rg | 27.91 Å |
| shape_rg | 27.13 Å |
| total_rg | 27.31 Å |
| total_atoms | 2239 |
| n_residues | 276 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 102.0 Å |
| rg_real | 27.62 Å |
| rg_real_error | 1.19 Å |
| i0_real | 1.8420e+07 |
| i0_real_error | 3.1080e+05 |
| rg_reciprocal | 27.54 Å |
| i0_reciprocal | 18420000.0000 |
| total_estimate | 0.7646 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 42.2 Å |
| skewness | 0.454 |
| kurtosis | -0.050 |
| angular_range | — – 0.2900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2499000.0000 |
| n_real_points | 59 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.486; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.564; Smooth: 0.912 |
