1ekf

;CRYSTALLOGRAPHIC STRUCTURE OF HUMAN BRANCHED CHAIN AMINO ACID AMINOTRANSFERASE (MITOCHONDRIAL) COMPLEXED WITH PYRIDOXAL-5'-PHOSPHATE AT 1.95 ANGSTROMS (ORTHORHOMBIC FORM) ;

Method: X-RAY DIFFRACTION D_max: 88.8 Å Quality: EXCELLENT

SAXS Profile

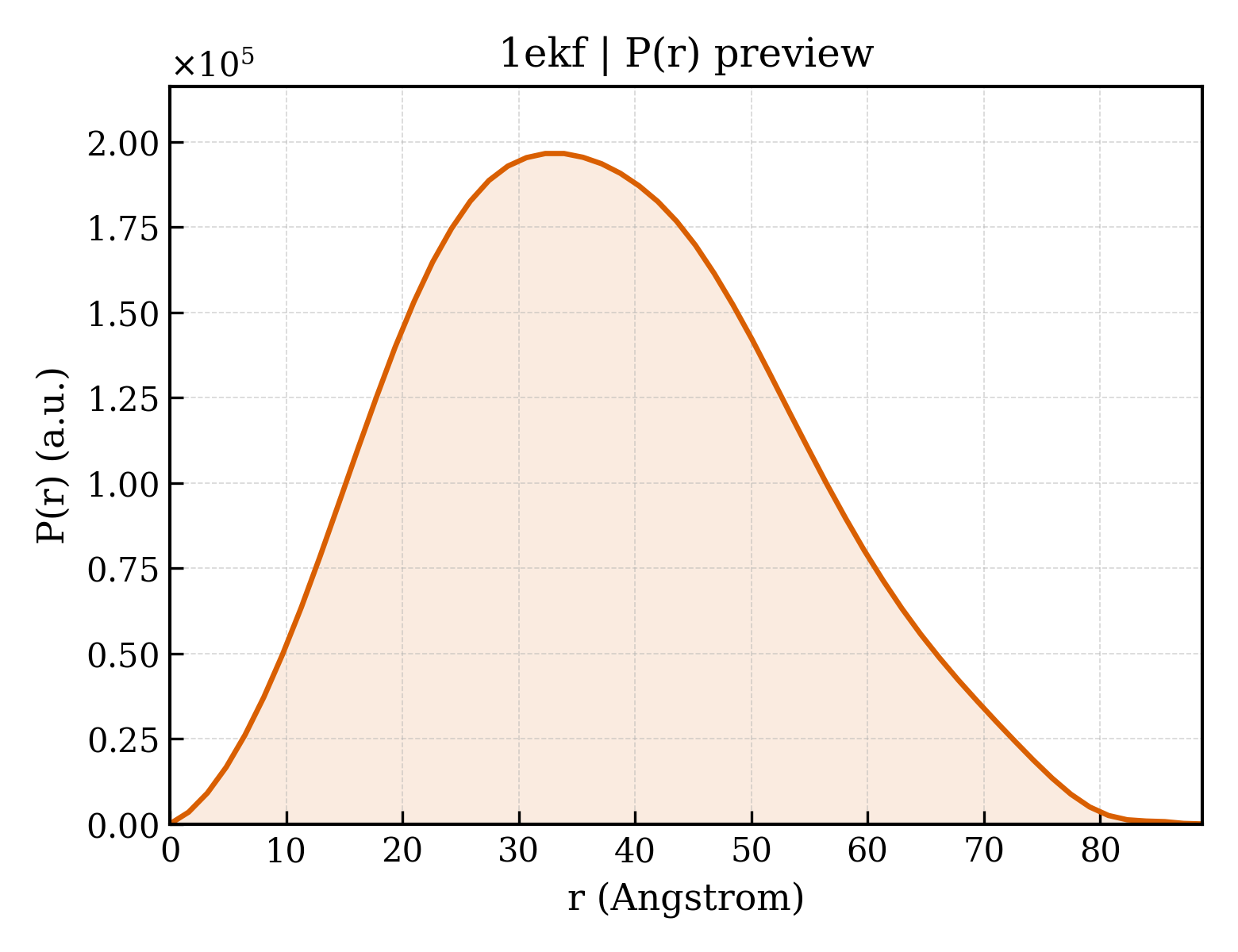

P(r) Distribution

▼

1. Structure Basics

entry_id	1ekf
deposition_date	2000-03-08
title	;CRYSTALLOGRAPHIC STRUCTURE OF HUMAN BRANCHED CHAIN AMINO ACID AMINOTRANSFERASE (MITOCHONDRIAL) COMPLEXED WITH PYRIDOXAL-5'-PHOSPHATE AT 1.95 ANGSTROMS (ORTHORHOMBIC FORM) ;
keywords	fold type IV, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.63 Å
rg_electron	27.52 Å
i0	105578000.00
molecular_weight	83107.0 kDa
excluded_volume	105030 Å³
envelope_volume	123470 Å³
shell_volume	36746 Å³
envelope_diameter	88.6 Å
shell_rg	35.67 Å
envelope_rg	27.58 Å
shape_rg	27.53 Å
total_rg	28.33 Å
total_atoms	5850
n_residues	730
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	88.8 Å
rg_real	28.56 Å
rg_real_error	0.51 Å
i0_real	1.0560e+08
i0_real_error	1.4860e+06
rg_reciprocal	28.59 Å
i0_reciprocal	105600000.0000
total_estimate	0.9063
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	0
r_peak_primary	— Å
skewness	0.243
kurtosis	-0.506
angular_range	— – 0.2750 Å⁻¹
current_alpha	0.0000
highest_alpha	46790000.0000
n_real_points	56
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.945; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.943

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	BRANCHED CHAIN AMINO ACID AMINOTRANSFERASE (MITOCHONDRIAL)
formula_weight	41368.0 kDa
ec_number	2.6.1.42
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	6123

ASSSFKAADLQLEMTQKPHKKPGPGEPLVFGKTFTDHMLMVEWNDKGWGQPRIQPFQNLTLHPASSSLHYSLQLFEGMKAFKGKDQQVRLFRPWLNMDRMLRSAMRLCLPSFDKLELLECIRRLIEVDKDWVPDAAGTSLYVRPVLIGNEPSLGVSQPRRALLFVILCPVGAYFPGGSVTPVSLLADPAFIRAWVGGVGNYKLGGNYGPTVLVQQEALKRGCEQVLWLYGPDHQLTEVGTMNIFVYWTHEDGVLELVTPPLNGVILPGVVRQSLLDMAQTWGEFRVVERTITMKQLLRALEEGRVREVFGSGTACQVCPVHRILYKDRNLHIPTMENGPELILRFQKELKEIQYGIRAHEWMFPV

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	PYRIDOXAL-5'-PHOSPHATE
formula_weight	247.1 kDa
src_method	syn
entity_count	2

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	273

▶

6. Citations (2)

▶

length_a	69.385 Å
length_b	105.032 Å
length_c	107.016 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	1.950 Å
resolution_low	24.290 Å
r_factor	0.2320
r_work	0.2220
r_free	0.2600
