1kt8

;HUMAN BRANCHED CHAIN AMINO ACID AMINOTRANSFERASE (MITOCHONDRIAL): THREE DIMENSIONAL STRUCTURE OF ENZYME IN ITS KETIMINE FORM WITH THE SUBSTRATE L-ISOLEUCINE ;

Method: X-RAY DIFFRACTION D_max: 89.6 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1kt8
沉积日期 deposition_date	2002-01-15
结构标题 title	;HUMAN BRANCHED CHAIN AMINO ACID AMINOTRANSFERASE (MITOCHONDRIAL): THREE DIMENSIONAL STRUCTURE OF ENZYME IN ITS KETIMINE FORM WITH THE SUBSTRATE L-ISOLEUCINE ;
关键词 keywords	FOLD TYPE IV, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.59 Å
回转半径 Rg (电子) rg_electron	27.49 Å
零角强度 I(0) i0	105994000.00
分子量 molecular_weight	83376.0 kDa
排除体积 excluded_volume	105400 Å³
包络体积 envelope_volume	123200 Å³
水化壳体积 shell_volume	36690 Å³
包络直径 envelope_diameter	88.6 Å
壳层 Rg shell_rg	35.68 Å
包络 Rg envelope_rg	27.59 Å
形状 Rg shape_rg	27.49 Å
总 Rg total_rg	28.29 Å
总原子数 total_atoms	5866
残基数 n_residues	725
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

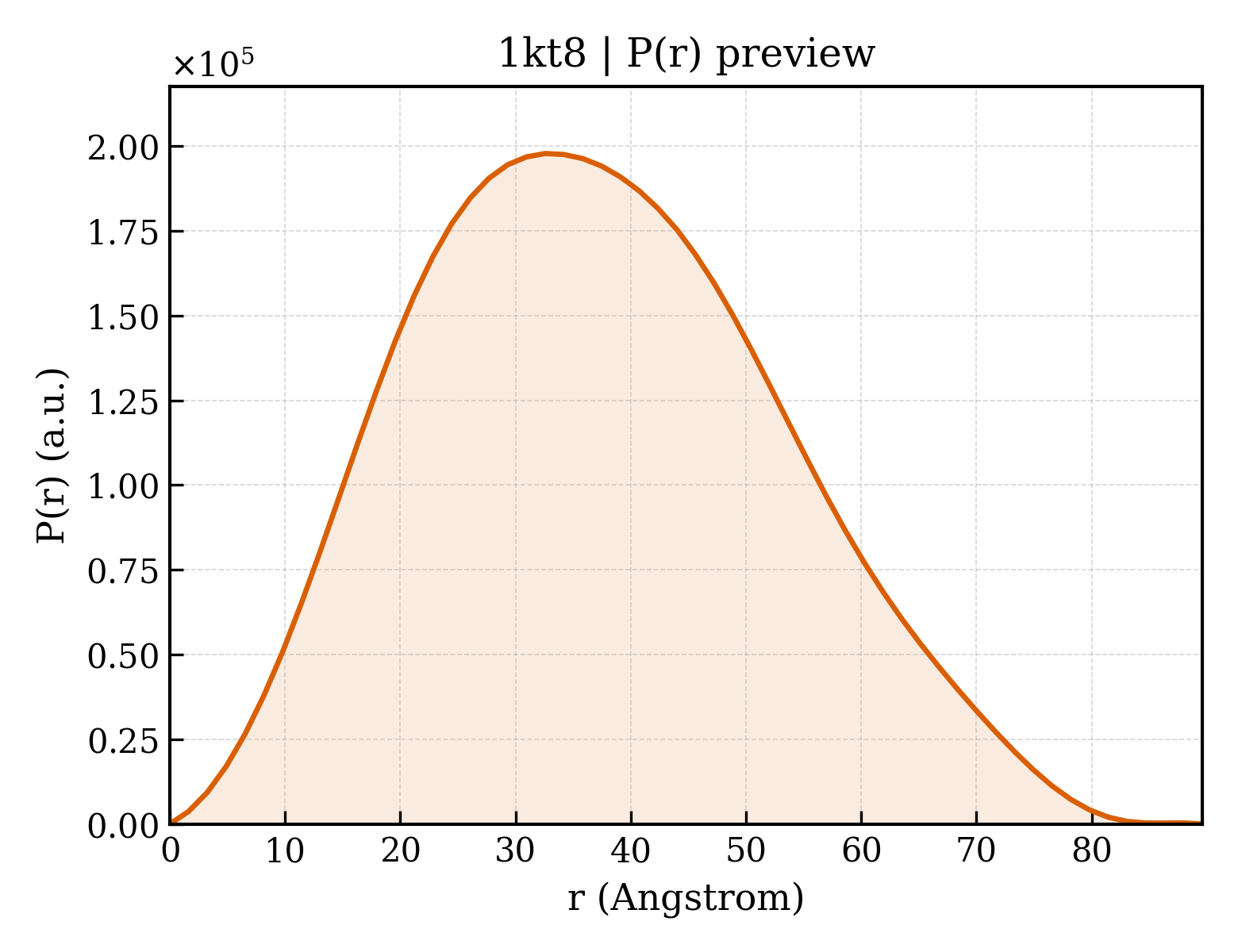

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	89.6 Å
Rg (实空间) rg_real	28.51 Å
Rg 误差 (实空间) rg_real_error	0.40 Å
I(0) (实空间) i0_real	1.0600e+08
I(0) 误差 (实空间) i0_real_error	1.4330e+06
Rg (倒空间) rg_reciprocal	28.55 Å
I(0) (倒空间) i0_reciprocal	106000000.0000
解质量估计 total_estimate	0.9060
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	32.6 Å
偏度 Skewness skewness	0.243
峰度 Kurtosis kurtosis	-0.505
角度范围 angular_range	— – 0.2750 Å⁻¹
当前正则化参数 α current_alpha	0.0003
最高正则化参数 α highest_alpha	46880000.0000
实空间数据点数 n_real_points	56
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.935; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.969

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	BRANCHED-CHAIN AMINO ACID AMINOTRANSFERASE, MITOCHONDRIAL
分子量 formula_weight	41368.0 kDa
EC 编号 ec_number	2.6.1.42
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	6135

ASSSFKAADLQLEMTQKPHKKPGPGEPLVFGKTFTDHMLMVEWNDKGWGQPRIQPFQNLTLHPASSSLHYSLQLFEGMKAFKGKDQQVRLFRPWLNMDRMLRSAMRLCLPSFDKLELLECIRRLIEVDKDWVPDAAGTSLYVRPVLIGNEPSLGVSQPRRALLFVILCPVGAYFPGGSVTPVSLLADPAFIRAWVGGVGNYKLGGNYGPTVLVQQEALKRGCEQVLWLYGPDHQLTEVGTMNIFVYWTHEDGVLELVTPPLNGVILPGVVRQSLLDMAQTWGEFRVVERTITMKQLLRALEEGRVREVFGSGTACQVCPVHRILYKDRNLHIPTMENGPELILRFQKELKEIQYGIRAHEWMFPV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	N-[O-PHOSPHONO-PYRIDOXYL]-ISOLEUCINE
分子量 formula_weight	362.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	ACETIC ACID
分子量 formula_weight	60.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 4 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	221

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1kt8a_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.17 — D-aminoacid aminotransferase-like PLP-dependent enzymes
超家族 Superfamily superfamily	e.17.1 — D-aminoacid aminotransferase-like PLP-dependent enzymes
家族 Family family	e.17.1.1 — D-aminoacid aminotransferase-like PLP-dependent enzymes

结构域编号 domain_id	d1kt8b_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.17 — D-aminoacid aminotransferase-like PLP-dependent enzymes
超家族 Superfamily superfamily	e.17.1 — D-aminoacid aminotransferase-like PLP-dependent enzymes
家族 Family family	e.17.1.1 — D-aminoacid aminotransferase-like PLP-dependent enzymes

CATH v4.4 (4 domains)

结构域编号 domain_id	1kt8A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminotransferase class 4, branched-chain amino acid transferase, N-terminal domain

结构域编号 domain_id	1kt8A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	10 — D-amino Acid Aminotransferase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-amino Acid Aminotransferase, subunit A, domain 2

结构域编号 domain_id	1kt8B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminotransferase class 4, branched-chain amino acid transferase, N-terminal domain

结构域编号 domain_id	1kt8B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	10 — D-amino Acid Aminotransferase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-amino Acid Aminotransferase, subunit A, domain 2

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	69.475 Å
晶胞边长 b length_b	105.457 Å
晶胞边长 c length_c	107.429 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	19.720 Å
R 因子 r_factor	—
R_work r_work	0.2430
R_free r_free	0.2840
