1el8

COMPLEX OF MONOMERIC SARCOSINE OXIDASE WITH THE INHIBITOR [METHYLSELENO]CETATE

Method: X-RAY DIFFRACTION D_max: 105.8 Å Quality: GOOD

SAXS Profile

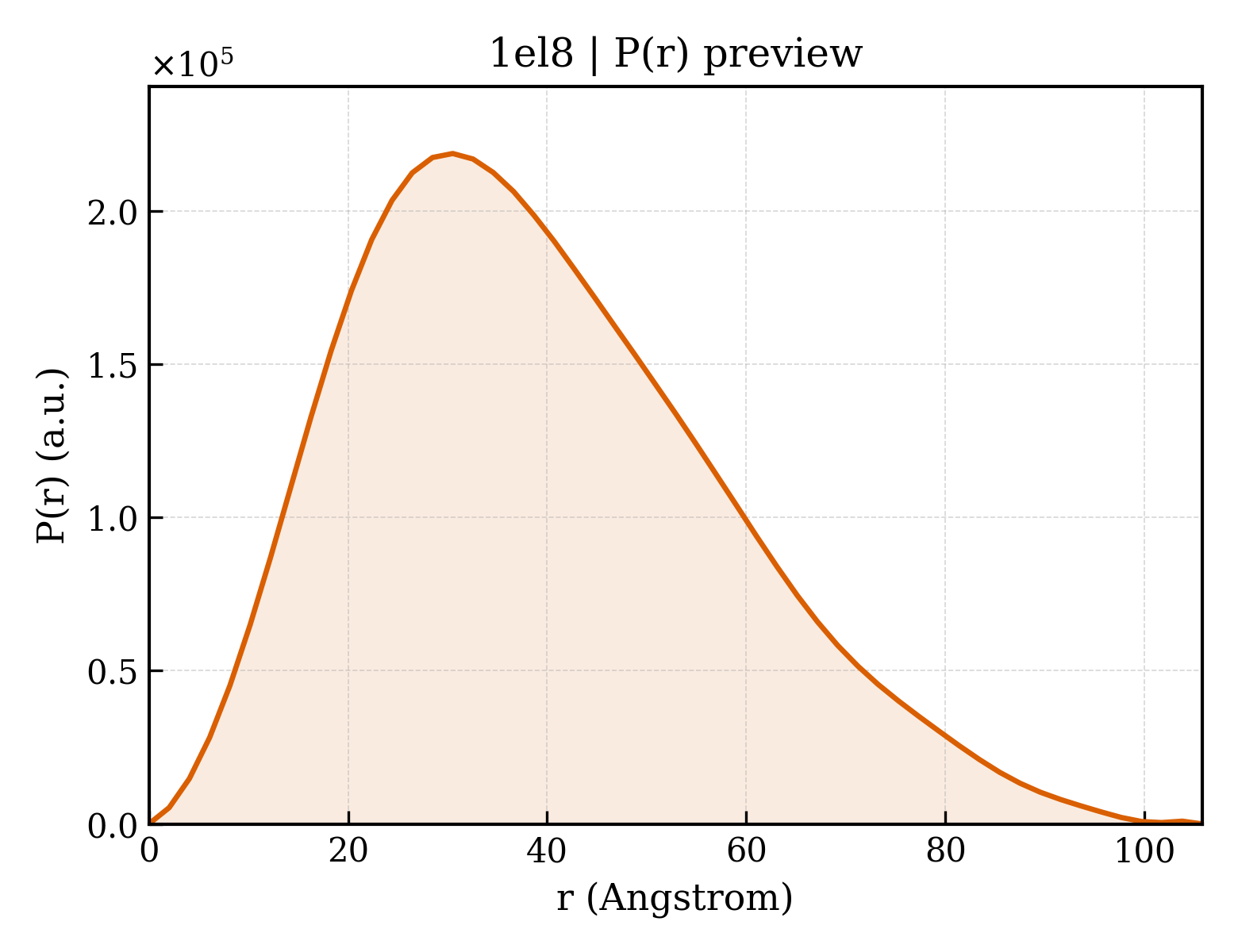

P(r) Distribution

▼

1. Structure Basics

entry_id	1el8
deposition_date	2000-03-13
title	COMPLEX OF MONOMERIC SARCOSINE OXIDASE WITH THE INHIBITOR [METHYLSELENO]CETATE
keywords	flavoprotein, oxidase, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	30.44 Å
rg_electron	29.97 Å
i0	124287000.00
molecular_weight	87375.0 kDa
excluded_volume	108490 Å³
envelope_volume	125860 Å³
shell_volume	36060 Å³
envelope_diameter	112.3 Å
shell_rg	35.94 Å
envelope_rg	29.96 Å
shape_rg	29.95 Å
total_rg	30.54 Å
total_atoms	6151
n_residues	770
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	105.8 Å
rg_real	30.60 Å
rg_real_error	0.84 Å
i0_real	1.2430e+08
i0_real_error	1.8780e+06
rg_reciprocal	30.53 Å
i0_reciprocal	124300000.0000
total_estimate	0.8472
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	30.5 Å
skewness	0.517
kurtosis	-0.191
angular_range	— – 0.2600 Å⁻¹
current_alpha	0.0000
highest_alpha	62520000.0000
n_real_points	53
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.744; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.865; Smooth: 0.911

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	SARCOSINE OXIDASE
formula_weight	43101.4 kDa
ec_number	1.5.3.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	6801

STHFDVIVVGAGSMGMAAGYQLAKQGVKTLLVDAFDPPHTNGSHHGDTRIIRHAYGEGREYVPLALRSQELWYELEKETHHKIFTKTGVLVFGPKGESAFVAETMEAAKEHSLTVDLLEGDEINKRWPGITVPENYNAIFEPNSGVLFSENCIRAYRELAEARGAKVLTHTRVEDFDISPDSVKIETANGSYTADKLIVSMGAWNSKLLSKLNLDIPLQPYRQVVGFFESDESKYSNDIDFPGFMVEVPNGIYYGFPSFGGCGLKLGYHTFGQKIDPDTINREFGVYPEDESNLRAFLEEYMPGANGELKRGAVCMYTKTLDEHFIIDLHPEHSNVVIAAGFSGHGFKFSSGVGEVLSQLALTGKTEHDISIFSINRPALKESLQKTTI

Source

organism	Bacillus sp.
ncbi_taxonomy_id	69000
host_organism	Escherichia coli

Entity 2 non-polymer

description	PHOSPHATE ION
formula_weight	95.0 kDa
src_method	syn
entity_count	3

Entity 3 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	FLAVIN-ADENINE DINUCLEOTIDE
formula_weight	785.5 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	[METHYLSELENO]ACETATE
formula_weight	152.0 kDa
src_method	syn
entity_count	2

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	606

▶

6. Citations (2)

▶

length_a	72.687 Å
length_b	69.333 Å
length_c	73.300 Å
angle_alpha	90.00 °
angle_beta	94.14 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	1.900 Å
resolution_low	500.000 Å
r_factor	0.1930
r_work	0.1930
r_free	0.2290
