Homo sapiens
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | CALCIUM ION × 2 | Consistent with protein count |
| UniProt name | FBN1_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–82； UniProt 2124–2205 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1emo |
| Deposition date deposition_date | 1996-08-05 |
| Structure title title | NMR STUDY OF A PAIR OF FIBRILLIN CA2+ BINDING EPIDERMAL GROWTH FACTOR-LIKE DOMAINS, 22 STRUCTURES |
| Keywords keywords | ;EXTRACELLULAR MATRIX, CALCIUM-BINDING, GLYCOPROTEIN, MULTIGENE FAMILY, DISEASE MUTATION, EGF-LIKE DOMAIN, HUMAN FIBRILLIN-1 FRAGMENT, MATRIX PROTEIN ;; MATRIX PROTEIN |
| Experimental Method method | SOLUTION NMR |

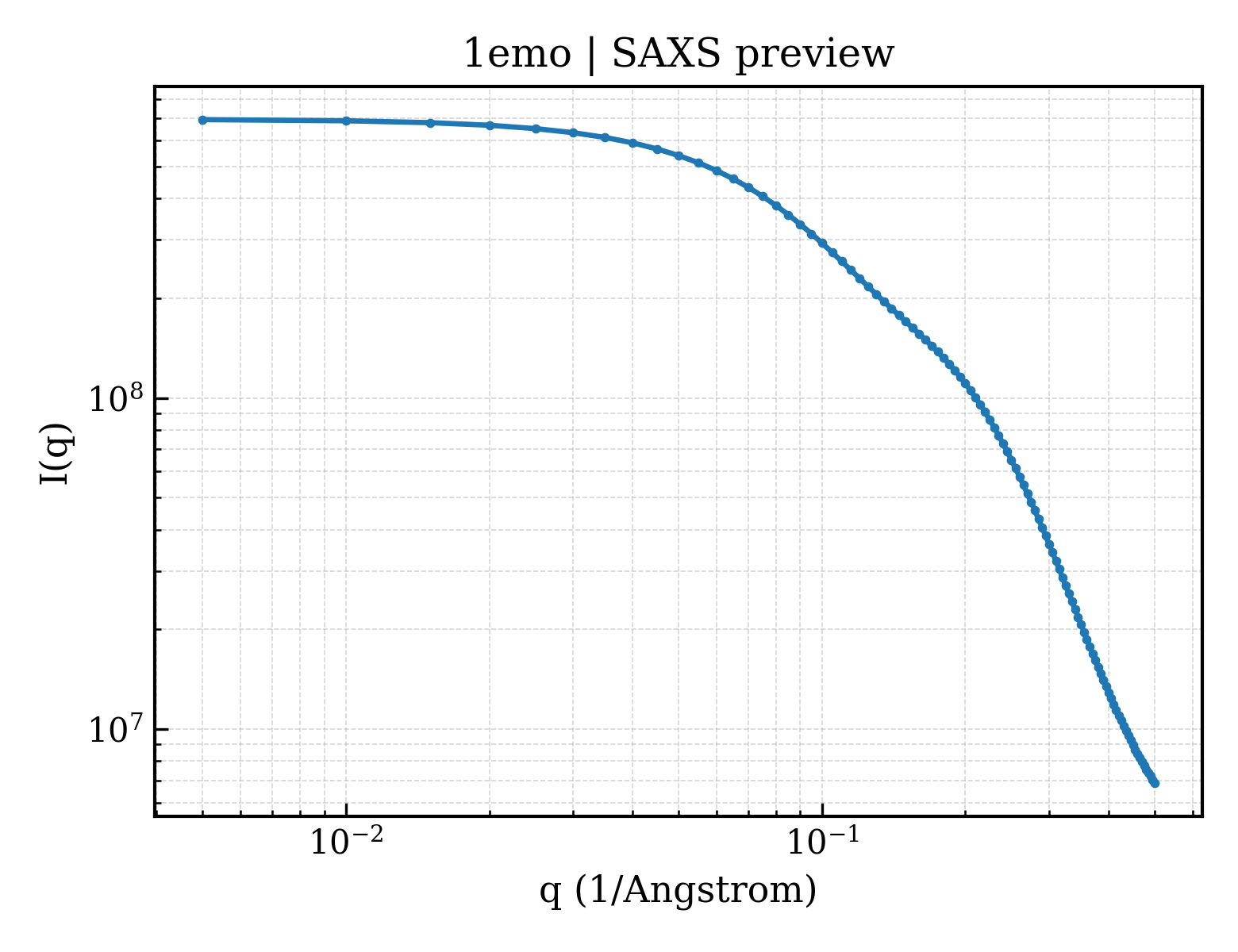

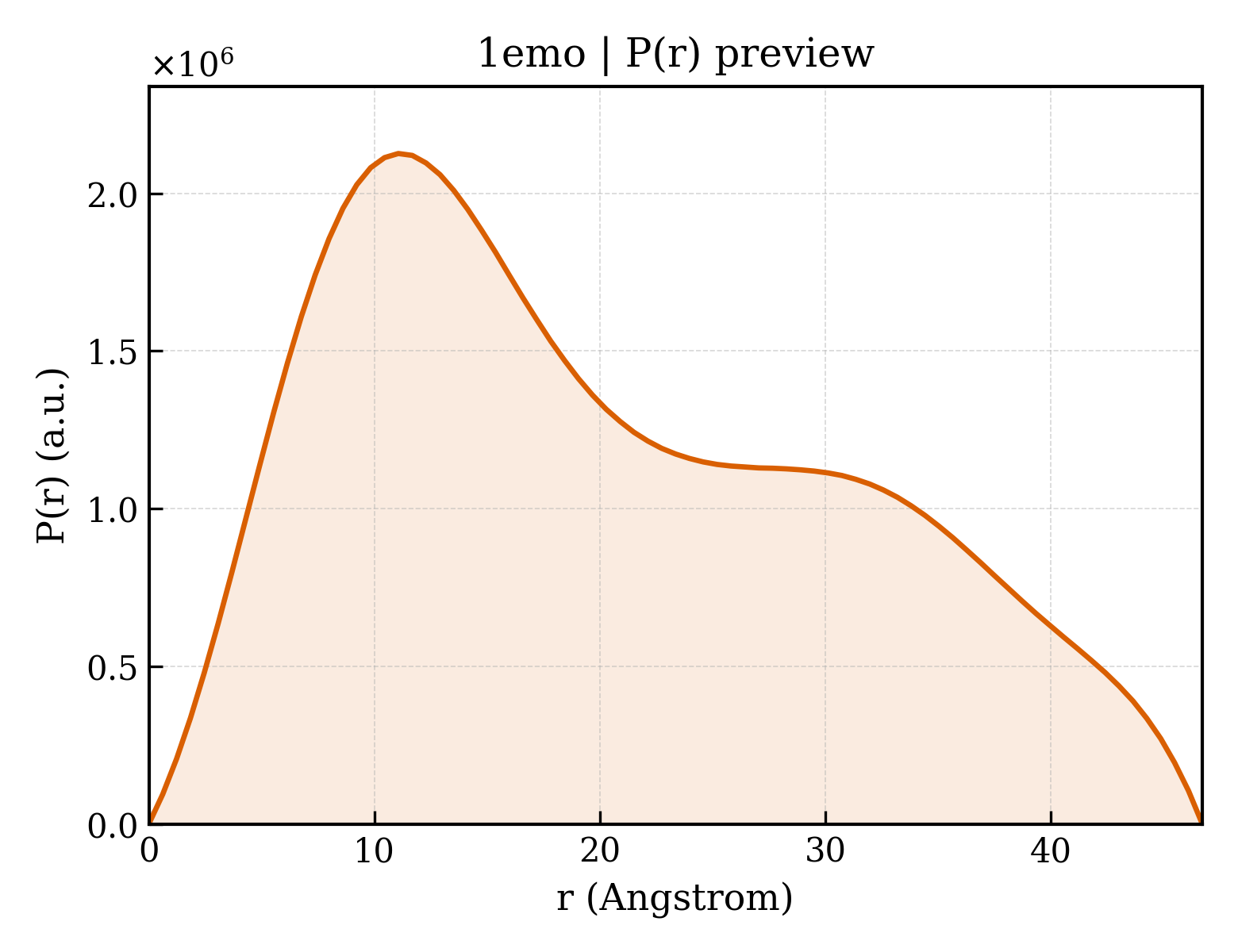

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 17.80 Å |
| Rg (electron density) | 17.48 Å |
| Total Rg | 18.06 Å |
| Atom count | 1120 |
| Residues | 82 |
| Excluded volume | 10431 ų |
| Maximum q | 0.500 Å⁻¹ |
| Assembly | Model | Structure unit | Oligomeric description | Status | CRYSOL | Actions |
|---|---|---|---|---|---|---|
| 1 | 1 | 1emo__assembly_1__model_1 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 2 | 1emo__assembly_1__model_2 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 3 | 1emo__assembly_1__model_3 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 4 | 1emo__assembly_1__model_4 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 5 | 1emo__assembly_1__model_5 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 6 | 1emo__assembly_1__model_6 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 7 | 1emo__assembly_1__model_7 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 8 | 1emo__assembly_1__model_8 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 9 | 1emo__assembly_1__model_9 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 10 | 1emo__assembly_1__model_10 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 11 | 1emo__assembly_1__model_11 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 12 | 1emo__assembly_1__model_12 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 13 | 1emo__assembly_1__model_13 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 14 | 1emo__assembly_1__model_14 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 15 | 1emo__assembly_1__model_15 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 16 | 1emo__assembly_1__model_16 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 17 | 1emo__assembly_1__model_17 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 18 | 1emo__assembly_1__model_18 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 19 | 1emo__assembly_1__model_19 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 20 | 1emo__assembly_1__model_20 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 21 | 1emo__assembly_1__model_21 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 22 | 1emo__assembly_1__model_22 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| Domain ID domain_id | d1emoa1 |
| Class class | g — Small proteins |
| Fold Fold fold | g.3 — Knottins (small inhibitors, toxins, lectins) |
| Superfamily Superfamily superfamily | g.3.11 — EGF/Laminin |
| Family Family family | g.3.11.1 — EGF-type module |
| Domain ID domain_id | d1emoa2 |
| Class class | g — Small proteins |
| Fold Fold fold | g.3 — Knottins (small inhibitors, toxins, lectins) |
| Superfamily Superfamily superfamily | g.3.11 — EGF/Laminin |
| Family Family family | g.3.11.1 — EGF-type module |
| Domain ID domain_id | 1emoA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 10 — Ribbon |
| Topology topology | 25 — Laminin |
| Homologous superfamily homologous superfamily | 10 — Laminin |
