SAXSdb — 1enw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRANSCRIPTION ELONGATION FACTOR S-II

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 131–240	Fragment：DOMAIN II (RESIDUES 131-240)	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.5；270 K；Ionic strength (raw mmCIF value) 50 mM；Pressure ambient NMR sample composition：2 mM TFIIS; 5mM phosphate buffer; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition：2 mM TFIIS; 5mM phosphate buffer; 99.996% D2O \| 99.996% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1ENW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EO0 CONSERVED DOMAIN COMMON TO TRANSCRIPTION FACTORS TFIIS, ELONGIN A, CRSP70 Deposited 2000-03-21	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–77（77 aa） Fragment：DOMAIN I	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；273 K；Ionic strength (raw mmCIF value) 300 mM NaCl；Pressure ambient NMR sample composition 2 mM TFIIS1-111; 10 mM phosphate buffer; 90% H2O, 10%D2O \| 90% H2O/10% D2O	Resolution not provided
1PQV RNA polymerase II-TFIIS complex Deposited 2003-06-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric	Chain S 1–309（309 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；sodium-ammonium tartrate, Hepes, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.80 Å
1Y1V Refined RNA Polymerase II-TFIIS complex Deposited 2004-11-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric	Chain S 131–309（179 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.80 Å R-free 0.294
1Y1Y RNA Polymerase II-TFIIS-DNA/RNA complex Deposited 2004-11-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain S 131–309（179 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.00 Å
3GTM Co-complex of Backtracked RNA polymerase II with TFIIS Deposited 2009-03-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 11 PDB declaration: tetradecameric	Chain S 147–306（160 aa） Fragment：Transcription Factor IIS E291H mutation, UNP residues 147-309	Mutation：E291H	MG MAGNESIUM ION × 1 ZN ZINC ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM Dioxane, 10mM DTT, 9-11% PEG 6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.80 Å R-free 0.289
3PO3 Arrested RNA Polymerase II reactivation intermediate Deposited 2010-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric	Chain S 132–309（178 aa）	Mutation：D290A	ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ACT ACETATE ION × 2 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；4-7% PEG6000, 50mM HEPES pH 7.0, 200mM AMMONIUM ACETATE, 300mM SODIUM ACETATE, 5mM TCEP , VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.189
5FMF the P-lobe of RNA polymerase II pre-initiation complex Deposited 2015-11-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric	Chain 2 136–309（174 aa）	Not recorded	MG MAGNESIUM ION × 2 ZN ZINC ION × 9	ELECTRON MICROSCOPY cryo-EM buffer 20 MM HEPES (PH7.6), 5 MM DTT, 2 MM MG(OAC)2,AND 40 MM KOAC；pH 7.6；20 MM HEPES (PH7.6), 5 MM DTT, 2 MM MG(OAC)2,AND 40 MM KOAC cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 100, TEMPERATURE- 120, INSTRUMENT- FEI VITROBOT MARK III,	Resolution 6.00 Å
7FAW Structure of LW domain from Yeast Deposited 2021-07-07	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–73（73 aa） Fragment：LW domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Tris, pH 8.5, 25% PEG 3350	Resolution 2.44 Å R-free 0.240
7FAW Structure of LW domain from Yeast Deposited 2021-07-07	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–73（73 aa） Fragment：LW domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Tris, pH 8.5, 25% PEG 3350	Resolution 2.44 Å R-free 0.240
7FAW Structure of LW domain from Yeast Deposited 2021-07-07	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–73（73 aa） Fragment：LW domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Tris, pH 8.5, 25% PEG 3350	Resolution 2.44 Å R-free 0.240
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain S 1–309（309 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain S 1–309（309 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric	Chain AS 1–309（309 aa） Chain BS 1–309（309 aa）	Not recorded	ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8UOQ Composite map of PIC_delta_TFIIK form2 Deposited 2023-10-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric	Chain S 1–309（309 aa）	Not recorded	ZN ZINC ION × 15 MG MAGNESIUM ION × 2 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8UOT Composite map of PICdeltaTFIIK form1 Deposited 2023-10-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric	Chain S 1–309（309 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 15 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6；20 mM HEPES PH 7.6 50 mM KOAc 5 mM DTT 2 mM MgOAc cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å

13 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TFS2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–114； UniProt 131–240

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1enw
Deposition date deposition_date	2000-03-21
Structure title title	ELONGATION FACTOR TFIIS DOMAIN II
Keywords keywords	helix-bundle, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.99 Å
Radius of gyration Rg (electron density) rg_electron	18.63 Å
Forward intensity I(0) i0	985926000.00
Molecular weight molecular_weight	254190.0 kDa
Excluded volume excluded_volume	314610 Å³
Envelope volume envelope_volume	95751 Å³
Hydration-shell volume shell_volume	29886 Å³
Envelope diameter envelope_diameter	93.9 Å
Shell Rg shell_rg	34.15 Å
Envelope Rg envelope_rg	27.75 Å
Shape Rg shape_rg	18.62 Å
Total Rg total_rg	19.18 Å
Total atoms total_atoms	34850
Residues n_residues	2280
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	50.9 Å
Rg (real space) rg_real	17.62 Å
Rg uncertainty (real space) rg_real_error	0.10 Å
I(0) (real space) i0_real	9.3720e+08
I(0) uncertainty (real space) i0_real_error	9.1620e+06
Rg (reciprocal space) rg_reciprocal	19.27 Å
I(0) (reciprocal space) i0_reciprocal	985900000.0000
Solution quality estimate total_estimate	0.6820
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	17.7 Å
Skewness Skewness skewness	0.379
Kurtosis Kurtosis kurtosis	-0.439
Angular range angular_range	— – 0.4200 Å⁻¹
Current regularization parameter α current_alpha	2.8420
Highest regularization parameter α highest_alpha	809900.0000
Real-space data points n_real_points	73
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.006; Oscil: 0.968; Stabil: 0.991; Sysdev: 0.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1enwa_
Class class	a — All alpha proteins
Fold Fold fold	a.5 — RuvA C-terminal domain-like
Superfamily Superfamily superfamily	a.5.4 — Elongation factor TFIIS domain 2
Family Family family	a.5.4.1 — Elongation factor TFIIS domain 2

CATH v4.4 (1 domains)

Domain ID domain_id	1enwA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	472 — Cyclin A; domain 1
Homologous superfamily homologous superfamily	30 — Transcription elongation factor S-II, central domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	TRANSCRIPTION ELONGATION FACTOR S-II
Molecular weight formula_weight	12732.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	34850

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Bacteria

ELONGATION FACTOR TFIIS DOMAIN II

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRANSCRIPTION ELONGATION FACTOR S-II

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

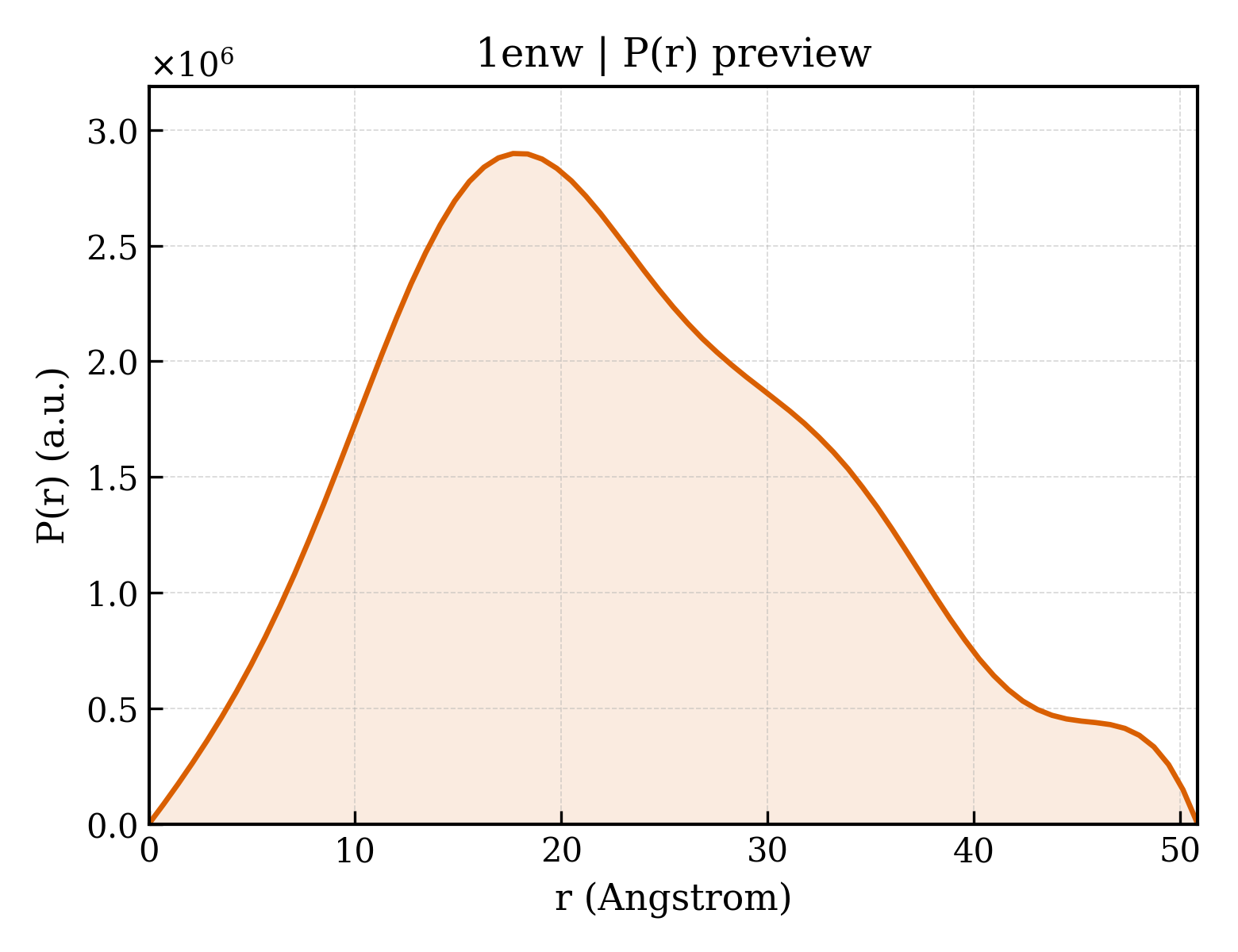

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/en/1enw/1enw.fit
pddf	/app/data/pr_computation/en/1enw/1enw.pr.out
profile	/app/data/saxs_computation/en/1enw/1enw.dat
