1eod
CRYSTAL STRUCTURE OF THE N136D MUTANT OF A SHAKER T1 DOMAIN
SAXS Profile

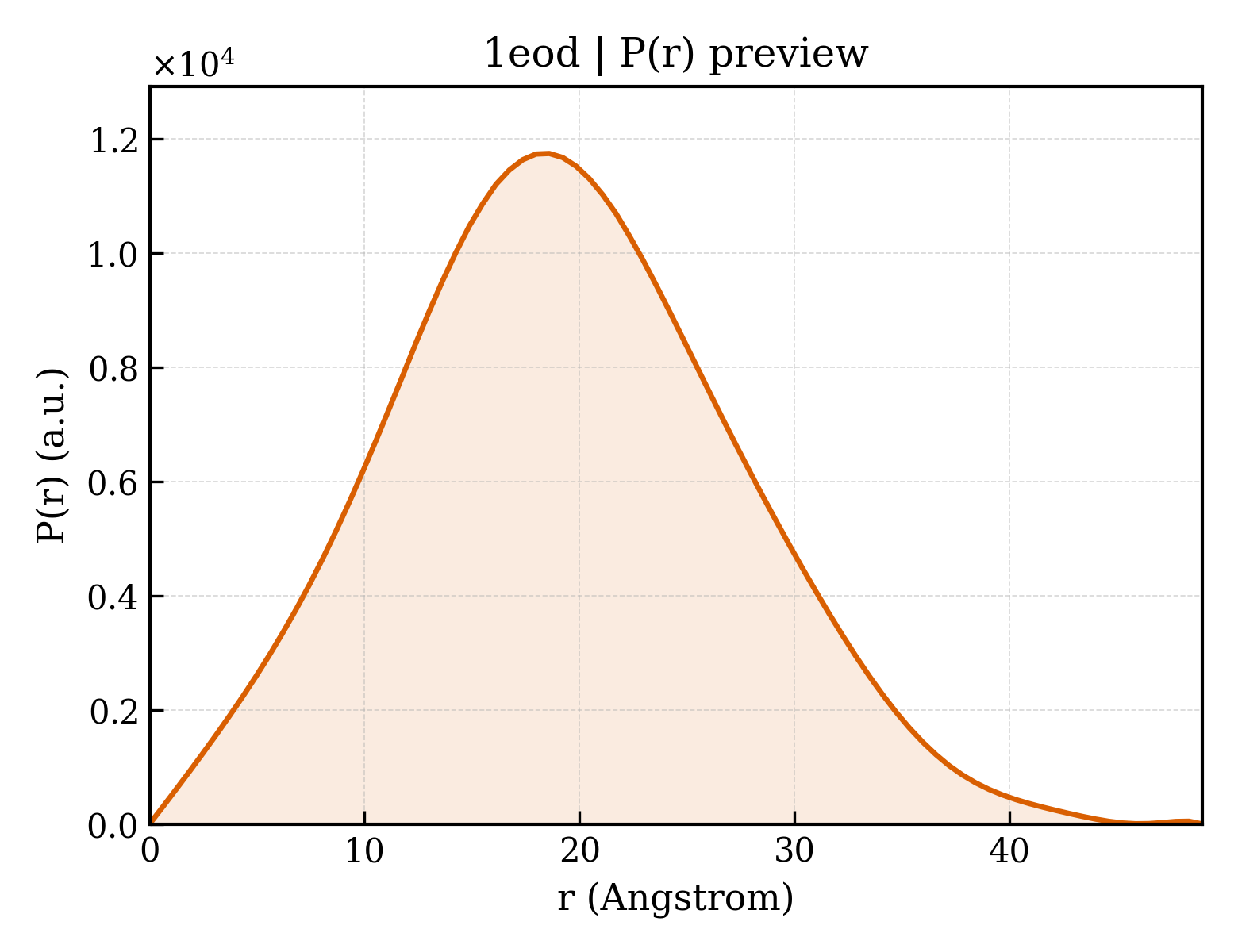

P(r) Distribution
1. Structure Basics
| entry_id | 1eod |
| deposition_date | 2000-03-22 |
| title | CRYSTAL STRUCTURE OF THE N136D MUTANT OF A SHAKER T1 DOMAIN |
| keywords | POTASSIUM CHANNELS, APLYSIA KV1.1, PROTON TRANSPORT, MEMBRANE PROTEIN; MEMBRANE PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.82 Å |
| rg_electron | 13.34 Å |
| i0 | 2921710.00 |
| molecular_weight | 11906.0 kDa |
| excluded_volume | 14869 ų |
| envelope_volume | 16482 ų |
| shell_volume | 10778 ų |
| envelope_diameter | 49.1 Å |
| shell_rg | 18.84 Å |
| envelope_rg | 13.63 Å |
| shape_rg | 13.31 Å |
| total_rg | 14.65 Å |
| total_atoms | 847 |
| n_residues | 100 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.0 Å |
| rg_real | 14.74 Å |
| rg_real_error | 0.26 Å |
| i0_real | 2.9220e+06 |
| i0_real_error | 3.1740e+04 |
| rg_reciprocal | 14.75 Å |
| i0_reciprocal | 2922000.0000 |
| total_estimate | 0.8744 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.6 Å |
| skewness | 0.197 |
| kurtosis | -0.253 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 392200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.796; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.974 |
