1eqr

CRYSTAL STRUCTURE OF FREE ASPARTYL-TRNA SYNTHETASE FROM ESCHERICHIA COLI

Method: X-RAY DIFFRACTION D_max: 163.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ASPARTYL-TRNA SYNTHETASE

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–590 Chain B； UniProt 1–590 Chain C； UniProt 1–590	Not recorded	MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；ammonium sulphate, Bis Tris propane, isopropanol, NaCl, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.269

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1EQR	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1C0A CRYSTAL STRUCTURE OF THE E. COLI ASPARTYL-TRNA SYNTHETASE : TRNAASP : ASPARTYL-ADENYLATE COMPLEX Deposited 1999-07-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–585（585 aa）	Not recorded	SO4 SULFATE ION × 1 AMP ADENOSINE MONOPHOSPHATE × 1 AMO ASPARTYL-ADENOSINE-5'-MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；AMMONIUM SULFATE, GLYCEROL, BIS-TRIS-PROPANE, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.40 Å R-free 0.249
1IL2 Crystal Structure of the E. coli Aspartyl-tRNA Synthetase:Yeast tRNAasp:aspartyl-Adenylate Complex Deposited 2001-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–590（590 aa）	Not recorded	SO4 SULFATE ION × 1 AMO ASPARTYL-ADENOSINE-5'-MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；277 K；ammonium sulfate, pH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.60 Å R-free 0.257
1IL2 Crystal Structure of the E. coli Aspartyl-tRNA Synthetase:Yeast tRNAasp:aspartyl-Adenylate Complex Deposited 2001-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain B 1–590（590 aa）	Not recorded	SO4 SULFATE ION × 1 AMO ASPARTYL-ADENOSINE-5'-MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；277 K；ammonium sulfate, pH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.60 Å R-free 0.257

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SYD_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–590； UniProt 1–590 Author chain B； PDBConstruct 1–590； UniProt 1–590 Author chain C； PDBConstruct 1–590； UniProt 1–590

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

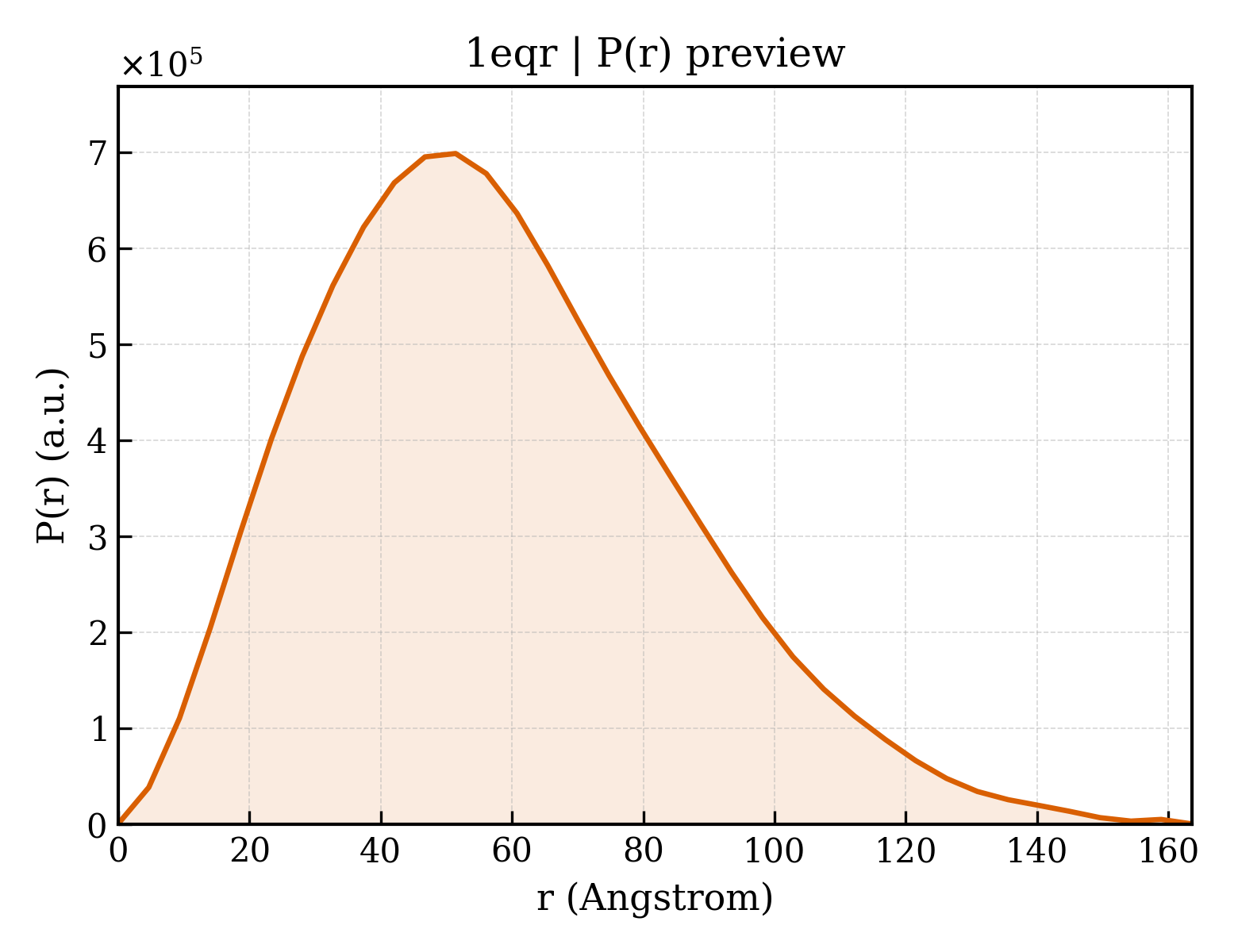

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1eqr
Deposition date deposition_date	2000-04-06
Structure title title	CRYSTAL STRUCTURE OF FREE ASPARTYL-TRNA SYNTHETASE FROM ESCHERICHIA COLI
Keywords keywords	Domains, anti-parallel beta strand, beta barrel, oligomer binding fold, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	44.97 Å
Radius of gyration Rg (electron density) rg_electron	45.06 Å
Forward intensity I(0) i0	585976000.00
Molecular weight molecular_weight	197780.0 kDa
Excluded volume excluded_volume	247310 Å³
Envelope volume envelope_volume	348780 Å³
Hydration-shell volume shell_volume	67098 Å³
Envelope diameter envelope_diameter	176.3 Å
Shell Rg shell_rg	47.21 Å
Envelope Rg envelope_rg	44.82 Å
Shape Rg shape_rg	45.05 Å
Total Rg total_rg	45.20 Å
Total atoms total_atoms	13896
Residues n_residues	1770
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	163.6 Å
Rg (real space) rg_real	45.21 Å
Rg uncertainty (real space) rg_real_error	1.92 Å
I(0) (real space) i0_real	5.8600e+08
I(0) uncertainty (real space) i0_real_error	1.2340e+07
Rg (reciprocal space) rg_reciprocal	44.97 Å
I(0) (reciprocal space) i0_reciprocal	585800000.0000
Solution quality estimate total_estimate	0.8394
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	51.4 Å
Skewness Skewness skewness	0.533
Kurtosis Kurtosis kurtosis	0.002
Angular range angular_range	— – 0.1750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	50650000.0000
Real-space data points n_real_points	36
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.708; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.887; Smooth: 0.896

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ASPARTYL-TRNA SYNTHETASE
Molecular weight formula_weight	65996.3 kDa
EC 编号 ec_number	6.1.1.12
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	14323

MRTEYCGQLRLSHVGQQVTLCGWVNRRRDLGSLIFIDMRDREGIVQVFFDPDRADALKLASELRNEFCIQVTGTVRARDEKNINRDMATGEIEVLASSLTIINRADVLPLDSNHVNTEEARLKYRYLDLRRPEMAQRLKTRAKITSLVRRFMDDHGFLDIETPMLTKATPEGARDYLVPSRVHKGKFYALPQSPQLFKQLLMMSGFDRYYQIVKCFRDEDLRADRQPEFTQIDVETSFMTAPQVREVMEALVRHLWLEVKGVDLGDFPVMTFAEAERRYGSDKPDLRNPMELTDVADLLKSVEFAVFAGPANDPKGRVAALRVPGGASLTRKQIDEYGNFVKIYGAKGLAYIKVNERAKGLEGINSPVAKFLNAEIIEDILDRTAAQDGDMIFFGADNKKIVADAMGALRLKVGKDLGLTDESKWAPLWVIDFPMFEDDGEGGLTAMHHPFTSPKDMTAAELKAAPENAVANAYDMVINGYEVGGGSVRIHNGDMQQTVFGILGINEEEQREKFGFLLDALKYGTPPHAGLAFGLDRLTMLLTGTDNIRDVIAFPKTTAAACLMTEAPSFANPTALAELSIQVVKKAENN

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	427

▼

7. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (9 domains)

Domain ID domain_id	d1eqra1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.1 — Anticodon-binding domain

Domain ID domain_id	d1eqra2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.74 — DCoH-like
Superfamily Superfamily superfamily	d.74.4 — GAD domain-like
Family Family family	d.74.4.1 — GAD domain

Domain ID domain_id	d1eqra3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

Domain ID domain_id	d1eqrb1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.1 — Anticodon-binding domain

Domain ID domain_id	d1eqrb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.74 — DCoH-like
Superfamily Superfamily superfamily	d.74.4 — GAD domain-like
Family Family family	d.74.4.1 — GAD domain

Domain ID domain_id	d1eqrb3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

Domain ID domain_id	d1eqrc1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.1 — Anticodon-binding domain

Domain ID domain_id	d1eqrc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.74 — DCoH-like
Superfamily Superfamily superfamily	d.74.4 — GAD domain-like
Family Family family	d.74.4.1 — GAD domain

Domain ID domain_id	d1eqrc3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

CATH v4.4 (9 domains)

Domain ID domain_id	1eqrA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1eqrA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1eqrA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1360 — Gyrase A; domain 2
Homologous superfamily homologous superfamily	30 — GAD-like domain

Domain ID domain_id	1eqrB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1eqrB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1eqrB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1360 — Gyrase A; domain 2
Homologous superfamily homologous superfamily	30 — GAD-like domain

Domain ID domain_id	1eqrC01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1eqrC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1eqrC03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1360 — Gyrase A; domain 2
Homologous superfamily homologous superfamily	30 — GAD-like domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	117.749 Å
Unit-cell length b length_b	161.958 Å
Unit-cell length c length_c	131.599 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	110.36 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2000
R_work r_work	0.1980
R_free r_free	0.2690
