1c0a

CRYSTAL STRUCTURE OF THE E. COLI ASPARTYL-TRNA SYNTHETASE : TRNAASP : ASPARTYL-ADENYLATE COMPLEX

Method: X-RAY DIFFRACTION D_max: 98.9 Å Quality: EXCELLENT

SAXS Profile

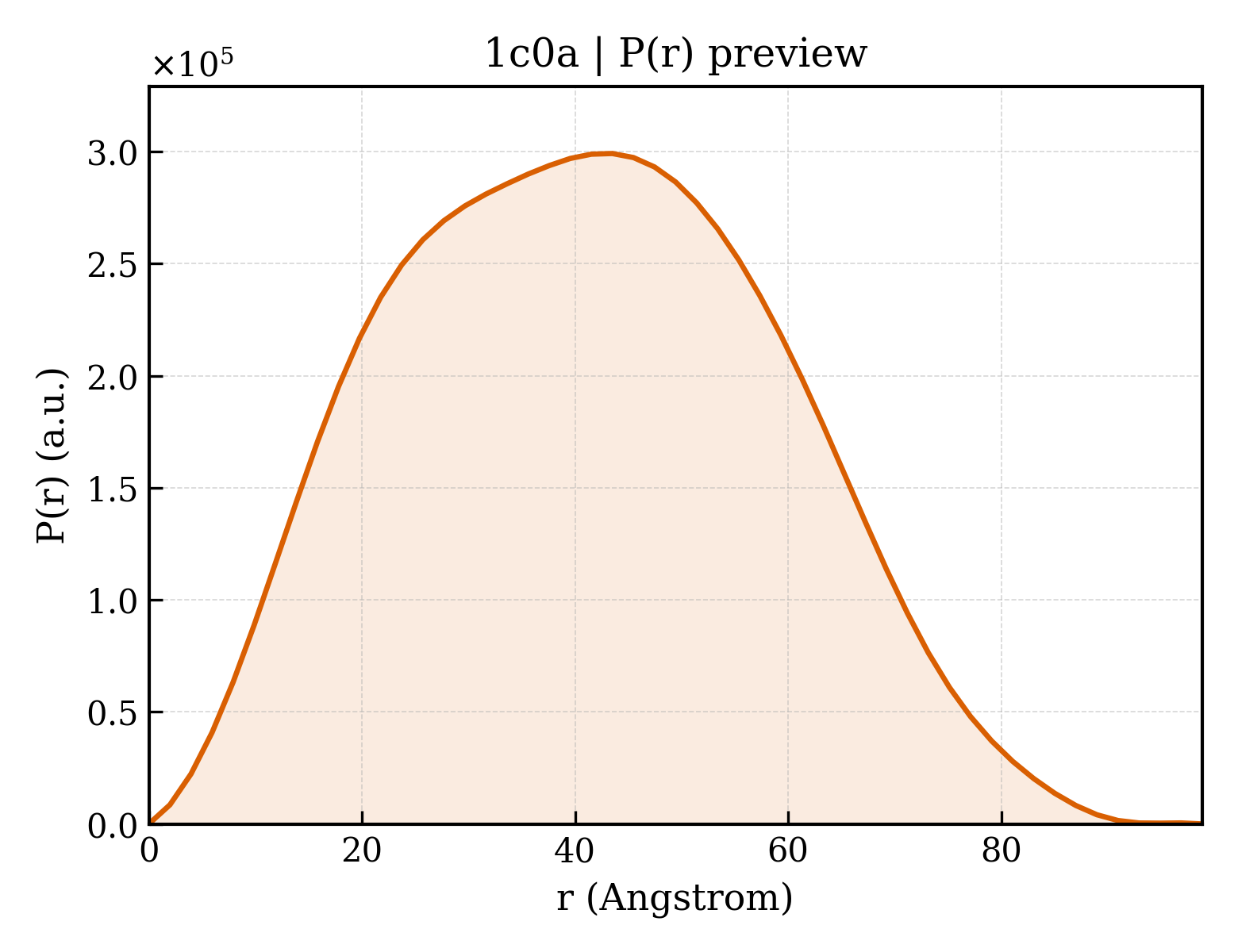

P(r) Distribution

▼

1. Structure Basics

entry_id	1c0a
deposition_date	1999-07-15
title	CRYSTAL STRUCTURE OF THE E. COLI ASPARTYL-TRNA SYNTHETASE : TRNAASP : ASPARTYL-ADENYLATE COMPLEX
keywords	PROTEIN-RNA COMPLEX, LIGASE-RNA COMPLEX; LIGASE/RNA
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	31.73 Å
rg_electron	31.30 Å
i0	191405000.00
molecular_weight	91385.0 kDa
excluded_volume	106140 Å³
envelope_volume	142550 Å³
shell_volume	38363 Å³
envelope_diameter	100.3 Å
shell_rg	38.12 Å
envelope_rg	30.81 Å
shape_rg	31.28 Å
total_rg	31.82 Å
total_atoms	6306
n_residues	653
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	98.9 Å
rg_real	31.62 Å
rg_real_error	0.65 Å
i0_real	1.9140e+08
i0_real_error	3.1160e+06
rg_reciprocal	31.67 Å
i0_reciprocal	191400000.0000
total_estimate	0.9104
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	43.5 Å
skewness	0.129
kurtosis	-0.660
angular_range	— – 0.2500 Å⁻¹
current_alpha	0.0000
highest_alpha	18080000.0000
n_real_points	51
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.962; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.946

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	ASPARTYL TRNA
formula_weight	24995.0 kDa
src_method	man
entity_count	1

Polymer

type	polyribonucleotide
strand_id	B
atom_count	6820

GGAGCGGUAGUUCAGUCGGUUAGAAUACCUGCCUGUCACGCAGGGGGUCGCGGGUUCGAGUCCCGUCCGUUCCGCCA

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

Entity 2 polymer

description	ASPARTYL TRNA SYNTHETASE
formula_weight	65438.7 kDa
ec_number	6.1.1.12
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MRTEYCGQLRLSHVGQQVTLCGWVNRRRDLGSLIFIDMRDREGIVQVFFDPDRADALKLASELRNEFCIQVTGTVRARDEKNINRDMATGEIEVLASSLTIINRADVLPLDSNHVNTEEARLKYRYLDLRRPEMAQRLKTRAKITSLVRRFMDDHGFLDIETPMLTKATPEGARDYLVPSRVHKGKFYALPQSPQLFKQLLMMSGFDRYYQIVKCFRDEDLRADRQPEFTQIDVETSFMTAPQVREVMEALVRHLWLEVKGVDLGDFPVMTFAEAERRYGSDKPDLRNPMELTDVADLLKSVEFAVFAGPANDPKGRVAALRVPGGASLTRKQIDEYGNFVKIYGAKGLAYIKVNERAKGLEGINSPVAKFLNAEIIEDILDRTAAQDGDMIFFGADNKKIVADAMGALRLKVGKDLGLTDESKWAPLWVIDFPMFEDDGEGGLTAMHHPFTSPKDMTAAELKAAPENAVANAYDMVINGYEVGGGSVRIHNGDMQQTVFGILGINEEEQREKFGFLLDALKYGTPPHAGLAFGLDRLTMLLTGTDNIRDVIAFPKTTAAACLMTEAPSFANPTALAELSIQVVK

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

Entity 3 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	ADENOSINE MONOPHOSPHATE
formula_weight	347.2 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	ASPARTYL-ADENOSINE-5'-MONOPHOSPHATE
formula_weight	462.3 kDa
src_method	syn
entity_count	1

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	514

▶

6. Citations (1)

▶

length_a	101.200 Å
length_b	101.200 Å
length_c	231.810 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 43 21 2
int_tables_number	96
crystal_system	—

resolution	2.400 Å
resolution_low	12.000 Å
r_factor	0.2080
r_work	0.2080
r_free	0.2490

fit	/app/data/saxs_computation/c0/1c0a/1c0a.fit
pddf	/app/data/pr_computation/c0/1c0a/1c0a.pr.out
profile	/app/data/saxs_computation/c0/1c0a/1c0a.dat
