1ert
HUMAN THIOREDOXIN (REDUCED FORM)
SAXS Profile

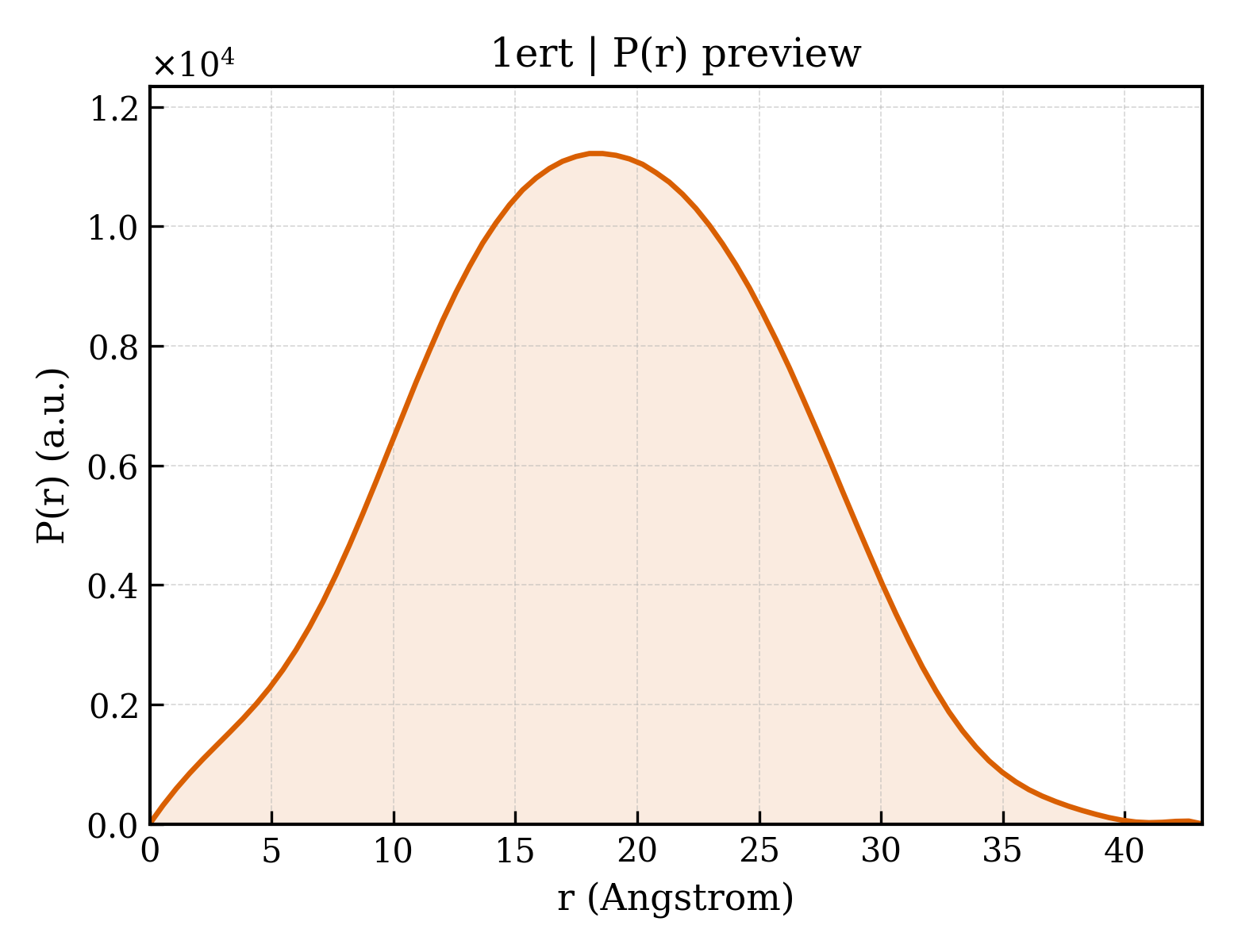

P(r) Distribution
1. Structure Basics
| entry_id | 1ert |
| deposition_date | 1996-02-07 |
| title | HUMAN THIOREDOXIN (REDUCED FORM) |
| keywords | DIMER, THIOREDOXIN, OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.28 Å |
| rg_electron | 12.69 Å |
| i0 | 2780120.00 |
| molecular_weight | 11732.0 kDa |
| excluded_volume | 14755 ų |
| envelope_volume | 16269 ų |
| shell_volume | 10913 ų |
| envelope_diameter | 40.8 Å |
| shell_rg | 18.48 Å |
| envelope_rg | 12.90 Å |
| shape_rg | 12.65 Å |
| total_rg | 14.16 Å |
| total_atoms | 821 |
| n_residues | 105 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 43.2 Å |
| rg_real | 14.16 Å |
| rg_real_error | 0.17 Å |
| i0_real | 2.7800e+06 |
| i0_real_error | 2.8080e+04 |
| rg_reciprocal | 14.17 Å |
| i0_reciprocal | 2780000.0000 |
| total_estimate | 0.7284 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 42.6 Å |
| skewness | 0.026 |
| kurtosis | -0.438 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 524600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.912; Stabil: 1.000; Sysdev: 0.256; Positv: 1.000; Valcen: 0.975; Smooth: 0.986 |
