1trs

THE HIGH-RESOLUTION THREE-DIMENSIONAL SOLUTION STRUCTURES OF THE OXIDIZED AND REDUCED STATES OF HUMAN THIOREDOXIN

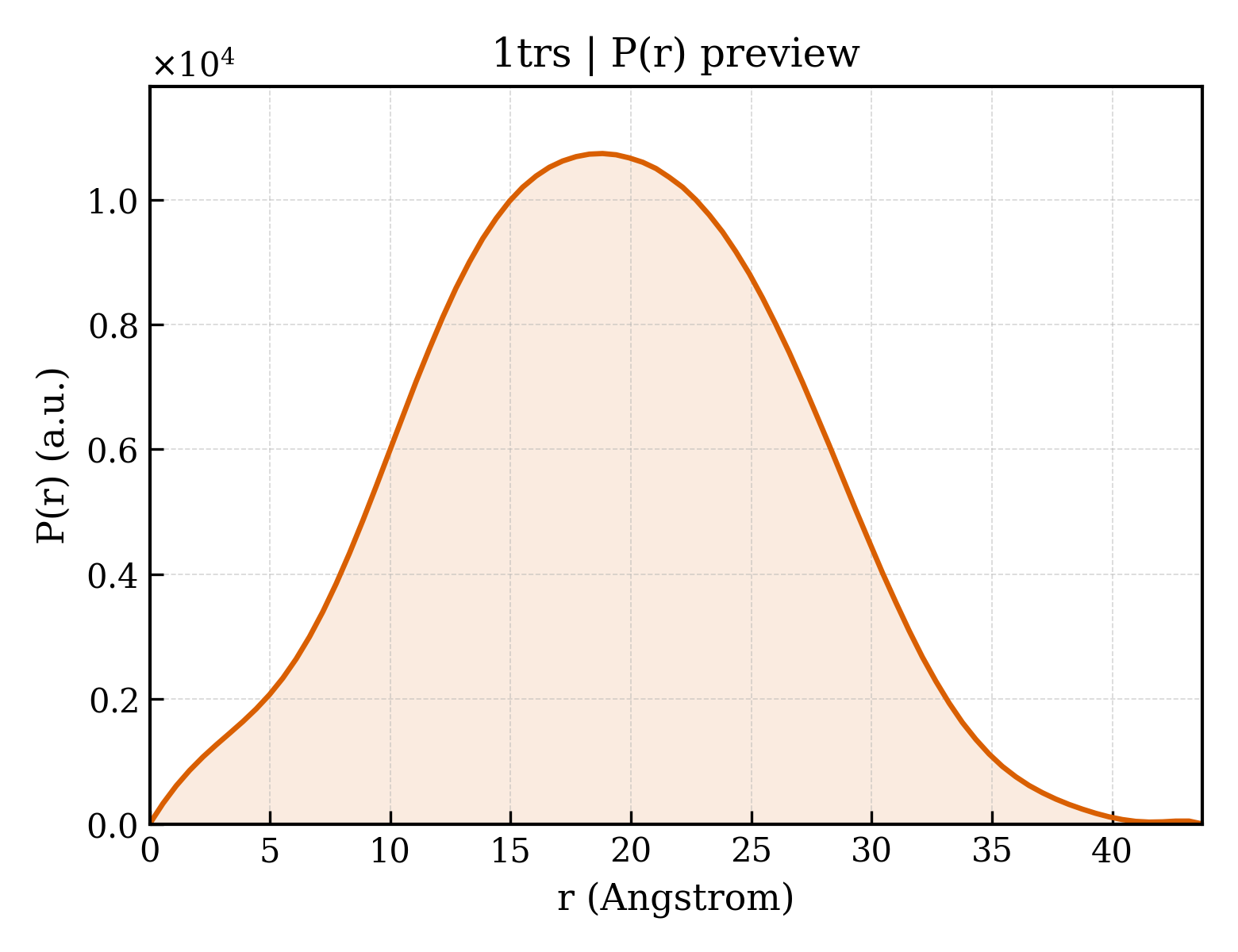

Method: SOLUTION NMR Dmax: 43.7 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

THIOREDOXIN

Homo sapiens

UniProt P10599

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1–104 Not recorded No other associated polymer SOLUTION NMR mmCIF provides none of the parsed experimental conditions Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1TRS Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1AIU HUMAN THIOREDOXIN (D60N MUTANT, REDUCED FORM) Deposited 1997-04-25 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa）
Mutation：D60N No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 3.8；pH 3.8
Resolution 2.00 Å R-free 0.240
1AUC HUMAN THIOREDOXIN (OXIDIZED WITH DIAMIDE) Deposited 1997-08-22 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 5；pH 5.0
Resolution 2.10 Å R-free 0.270
1CQG HIGH RESOLUTION SOLUTION NMR STRUCTURE OF MIXED DISULFIDE INTERMEDIATE BETWEEN HUMAN THIOREDOXIN (C35A, C62A, C69A, C73A) MUTANT AND A 13 RESIDUE PEPTIDE COMPRISING ITS TARGET SITE IN HUMAN REF-1 (RESIDUES 59-71 OF THE P50 SUBUNIT OF NFKB), NMR, 31 STRUCTURES Deposited 1996-04-02 Different mutation/modification Different oligomeric state Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa）
Mutation：CHAIN A, C35A, C62A, C69A, C73A No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1CQH HIGH RESOLUTION SOLUTION NMR STRUCTURE OF MIXED DISULFIDE INTERMEDIATE BETWEEN HUMAN THIOREDOXIN (C35A, C62A, C69A, C73A) MUTANT AND A 13 RESIDUE PEPTIDE COMPRISING ITS TARGET SITE IN HUMAN REF-1 (RESIDUES 59-71 OF THE P50 SUBUNIT OF NFKB), NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1996-04-02 Different mutation/modification Different oligomeric state Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa）
Mutation：CHAIN A, C35A, C62A, C69A, C73A No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1ERT HUMAN THIOREDOXIN (REDUCED FORM) Deposited 1996-02-07 Different oligomeric state Different experimental method Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.70 Å R-free 0.240
1ERU HUMAN THIOREDOXIN (OXIDIZED FORM) Deposited 1996-02-07 Different oligomeric state Different experimental method Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.10 Å R-free 0.330
1ERV HUMAN THIOREDOXIN MUTANT WITH CYS 73 REPLACED BY SER (REDUCED FORM) Deposited 1996-02-07 Different mutation/modification Different oligomeric state Different experimental method Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa）
Mutation：C73S No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.65 Å R-free 0.240
1ERW HUMAN THIOREDOXIN DOUBLE MUTANT WITH CYS 32 REPLACED BY SER AND CYS 35 REPLACED BY SER Deposited 1996-02-07 Different mutation/modification Different oligomeric state Different experimental method Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa）
Mutation：C32S, C35S No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å R-free 0.260
1M7T Solution Structure and Dynamics of the Human-Escherichia coli Thioredoxin Chimera: Insights into Thermodynamic Stability Deposited 2002-07-22 Different construct Different oligomeric state Different experimental conditions Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 0–65（66 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；308 K
NMR sample composition 1 mM protein in 100 mM sodium phosphate buffer (pH 7.0), 20 M EDTA, 0.02% sodium azide, and 10% D2O. | 90% H2O/10% D2O
Resolution not provided
1MDI HIGH RESOLUTION SOLUTION NMR STRUCTURE OF MIXED DISULFIDE INTERMEDIATE BETWEEN MUTANT HUMAN THIOREDOXIN AND A 13 RESIDUE PEPTIDE COMPRISING ITS TARGET SITE IN HUMAN NFKB Deposited 1995-02-27 Different oligomeric state Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1MDJ HIGH RESOLUTION SOLUTION NMR STRUCTURE OF MIXED DISULFIDE INTERMEDIATE BETWEEN HUMAN THIOREDOXIN (C35A, C62A, C69A, C73A) MUTANT AND A 13 RESIDUE PEPTIDE COMPRISING ITS TARGET SITE IN HUMAN NFKB (RESIDUES 56-68 OF THE P50 SUBUNIT OF NFKB) Deposited 1995-02-27 Different oligomeric state Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1MDK HIGH RESOLUTION SOLUTION NMR STRUCTURE OF MIXED DISULFIDE INTERMEDIATE BETWEEN HUMAN THIOREDOXIN (C35A, C62A, C69A, C73A) MUTANT AND A 13 RESIDUE PEPTIDE COMPRISING ITS TARGET SITE IN HUMAN NFKB (RESIDUES 56-68 OF THE P50 SUBUNIT OF NFKB) Deposited 1995-02-27 Different oligomeric state Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1TRU THE HIGH-RESOLUTION THREE-DIMENSIONAL SOLUTION STRUCTURES OF THE OXIDIZED AND REDUCED STATES OF HUMAN THIOREDOXIN Deposited 1994-05-10 Parsed fields agree Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–104（104 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1TRV THE HIGH-RESOLUTION THREE-DIMENSIONAL SOLUTION STRUCTURES OF THE OXIDIZED AND REDUCED STATES OF HUMAN THIOREDOXIN Deposited 1994-05-10 Parsed fields agree Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–104（104 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1TRW THE HIGH-RESOLUTION THREE-DIMENSIONAL SOLUTION STRUCTURES OF THE OXIDIZED AND REDUCED STATES OF HUMAN THIOREDOXIN Deposited 1994-05-10 Parsed fields agree Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–104（104 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
2IFQ Crystal structure of S-nitroso thioredoxin Deposited 2006-09-21 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 0–104（105 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；32% PEG 4000, 50 mM sodium phosphate, ethanol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.20 Å R-free 0.206
2IFQ Crystal structure of S-nitroso thioredoxin Deposited 2006-09-21 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 0–104（105 aa）
Not recorded EOH ETHANOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；32% PEG 4000, 50 mM sodium phosphate, ethanol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.20 Å R-free 0.206
2IFQ Crystal structure of S-nitroso thioredoxin Deposited 2006-09-21 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 0–104（105 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EOH ETHANOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；32% PEG 4000, 50 mM sodium phosphate, ethanol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.20 Å R-free 0.206
2IIY Crystal structure of S-nitroso thioredoxin Deposited 2006-09-28 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 0–104（105 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；32% PEG 1500, 50 mM sodium phosphate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.70 Å R-free 0.239
3E3E Human Thioredoxin Double Mutant C35S,C73R Deposited 2008-08-07 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–105（105 aa）
Mutation：C35S, C73R P6G HEXAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；292 K；0.1 M Na acetate, pH 4.6, and 30 % (v/v) PEG 300, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.01 Å R-free 0.261
3E3E Human Thioredoxin Double Mutant C35S,C73R Deposited 2008-08-07 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–105（105 aa）
Mutation：C35S, C73R P6G HEXAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；292 K；0.1 M Na acetate, pH 4.6, and 30 % (v/v) PEG 300, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.01 Å R-free 0.261
3KD0 Human thioredoxin C35S,C62S,C69S,C73S mutant showing cadmium chloride bound to the active site Deposited 2009-10-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–105（105 aa）
Mutation：C35S, C62S, C69S, C73S CL CHLORIDE ION × 4 CD CADMIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；292 K；0.16M Cadmium Chloride, 2.0M ammonium sulphate, pH 7.4, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 1.70 Å R-free 0.279
3KD0 Human thioredoxin C35S,C62S,C69S,C73S mutant showing cadmium chloride bound to the active site Deposited 2009-10-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–105（105 aa）
Mutation：C35S, C62S, C69S, C73S CL CHLORIDE ION × 8 CD CADMIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；292 K；0.16M Cadmium Chloride, 2.0M ammonium sulphate, pH 7.4, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 1.70 Å R-free 0.279
3M9J Crystal structure of human thioredoxin C69/73S double mutant, reduced form Deposited 2010-03-22 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–105（105 aa）
Mutation：C69S, C73S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；298 K；30% PEG 4000, 200 mM ammonium acetate, 100 mM sodium citrate, 5 mM DTT, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.10 Å R-free 0.172
3M9J Crystal structure of human thioredoxin C69/73S double mutant, reduced form Deposited 2010-03-22 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–105（105 aa）
Mutation：C69S, C73S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；298 K；30% PEG 4000, 200 mM ammonium acetate, 100 mM sodium citrate, 5 mM DTT, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.10 Å R-free 0.172
3M9K Crystal structure of human thioredoxin C69/73S double-mutant, oxidized form Deposited 2010-03-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–105（105 aa）
Mutation：C69S, C73S SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；298 K；1.8 M ammonium sulfate, 100 mM MES, 10 mM CoCl2, 2 mM DTT, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.50 Å R-free 0.211
3M9K Crystal structure of human thioredoxin C69/73S double-mutant, oxidized form Deposited 2010-03-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–105（105 aa）
Mutation：C69S, C73S SO4 SULFATE ION × 3 D1D (4S,5S)-1,2-DITHIANE-4,5-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；298 K；1.8 M ammonium sulfate, 100 mM MES, 10 mM CoCl2, 2 mM DTT, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.50 Å R-free 0.211
3M9K Crystal structure of human thioredoxin C69/73S double-mutant, oxidized form Deposited 2010-03-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–105（105 aa）
Chain B 1–105（105 aa）
Mutation：C69S, C73S Mutation：C69S, C73S SO4 SULFATE ION × 8 D1D (4S,5S)-1,2-DITHIANE-4,5-DIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；298 K；1.8 M ammonium sulfate, 100 mM MES, 10 mM CoCl2, 2 mM DTT, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.50 Å R-free 0.211
3QFA Crystal structure of the human thioredoxin reductase-thioredoxin complex Deposited 2011-01-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 2–105（104 aa）
Chain D 2–105（104 aa）
Mutation：C35S, C73S Mutation：C35S, C73S FAD FLAVIN-ADENINE DINUCLEOTIDE × 2 GOL GLYCEROL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；297.15 K；15% PEG 6000, 0.1M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 297.15 K
Resolution 2.20 Å R-free 0.283
3QFB Crystal structure of the human thioredoxin reductase-thioredoxin complex Deposited 2011-01-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 2–105（104 aa）
Chain D 2–105（104 aa）
Mutation：C35S, C73S Mutation：C35S, C73S FAD FLAVIN-ADENINE DINUCLEOTIDE × 2 GOL GLYCEROL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；297.15 K；15% PEG 4000, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 297.15K
Resolution 2.60 Å R-free 0.297
3TRX HIGH-RESOLUTION THREE-DIMENSIONAL STRUCTURE OF REDUCED RECOMBINANT HUMAN THIOREDOXIN IN SOLUTION Deposited 1990-12-17 Parsed fields agree Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–104（104 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
4LL1 The structure of the TRX and TXNIP complex Deposited 2013-07-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–105（105 aa）
Chain D 1–105（105 aa）
Mutation：C35A Mutation：C35A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294.15 K；0.16M tri-sodium citrate, 16% PEG3350, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 294.15K
Resolution 2.00 Å R-free 0.288
4LL4 The structure of the TRX and TXNIP complex Deposited 2013-07-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–105（105 aa）
Chain D 1–105（105 aa）
Mutation：C35A Mutation：C35A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294.15 K；0.16M tri-sodium citrate, 16% PEG3350, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 294.15K
Resolution 2.70 Å R-free 0.264
4OO4 Crystal Structure of Human Thioredoxin Mutant Deposited 2014-01-30 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–105（105 aa）
Mutation：Q63A, C69S, C73S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；289 K；20% PEG 3350, 0.1 M sodium acetate, 2 mM DTT, pH 4.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 0.97 Å R-free 0.165
4OO4 Crystal Structure of Human Thioredoxin Mutant Deposited 2014-01-30 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–105（105 aa）
Mutation：Q63A, C69S, C73S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；289 K；20% PEG 3350, 0.1 M sodium acetate, 2 mM DTT, pH 4.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 0.97 Å R-free 0.165
4OO4 Crystal Structure of Human Thioredoxin Mutant Deposited 2014-01-30 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–105（105 aa）
Chain B 1–105（105 aa）
Mutation：Q63A, C69S, C73S Mutation：Q63A, C69S, C73S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；289 K；20% PEG 3350, 0.1 M sodium acetate, 2 mM DTT, pH 4.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 0.97 Å R-free 0.165
4OO5 Crystal Structure of S-nitrosated Human Thioredoxin Mutant Deposited 2014-01-30 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–105（105 aa）
Mutation：C69S, C73S Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；289 K；21% PEG 3350, 0.1 M sodium acetate, pH 4, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 1.54 Å R-free 0.248
4POK Crystal structures of thioredoxin with mesna at 2.5A resolution Deposited 2014-02-25 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K COM 1-THIOETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20% ethanol, 0.1 M Tris, 60 mg/mL Trx protein, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.52 Å R-free 0.296
4POK Crystal structures of thioredoxin with mesna at 2.5A resolution Deposited 2014-02-25 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20% ethanol, 0.1 M Tris, 60 mg/mL Trx protein, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.52 Å R-free 0.296
4POK Crystal structures of thioredoxin with mesna at 2.5A resolution Deposited 2014-02-25 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20% ethanol, 0.1 M Tris, 60 mg/mL Trx protein, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.52 Å R-free 0.296
4POK Crystal structures of thioredoxin with mesna at 2.5A resolution Deposited 2014-02-25 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20% ethanol, 0.1 M Tris, 60 mg/mL Trx protein, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.52 Å R-free 0.296
4POK Crystal structures of thioredoxin with mesna at 2.5A resolution Deposited 2014-02-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–105（105 aa）
Chain B 1–105（105 aa）
Chain C 1–105（105 aa）
Chain D 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K COM 1-THIOETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20% ethanol, 0.1 M Tris, 60 mg/mL Trx protein, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.52 Å R-free 0.296
4POK Crystal structures of thioredoxin with mesna at 2.5A resolution Deposited 2014-02-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–105（105 aa）
Chain B 1–105（105 aa）
Chain C 1–105（105 aa）
Chain D 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K COM 1-THIOETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20% ethanol, 0.1 M Tris, 60 mg/mL Trx protein, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.52 Å R-free 0.296
4POL Crystal structures of thioredoxin with mesna at 2.8A resolution Deposited 2014-02-26 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K COM 1-THIOETHANESULFONIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；20% PEG3350, 0.2 M KCl, 60 mg/mL Trx protein, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.80 Å R-free 0.312
4POL Crystal structures of thioredoxin with mesna at 2.8A resolution Deposited 2014-02-26 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K COM 1-THIOETHANESULFONIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；20% PEG3350, 0.2 M KCl, 60 mg/mL Trx protein, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.80 Å R-free 0.312
4POL Crystal structures of thioredoxin with mesna at 2.8A resolution Deposited 2014-02-26 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；20% PEG3350, 0.2 M KCl, 60 mg/mL Trx protein, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.80 Å R-free 0.312
4POL Crystal structures of thioredoxin with mesna at 2.8A resolution Deposited 2014-02-26 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；20% PEG3350, 0.2 M KCl, 60 mg/mL Trx protein, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.80 Å R-free 0.312
4POL Crystal structures of thioredoxin with mesna at 2.8A resolution Deposited 2014-02-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–105（105 aa）
Chain B 1–105（105 aa）
Chain C 1–105（105 aa）
Chain D 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K COM 1-THIOETHANESULFONIC ACID × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；20% PEG3350, 0.2 M KCl, 60 mg/mL Trx protein, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.80 Å R-free 0.312
4POL Crystal structures of thioredoxin with mesna at 2.8A resolution Deposited 2014-02-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–105（105 aa）
Chain B 1–105（105 aa）
Chain C 1–105（105 aa）
Chain D 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K COM 1-THIOETHANESULFONIC ACID × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；20% PEG3350, 0.2 M KCl, 60 mg/mL Trx protein, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.80 Å R-free 0.312
4POM Crystal structures of thioredoxin with mesna at 1.85A resolution Deposited 2014-02-26 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K COM 1-THIOETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；28% PEG3350, 0.2M KCl, 160 mg/mL Trx protein, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.85 Å R-free 0.261
4POM Crystal structures of thioredoxin with mesna at 1.85A resolution Deposited 2014-02-26 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K COM 1-THIOETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；28% PEG3350, 0.2M KCl, 160 mg/mL Trx protein, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.85 Å R-free 0.261
4POM Crystal structures of thioredoxin with mesna at 1.85A resolution Deposited 2014-02-26 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；28% PEG3350, 0.2M KCl, 160 mg/mL Trx protein, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.85 Å R-free 0.261
4POM Crystal structures of thioredoxin with mesna at 1.85A resolution Deposited 2014-02-26 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；28% PEG3350, 0.2M KCl, 160 mg/mL Trx protein, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.85 Å R-free 0.261
4POM Crystal structures of thioredoxin with mesna at 1.85A resolution Deposited 2014-02-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–105（105 aa）
Chain B 1–105（105 aa）
Chain C 1–105（105 aa）
Chain D 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K COM 1-THIOETHANESULFONIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；28% PEG3350, 0.2M KCl, 160 mg/mL Trx protein, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.85 Å R-free 0.261
4POM Crystal structures of thioredoxin with mesna at 1.85A resolution Deposited 2014-02-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–105（105 aa）
Chain B 1–105（105 aa）
Chain C 1–105（105 aa）
Chain D 1–105（105 aa）
Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K Mutation：E13K, D16K, E95K, E103K COM 1-THIOETHANESULFONIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；28% PEG3350, 0.2M KCl, 160 mg/mL Trx protein, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.85 Å R-free 0.261
4PUF Complex between the Salmonella T3SS effector SlrP and its human target thioredoxin-1 Deposited 2014-03-13 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–105（105 aa）
Chain D 1–105（105 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.8；291 K；15% PEG 4000, 0.2M NaCl, 0.1M MgCl2, 0.1M Hepes, 216 M SlrP, 430 M Trx1, pH 7.8, VAPOR DIFFUSION, temperature 291K
Resolution 3.30 Å R-free 0.308
4TRX HIGH-RESOLUTION THREE-DIMENSIONAL STRUCTURE OF REDUCED RECOMBINANT HUMAN THIOREDOXIN IN SOLUTION Deposited 1990-12-17 Parsed fields agree Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–104（104 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
5DQY A fully oxidized human thioredoxin Deposited 2015-09-15 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–105（104 aa）
Not recorded BEZ BENZOIC ACID × 1 CL CHLORIDE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；294.15 K；Ammonium citrate, Bis-Tris propane
Resolution 1.40 Å R-free 0.209
5DQY A fully oxidized human thioredoxin Deposited 2015-09-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–105（104 aa）
Not recorded BEZ BENZOIC ACID × 2 CL CHLORIDE ION × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；294.15 K；Ammonium citrate, Bis-Tris propane
Resolution 1.40 Å R-free 0.209

34 other PDB entries and 59 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name THIO_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–105； UniProt 1–104

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1trs

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1trs
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1trs
Deposition date deposition_date1994-05-10
Structure title titleTHE HIGH-RESOLUTION THREE-DIMENSIONAL SOLUTION STRUCTURES OF THE OXIDIZED AND REDUCED STATES OF HUMAN THIOREDOXIN
Keywords keywordsELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier14.58 Å
Radius of gyration Rg (electron density) rg_electron12.91 Å
Forward intensity I(0) i02726390.00
Molecular weight molecular_weight11606.0 kDa
Excluded volume excluded_volume14660 ų
Envelope volume envelope_volume17100 ų
Hydration-shell volume shell_volume11249 ų
Envelope diameter envelope_diameter40.9 Å
Shell Rg shell_rg18.70 Å
Envelope Rg envelope_rg13.11 Å
Shape Rg shape_rg12.85 Å
Total Rg total_rg14.49 Å
Total atoms total_atoms1624
Residues n_residues105
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax43.7 Å
Rg (real space) rg_real14.46 Å
Rg uncertainty (real space) rg_real_error0.17 Å
I(0) (real space) i0_real2.7260e+06
I(0) uncertainty (real space) i0_real_error2.5600e+04
Rg (reciprocal space) rg_reciprocal14.47 Å
I(0) (reciprocal space) i0_reciprocal2726000.0000
Solution quality estimate total_estimate0.7541
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary18.8 Å
Skewness Skewness skewness0.023
Kurtosis Kurtosis kurtosis-0.432
Angular range angular_range— – 0.5000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha638600.0000
Real-space data points n_real_points80
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.910; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.971; Smooth: 0.994
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd1trsa_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.47 — Thioredoxin fold
Superfamily Superfamily superfamilyc.47.1 — Thioredoxin-like
Family Family familyc.47.1.1 — Thioltransferase

CATH v4.4 (1 domains)

Domain ID domain_id1trsA00
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
▶

8. Citations (1)

▶

9. Files and Curves (10)
