1esr
CRYSTAL STRUCTURE OF HUMAN MONOCYTE CHEMOTACTIC PROTEIN-2

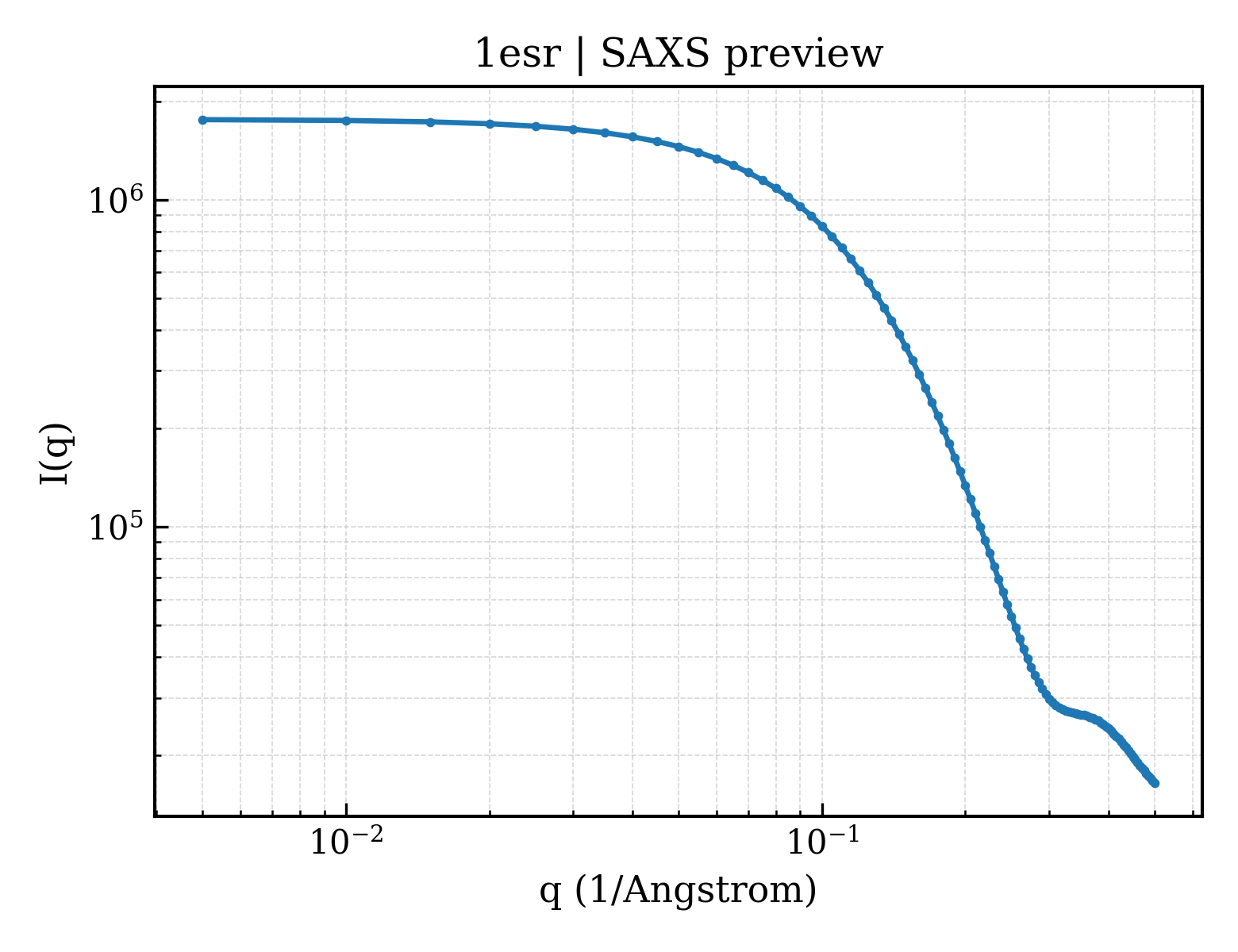

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1esr |
| deposition_date | 2000-04-10 |
| title | CRYSTAL STRUCTURE OF HUMAN MONOCYTE CHEMOTACTIC PROTEIN-2 |
| keywords | CYTOKINE, CHEMOKINE, MONOCYTE CHEMOATTRACTANT PROTEIN, HIV-1, PYROGLUTAMIC ACID; CYTOKINE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.14 Å |
| rg_electron | 14.23 Å |
| i0 | 1760640.00 |
| molecular_weight | 8902.0 kDa |
| excluded_volume | 11172 ų |
| envelope_volume | 13604 ų |
| shell_volume | 9040 ų |
| envelope_diameter | 50.8 Å |
| shell_rg | 18.49 Å |
| envelope_rg | 14.73 Å |
| shape_rg | 14.25 Å |
| total_rg | 15.24 Å |
| total_atoms | 623 |
| n_residues | 75 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 53.2 Å |
| rg_real | 15.21 Å |
| rg_real_error | 0.45 Å |
| i0_real | 1.7610e+06 |
| i0_real_error | 2.1120e+04 |
| rg_reciprocal | 15.20 Å |
| i0_reciprocal | 1761000.0000 |
| total_estimate | 0.8496 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 17.5 Å |
| skewness | 0.459 |
| kurtosis | -0.118 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 244200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.755; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.856; Smooth: 0.920 |
