1etx
THE CRYSTAL STRUCTURE OF E. COLI FIS MUTANT Q74A
SAXS Profile

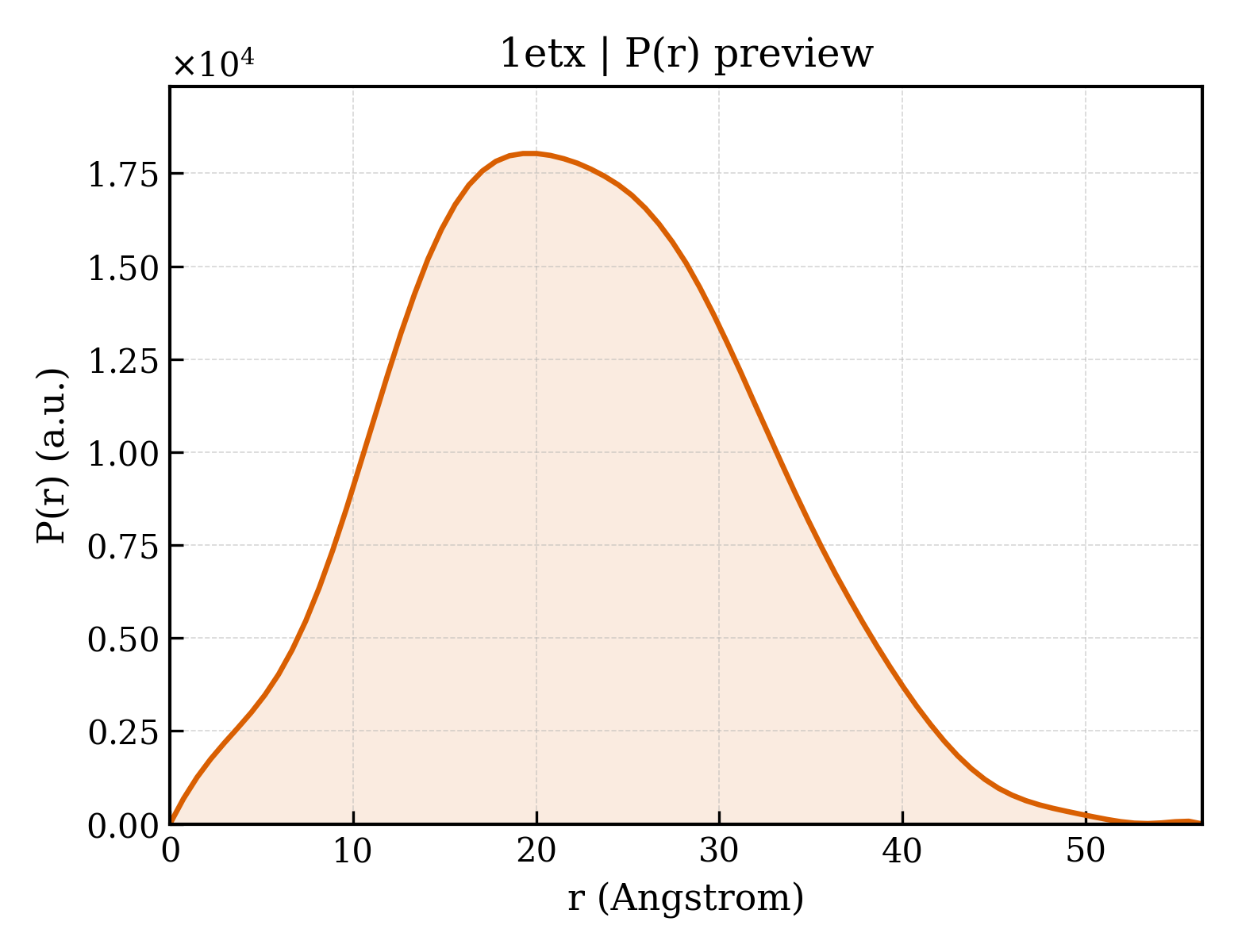

P(r) Distribution
1. Structure Basics
| entry_id | 1etx |
| deposition_date | 2000-04-13 |
| title | THE CRYSTAL STRUCTURE OF E. COLI FIS MUTANT Q74A |
| keywords | TRANSCRIPTIONAL ACTIVATION REGION, DNA-BINDING PROTEIN, TRANSCRIPTION ACTIVATOR; TRANSCRIPTION ACTIVATOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.20 Å |
| rg_electron | 15.64 Å |
| i0 | 5678590.00 |
| molecular_weight | 17497.0 kDa |
| excluded_volume | 22165 ų |
| envelope_volume | 25578 ų |
| shell_volume | 13953 ų |
| envelope_diameter | 55.8 Å |
| shell_rg | 21.28 Å |
| envelope_rg | 15.95 Å |
| shape_rg | 15.62 Å |
| total_rg | 16.78 Å |
| total_atoms | 1222 |
| n_residues | 153 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 56.4 Å |
| rg_real | 17.12 Å |
| rg_real_error | 0.31 Å |
| i0_real | 5.6790e+06 |
| i0_real_error | 7.2030e+04 |
| rg_reciprocal | 17.13 Å |
| i0_reciprocal | 5679000.0000 |
| total_estimate | 0.8837 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 55.6 Å |
| skewness | 0.197 |
| kurtosis | -0.372 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1016000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.836; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.975 |
