1ety
THE CRYSTAL STRUCTURE OF E. COLI WILD-TYPE FIS
SAXS Profile

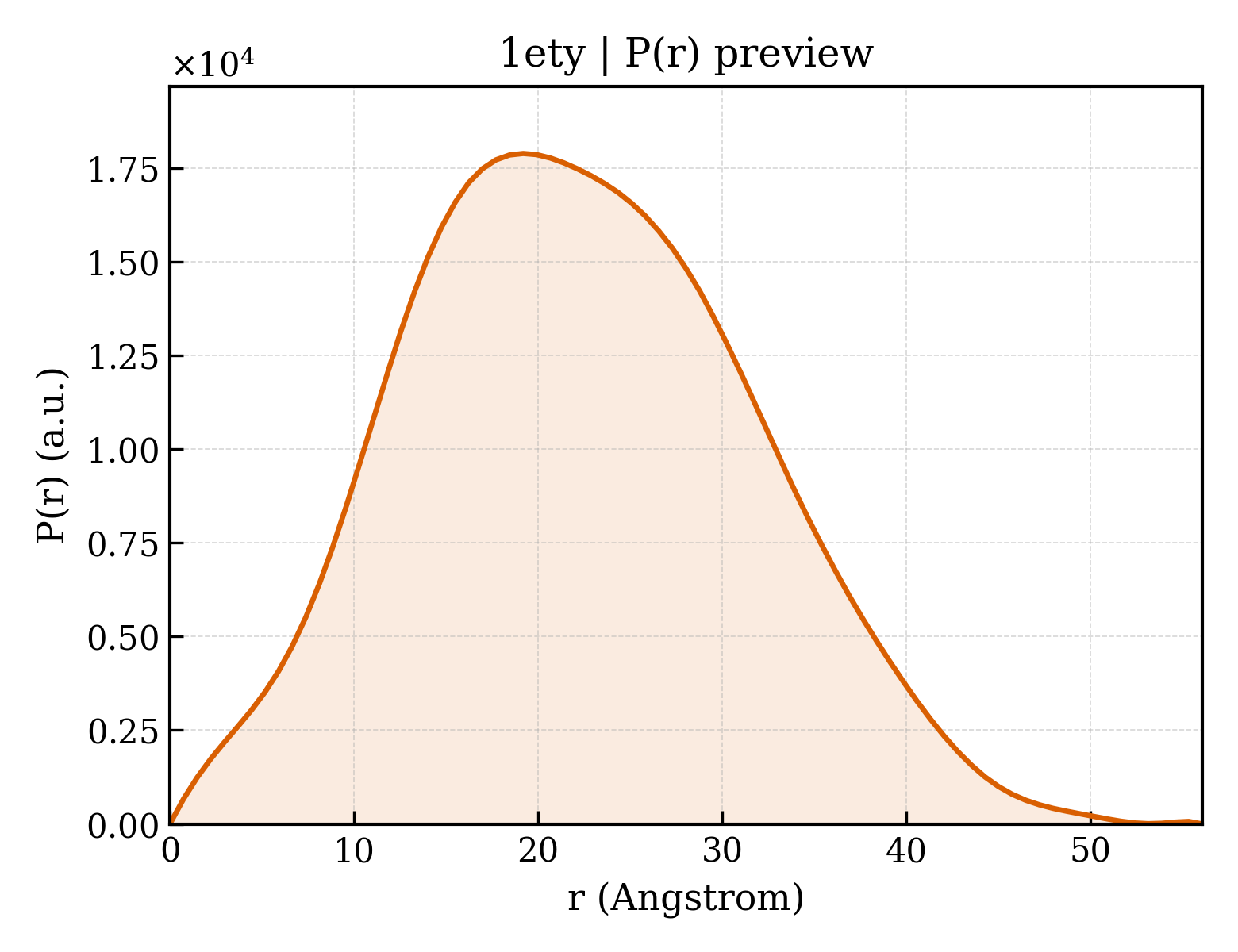

P(r) Distribution
1. Structure Basics
| entry_id | 1ety |
| deposition_date | 2000-04-13 |
| title | THE CRYSTAL STRUCTURE OF E. COLI WILD-TYPE FIS |
| keywords | DNA-BINDING PROTEIN, TRANSCRIPTION ACTIVATOR; TRANSCRIPTION ACTIVATOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.13 Å |
| rg_electron | 15.63 Å |
| i0 | 5614350.00 |
| molecular_weight | 17454.0 kDa |
| excluded_volume | 22100 ų |
| envelope_volume | 25029 ų |
| shell_volume | 13761 ų |
| envelope_diameter | 55.1 Å |
| shell_rg | 21.18 Å |
| envelope_rg | 15.87 Å |
| shape_rg | 15.61 Å |
| total_rg | 16.72 Å |
| total_atoms | 1219 |
| n_residues | 152 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 56.1 Å |
| rg_real | 17.06 Å |
| rg_real_error | 0.37 Å |
| i0_real | 5.6140e+06 |
| i0_real_error | 7.5900e+04 |
| rg_reciprocal | 17.07 Å |
| i0_reciprocal | 5614000.0000 |
| total_estimate | 0.8851 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.2 Å |
| skewness | 0.203 |
| kurtosis | -0.388 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 976600.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.844; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.970 |
