SAXSdb — 1ev7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TYPE IIE RESTRICTION ENDONUCLEASE NAEI

Lechevalieria aerocolonigenes

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	T2N1_NOCAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–317； UniProt 1–317 Author chain B； PDBConstruct 1–317； UniProt 1–317

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ev7
Deposition date deposition_date	2000-04-19
Structure title title	CRYSTAL STRUCTURE OF DNA RESTRICTION ENDONUCLEASE NAEI
Keywords keywords	apo-NaeI, restriction endonuclease, topoisomerase, helix-turn-helix, CAP, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ev7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ev7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

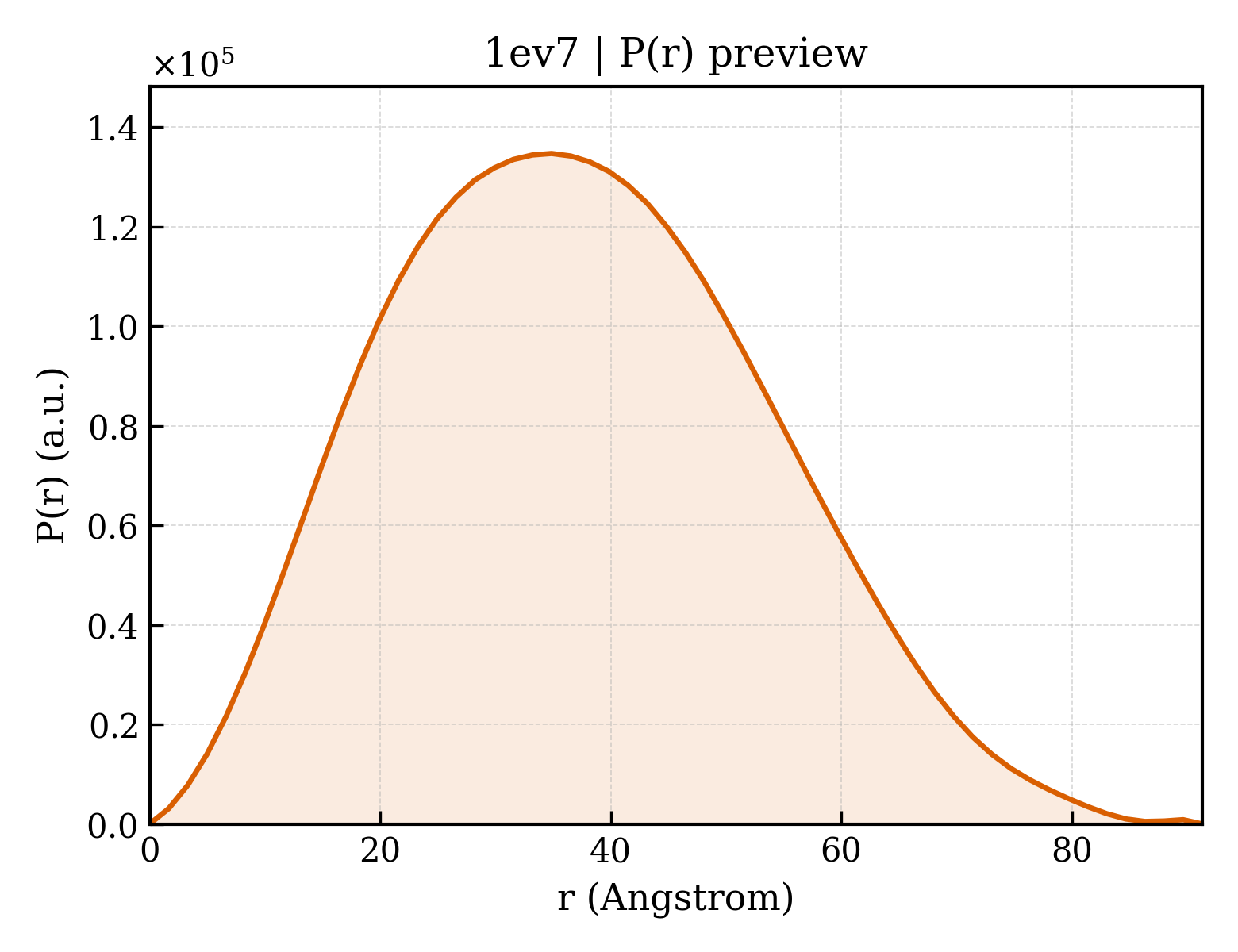

1ev7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.68 Å
Rg (electron density)	27.94 Å
Total Rg	28.57 Å
Atom count	4620
Residues	588
Excluded volume	81347 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ev7__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ev7a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.52 — Restriction endonuclease-like
Superfamily Superfamily superfamily	c.52.1 — Restriction endonuclease-like
Family Family family	c.52.1.9 — Restriction endonuclease NaeI

Domain ID domain_id	d1ev7b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.52 — Restriction endonuclease-like
Superfamily Superfamily superfamily	c.52.1 — Restriction endonuclease-like
Family Family family	c.52.1.9 — Restriction endonuclease NaeI

CATH v4.4 (4 domains)

Domain ID domain_id	1ev7A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	600 — ECO RV Endonuclease; Chain A
Homologous superfamily homologous superfamily	10 — DNA mismatch repair MutH/Restriction endonuclease, type II

Domain ID domain_id	1ev7A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1ev7B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	600 — ECO RV Endonuclease; Chain A
Homologous superfamily homologous superfamily	10 — DNA mismatch repair MutH/Restriction endonuclease, type II

Domain ID domain_id	1ev7B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

Unit-cell length a length_a	99.780 Å
Unit-cell length b length_b	56.160 Å
Unit-cell length c length_c	59.050 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.92 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.380 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.2375
R_free r_free	0.2868

Description description	TYPE IIE RESTRICTION ENDONUCLEASE NAEI
Molecular weight formula_weight	35384.0 kDa
EC 编号 ec_number	3.1.21.4
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4711

CRYSTAL STRUCTURE OF DNA RESTRICTION ENDONUCLEASE NAEI

1. Protein Identity and Related Structures Protein Identity & Related Structures

TYPE IIE RESTRICTION ENDONUCLEASE NAEI

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1ev7__assembly_1__model_1

1ev7__assembly_1__model_1 | I(q)

1ev7__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Lechevalieria aerocolonigenes
NCBI taxonomy ID ncbi_taxonomy_id	68170
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	91
