1ext
EXTRACELLULAR DOMAIN OF THE 55KDA TUMOR NECROSIS FACTOR RECEPTOR. CRYSTALLIZED AT PH3.7 IN P 21 21 21.

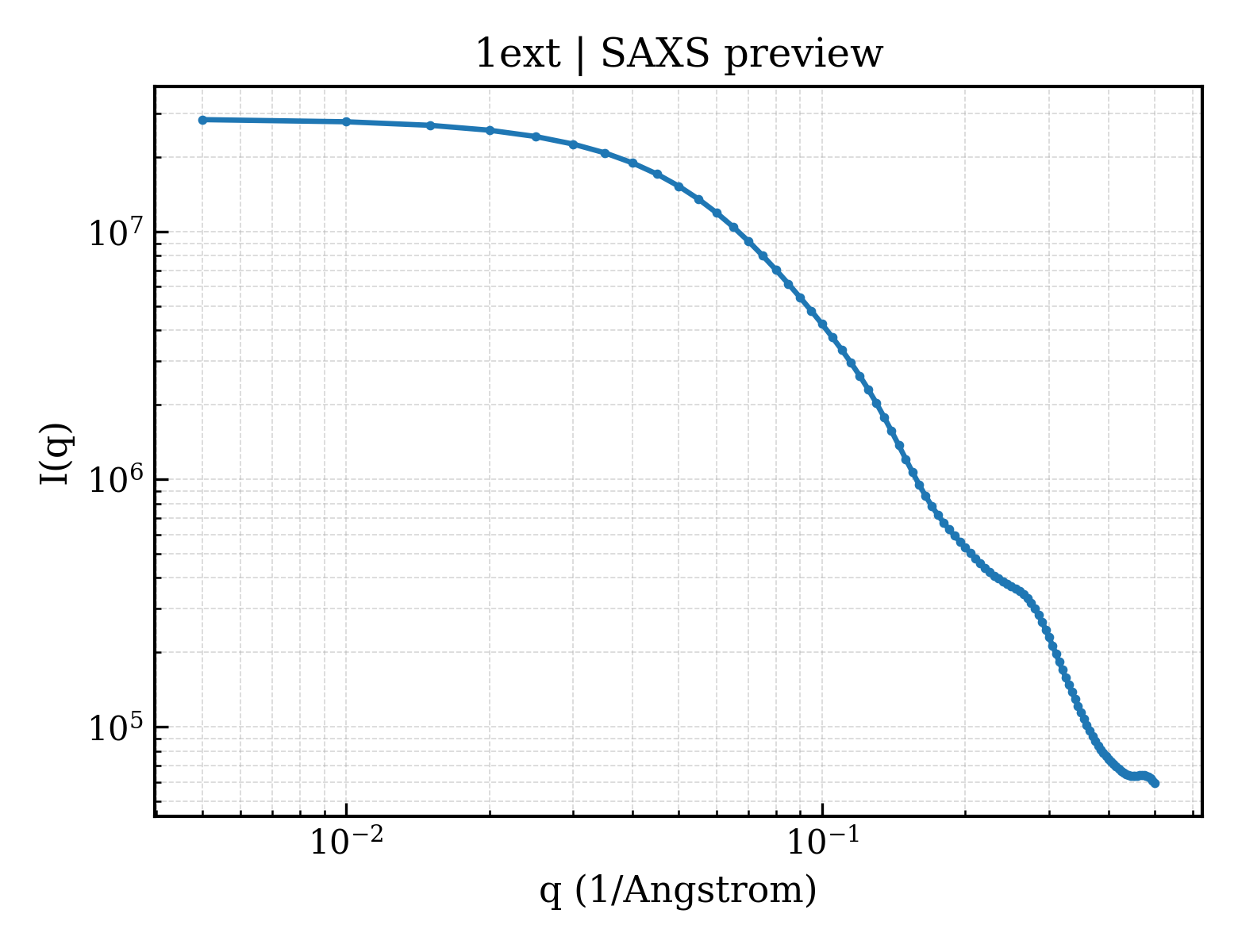

SAXS Profile

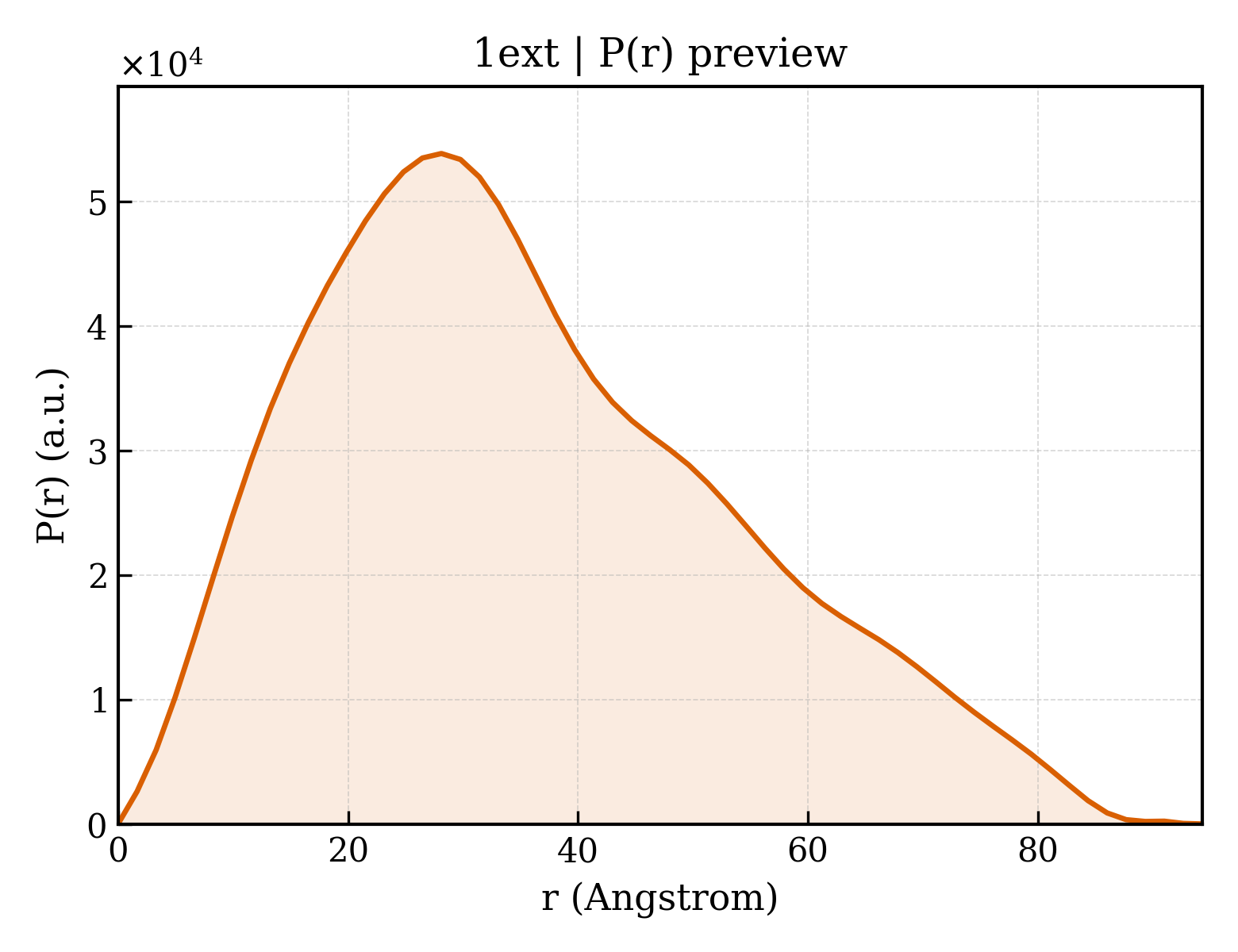

P(r) Distribution
1. Structure Basics
| entry_id | 1ext |
| deposition_date | 1996-07-03 |
| title | EXTRACELLULAR DOMAIN OF THE 55KDA TUMOR NECROSIS FACTOR RECEPTOR. CRYSTALLIZED AT PH3.7 IN P 21 21 21. |
| keywords | BINDING PROTEIN, CYTOKINE, SIGNALLING PROTEIN; SIGNALLING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.82 Å |
| rg_electron | 27.98 Å |
| i0 | 28590200.00 |
| molecular_weight | 36190.0 kDa |
| excluded_volume | 43201 ų |
| envelope_volume | 63413 ų |
| shell_volume | 20840 ų |
| envelope_diameter | 95.2 Å |
| shell_rg | 32.10 Å |
| envelope_rg | 28.29 Å |
| shape_rg | 27.95 Å |
| total_rg | 28.51 Å |
| total_atoms | 2487 |
| n_residues | 318 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 94.3 Å |
| rg_real | 28.15 Å |
| rg_real_error | 1.08 Å |
| i0_real | 2.8590e+07 |
| i0_real_error | 4.7350e+05 |
| rg_reciprocal | 28.05 Å |
| i0_reciprocal | 28590000.0000 |
| total_estimate | 0.8497 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 28.1 Å |
| skewness | 0.515 |
| kurtosis | -0.397 |
| angular_range | — – 0.2850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1085000.0000 |
| n_real_points | 58 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.798; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.743; Smooth: 0.904 |
