1ey5
STRUCTURE OF S. NUCLEASE STABILIZING MUTANT T33V
SAXS Profile

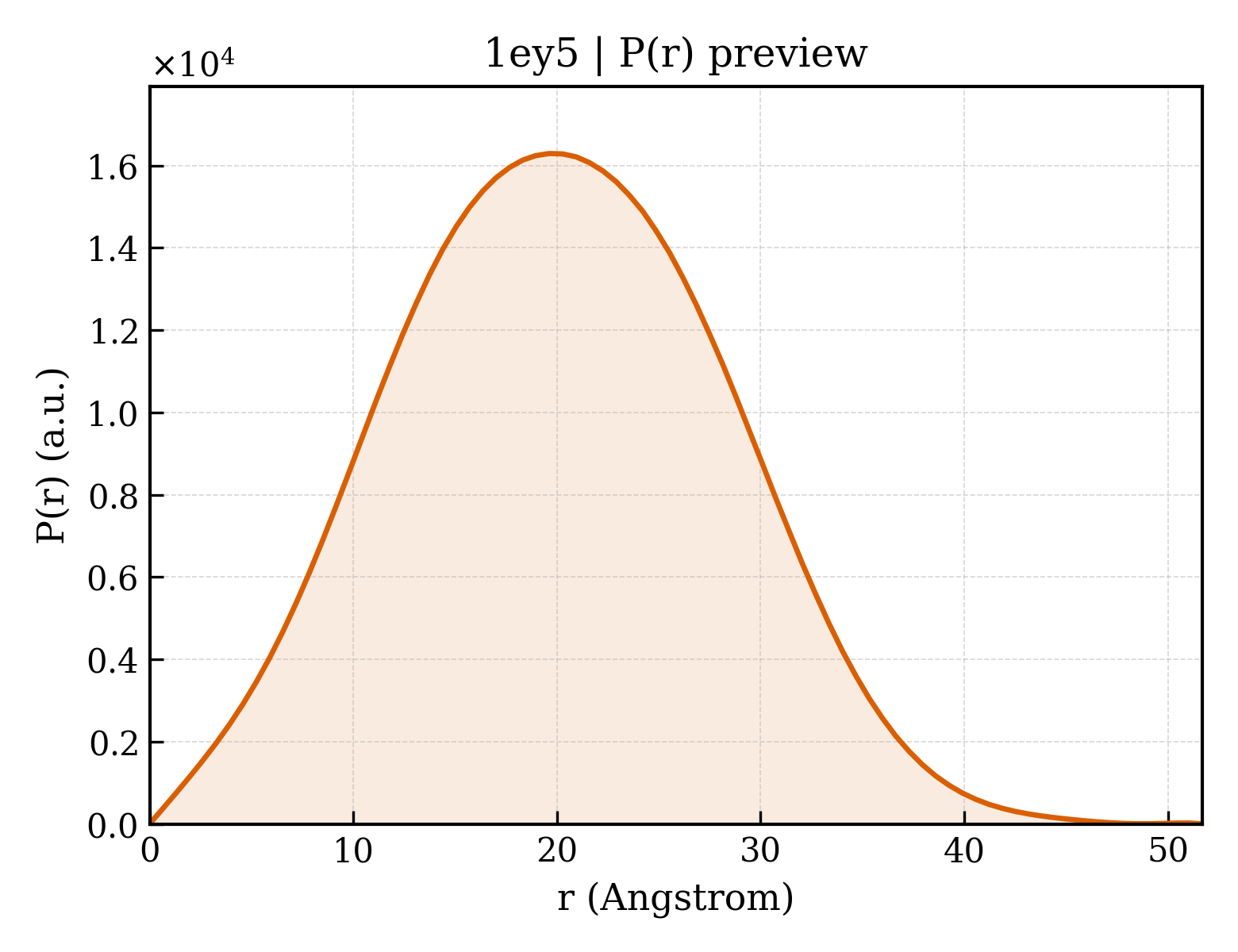

P(r) Distribution
1. Structure Basics
| entry_id | 1ey5 |
| deposition_date | 2000-05-05 |
| title | STRUCTURE OF S. NUCLEASE STABILIZING MUTANT T33V |
| keywords | HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.45 Å |
| rg_electron | 14.36 Å |
| i0 | 4424300.00 |
| molecular_weight | 15368.0 kDa |
| excluded_volume | 19500 ų |
| envelope_volume | 21689 ų |
| shell_volume | 12857 ų |
| envelope_diameter | 50.6 Å |
| shell_rg | 20.13 Å |
| envelope_rg | 14.55 Å |
| shape_rg | 14.33 Å |
| total_rg | 15.66 Å |
| total_atoms | 1082 |
| n_residues | 135 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.7 Å |
| rg_real | 15.34 Å |
| rg_real_error | 0.25 Å |
| i0_real | 4.4240e+06 |
| i0_real_error | 4.6260e+04 |
| rg_reciprocal | 15.35 Å |
| i0_reciprocal | 4424000.0000 |
| total_estimate | 0.8740 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.6 Å |
| skewness | 0.105 |
| kurtosis | -0.385 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 869900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.787; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.997 |
