1ey6
STRUCTURE OF S. NUCLEASE STABILIZING MUTANT T41I
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1ey6 |
| deposition_date | 2000-05-05 |
| title | STRUCTURE OF S. NUCLEASE STABILIZING MUTANT T41I |
| keywords | HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.45 Å |
| rg_electron | 14.38 Å |
| i0 | 4389410.00 |
| molecular_weight | 15382.0 kDa |
| excluded_volume | 19527 ų |
| envelope_volume | 21747 ų |
| shell_volume | 12866 ų |
| envelope_diameter | 50.3 Å |
| shell_rg | 20.14 Å |
| envelope_rg | 14.59 Å |
| shape_rg | 14.35 Å |
| total_rg | 15.65 Å |
| total_atoms | 1083 |
| n_residues | 135 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

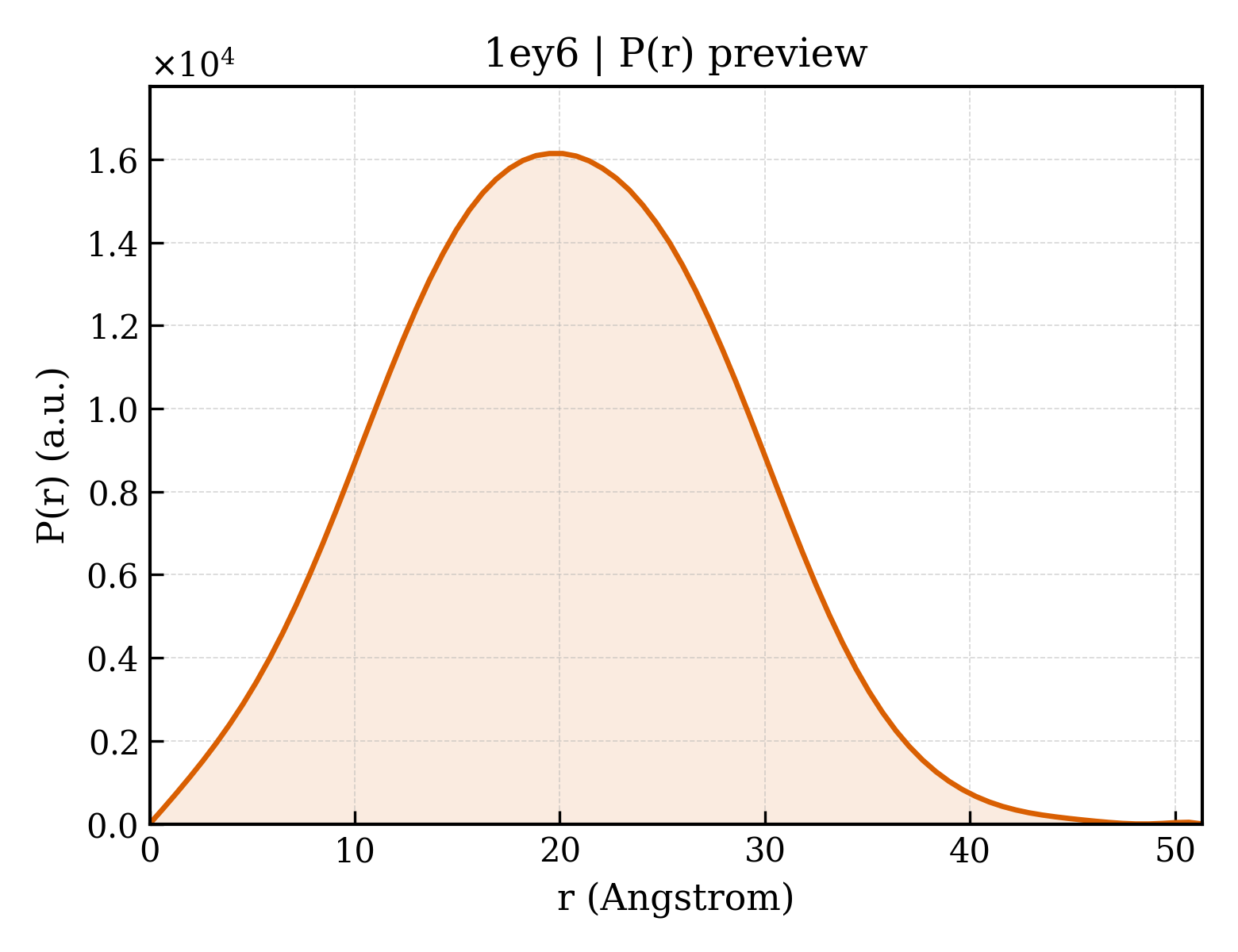

3. P(r) Analysis (GNOM)
| dmax | 51.3 Å |
| rg_real | 15.35 Å |
| rg_real_error | 0.29 Å |
| i0_real | 4.3890e+06 |
| i0_real_error | 5.4470e+04 |
| rg_reciprocal | 15.36 Å |
| i0_reciprocal | 4389000.0000 |
| total_estimate | 0.8758 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 50.7 Å |
| skewness | 0.101 |
| kurtosis | -0.382 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 837400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.798; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.987 |
