1ey7
STRUCTURE OF S. NUCLEASE STABILIZING MUTANT S128A
SAXS Profile

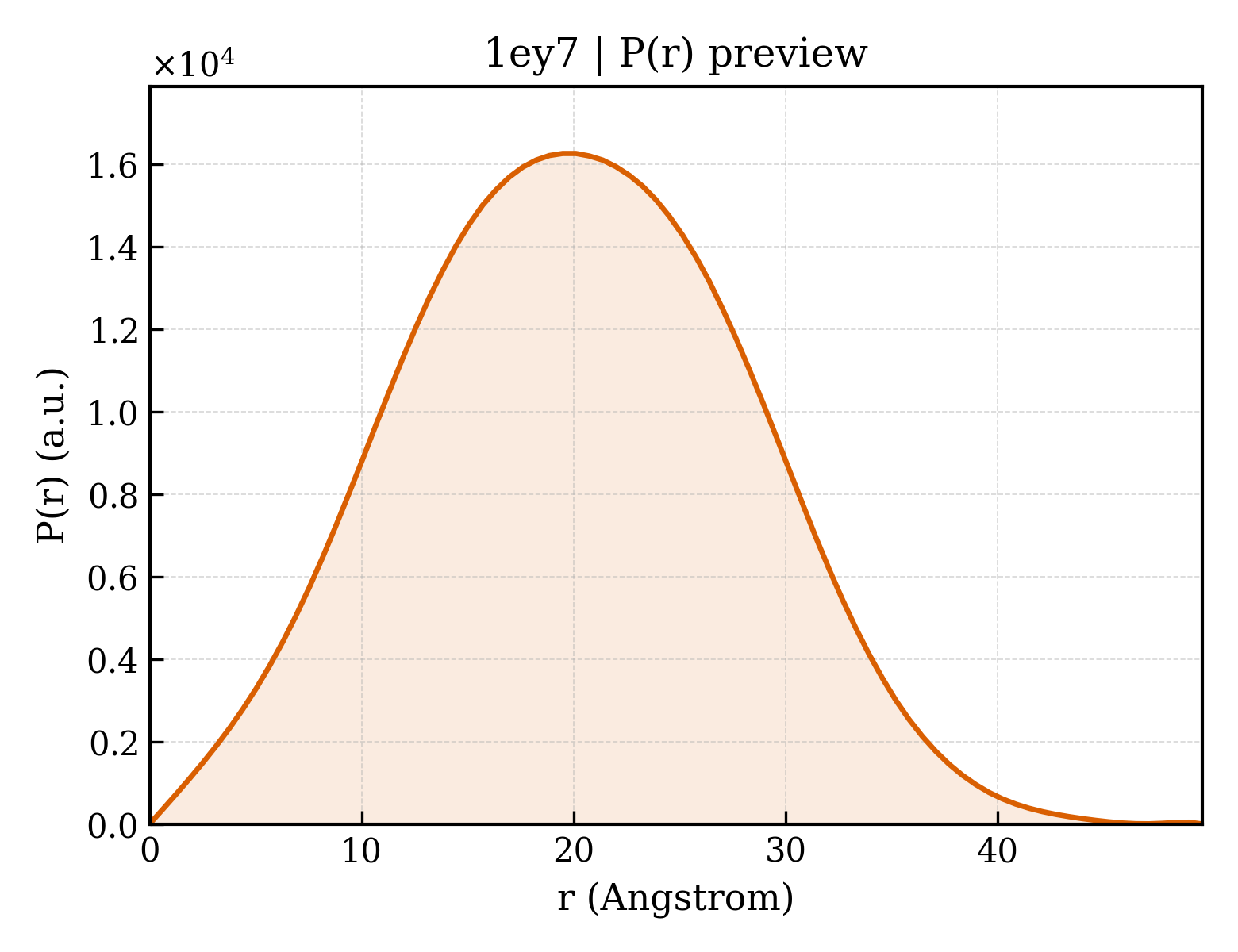

P(r) Distribution
1. Structure Basics
| entry_id | 1ey7 |
| deposition_date | 2000-05-05 |
| title | STRUCTURE OF S. NUCLEASE STABILIZING MUTANT S128A |
| keywords | HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.39 Å |
| rg_electron | 14.32 Å |
| i0 | 4403830.00 |
| molecular_weight | 15354.0 kDa |
| excluded_volume | 19474 ų |
| envelope_volume | 21552 ų |
| shell_volume | 12820 ų |
| envelope_diameter | 48.7 Å |
| shell_rg | 20.05 Å |
| envelope_rg | 14.47 Å |
| shape_rg | 14.28 Å |
| total_rg | 15.59 Å |
| total_atoms | 1081 |
| n_residues | 135 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.6 Å |
| rg_real | 15.28 Å |
| rg_real_error | 0.24 Å |
| i0_real | 4.4040e+06 |
| i0_real_error | 4.8980e+04 |
| rg_reciprocal | 15.29 Å |
| i0_reciprocal | 4404000.0000 |
| total_estimate | 0.8860 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 49.0 Å |
| skewness | 0.082 |
| kurtosis | -0.416 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 821800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.843; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.988 |
