1eya
STRUCTURE OF S. NUCLEASE STABILIZING QUINTUPLE MUTANT T33V/T41I/P117G/H124L/S128A
SAXS Profile

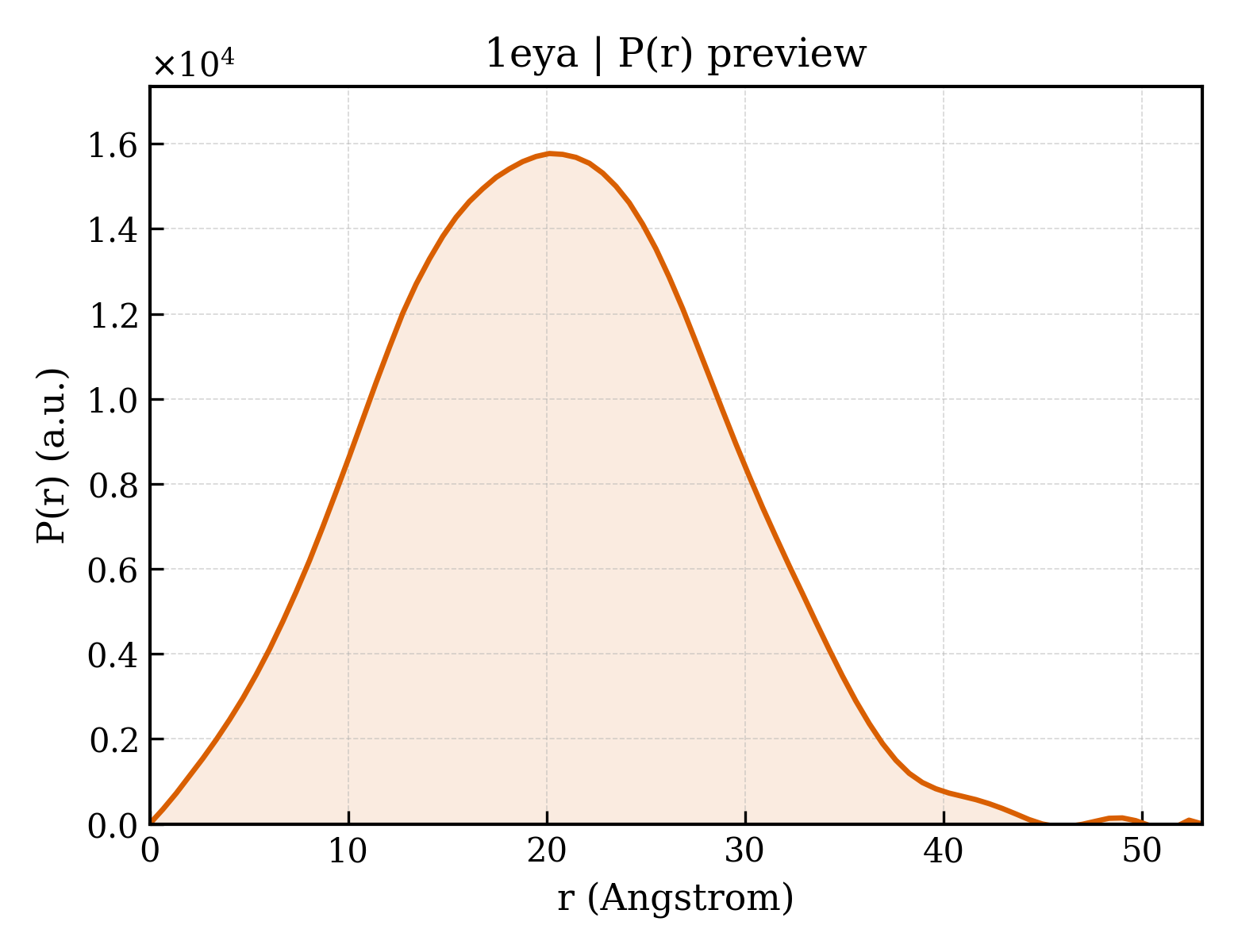

P(r) Distribution
1. Structure Basics
| entry_id | 1eya |
| deposition_date | 2000-05-05 |
| title | STRUCTURE OF S. NUCLEASE STABILIZING QUINTUPLE MUTANT T33V/T41I/P117G/H124L/S128A |
| keywords | HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.47 Å |
| rg_electron | 14.37 Å |
| i0 | 4296790.00 |
| molecular_weight | 15300.0 kDa |
| excluded_volume | 19482 ų |
| envelope_volume | 21425 ų |
| shell_volume | 12721 ų |
| envelope_diameter | 49.0 Å |
| shell_rg | 20.14 Å |
| envelope_rg | 14.63 Å |
| shape_rg | 14.34 Å |
| total_rg | 15.69 Å |
| total_atoms | 1077 |
| n_residues | 135 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 53.0 Å |
| rg_real | 15.37 Å |
| rg_real_error | 0.36 Å |
| i0_real | 4.2970e+06 |
| i0_real_error | 4.2030e+04 |
| rg_reciprocal | 15.38 Å |
| i0_reciprocal | 4297000.0000 |
| total_estimate | 0.7853 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 20.1 Å |
| skewness | 0.112 |
| kurtosis | -0.389 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 908000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.738; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000 |
