1eyd
STRUCTURE OF WILD-TYPE S. NUCLEASE AT 1.7 A RESOLUTION
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1eyd |
| deposition_date | 2000-05-05 |
| title | STRUCTURE OF WILD-TYPE S. NUCLEASE AT 1.7 A RESOLUTION |
| keywords | HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.53 Å |
| rg_electron | 14.46 Å |
| i0 | 4501820.00 |
| molecular_weight | 15499.0 kDa |
| excluded_volume | 19661 ų |
| envelope_volume | 22314 ų |
| shell_volume | 13047 ų |
| envelope_diameter | 50.3 Å |
| shell_rg | 20.33 Å |
| envelope_rg | 14.78 Å |
| shape_rg | 14.41 Å |
| total_rg | 15.81 Å |
| total_atoms | 1091 |
| n_residues | 136 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

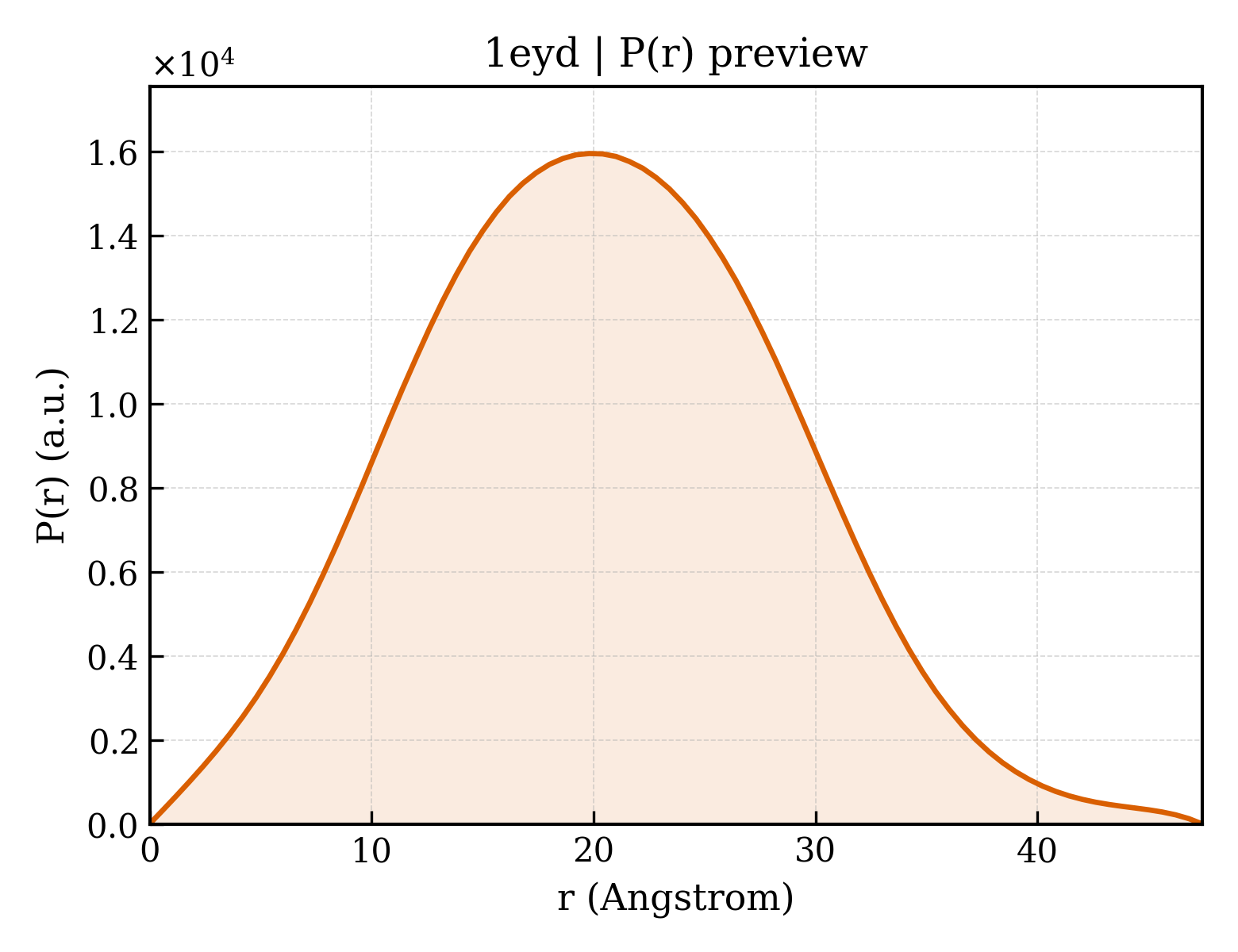

3. P(r) Analysis (GNOM)
| dmax | 47.4 Å |
| rg_real | 15.53 Å |
| rg_real_error | 0.06 Å |
| i0_real | 4.3860e+06 |
| i0_real_error | 3.0820e+04 |
| rg_reciprocal | 15.44 Å |
| i0_reciprocal | 4502000.0000 |
| total_estimate | 0.7000 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 19.8 Å |
| skewness | 0.157 |
| kurtosis | -0.307 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 10.4800 |
| highest_alpha | 881200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.927; Stabil: 0.931; Sysdev: 0.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.564 |
