1eyf
REFINED STRUCTURE OF THE DNA METHYL PHOSPHOTRIESTER REPAIR DOMAIN OF E. COLI ADA

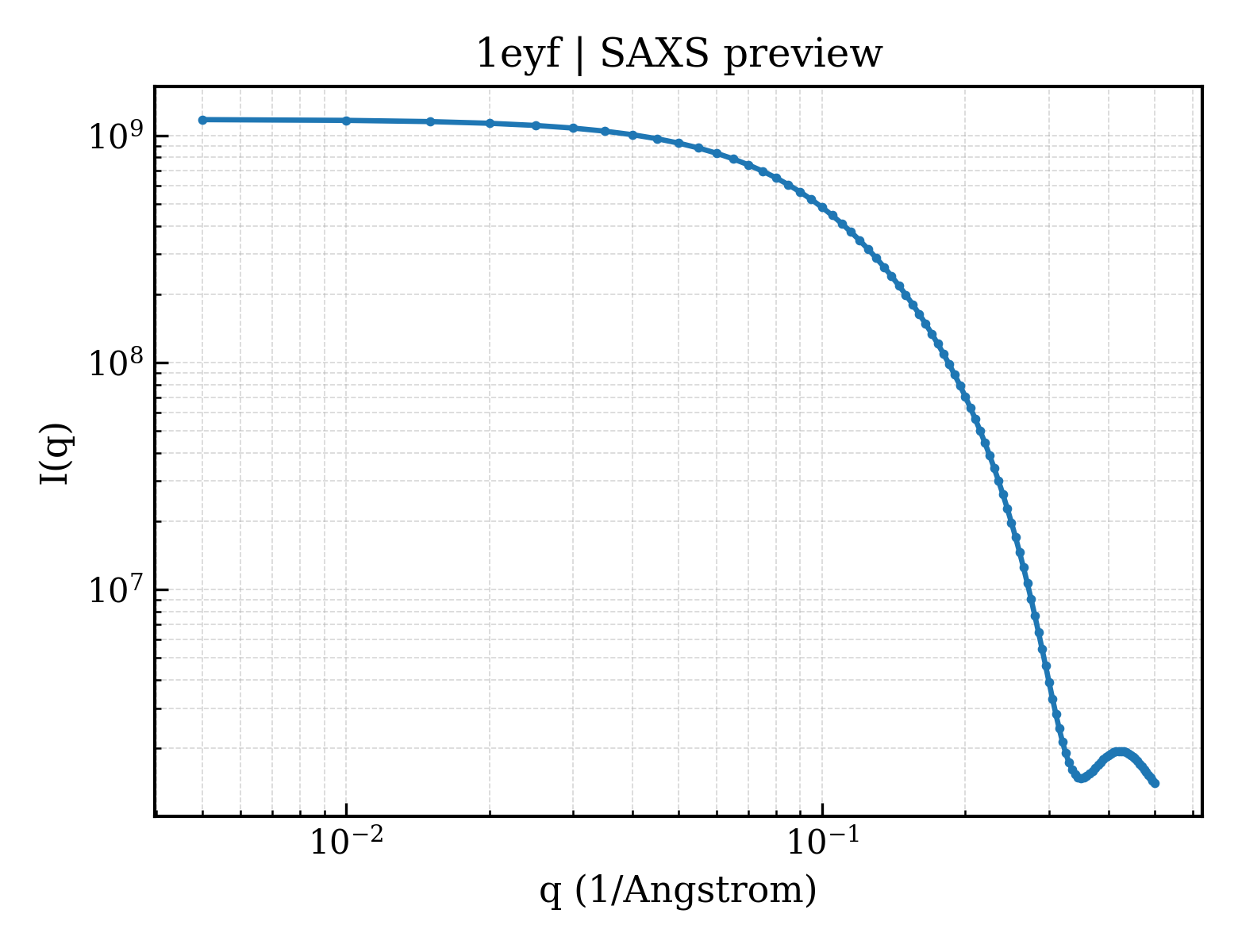

SAXS Profile

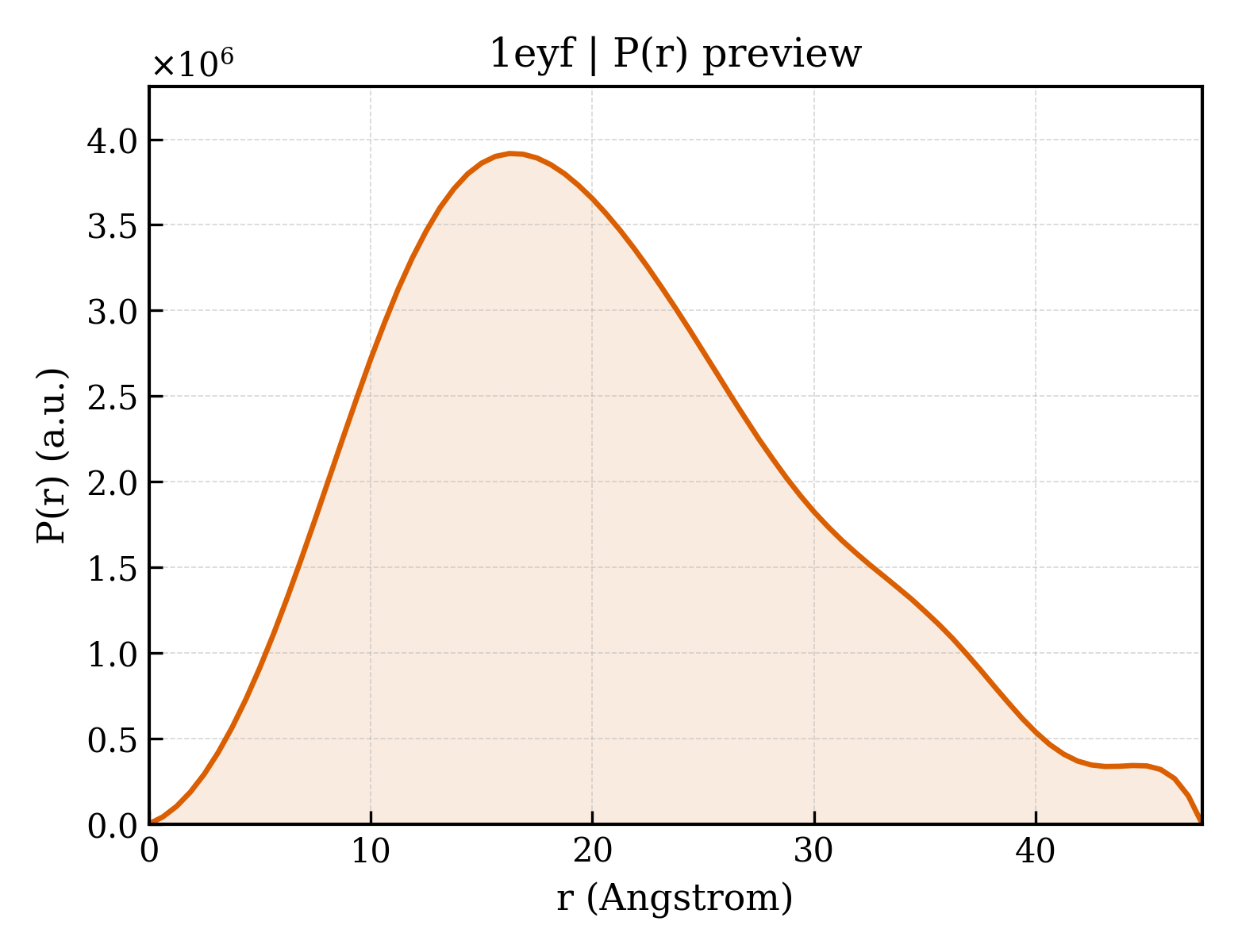

P(r) Distribution
1. Structure Basics
| entry_id | 1eyf |
| deposition_date | 2000-05-06 |
| title | REFINED STRUCTURE OF THE DNA METHYL PHOSPHOTRIESTER REPAIR DOMAIN OF E. COLI ADA |
| keywords | One central beta-sheet sandwiched between two alpha-helices, DNA BINDING PROTEIN; DNA BINDING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.95 Å |
| rg_electron | 16.79 Å |
| i0 | 1176440000.00 |
| molecular_weight | 263090.0 kDa |
| excluded_volume | 319760 ų |
| envelope_volume | 96126 ų |
| shell_volume | 31532 ų |
| envelope_diameter | 92.2 Å |
| shell_rg | 33.06 Å |
| envelope_rg | 25.64 Å |
| shape_rg | 16.70 Å |
| total_rg | 17.57 Å |
| total_atoms | 36225 |
| n_residues | 2300 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.5 Å |
| rg_real | 15.85 Å |
| rg_real_error | 0.07 Å |
| i0_real | 1.1190e+09 |
| i0_real_error | 8.2430e+06 |
| rg_reciprocal | 17.17 Å |
| i0_reciprocal | 1176000000.0000 |
| total_estimate | 0.6677 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 16.3 Å |
| skewness | 0.475 |
| kurtosis | -0.279 |
| angular_range | — – 0.4700 Å−1 |
| current_alpha | 3.7410 |
| highest_alpha | 14180000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.009; Oscil: 0.917; Stabil: 0.982; Sysdev: 0.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.000 |
