SAXSdb — 1eyg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SINGLE-STRAND DNA-BINDING PROTEIN

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 1	SINGLE STRANDED 28-MER OF D(C) × 1 water × 3	Consistent with all polymers
2	Protein–DNA	Homooligomer	Protein 2 DNA 1	SINGLE STRANDED 28-MER OF D(C) × 1 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SSB_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–116； UniProt 1–116 Author chain B； PDBConstruct 1–116； UniProt 1–116 Author chain C； PDBConstruct 1–116； UniProt 1–116 Author chain D； PDBConstruct 1–116； UniProt 1–116

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1eyg
Deposition date deposition_date	2000-05-06
Structure title title	Crystal structure of chymotryptic fragment of E. coli ssb bound to two 35-mer single strand DNAS
Keywords keywords	PROTEIN-DNA COMPLEX; OB fold; Se-Met; MAD PHASING; SSB; binding mode, replication-DNA COMPLEX; replication/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1eyg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1eyg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

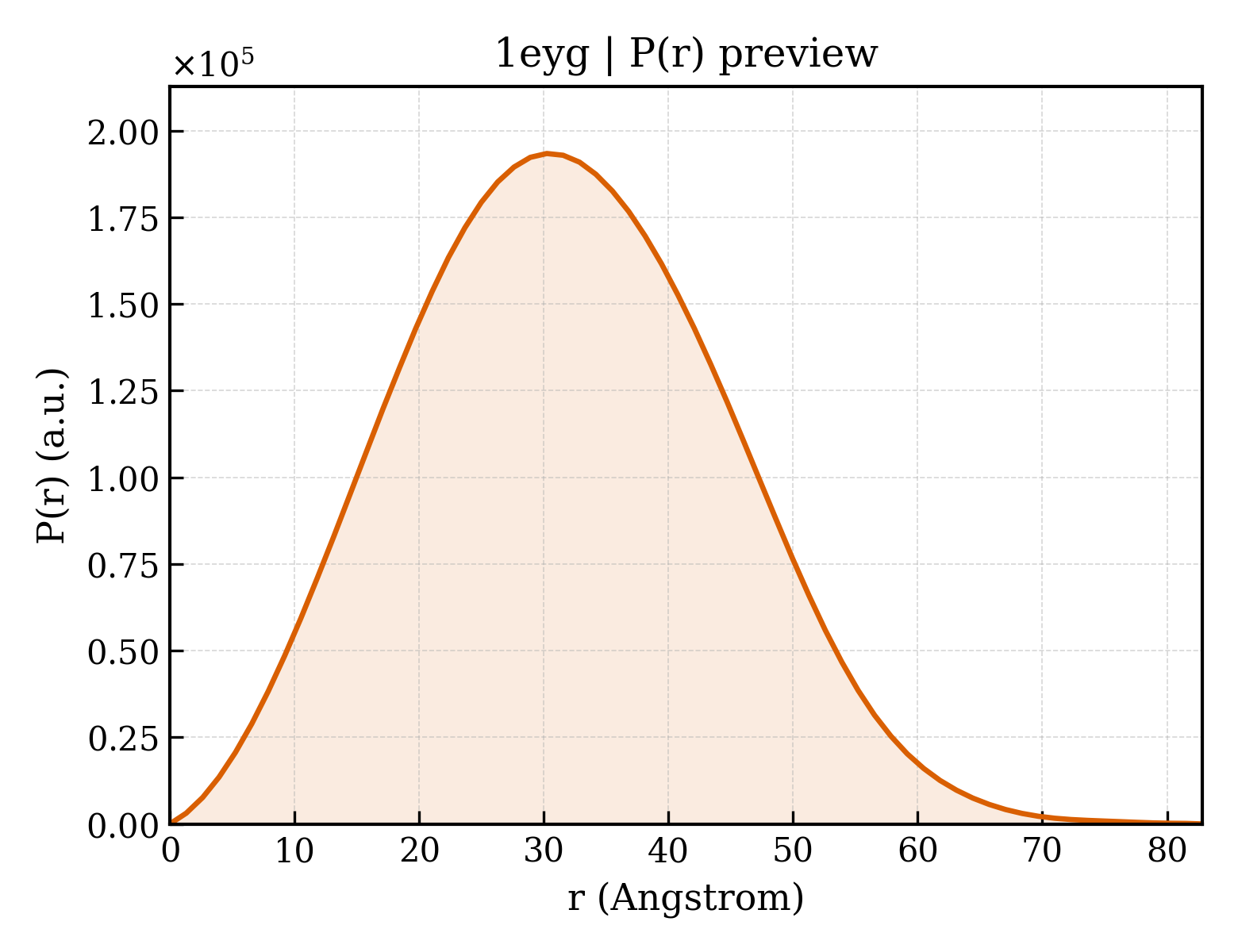

1eyg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.04 Å
Rg (electron density)	18.09 Å
Total Rg	18.90 Å
Atom count	2029
Residues	239
Excluded volume	34698 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1eyg__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1eyg__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	SINGLE STRANDED 28-MER OF D(C)
Molecular weight formula_weight	10076.4 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	Q,R
Atom count atom_count	4244

CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC

Entity 2 Entity 2 polymer

Description description	SINGLE-STRAND DNA-BINDING PROTEIN
Molecular weight formula_weight	12906.6 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D

MASRGVNKVILVGNLGQDPEVRYMPNGGAVANITLATSESWRDKATGEMKEQTEWHRVVLFGKLAEVASEYLRKGSQVYIEGQLRTRKWTDQSGQDRYTTEVVVNVGGTMQMLGGR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	39

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1eyga_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.3 — Single strand DNA-binding domain, SSB

Domain ID domain_id	d1eygb_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.3 — Single strand DNA-binding domain, SSB

Domain ID domain_id	d1eygc_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.3 — Single strand DNA-binding domain, SSB

Domain ID domain_id	d1eygd_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.3 — Single strand DNA-binding domain, SSB

CATH v4.4 (4 domains)

Domain ID domain_id	1eygA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1eygB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1eygC00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1eygD00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

▶

Unit-cell length a length_a	98.688 Å
Unit-cell length b length_b	71.081 Å
Unit-cell length c length_c	79.160 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.93 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2560
R_work r_work	0.2560
R_free r_free	0.2980
