SAXSdb — 1f1v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HOMOPROTOCATECHUATE 2,3-DIOXYGENASE

Arthrobacter globiformis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	MANGANESE (II) ION × 4 2-(3,4-DIHYDROXYPHENYL)ACETIC ACID × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q44048_ARTGO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–323； UniProt 1–322 Author chain B； PDBConstruct 1–323； UniProt 1–322

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1f1v
Deposition date deposition_date	2000-05-20
Structure title title	ANAEROBIC SUBSTRATE COMPLEX OF HOMOPROTOCATECHUATE 2,3-DIOXYGENASE FROM ARTHROBACTER GLOBIFORMIS. (COMPLEX WITH 3,4-DIHYDROXYPHENYLACETATE)
Keywords keywords	Dioxygenase, Extradiol, Manganese, Biodegradation, Aromatic, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1f1v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

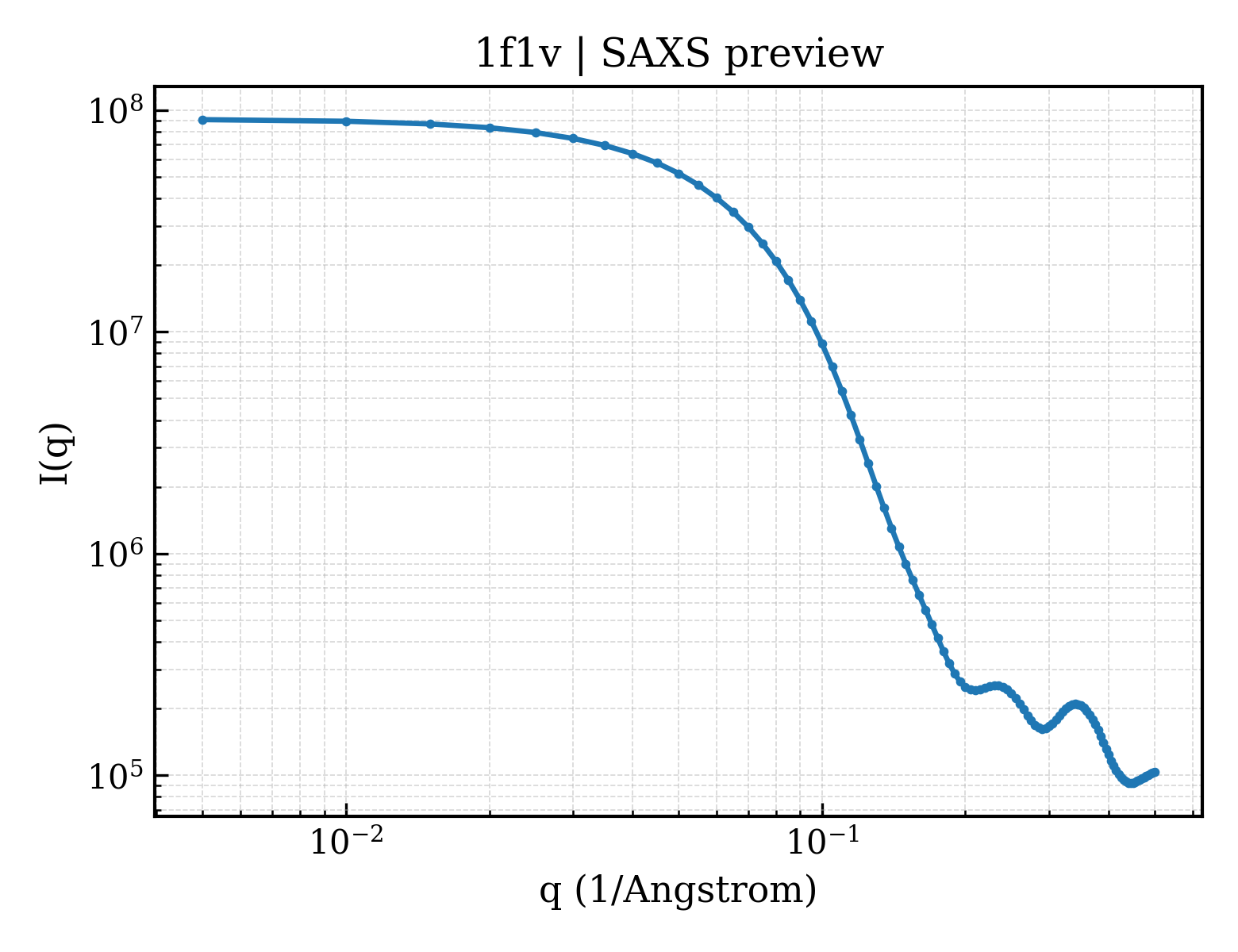

1f1v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

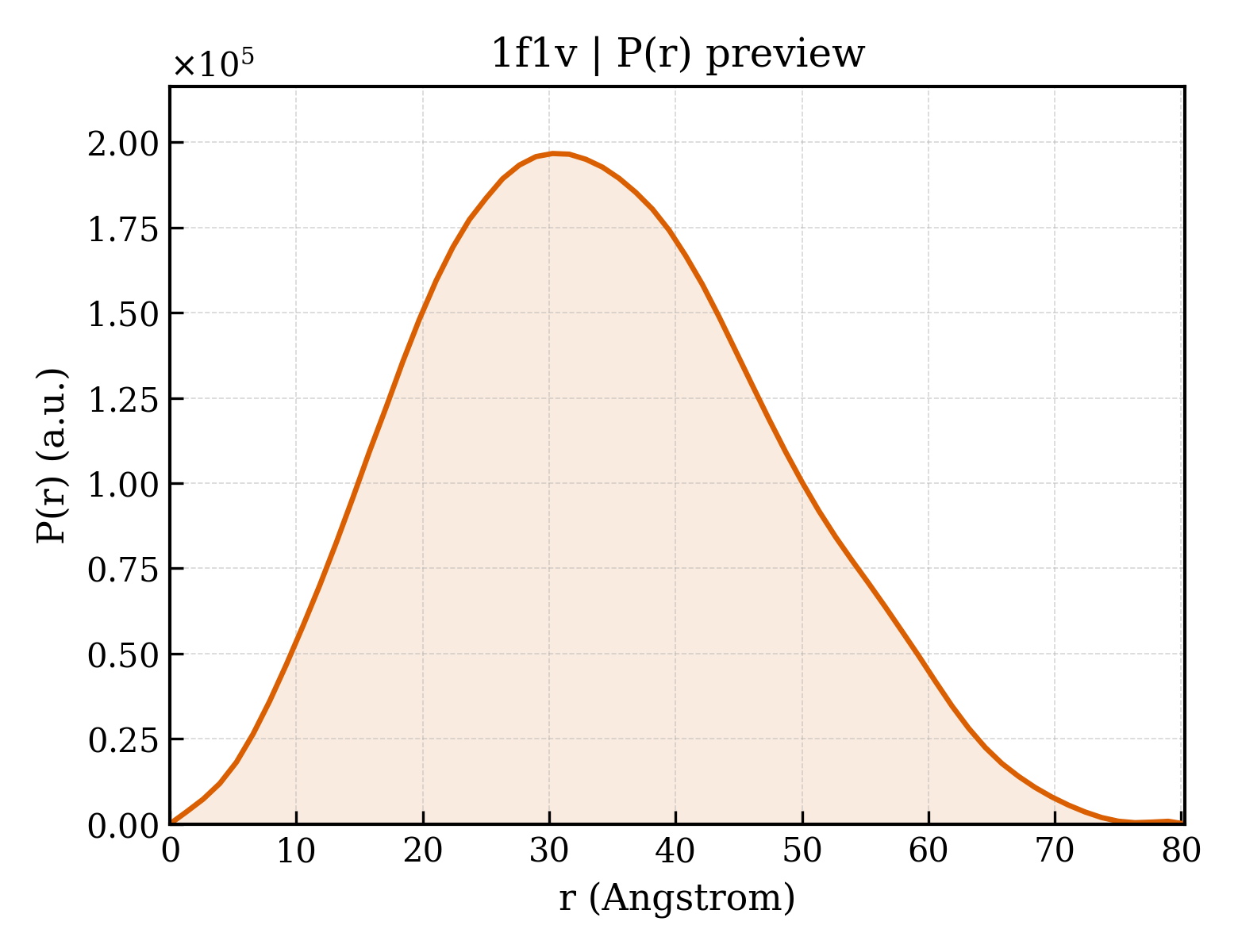

1f1v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.08 Å
Rg (electron density)	32.36 Å
Total Rg	32.99 Å
Atom count	10408
Residues	1280
Excluded volume	182800 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1f1v__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	HOMOPROTOCATECHUATE 2,3-DIOXYGENASE
Molecular weight formula_weight	36992.2 kDa
EC 编号 ec_number	1.13.11.15
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5520

MTNFVPTPSVPAPDIVRCAYMEIVVTDLAKSREFYVDVLGLHVTEEDENTIYLRSLEEFIHHNLVLRQGPIAAVAAFAYRVKSPAEVDAAEAYYKELGCRTERRKEGFTKGIGDSVRVEDPLGFPYEFFYETEHVERLTQRYDLYSAGELVRLDHFNQVTPDVPRGRAYLEDLGFRVSEDIKDSDGVTYAAWMHRKQTVHDTALTGGNGPRMHHVAFATHEKHNIIQICDKMGALRISDRIERGPGRHGVSNAFYLYILDPDGHRIEIYTQDYYTGDPDNPTITWDVHDNQRRDWWGNPVVPSWYTEASLVLDLDGNPQPVIV

Source Source

Source organism organism	Arthrobacter globiformis
NCBI taxonomy ID ncbi_taxonomy_id	1665
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	2-(3,4-DIHYDROXYPHENYL)ACETIC ACID
Molecular weight formula_weight	168.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	316

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1f1va1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Superfamily Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Family Family family	d.32.1.3 — Extradiol dioxygenases

Domain ID domain_id	d1f1va2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Superfamily Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Family Family family	d.32.1.3 — Extradiol dioxygenases

Domain ID domain_id	d1f1vb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Superfamily Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Family Family family	d.32.1.3 — Extradiol dioxygenases

Domain ID domain_id	d1f1vb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Superfamily Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Family Family family	d.32.1.3 — Extradiol dioxygenases

CATH v4.4 (4 domains)

Domain ID domain_id	1f1vA01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
Homologous superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

Domain ID domain_id	1f1vA02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
Homologous superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

Domain ID domain_id	1f1vB01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
Homologous superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

Domain ID domain_id	1f1vB02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
Homologous superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

▶

Unit-cell length a length_a	139.420 Å
Unit-cell length b length_b	59.300 Å
Unit-cell length c length_c	103.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	118.39 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1660
R_work r_work	0.1660
R_free r_free	0.2000
