SAXSdb — 1f38

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PRECORRIN-8W DECARBOXYLASE

Methanothermobacter thermautotrophicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CBIT_METTH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–192； UniProt 1–192 Author chain B； PDBConstruct 1–192； UniProt 1–192 Author chain C； PDBConstruct 1–192； UniProt 1–192 Author chain D； PDBConstruct 1–192； UniProt 1–192

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1f38
Deposition date deposition_date	2000-05-31
Structure title title	X-RAY CRYSTALLOGRAPHIC STRUCTURE OF PRECORRIN 8W DECARBOXYLASE, THE PRODUCT OF GENE MT0146 IN THE METHANOBACTERIUM THERMOAUTOTROPHICUM GENOME
Keywords keywords	Decarboxylase, Structural Genomics, PSI, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1f38__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

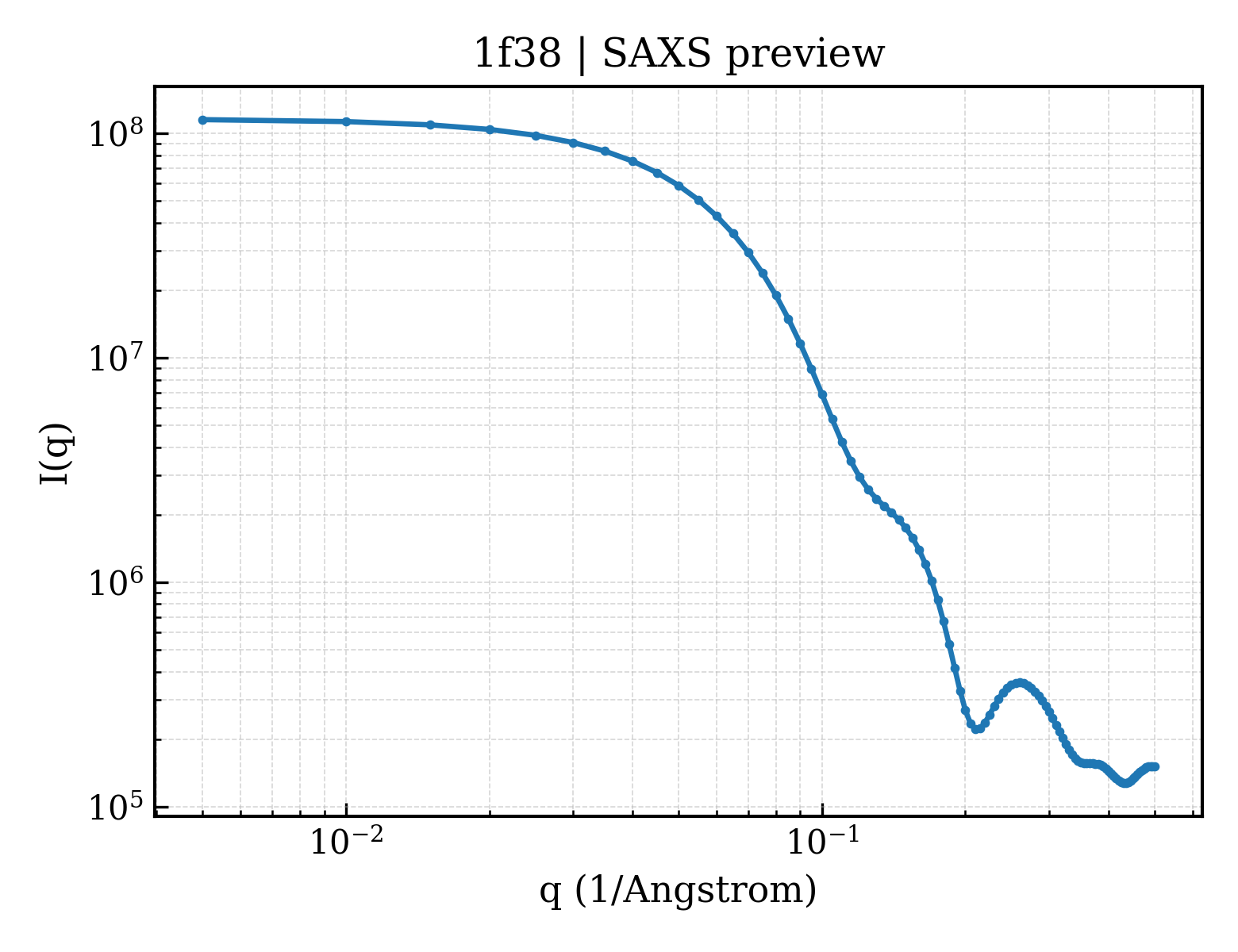

1f38__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

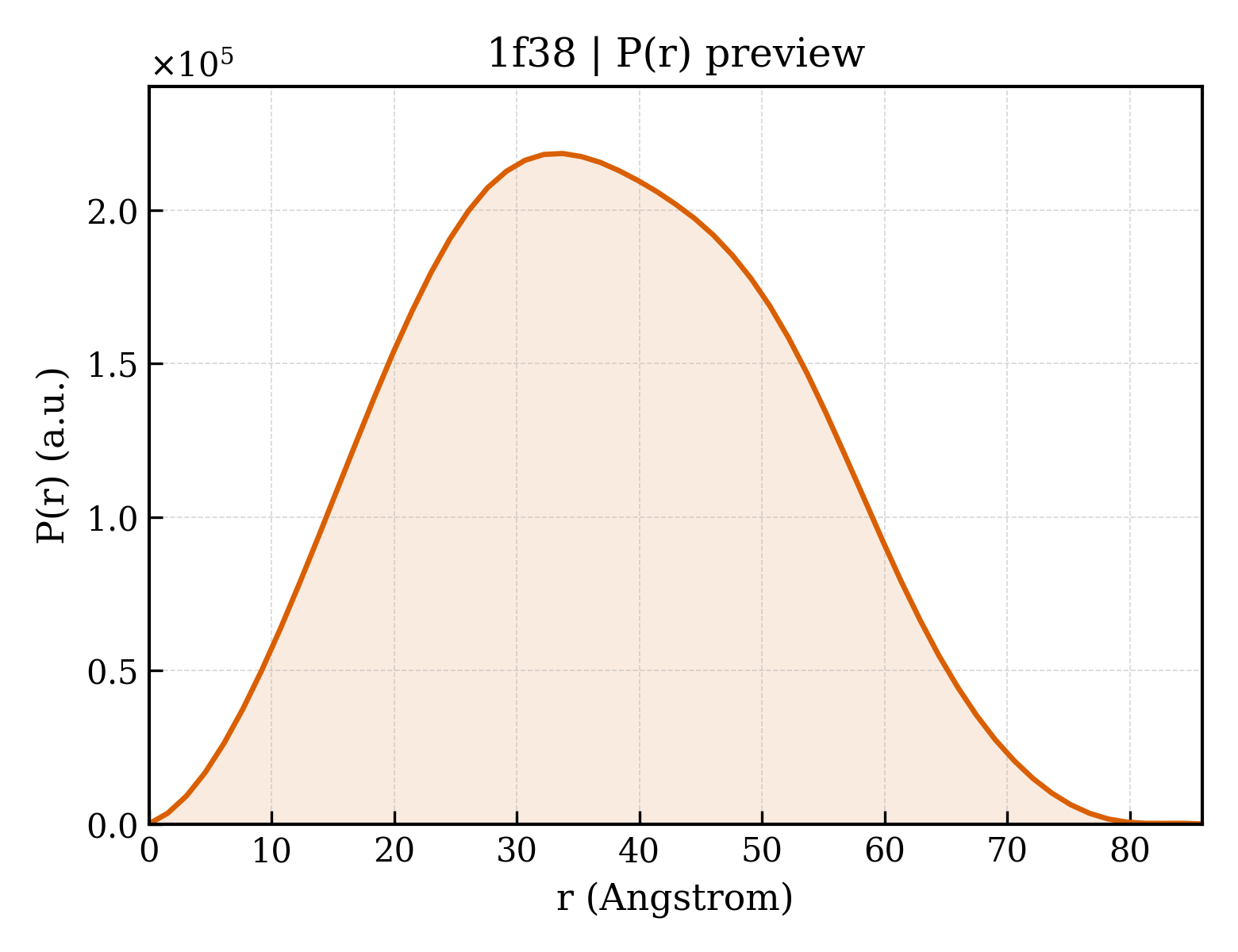

1f38__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.41 Å
Rg (electron density)	27.34 Å
Total Rg	27.90 Å
Atom count	5568
Residues	712
Excluded volume	100380 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1f38__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1f38a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.22 — Precorrin-6Y methyltransferase (CbiT)

Domain ID domain_id	d1f38b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.22 — Precorrin-6Y methyltransferase (CbiT)

Domain ID domain_id	d1f38c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.22 — Precorrin-6Y methyltransferase (CbiT)

Domain ID domain_id	d1f38d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.22 — Precorrin-6Y methyltransferase (CbiT)

CATH v4.4 (4 domains)

Domain ID domain_id	1f38A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	1f38B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	1f38C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	1f38D00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

▶

Unit-cell length a length_a	74.470 Å
Unit-cell length b length_b	194.760 Å
Unit-cell length c length_c	59.240 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	100.000 Å
R factor r_factor	—
R_work r_work	0.2360
R_free r_free	0.2910

Description description	PRECORRIN-8W DECARBOXYLASE
Molecular weight formula_weight	21112.1 kDa
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	5748

X-RAY CRYSTALLOGRAPHIC STRUCTURE OF PRECORRIN 8W DECARBOXYLASE, THE PRODUCT OF GENE MT0146 IN THE METHANOBACTERIUM THERMOAUTOTROPHICUM GENOME

1. Protein Identity and Related Structures Protein Identity & Related Structures

PRECORRIN-8W DECARBOXYLASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1f38__assembly_1__model_1

1f38__assembly_1__model_1 | I(q)

1f38__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Methanothermobacter thermautotrophicus
NCBI taxonomy ID ncbi_taxonomy_id	145262
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	180

X-RAY CRYSTALLOGRAPHIC STRUCTURE OF PRECORRIN 8W DECARBOXYLASE, THE PRODUCT OF GENE MT0146 IN THE METHANOBACTERIUM THERMOAUTOTROPHICUM GENOME
