1l3c

MT0146, THE PRECORRIN-6Y METHYLTRANSFERASE (CBIT) HOMOLOG FROM M. THERMOAUTOTROPHICUM, C2 SPACEGROUP WITH SHORT CELL

Method: X-RAY DIFFRACTION D_max: 85.6 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

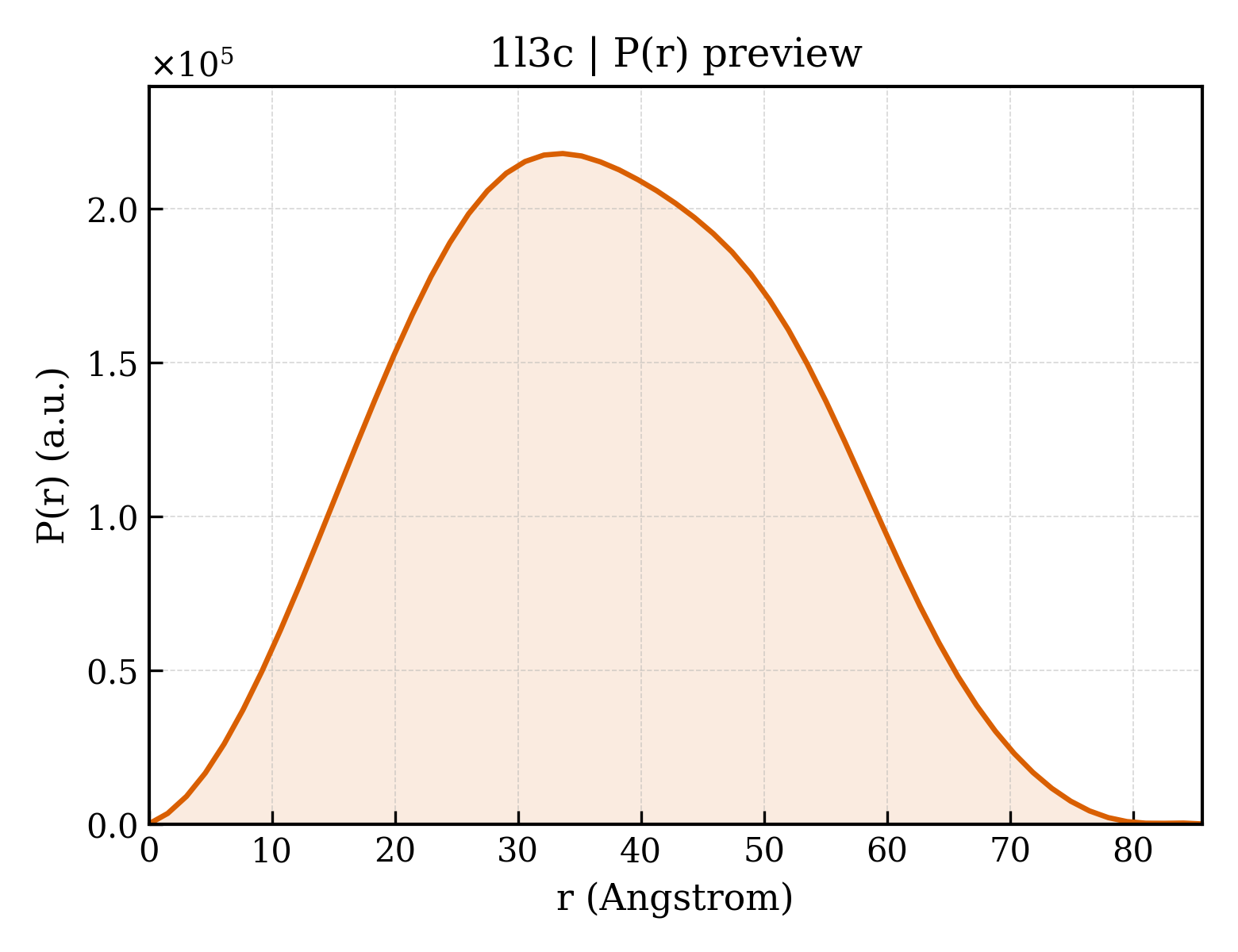

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1l3c
沉积日期 deposition_date	2002-02-26
结构标题 title	MT0146, THE PRECORRIN-6Y METHYLTRANSFERASE (CBIT) HOMOLOG FROM M. THERMOAUTOTROPHICUM, C2 SPACEGROUP WITH SHORT CELL
关键词 keywords	;STRUCTURAL GENOMICS, BETA BARREL, ROSSMANN FOLD, TETRAMER, METHYLTRANSFERASE, DECARBOXYLASE, STRUCTURE-BASED FUNCTION ASSIGNMENT, TRANSFERASE, LYASE ;; TRANSFERASE, LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.54 Å
回转半径 Rg (电子) rg_electron	27.44 Å
零角强度 I(0) i0	116309000.00
分子量 molecular_weight	81446.0 kDa
排除体积 excluded_volume	100380 Å³
包络体积 envelope_volume	123250 Å³
水化壳体积 shell_volume	36907 Å³
包络直径 envelope_diameter	82.2 Å
壳层 Rg shell_rg	35.54 Å
包络 Rg envelope_rg	27.12 Å
形状 Rg shape_rg	27.52 Å
总 Rg total_rg	28.01 Å
总原子数 total_atoms	5568
残基数 n_residues	712
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	85.6 Å
Rg (实空间) rg_real	28.34 Å
Rg 误差 (实空间) rg_real_error	0.40 Å
I(0) (实空间) i0_real	1.1630e+08
I(0) 误差 (实空间) i0_real_error	1.6090e+06
Rg (倒空间) rg_reciprocal	28.41 Å
I(0) (倒空间) i0_reciprocal	116300000.0000
解质量估计 total_estimate	0.9125
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	33.6 Å
偏度 Skewness skewness	0.104
峰度 Kurtosis kurtosis	-0.636
角度范围 angular_range	— – 0.2800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	29000000.0000
实空间数据点数 n_real_points	57
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.965; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.970

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1l3ca_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.22 — Precorrin-6Y methyltransferase (CbiT)

结构域编号 domain_id	d1l3cb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.22 — Precorrin-6Y methyltransferase (CbiT)

结构域编号 domain_id	d1l3cc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.22 — Precorrin-6Y methyltransferase (CbiT)

结构域编号 domain_id	d1l3cd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.22 — Precorrin-6Y methyltransferase (CbiT)

CATH v4.4 (4 domains)

结构域编号 domain_id	1l3cA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

结构域编号 domain_id	1l3cB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

结构域编号 domain_id	1l3cC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

结构域编号 domain_id	1l3cD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	141.300 Å
晶胞边长 b length_b	59.600 Å
晶胞边长 c length_c	98.700 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	113.90 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.310 Å
最低分辨率 resolution_low	33.450 Å
R 因子 r_factor	—
R_work r_work	0.2040
R_free r_free	0.2540

描述 description	Precorrin-6y methyltransferase/putative decarboxylase
分子量 formula_weight	21112.1 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	5848

MT0146, THE PRECORRIN-6Y METHYLTRANSFERASE (CBIT) HOMOLOG FROM M. THERMOAUTOTROPHICUM, C2 SPACEGROUP WITH SHORT CELL

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (2)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 water

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

来源生物 organism	Methanothermobacter thermautotrophicus
NCBI 分类编号 ncbi_taxonomy_id	145262
宿主生物 host_organism	Escherichia coli

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	280

fit	/app/data/saxs_computation/l3/1l3c/1l3c.fit
pddf	/app/data/pr_computation/l3/1l3c/1l3c.pr.out
profile	/app/data/saxs_computation/l3/1l3c/1l3c.dat
