1f59

IMPORTIN-BETA-FXFG NUCLEOPORIN COMPLEX

Method: X-RAY DIFFRACTION D_max: 129.7 Å Quality: REASONABLE

SAXS Profile

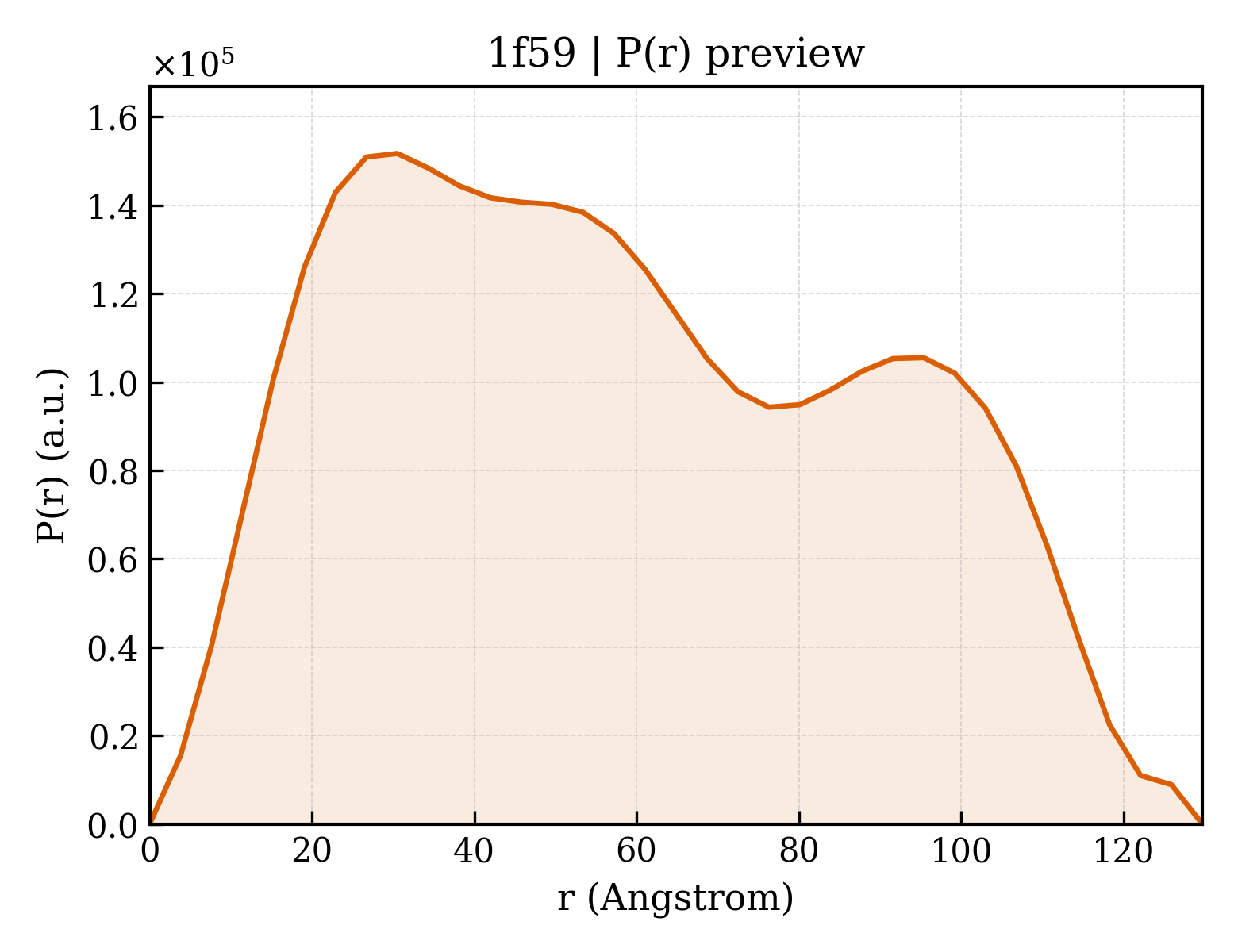

P(r) Distribution

▼

1. Structure Basics

entry_id	1f59
deposition_date	2000-06-13
title	IMPORTIN-BETA-FXFG NUCLEOPORIN COMPLEX
keywords	Protein-protein complex, TRANSPORT PROTEIN RECEPTOR; TRANSPORT PROTEIN RECEPTOR
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	45.77 Å
rg_electron	45.80 Å
i0	156048000.00
molecular_weight	102070.0 kDa
excluded_volume	127660 Å³
envelope_volume	201650 Å³
shell_volume	38638 Å³
envelope_diameter	138.8 Å
shell_rg	47.89 Å
envelope_rg	43.33 Å
shape_rg	45.85 Å
total_rg	45.72 Å
total_atoms	7158
n_residues	922
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	129.7 Å
rg_real	46.07 Å
rg_real_error	1.08 Å
i0_real	1.5600e+08
i0_real_error	2.6330e+06
rg_reciprocal	45.77 Å
i0_reciprocal	156000000.0000
total_estimate	0.5712
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	30.5 Å
skewness	0.243
kurtosis	-1.018
angular_range	— – 0.1700 Å⁻¹
current_alpha	0.0000
highest_alpha	5187000.0000
n_real_points	35
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.867; Stabil: 0.999; Sysdev: 0.115; Positv: 1.000; Valcen: 0.477; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	IMPORTIN BETA-1
formula_weight	49385.2 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	7158

MELITILEKTVSPDRLELEAAQKFLERAAVENLPTFLVELSRVLANPGNSQVARVAAGLQIKNSLTSKDPDIKAQYQQRWLAIDANARREVKNYVLHTLGTETYRPSSASQCVAGIACAEIPVNQWPELIPQLVANVTNPNSTEHMKESTLEAIGYICQDIDPEQLQDKSNEILTAIIQGMRKEEPSNNVKLAATNALLNSLEFTKANFDKESERHFIMQVVCEATQCPDTRVRVAALQNLVKIMSLYYQYMETYMGPALFAITIEAMKSDIDEVALQGIEFWSNVCDEEMDLAIEASEAAEQGRPPEHTSKFYAKGALQYLVPILTQTLTKQDENDDDDDWNPCKAAGVCLMLLATCCEDDIVPHVLPFIKEHIKNPDWRYRDAAVMAFGCILEGPEPSQLKPLVIQAMPTLIELMKDPSVVVRDTAAWTVGRICELLPEA

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 polymer

description	FXFG NUCLEOPORIN REPEATS
formula_weight	2687.0 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	C,D

XDDSKPAFSFGXXXXXXXXXXXAFSFGX

Source

organism	Saccharomyces cerevisiae
common_name	;baker's yeast ;
ncbi_taxonomy_id	4932
host_organism	Escherichia coli

▶

6. Citations (1)

▶

length_a	67.246 Å
length_b	211.790 Å
length_c	125.815 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 21 21 2
int_tables_number	18
crystal_system	—

resolution	2.800 Å
resolution_low	40.000 Å
r_factor	—
r_work	0.2250
r_free	0.2620

fit	/app/data/saxs_computation/f5/1f59/1f59.fit
pddf	/app/data/pr_computation/f5/1f59/1f59.pr.out
profile	/app/data/saxs_computation/f5/1f59/1f59.dat
