SAXSdb — 3lww

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Importin subunit beta-1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–876	Not recorded	Snurportin-1 × 1 （O95149）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；18% PEG 8000, 50 mM sodium chloride, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.15 Å R-free 0.313
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–876	Not recorded	Snurportin-1 × 1 （O95149）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；18% PEG 8000, 50 mM sodium chloride, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.15 Å R-free 0.313

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3LWW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1F59 IMPORTIN-BETA-FXFG NUCLEOPORIN COMPLEX Deposited 2000-06-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–442（442 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；ammonium sulphate, ammonium acetate, dtt, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 20K	Resolution 2.80 Å R-free 0.262
1F59 IMPORTIN-BETA-FXFG NUCLEOPORIN COMPLEX Deposited 2000-06-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–442（442 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；ammonium sulphate, ammonium acetate, dtt, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 20K	Resolution 2.80 Å R-free 0.262
1IBR COMPLEX OF RAN WITH IMPORTIN BETA Deposited 1999-05-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–462（462 aa） Fragment：RESIDUES 1-462	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.30 Å R-free 0.272
1IBR COMPLEX OF RAN WITH IMPORTIN BETA Deposited 1999-05-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–462（462 aa） Fragment：RESIDUES 1-462	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.30 Å R-free 0.272
1M5N Crystal structure of HEAT repeats (1-11) of importin b bound to the non-classical NLS(67-94) of PTHrP Deposited 2002-07-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain S 1–485（485 aa） Fragment：N-terminal domain (Residues 1-485)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；298 K；MES, PEG 4000, sodium chloride, Tween, pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K, pH 6.00	Resolution 2.90 Å R-free 0.297
1O6O Importin Beta aa1-442 bound to five FxFG repeats from yeast Nsp1p. Second crystal form Deposited 2002-10-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–442（442 aa） Fragment：RESIDUES 1-442	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.9；1.2-1.28M AMMONIUM SULPHATE, 100MM AMMONIUM ACETATE, PH 5.9, 30MM DTT	Resolution 2.80 Å R-free 0.273
1O6O Importin Beta aa1-442 bound to five FxFG repeats from yeast Nsp1p. Second crystal form Deposited 2002-10-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–442（442 aa） Fragment：RESIDUES 1-442	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.9；1.2-1.28M AMMONIUM SULPHATE, 100MM AMMONIUM ACETATE, PH 5.9, 30MM DTT	Resolution 2.80 Å R-free 0.273
1O6O Importin Beta aa1-442 bound to five FxFG repeats from yeast Nsp1p. Second crystal form Deposited 2002-10-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–442（442 aa） Fragment：RESIDUES 1-442	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.9；1.2-1.28M AMMONIUM SULPHATE, 100MM AMMONIUM ACETATE, PH 5.9, 30MM DTT	Resolution 2.80 Å R-free 0.273
1O6P Importin Beta bound to a GLFG Nucleoporin peptide Deposited 2002-10-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–442（442 aa） Fragment：IMPORTIN BETA-1 SUBUNIT, RESIDUES 1-442	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；100MM AMMONIUM ACETATE PH6.0, 1.2M AMMONIUM SULPHATE, pH 6.00	Resolution 2.80 Å R-free 0.267
1O6P Importin Beta bound to a GLFG Nucleoporin peptide Deposited 2002-10-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–442（442 aa） Fragment：IMPORTIN BETA-1 SUBUNIT, RESIDUES 1-442	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；100MM AMMONIUM ACETATE PH6.0, 1.2M AMMONIUM SULPHATE, pH 6.00	Resolution 2.80 Å R-free 0.267
1QGK STRUCTURE OF IMPORTIN BETA BOUND TO THE IBB DOMAIN OF IMPORTIN ALPHA Deposited 1999-04-29	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.50 Å R-free 0.273
1QGR STRUCTURE OF IMPORTIN BETA BOUND TO THE IBB DOMAIN OF IMPORTIN ALPHA (II CRYSTAL FORM, GROWN AT LOW PH) Deposited 1999-05-04	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 3.9；pH 3.9	Resolution 2.30 Å R-free 0.285
2P8Q Crystal Structure of human Importin beta bound to the Snurportin1 IBB-domain Deposited 2007-03-22	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；285 K；22%PEG 8000, 0.05M Sodium Chloride, 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 2.35 Å R-free 0.250
2Q5D Crystal Structure of Human Importin Beta bound to the Snurportin1 IBB-domain second crystal form Deposited 2007-05-31	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；285 K；22%PEG 8000, 0.05M SODIUM CHLORIDE 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 3.20 Å R-free 0.328
2Q5D Crystal Structure of Human Importin Beta bound to the Snurportin1 IBB-domain second crystal form Deposited 2007-05-31	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–876（876 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；285 K；22%PEG 8000, 0.05M SODIUM CHLORIDE 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 3.20 Å R-free 0.328
2QNA Crystal structure of human Importin-beta (127-876) in complex with the IBB-domain of Snurportin1 (1-65) Deposited 2007-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 127–876（750 aa） Fragment：residues 127-876	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.55；283 K；sodium citrate, Ammonium SO4, Ethanol, NaCl, Tris, pH 5.55, VAPOR DIFFUSION, SITTING DROP, temperature 283K	Resolution 2.84 Å R-free 0.282
3W5K Crystal structure of Snail1 and importin beta complex Deposited 2013-01-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.60 Å R-free 0.264
6N88 Cryo-EM structure of the Importin7:Importin beta:Histone H1.0 complex Deposited 2018-11-28	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
6N89 Cryo-EM structure of the Importin beta:Histone H1.0 complex Deposited 2018-11-28	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.50 Å
8GCN CRYO-EM STRUCTURE OF IMPORTIN ALPHA1/BETA HETERODIMER Deposited 2023-03-02	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.95 Å
9B4Y Cryo-EM structure of importin alpha-1/beta bound to TDP-43 Deposited 2024-03-21	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.74 Å
9BAW Cryo-EM structure of human importin beta-Ran-GTP heterodimer Deposited 2024-04-04	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9BFC Cryo-EM structure of importin alpha-1/beta bound to FG repeats Deposited 2024-04-17	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: hexameric	Chain H 1–876（876 aa）	Not recorded	PHE PHENYLALANINE × 2 GLY GLYCINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9N85 Cryo-EM structure of human importin beta:Ran-GTP:RanBP1 trimeric complex Deposited 2025-02-07	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–876（876 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
9N86 Cryo-EM structure of human importin beta:importin alpha (IBB) complex Deposited 2025-02-07	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9N87 Cryo-EM structure of human importin beta: xIBB complex Deposited 2025-02-07	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9QEJ Cryo-EM structure of the Importin beta:Importin7:Histone H1.0 complex Deposited 2025-03-10	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
9YB5 Cryo-EM structure of human importin Beta:Ran-GDP:RanBP1 complex Deposited 2025-09-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–459（458 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å

22 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IMB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–876； UniProt 1–876 Author chain C； PDBConstruct 1–876； UniProt 1–876

Snurportin-1

OrganismNot specified

UniProt O95149

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 25–64	Fragment：Snurportin1 N-terminal domain (25-64)	Importin subunit beta-1 × 1 （Q14974）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；18% PEG 8000, 50 mM sodium chloride, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.15 Å R-free 0.313
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 25–64	Fragment：Snurportin1 N-terminal domain (25-64)	Importin subunit beta-1 × 1 （Q14974）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；18% PEG 8000, 50 mM sodium chloride, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.15 Å R-free 0.313

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3LWW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1XK5 Crystal structure of the m3G-cap-binding domain of snurportin1 in complex with a m3GpppG-cap dinucleotide Deposited 2004-09-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 97–300（204 aa） Fragment：m3G-cap-binding domain comprising amino acids 97-300	Not recorded	TPG 2,2,7-TRIMETHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-GUANOSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；8% PEG20K, 100mM MES pH6.0 for initial crystals and 200mM sodium citrate pH5.5 for larger crystals after seeding, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.276
2P8Q Crystal Structure of human Importin beta bound to the Snurportin1 IBB-domain Deposited 2007-03-22	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 25–64（40 aa） Fragment：N-terminal domain (25-64)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；285 K；22%PEG 8000, 0.05M Sodium Chloride, 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 2.35 Å R-free 0.250
2Q5D Crystal Structure of Human Importin Beta bound to the Snurportin1 IBB-domain second crystal form Deposited 2007-05-31	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 25–64（40 aa） Fragment：N-terminal domain (25-64)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；285 K；22%PEG 8000, 0.05M SODIUM CHLORIDE 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 3.20 Å R-free 0.328
2Q5D Crystal Structure of Human Importin Beta bound to the Snurportin1 IBB-domain second crystal form Deposited 2007-05-31	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 25–64（40 aa） Fragment：N-terminal domain (25-64)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；285 K；22%PEG 8000, 0.05M SODIUM CHLORIDE 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 3.20 Å R-free 0.328
2QNA Crystal structure of human Importin-beta (127-876) in complex with the IBB-domain of Snurportin1 (1-65) Deposited 2007-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–66（66 aa） Fragment：residues 1-66	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.55；283 K；sodium citrate, Ammonium SO4, Ethanol, NaCl, Tris, pH 5.55, VAPOR DIFFUSION, SITTING DROP, temperature 283K	Resolution 2.84 Å R-free 0.282
3GB8 Crystal structure of CRM1/Snurportin-1 complex Deposited 2009-02-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–328（328 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；291 K；8% PEG 8000, 0.2M Magnesium chloride, 0.1M MES pH 6.5, VAPOR DIFFUSION, temperature 291K	Resolution 2.90 Å R-free 0.267
3GJX Crystal Structure of the Nuclear Export Complex CRM1-Snurportin1-RanGTP Deposited 2009-03-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–360（360 aa）	Not recorded	NA SODIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG 1000, pH 8, VAPOR DIFFUSION, SITTING DROP, temperature 293K X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG 1000, pH 8, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.50 Å R-free 0.281
3GJX Crystal Structure of the Nuclear Export Complex CRM1-Snurportin1-RanGTP Deposited 2009-03-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–360（360 aa）	Not recorded	NA SODIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG 1000, pH 8, VAPOR DIFFUSION, SITTING DROP, temperature 293K X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG 1000, pH 8, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.50 Å R-free 0.281
3NBY Crystal structure of the PKI NES-CRM1-RanGTP nuclear export complex Deposited 2010-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 15–360（346 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；293 K；0.1 M Tris/HCl pH range 8.08-8.30, 10-14% (w/v) PEG 1000, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.42 Å R-free 0.315
3NBY Crystal structure of the PKI NES-CRM1-RanGTP nuclear export complex Deposited 2010-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 15–360（346 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；293 K；0.1 M Tris/HCl pH range 8.08-8.30, 10-14% (w/v) PEG 1000, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.42 Å R-free 0.315
3NBZ Crystal structure of the HIV-1 Rev NES-CRM1-RanGTP nuclear export complex (crystal I) Deposited 2010-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 15–360（346 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；289 K；0.1 M Tris/HCl, 16% (w/v) PEG 1000, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.285
3NBZ Crystal structure of the HIV-1 Rev NES-CRM1-RanGTP nuclear export complex (crystal I) Deposited 2010-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 15–360（346 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；289 K；0.1 M Tris/HCl, 16% (w/v) PEG 1000, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.285
3NC0 Crystal structure of the HIV-1 Rev NES-CRM1-RanGTP nuclear export complex (crystal II) Deposited 2010-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 15–360（346 aa）	Not recorded	GOL GLYCEROL × 8 PEG DI(HYDROXYETHYL)ETHER × 11 IPH PHENOL × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；293 K；0.1 M Tris/HCl, 16% (w/v) PEG 1000, 2 mM phenol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.295
3NC0 Crystal structure of the HIV-1 Rev NES-CRM1-RanGTP nuclear export complex (crystal II) Deposited 2010-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 15–360（346 aa） Chain E 15–360（346 aa）	Not recorded	GOL GLYCEROL × 10 PEG DI(HYDROXYETHYL)ETHER × 11 IPH PHENOL × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；293 K；0.1 M Tris/HCl, 16% (w/v) PEG 1000, 2 mM phenol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.295
5DIS Crystal structure of a CRM1-RanGTP-SPN1 export complex bound to a 113 amino acid FG-repeat containing fragment of Nup214 Deposited 2015-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–287（287 aa）	Not recorded	PRO PROLINE × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；5% PEG 8000, 0.2M L-proline, 0.1M Tris pH 7.5, 4 mM D-maltose, 180 mM LiCl	Resolution 2.85 Å R-free 0.249

10 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SPN1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–40； UniProt 25–64 Author chain D； PDBConstruct 1–40； UniProt 25–64

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3lww
Deposition date deposition_date	2010-02-24
Structure title title	Structure of an open and closed conformation of Human Importin Beta bound to the Snurportin1 IBB-domain trapped in the same crystallographic asymmetric unit
Keywords keywords	PROTEIN TRANSPORT, HEAT repeat, IBB-domain, Importin beta, Karyopherin, Snurportin; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	42.62 Å
Radius of gyration Rg (electron density) rg_electron	42.47 Å
Forward intensity I(0) i0	609122000.00
Molecular weight molecular_weight	201580.0 kDa
Excluded volume excluded_volume	252130 Å³
Envelope volume envelope_volume	351410 Å³
Hydration-shell volume shell_volume	69383 Å³
Envelope diameter envelope_diameter	144.0 Å
Shell Rg shell_rg	47.69 Å
Envelope Rg envelope_rg	41.27 Å
Shape Rg shape_rg	42.48 Å
Total Rg total_rg	42.72 Å
Total atoms total_atoms	14127
Residues n_residues	1809
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

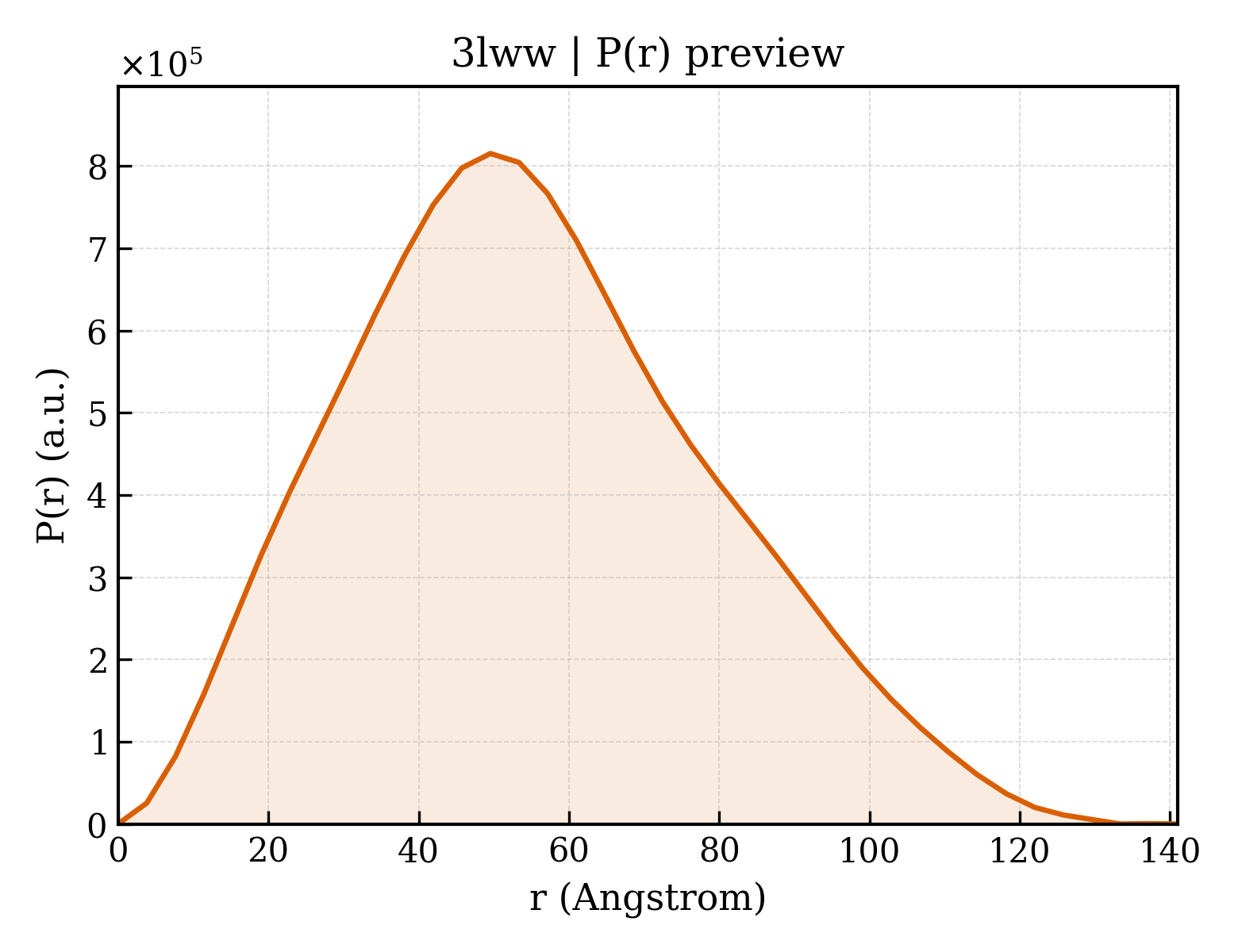

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	141.0 Å
Rg (real space) rg_real	42.59 Å
Rg uncertainty (real space) rg_real_error	1.64 Å
I(0) (real space) i0_real	6.0910e+08
I(0) uncertainty (real space) i0_real_error	1.0920e+07
Rg (reciprocal space) rg_reciprocal	42.62 Å
I(0) (reciprocal space) i0_reciprocal	609100000.0000
Solution quality estimate total_estimate	0.8766
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	49.5 Å
Skewness Skewness skewness	0.331
Kurtosis Kurtosis kurtosis	-0.370
Angular range angular_range	— – 0.1850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	41530000.0000
Real-space data points n_real_points	38
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.843; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.865

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Importin subunit beta-1
Molecular weight formula_weight	97257.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	14127

MELITILEKTVSPDRLELEAAQKFLERAAVENLPTFLVELSRVLANPGNSQVARVAAGLQIKNSLTSKDPDIKAQYQQRWLAIDANARREVKNYVLQTLGTETYRPSSASQCVAGIACAEIPVNQWPELIPQLVANVTNPNSTEHMKESTLEAIGYICQDIDPEQLQDKSNEILTAIIQGMRKEEPSNNVKLAATNALLNSLEFTKANFDKESERHFIMQVVCEATQCPDTRVRVAALQNLVKIMSLYYQYMETYMGPALFAITIEAMKSDIDEVALQGIEFWSNVCDEEMDLAIEASEAAEQGRPPEHTSKFYAKGALQYLVPILTQTLTKQDENDDDDDWNPCKAAGVCLMLLATCCEDDIVPHVLPFIKEHIKNPDWRYRDAAVMAFGCILEGPEPSQLKPLVIQAMPTLIELMKDPSVVVRDTAAWTVGRICELLPEAAINDVYLAPLLQCLIEGLSAEPRVASNVCWAFSSLAEAAYEAADVADDQEEPATYCLSSSFELIVQKLLETTDRPDGHQNNLRSSAYESLMEIVKNSAKDCYPAVQKTTLVIMERLQQVLQMESHIQSTSDRIQFNDLQSLLCATLQNVLRKVQHQDALQISDVVMASLLRMFQSTAGSGGVQEDALMAVSTLVEVLGGEFLKYMEAFKPFLGIGLKNYAEYQVCLAAVGLVGDLCRALQSNIIPFCDEVMQLLLENLGNENVHRSVKPQILSVFGDIALAIGGEFKKYLEVVLNTLQQASQAQVDKSDYDMVDYLNELRESCLEAYTGIVQGLKGDQENVHPDVMLVQPRVEFILSFIDHIAGDEDHTDGVVACAAGLIGDLCTAFGKDVLKLVEARPMIHELLTEGRRSKTNKAKTLATWATKELRKLKNQA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Snurportin-1
Molecular weight formula_weight	5027.8 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

HPRLSQYKSKYSSLEQSERRRRLLELQKSKRLDYVNHARR

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3lwwa_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

Domain ID domain_id	d3lwwc_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

CATH v4.4 (2 domains)

Domain ID domain_id	3lwwA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	3lwwC00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

▶

8. Citations (1)

▶

Unit-cell length a length_a	101.650 Å
Unit-cell length b length_b	101.735 Å
Unit-cell length c length_c	101.963 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	110.88 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.150 Å
Low-resolution limit resolution_low	14.957 Å
R factor r_factor	0.2663
R_work r_work	0.2635
R_free r_free	0.3129

fit	/app/data/saxs_computation/lw/3lww/3lww.fit
pddf	/app/data/pr_computation/lw/3lww/3lww.pr.out
profile	/app/data/saxs_computation/lw/3lww/3lww.dat
