SAXSdb — 2p8q

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Importin beta-1 subunit

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–876	Not recorded	Snurportin-1 × 1 （O95149）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；285 K；22%PEG 8000, 0.05M Sodium Chloride, 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 2.35 Å R-free 0.250

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2P8Q	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1F59 IMPORTIN-BETA-FXFG NUCLEOPORIN COMPLEX Deposited 2000-06-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–442（442 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；ammonium sulphate, ammonium acetate, dtt, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 20K	Resolution 2.80 Å R-free 0.262
1F59 IMPORTIN-BETA-FXFG NUCLEOPORIN COMPLEX Deposited 2000-06-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–442（442 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；ammonium sulphate, ammonium acetate, dtt, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 20K	Resolution 2.80 Å R-free 0.262
1IBR COMPLEX OF RAN WITH IMPORTIN BETA Deposited 1999-05-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–462（462 aa） Fragment：RESIDUES 1-462	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.30 Å R-free 0.272
1IBR COMPLEX OF RAN WITH IMPORTIN BETA Deposited 1999-05-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–462（462 aa） Fragment：RESIDUES 1-462	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.30 Å R-free 0.272
1M5N Crystal structure of HEAT repeats (1-11) of importin b bound to the non-classical NLS(67-94) of PTHrP Deposited 2002-07-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain S 1–485（485 aa） Fragment：N-terminal domain (Residues 1-485)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；298 K；MES, PEG 4000, sodium chloride, Tween, pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K, pH 6.00	Resolution 2.90 Å R-free 0.297
1O6O Importin Beta aa1-442 bound to five FxFG repeats from yeast Nsp1p. Second crystal form Deposited 2002-10-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–442（442 aa） Fragment：RESIDUES 1-442	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.9；1.2-1.28M AMMONIUM SULPHATE, 100MM AMMONIUM ACETATE, PH 5.9, 30MM DTT	Resolution 2.80 Å R-free 0.273
1O6O Importin Beta aa1-442 bound to five FxFG repeats from yeast Nsp1p. Second crystal form Deposited 2002-10-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–442（442 aa） Fragment：RESIDUES 1-442	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.9；1.2-1.28M AMMONIUM SULPHATE, 100MM AMMONIUM ACETATE, PH 5.9, 30MM DTT	Resolution 2.80 Å R-free 0.273
1O6O Importin Beta aa1-442 bound to five FxFG repeats from yeast Nsp1p. Second crystal form Deposited 2002-10-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–442（442 aa） Fragment：RESIDUES 1-442	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.9；1.2-1.28M AMMONIUM SULPHATE, 100MM AMMONIUM ACETATE, PH 5.9, 30MM DTT	Resolution 2.80 Å R-free 0.273
1O6P Importin Beta bound to a GLFG Nucleoporin peptide Deposited 2002-10-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–442（442 aa） Fragment：IMPORTIN BETA-1 SUBUNIT, RESIDUES 1-442	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；100MM AMMONIUM ACETATE PH6.0, 1.2M AMMONIUM SULPHATE, pH 6.00	Resolution 2.80 Å R-free 0.267
1O6P Importin Beta bound to a GLFG Nucleoporin peptide Deposited 2002-10-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–442（442 aa） Fragment：IMPORTIN BETA-1 SUBUNIT, RESIDUES 1-442	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；100MM AMMONIUM ACETATE PH6.0, 1.2M AMMONIUM SULPHATE, pH 6.00	Resolution 2.80 Å R-free 0.267
1QGK STRUCTURE OF IMPORTIN BETA BOUND TO THE IBB DOMAIN OF IMPORTIN ALPHA Deposited 1999-04-29	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.50 Å R-free 0.273
1QGR STRUCTURE OF IMPORTIN BETA BOUND TO THE IBB DOMAIN OF IMPORTIN ALPHA (II CRYSTAL FORM, GROWN AT LOW PH) Deposited 1999-05-04	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 3.9；pH 3.9	Resolution 2.30 Å R-free 0.285
2Q5D Crystal Structure of Human Importin Beta bound to the Snurportin1 IBB-domain second crystal form Deposited 2007-05-31	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；285 K；22%PEG 8000, 0.05M SODIUM CHLORIDE 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 3.20 Å R-free 0.328
2Q5D Crystal Structure of Human Importin Beta bound to the Snurportin1 IBB-domain second crystal form Deposited 2007-05-31	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–876（876 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；285 K；22%PEG 8000, 0.05M SODIUM CHLORIDE 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 3.20 Å R-free 0.328
2QNA Crystal structure of human Importin-beta (127-876) in complex with the IBB-domain of Snurportin1 (1-65) Deposited 2007-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 127–876（750 aa） Fragment：residues 127-876	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.55；283 K；sodium citrate, Ammonium SO4, Ethanol, NaCl, Tris, pH 5.55, VAPOR DIFFUSION, SITTING DROP, temperature 283K	Resolution 2.84 Å R-free 0.282
3LWW Structure of an open and closed conformation of Human Importin Beta bound to the Snurportin1 IBB-domain trapped in the same crystallographic asymmetric unit Deposited 2010-02-24	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；18% PEG 8000, 50 mM sodium chloride, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.15 Å R-free 0.313
3LWW Structure of an open and closed conformation of Human Importin Beta bound to the Snurportin1 IBB-domain trapped in the same crystallographic asymmetric unit Deposited 2010-02-24	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–876（876 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；18% PEG 8000, 50 mM sodium chloride, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.15 Å R-free 0.313
3W5K Crystal structure of Snail1 and importin beta complex Deposited 2013-01-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.60 Å R-free 0.264
6N88 Cryo-EM structure of the Importin7:Importin beta:Histone H1.0 complex Deposited 2018-11-28	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
6N89 Cryo-EM structure of the Importin beta:Histone H1.0 complex Deposited 2018-11-28	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.50 Å
8GCN CRYO-EM STRUCTURE OF IMPORTIN ALPHA1/BETA HETERODIMER Deposited 2023-03-02	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.95 Å
9B4Y Cryo-EM structure of importin alpha-1/beta bound to TDP-43 Deposited 2024-03-21	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.74 Å
9BAW Cryo-EM structure of human importin beta-Ran-GTP heterodimer Deposited 2024-04-04	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9BFC Cryo-EM structure of importin alpha-1/beta bound to FG repeats Deposited 2024-04-17	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: hexameric	Chain H 1–876（876 aa）	Not recorded	PHE PHENYLALANINE × 2 GLY GLYCINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9N85 Cryo-EM structure of human importin beta:Ran-GTP:RanBP1 trimeric complex Deposited 2025-02-07	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–876（876 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
9N86 Cryo-EM structure of human importin beta:importin alpha (IBB) complex Deposited 2025-02-07	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9N87 Cryo-EM structure of human importin beta: xIBB complex Deposited 2025-02-07	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9QEJ Cryo-EM structure of the Importin beta:Importin7:Histone H1.0 complex Deposited 2025-03-10	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–876（876 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
9YB5 Cryo-EM structure of human importin Beta:Ran-GDP:RanBP1 complex Deposited 2025-09-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–459（458 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å

22 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IMB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–876； UniProt 1–876

Snurportin-1

OrganismNot specified

UniProt O95149

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 25–64	Fragment：N-terminal domain (25-64)	Importin beta-1 subunit × 1 （Q14974）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；285 K；22%PEG 8000, 0.05M Sodium Chloride, 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 2.35 Å R-free 0.250

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2P8Q	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1XK5 Crystal structure of the m3G-cap-binding domain of snurportin1 in complex with a m3GpppG-cap dinucleotide Deposited 2004-09-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 97–300（204 aa） Fragment：m3G-cap-binding domain comprising amino acids 97-300	Not recorded	TPG 2,2,7-TRIMETHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-GUANOSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；8% PEG20K, 100mM MES pH6.0 for initial crystals and 200mM sodium citrate pH5.5 for larger crystals after seeding, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.276
2Q5D Crystal Structure of Human Importin Beta bound to the Snurportin1 IBB-domain second crystal form Deposited 2007-05-31	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 25–64（40 aa） Fragment：N-terminal domain (25-64)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；285 K；22%PEG 8000, 0.05M SODIUM CHLORIDE 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 3.20 Å R-free 0.328
2Q5D Crystal Structure of Human Importin Beta bound to the Snurportin1 IBB-domain second crystal form Deposited 2007-05-31	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 25–64（40 aa） Fragment：N-terminal domain (25-64)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；285 K；22%PEG 8000, 0.05M SODIUM CHLORIDE 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 3.20 Å R-free 0.328
2QNA Crystal structure of human Importin-beta (127-876) in complex with the IBB-domain of Snurportin1 (1-65) Deposited 2007-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–66（66 aa） Fragment：residues 1-66	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.55；283 K；sodium citrate, Ammonium SO4, Ethanol, NaCl, Tris, pH 5.55, VAPOR DIFFUSION, SITTING DROP, temperature 283K	Resolution 2.84 Å R-free 0.282
3GB8 Crystal structure of CRM1/Snurportin-1 complex Deposited 2009-02-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–328（328 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；291 K；8% PEG 8000, 0.2M Magnesium chloride, 0.1M MES pH 6.5, VAPOR DIFFUSION, temperature 291K	Resolution 2.90 Å R-free 0.267
3GJX Crystal Structure of the Nuclear Export Complex CRM1-Snurportin1-RanGTP Deposited 2009-03-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–360（360 aa）	Not recorded	NA SODIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG 1000, pH 8, VAPOR DIFFUSION, SITTING DROP, temperature 293K X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG 1000, pH 8, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.50 Å R-free 0.281
3GJX Crystal Structure of the Nuclear Export Complex CRM1-Snurportin1-RanGTP Deposited 2009-03-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–360（360 aa）	Not recorded	NA SODIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG 1000, pH 8, VAPOR DIFFUSION, SITTING DROP, temperature 293K X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG 1000, pH 8, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.50 Å R-free 0.281
3LWW Structure of an open and closed conformation of Human Importin Beta bound to the Snurportin1 IBB-domain trapped in the same crystallographic asymmetric unit Deposited 2010-02-24	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 25–64（40 aa） Fragment：Snurportin1 N-terminal domain (25-64)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；18% PEG 8000, 50 mM sodium chloride, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.15 Å R-free 0.313
3LWW Structure of an open and closed conformation of Human Importin Beta bound to the Snurportin1 IBB-domain trapped in the same crystallographic asymmetric unit Deposited 2010-02-24	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 25–64（40 aa） Fragment：Snurportin1 N-terminal domain (25-64)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；18% PEG 8000, 50 mM sodium chloride, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.15 Å R-free 0.313
3NBY Crystal structure of the PKI NES-CRM1-RanGTP nuclear export complex Deposited 2010-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 15–360（346 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；293 K；0.1 M Tris/HCl pH range 8.08-8.30, 10-14% (w/v) PEG 1000, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.42 Å R-free 0.315
3NBY Crystal structure of the PKI NES-CRM1-RanGTP nuclear export complex Deposited 2010-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 15–360（346 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；293 K；0.1 M Tris/HCl pH range 8.08-8.30, 10-14% (w/v) PEG 1000, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.42 Å R-free 0.315
3NBZ Crystal structure of the HIV-1 Rev NES-CRM1-RanGTP nuclear export complex (crystal I) Deposited 2010-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 15–360（346 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；289 K；0.1 M Tris/HCl, 16% (w/v) PEG 1000, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.285
3NBZ Crystal structure of the HIV-1 Rev NES-CRM1-RanGTP nuclear export complex (crystal I) Deposited 2010-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 15–360（346 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；289 K；0.1 M Tris/HCl, 16% (w/v) PEG 1000, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.285
3NC0 Crystal structure of the HIV-1 Rev NES-CRM1-RanGTP nuclear export complex (crystal II) Deposited 2010-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 15–360（346 aa）	Not recorded	GOL GLYCEROL × 8 PEG DI(HYDROXYETHYL)ETHER × 11 IPH PHENOL × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；293 K；0.1 M Tris/HCl, 16% (w/v) PEG 1000, 2 mM phenol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.295
3NC0 Crystal structure of the HIV-1 Rev NES-CRM1-RanGTP nuclear export complex (crystal II) Deposited 2010-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 15–360（346 aa） Chain E 15–360（346 aa）	Not recorded	GOL GLYCEROL × 10 PEG DI(HYDROXYETHYL)ETHER × 11 IPH PHENOL × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；293 K；0.1 M Tris/HCl, 16% (w/v) PEG 1000, 2 mM phenol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.295
5DIS Crystal structure of a CRM1-RanGTP-SPN1 export complex bound to a 113 amino acid FG-repeat containing fragment of Nup214 Deposited 2015-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–287（287 aa）	Not recorded	PRO PROLINE × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；5% PEG 8000, 0.2M L-proline, 0.1M Tris pH 7.5, 4 mM D-maltose, 180 mM LiCl	Resolution 2.85 Å R-free 0.249

10 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SPN1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–40； UniProt 25–64

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2p8q
Deposition date deposition_date	2007-03-22
Structure title title	Crystal Structure of human Importin beta bound to the Snurportin1 IBB-domain
Keywords keywords	HEAT repeat, IBB-domain, Importin, Karyopherin, Snurportin, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.47 Å
Radius of gyration Rg (electron density) rg_electron	31.65 Å
Forward intensity I(0) i0	166315000.00
Molecular weight molecular_weight	101680.0 kDa
Excluded volume excluded_volume	127180 Å³
Envelope volume envelope_volume	172060 Å³
Hydration-shell volume shell_volume	44739 Å³
Envelope diameter envelope_diameter	96.6 Å
Shell Rg shell_rg	39.52 Å
Envelope Rg envelope_rg	30.48 Å
Shape Rg shape_rg	31.66 Å
Total Rg total_rg	32.34 Å
Total atoms total_atoms	7126
Residues n_residues	912
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

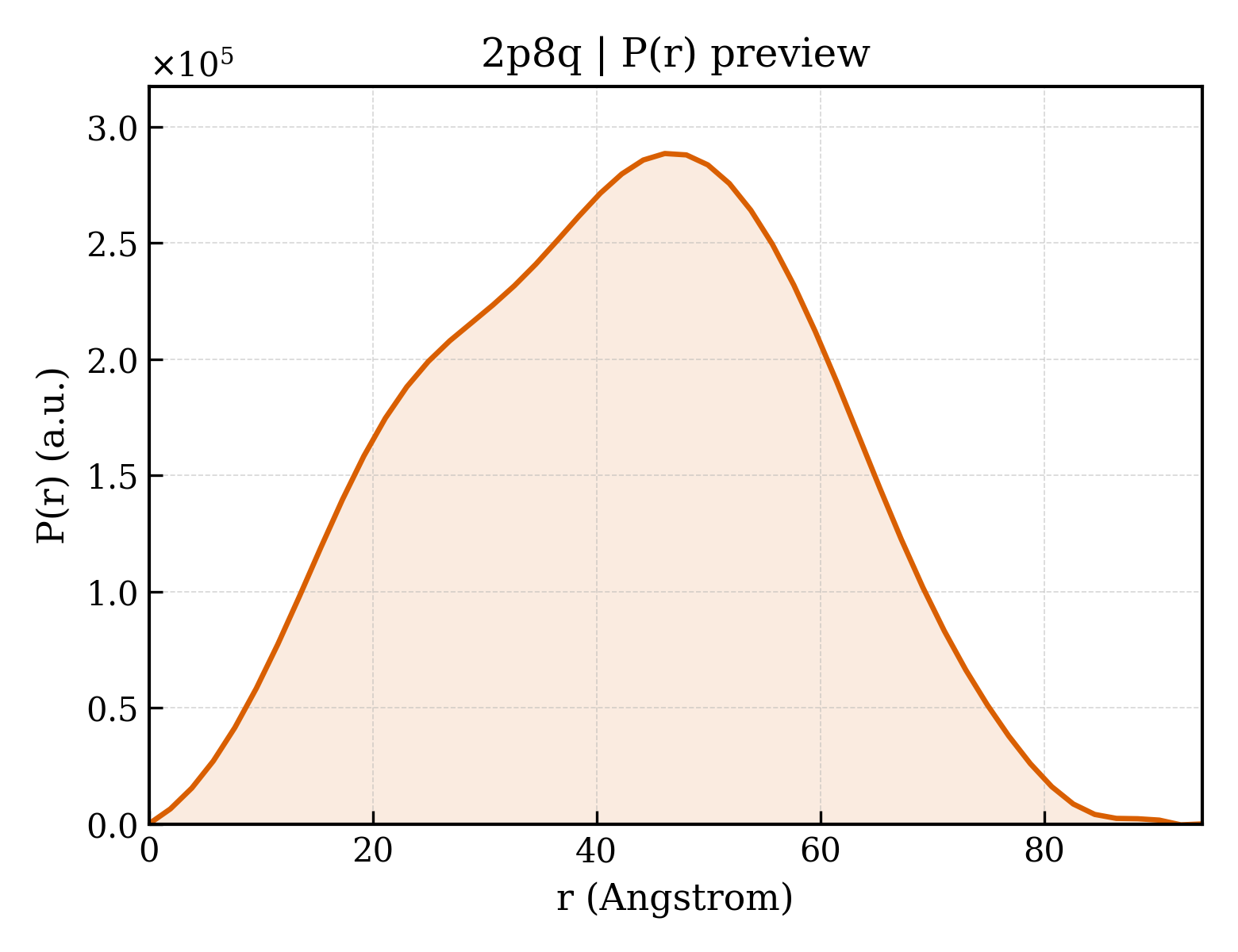

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	94.1 Å
Rg (real space) rg_real	32.19 Å
Rg uncertainty (real space) rg_real_error	0.52 Å
I(0) (real space) i0_real	1.6630e+08
I(0) uncertainty (real space) i0_real_error	2.4610e+06
Rg (reciprocal space) rg_reciprocal	32.31 Å
I(0) (reciprocal space) i0_reciprocal	166300000.0000
Solution quality estimate total_estimate	0.8368
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	46.1 Å
Skewness Skewness skewness	-0.035
Kurtosis Kurtosis kurtosis	-0.661
Angular range angular_range	— – 0.2450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	74100000.0000
Real-space data points n_real_points	50
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.963; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Importin beta-1 subunit
Molecular weight formula_weight	97257.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7471

MELITILEKTVSPDRLELEAAQKFLERAAVENLPTFLVELSRVLANPGNSQVARVAAGLQIKNSLTSKDPDIKAQYQQRWLAIDANARREVKNYVLQTLGTETYRPSSASQCVAGIACAEIPVNQWPELIPQLVANVTNPNSTEHMKESTLEAIGYICQDIDPEQLQDKSNEILTAIIQGMRKEEPSNNVKLAATNALLNSLEFTKANFDKESERHFIMQVVCEATQCPDTRVRVAALQNLVKIMSLYYQYMETYMGPALFAITIEAMKSDIDEVALQGIEFWSNVCDEEMDLAIEASEAAEQGRPPEHTSKFYAKGALQYLVPILTQTLTKQDENDDDDDWNPCKAAGVCLMLLATCCEDDIVPHVLPFIKEHIKNPDWRYRDAAVMAFGCILEGPEPSQLKPLVIQAMPTLIELMKDPSVVVRDTAAWTVGRICELLPEAAINDVYLAPLLQCLIEGLSAEPRVASNVCWAFSSLAEAAYEAADVADDQEEPATYCLSSSFELIVQKLLETTDRPDGHQNNLRSSAYESLMEIVKNSAKDCYPAVQKTTLVIMERLQQVLQMESHIQSTSDRIQFNDLQSLLCATLQNVLRKVQHQDALQISDVVMASLLRMFQSTAGSGGVQEDALMAVSTLVEVLGGEFLKYMEAFKPFLGIGLKNYAEYQVCLAAVGLVGDLCRALQSNIIPFCDEVMQLLLENLGNENVHRSVKPQILSVFGDIALAIGGEFKKYLEVVLNTLQQASQAQVDKSDYDMVDYLNELRESCLEAYTGIVQGLKGDQENVHPDVMLVQPRVEFILSFIDHIAGDEDHTDGVVACAAGLIGDLCTAFGKDVLKLVEARPMIHELLTEGRRSKTNKAKTLATWATKELRKLKNQA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Snurportin-1
Molecular weight formula_weight	5027.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

HPRLSQYKSKYSSLEQSERRRRLLELQKSKRLDYVNHARR

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	345

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2p8qa_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

Domain ID domain_id	d2p8qb_
Class class	g — Small proteins
Fold Fold fold	g.88 — Intrinsically disordered proteins
Superfamily Superfamily superfamily	g.88.2 — importin-beta binding (IBB) domain of snurportin-1
Family Family family	g.88.2.1 — importin-beta binding (IBB) domain of snurportin-1

CATH v4.4 (1 domains)

Domain ID domain_id	2p8qA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

▶

8. Citations (1)

▶

Unit-cell length a length_a	64.752 Å
Unit-cell length b length_b	97.892 Å
Unit-cell length c length_c	84.286 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.86 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2300
R_work r_work	0.2268
R_free r_free	0.2500

fit	/app/data/saxs_computation/p8/2p8q/2p8q.fit
pddf	/app/data/pr_computation/p8/2p8q/2p8q.pr.out
profile	/app/data/saxs_computation/p8/2p8q/2p8q.dat
