SAXSdb — 1f8i

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1f8i
沉积日期 deposition_date	2000-06-30
结构标题 title	CRYSTAL STRUCTURE OF ISOCITRATE LYASE:NITROPROPIONATE:GLYOXYLATE COMPLEX FROM MYCOBACTERIUM TUBERCULOSIS
关键词 keywords	;AlPHA-BETA Barrel, Swapped Helices, closed conformation, Structural Genomics, PSI, Protein Structure Initiative, TB Structural Genomics Consortium, TBSGC, LYASE ;; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.34 Å
回转半径 Rg (电子) rg_electron	32.31 Å
零角强度 I(0) i0	564439000.00
分子量 molecular_weight	188220.0 kDa
排除体积 excluded_volume	233530 Å³
包络体积 envelope_volume	269310 Å³
水化壳体积 shell_volume	63999 Å³
包络直径 envelope_diameter	98.7 Å
壳层 Rg shell_rg	42.73 Å
包络 Rg envelope_rg	32.35 Å
形状 Rg shape_rg	32.31 Å
总 Rg total_rg	33.04 Å
总原子数 total_atoms	13288
残基数 n_residues	1708
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	99.2 Å
Rg (实空间) rg_real	33.11 Å
Rg 误差 (实空间) rg_real_error	0.31 Å
I(0) (实空间) i0_real	5.6440e+08
I(0) 误差 (实空间) i0_real_error	7.2270e+06
Rg (倒空间) rg_reciprocal	33.26 Å
I(0) (倒空间) i0_reciprocal	564500000.0000
解质量估计 total_estimate	0.7217
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	44.3 Å
偏度 Skewness skewness	0.041
峰度 Kurtosis kurtosis	-0.578
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	379000000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.937; Stabil: 1.000; Sysdev: 0.214; Positv: 1.000; Valcen: 0.965; Smooth: 0.959

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	ISOCITRATE LYASE
分子量 formula_weight	47189.4 kDa
EC 编号 ec_number	4.1.3.1
突变 mutation	C191S
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	14340

MASVVGTPKSAEQIQQEWDTNPRWKDVTRTYSAEDVVALQGSVVEEHTLARRGAEVLWEQLHDLEWVNALGALTGNMAVQQVRAGLKAIYLSGWQVAGDANLSGHTYPDQSLYPANSVPQVVRRINNALQRADQIAKIEGDTSVENWLAPIVADGEAGFGGALNVYELQKALIAAGVAGSHWEDQLASEKKSGHLGGKVLIPTQQHIRTLTSARLAADVADVPTVVIARTDAEAATLITSDVDERDQPFITGERTREGFYRTKNGIEPCIARAKAYAPFADLIWMETGTPDLEAARQFSEAVKAEYPDQMLAYNCSPSFNWKKHLDDATIAKFQKELAAMGFKFQFITLAGFHALNYSMFDLAYGYAQNQMSAYVELQEREFAAEERGYTATKHQREVGAGYFDRIATTVDPNSSTTALTGSTEEGQFH

来源 Source

来源生物 organism	Mycobacterium tuberculosis H37Rv
NCBI 分类编号 ncbi_taxonomy_id	83332
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	GLYOXYLIC ACID
分子量 formula_weight	74.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	SUCCINIC ACID
分子量 formula_weight	118.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1052

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1f8ia_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
家族 Family family	c.1.12.7 — Phosphoenolpyruvate mutase/Isocitrate lyase-like

结构域编号 domain_id	d1f8ib_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
家族 Family family	c.1.12.7 — Phosphoenolpyruvate mutase/Isocitrate lyase-like

结构域编号 domain_id	d1f8ic_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
家族 Family family	c.1.12.7 — Phosphoenolpyruvate mutase/Isocitrate lyase-like

结构域编号 domain_id	d1f8id_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
家族 Family family	c.1.12.7 — Phosphoenolpyruvate mutase/Isocitrate lyase-like

CATH v4.4 (4 domains)

结构域编号 domain_id	1f8iA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

结构域编号 domain_id	1f8iB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

结构域编号 domain_id	1f8iC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

结构域编号 domain_id	1f8iD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	74.291 Å
晶胞边长 b length_b	129.018 Å
晶胞边长 c length_c	166.962 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.250 Å
最低分辨率 resolution_low	35.020 Å
R 因子 r_factor	0.1660
R_work r_work	0.1660
R_free r_free	0.2100

fit	/app/data/saxs_computation/f8/1f8i/1f8i.fit
pddf	/app/data/pr_computation/f8/1f8i/1f8i.pr.out
profile	/app/data/saxs_computation/f8/1f8i/1f8i.dat

CRYSTAL STRUCTURE OF ISOCITRATE LYASE:NITROPROPIONATE:GLYOXYLATE COMPLEX FROM MYCOBACTERIUM TUBERCULOSIS

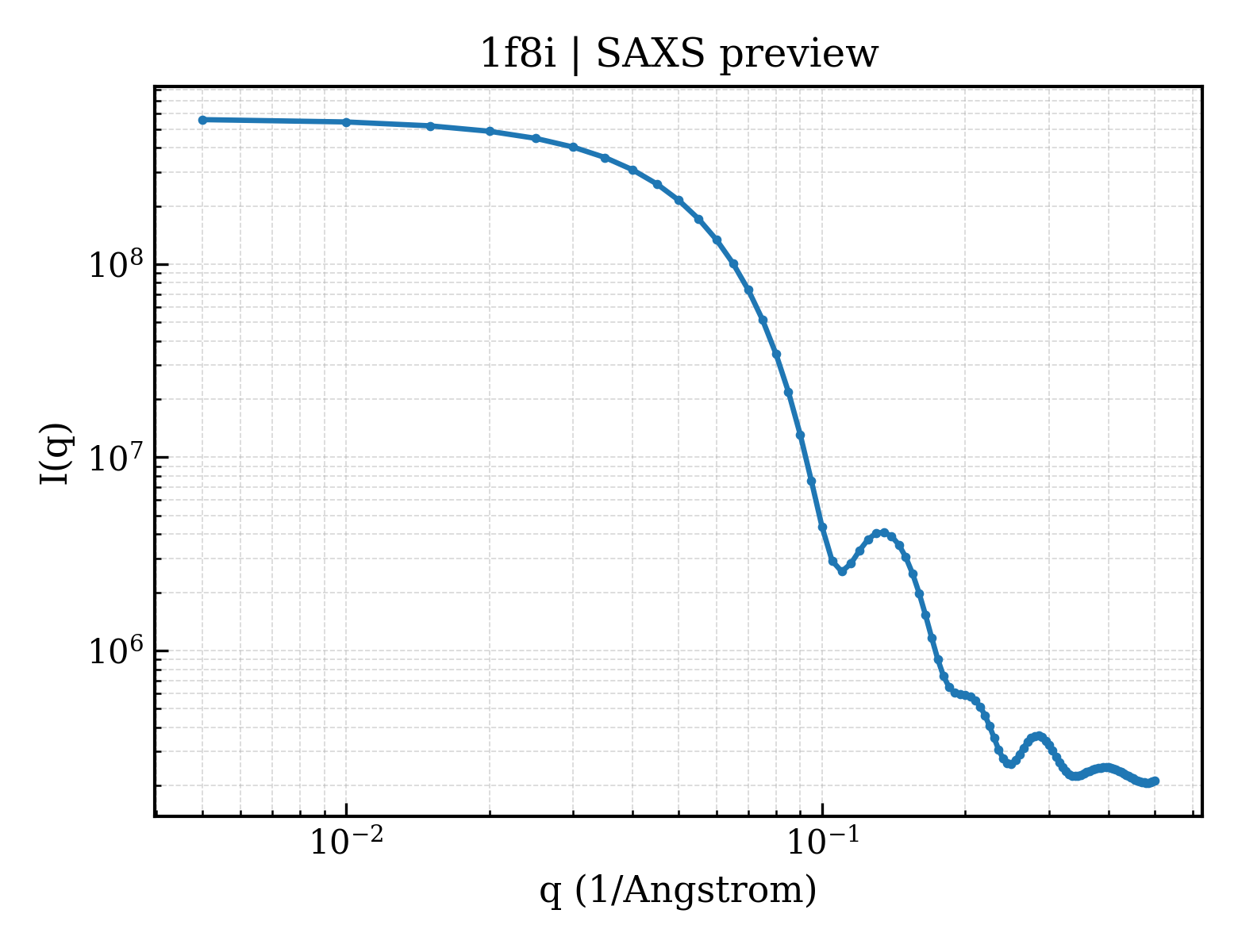

SAXS 散射曲线 SAXS Profile

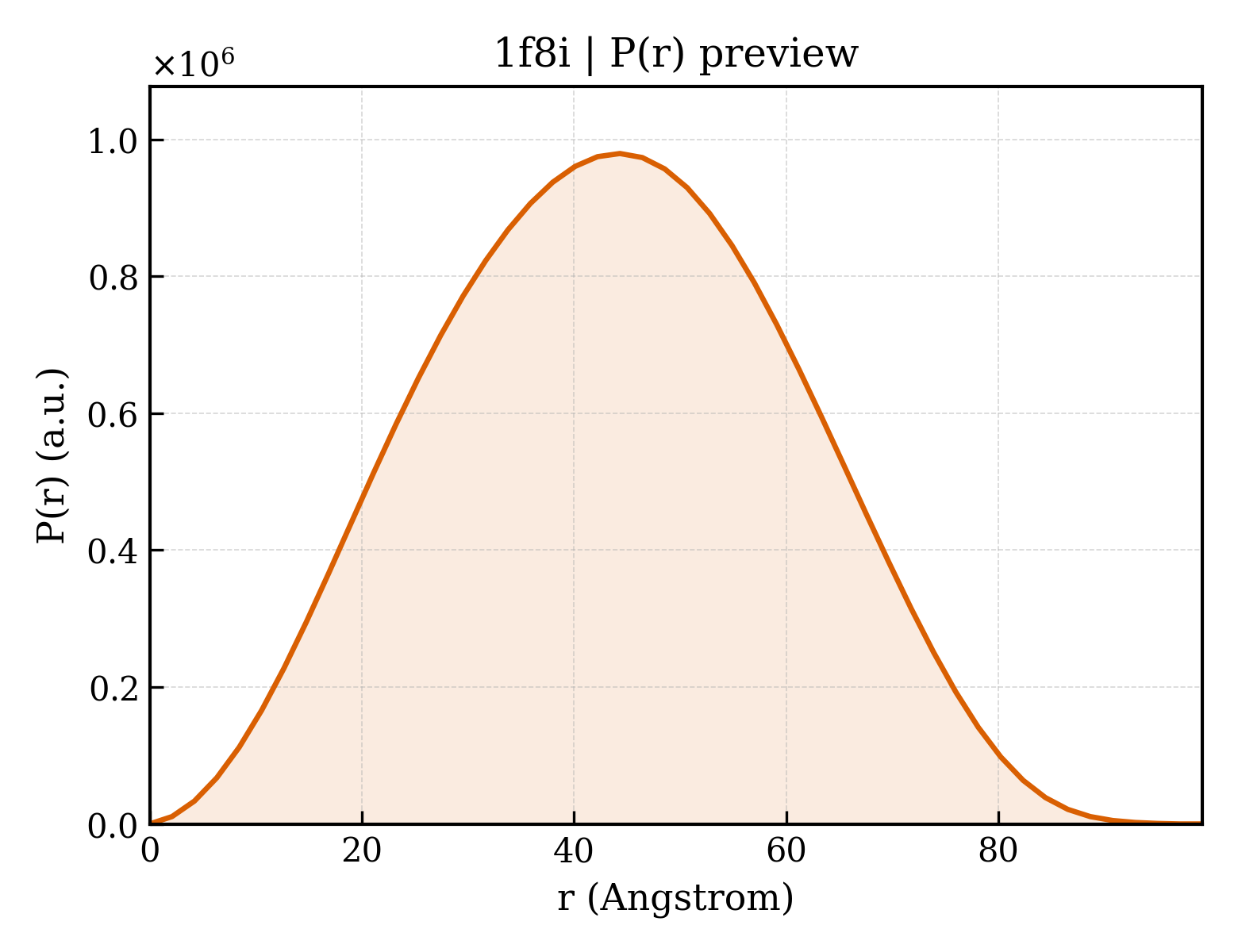

P(r) 距离分布 P(r) Distribution
