SAXSdb — 1f8m

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1f8m
沉积日期 deposition_date	2000-06-30
结构标题 title	CRYSTAL STRUCTURE OF 3-BROMOPYRUVATE MODIFIED ISOCITRATE LYASE (ICL) FROM MYCOBACTERIUM TUBERCULOSIS
关键词 keywords	;Alpha-beta barrel, Helix-swapping, closed conformation, bromopyuvate modification, Structural Genomics, PSI, Protein Structure Initiative, TB Structural Genomics Consortium, TBSGC, LYASE ;; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.39 Å
回转半径 Rg (电子) rg_electron	32.35 Å
零角强度 I(0) i0	561256000.00
分子量 molecular_weight	187870.0 kDa
排除体积 excluded_volume	233150 Å³
包络体积 envelope_volume	269760 Å³
水化壳体积 shell_volume	64059 Å³
包络直径 envelope_diameter	99.2 Å
壳层 Rg shell_rg	42.79 Å
包络 Rg envelope_rg	32.38 Å
形状 Rg shape_rg	32.35 Å
总 Rg total_rg	33.07 Å
总原子数 total_atoms	13260
残基数 n_residues	1708
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	99.4 Å
Rg (实空间) rg_real	33.16 Å
Rg 误差 (实空间) rg_real_error	0.32 Å
I(0) (实空间) i0_real	5.6130e+08
I(0) 误差 (实空间) i0_real_error	7.0050e+06
Rg (倒空间) rg_reciprocal	33.30 Å
I(0) (倒空间) i0_reciprocal	561300000.0000
解质量估计 total_estimate	0.9030
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	44.4 Å
偏度 Skewness skewness	0.041
峰度 Kurtosis kurtosis	-0.578
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0002
最高正则化参数 α highest_alpha	352600000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.937; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.965; Smooth: 0.959

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	ISOCITRATE LYASE
分子量 formula_weight	47205.5 kDa
EC 编号 ec_number	4.1.3.1
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	14276

MASVVGTPKSAEQIQQEWDTNPRWKDVTRTYSAEDVVALQGSVVEEHTLARRGAEVLWEQLHDLEWVNALGALTGNMAVQQVRAGLKAIYLSGWQVAGDANLSGHTYPDQSLYPANSVPQVVRRINNALQRADQIAKIEGDTSVENWLAPIVADGEAGFGGALNVYELQKALIAAGVAGSHWEDQLASEKKCGHLGGKVLIPTQQHIRTLTSARLAADVADVPTVVIARTDAEAATLITSDVDERDQPFITGERTREGFYRTKNGIEPCIARAKAYAPFADLIWMETGTPDLEAARQFSEAVKAEYPDQMLAYNCSPSFNWKKHLDDATIAKFQKELAAMGFKFQFITLAGFHALNYSMFDLAYGYAQNQMSAYVELQEREFAAEERGYTATKHQREVGAGYFDRIATTVDPNSSTTALTGSTEEGQFH

来源 Source

来源生物 organism	Mycobacterium tuberculosis H37Rv
NCBI 分类编号 ncbi_taxonomy_id	83332
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	PYRUVIC ACID
分子量 formula_weight	88.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1016

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1f8ma_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
家族 Family family	c.1.12.7 — Phosphoenolpyruvate mutase/Isocitrate lyase-like

结构域编号 domain_id	d1f8mb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
家族 Family family	c.1.12.7 — Phosphoenolpyruvate mutase/Isocitrate lyase-like

结构域编号 domain_id	d1f8mc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
家族 Family family	c.1.12.7 — Phosphoenolpyruvate mutase/Isocitrate lyase-like

结构域编号 domain_id	d1f8md_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
家族 Family family	c.1.12.7 — Phosphoenolpyruvate mutase/Isocitrate lyase-like

CATH v4.4 (4 domains)

结构域编号 domain_id	1f8mA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

结构域编号 domain_id	1f8mB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

结构域编号 domain_id	1f8mC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

结构域编号 domain_id	1f8mD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	74.310 Å
晶胞边长 b length_b	129.037 Å
晶胞边长 c length_c	166.165 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.800 Å
最低分辨率 resolution_low	19.860 Å
R 因子 r_factor	0.2030
R_work r_work	0.2030
R_free r_free	0.2470

fit	/app/data/saxs_computation/f8/1f8m/1f8m.fit
pddf	/app/data/pr_computation/f8/1f8m/1f8m.pr.out
profile	/app/data/saxs_computation/f8/1f8m/1f8m.dat

CRYSTAL STRUCTURE OF 3-BROMOPYRUVATE MODIFIED ISOCITRATE LYASE (ICL) FROM MYCOBACTERIUM TUBERCULOSIS

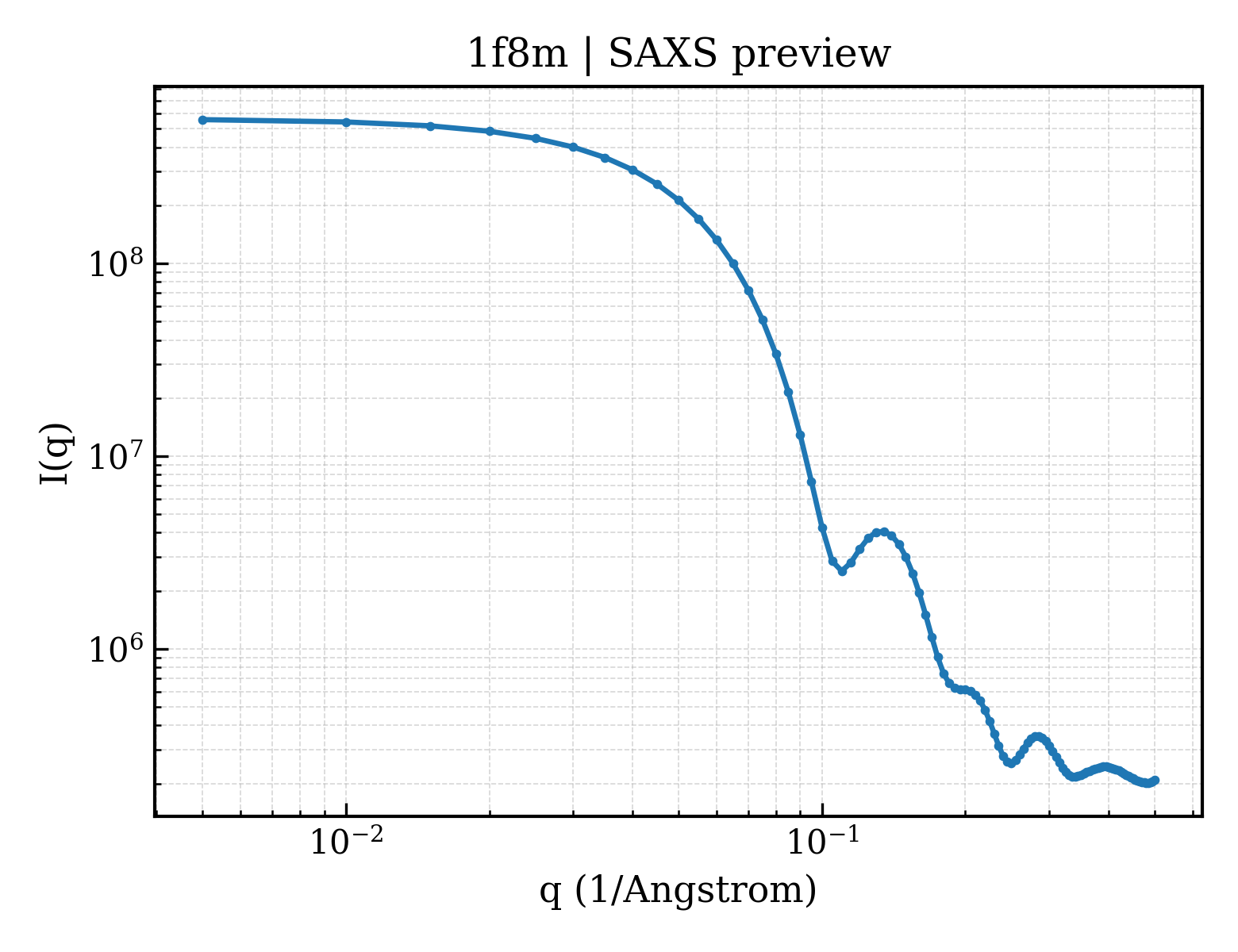

SAXS 散射曲线 SAXS Profile

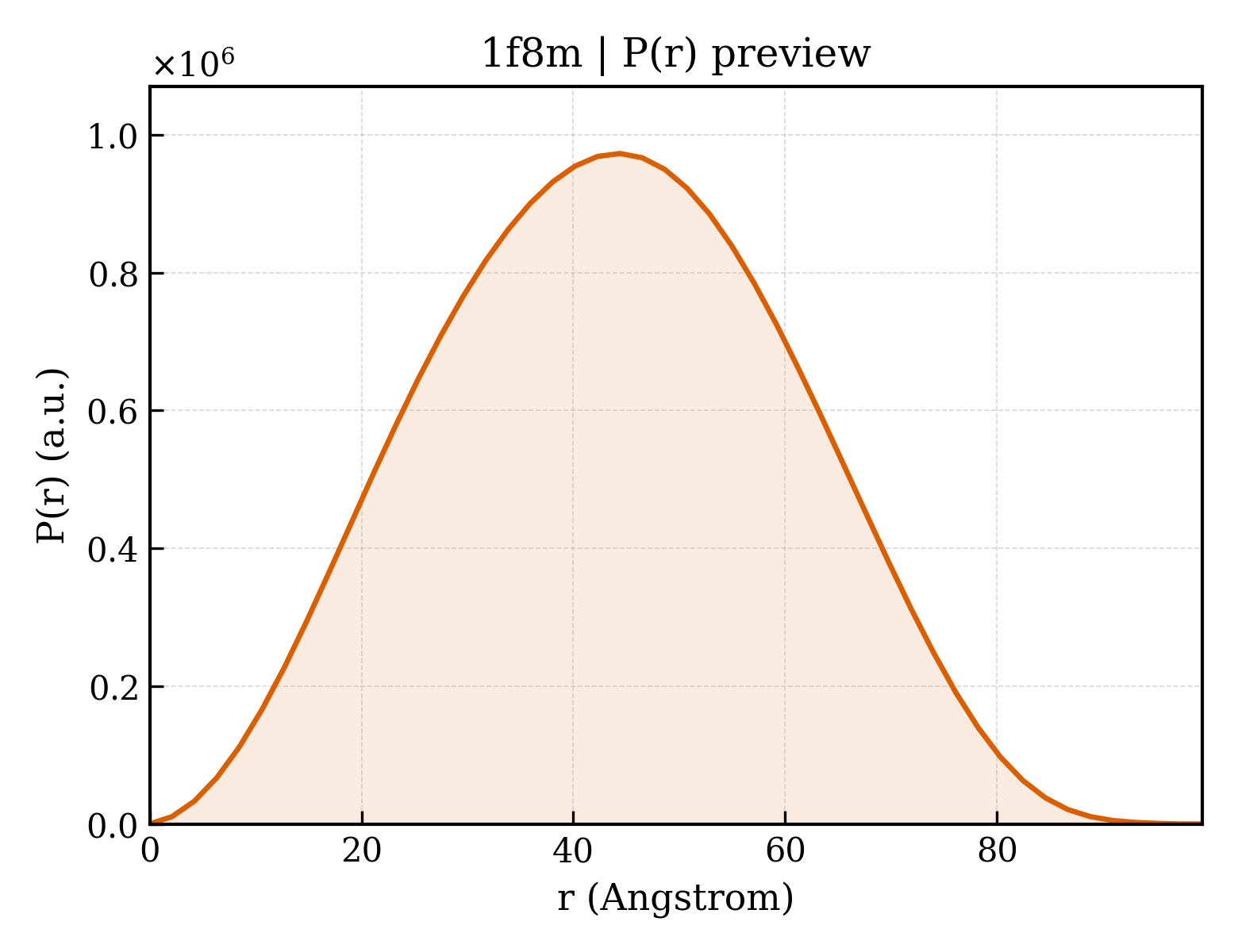

P(r) 距离分布 P(r) Distribution
