SAXSdb — 1ff5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

EPITHELIAL CADHERIN

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 157–374 Chain B； UniProt 157–374	Fragment：DOUBLE DOMAIN	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；50 mM ammonium sulfate, 50 mM NaOAc, 30% PEG 8000, pH 8.5, Tris-HCl, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.93 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1FF5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EDH E-CADHERIN DOMAINS 1 AND 2 IN COMPLEX WITH CALCIUM Deposited 1996-05-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 156–380（225 aa） Chain B 156–380（225 aa）	Mutation：INS(MR-D1) Mutation：INS(MR-D1)	HG MERCURY (II) ION × 2 CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；1.2 M AMMONIUM SULFATE 0.01 M CALCIUM CHLORIDE 0.1 M TRIS-HCL BUFFER, PH 9.0 0.003 M SODIUM AZIDE	Resolution 2.00 Å R-free 0.262
1I7W BETA-CATENIN/PHOSPHORYLATED E-CADHERIN COMPLEX Deposited 2001-03-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 734–884（151 aa） Fragment：CYTOPLASMIC DOMAIN Chain D 734–884（151 aa） Fragment：CYTOPLASMIC DOMAIN	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 2 CL CHLORIDE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；polyethylene glycol monomethylether 5000, Tris-HCl, NaCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.245
1I7X BETA-CATENIN/E-CADHERIN COMPLEX Deposited 2001-03-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 734–884（151 aa） Fragment：CYTOPLASMIC DOMAIN Chain D 734–884（151 aa） Fragment：CYTOPLASMIC DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；POLYETHYLENEIMINE TRIS-HCL ISOPROPANOL, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.00 Å R-free 0.242
1Q1P E-Cadherin activation Deposited 2003-07-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 158–369（212 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.305
1Q1P E-Cadherin activation Deposited 2003-07-22	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 158–369（212 aa）	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.305
1SUH AMINO-TERMINAL DOMAIN OF EPITHELIAL CADHERIN IN THE CALCIUM BOUND STATE, NMR, 20 STRUCTURES Deposited 1996-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–300（145 aa） Fragment：AMINO-TERMINAL DOMAIN RESIDUES 1 - 104	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
2OMW Crystal structure of InlA S192N Y369S/mEC1 complex Deposited 2007-01-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 158–256（99 aa） Fragment：N-terminal domain of murine E-cadherin	Not recorded	CL CHLORIDE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；298 K；PEG 6000, LiCl, Na-Citrate, pH 5.2, vapor diffusion, hanging drop, temperature 298K	Resolution 1.85 Å R-free 0.207
2QVF mouse E-cadherin domains 1,2 Deposited 2007-08-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 157–369（213 aa） Fragment：Cadherin 1, Cadherin 2, UNP residues 157-369	Not recorded	CA CALCIUM ION × 8	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å R-free 0.286
3IFQ Interction of plakoglobin and beta-catenin with desmosomal cadherins Deposited 2009-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 778–884（107 aa） Fragment：residues 778-884 Chain D 778–884（107 aa） Fragment：residues 778-884	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289.5 K；17% PEG 3350, 0.1M Ammonium sulfate, 0.1M Tris-Cl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289.5K	Resolution 2.80 Å R-free 0.261
3IFQ Interction of plakoglobin and beta-catenin with desmosomal cadherins Deposited 2009-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 778–884（107 aa） Fragment：residues 778-884	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289.5 K；17% PEG 3350, 0.1M Ammonium sulfate, 0.1M Tris-Cl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289.5K	Resolution 2.80 Å R-free 0.261
3IFQ Interction of plakoglobin and beta-catenin with desmosomal cadherins Deposited 2009-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 778–884（107 aa） Fragment：residues 778-884	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289.5 K；17% PEG 3350, 0.1M Ammonium sulfate, 0.1M Tris-Cl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289.5K	Resolution 2.80 Å R-free 0.261
3LNE Crystal structure of E-cadherin EC12 K14E Deposited 2010-02-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：UNP residues 157-369	Mutation：K14E	CA CALCIUM ION × 6 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1M MES pH 6.5, 0.75M sodium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.219
3LNF Crystal structure of E-cadherin EC12 K14EW2A Deposited 2010-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 157–369（213 aa） Fragment：UNP residues 157-369	Mutation：K14E,W2A	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；1.2M ammonium sulfate, 0.1M Tris-Cl pH 8.5, 15% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.241
3LNF Crystal structure of E-cadherin EC12 K14EW2A Deposited 2010-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 157–369（213 aa） Fragment：UNP residues 157-369	Mutation：K14E,W2A	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；1.2M ammonium sulfate, 0.1M Tris-Cl pH 8.5, 15% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.241
3LNG Crystal structure of E-cadherin EC12 AA extension Deposited 2010-02-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：UNP residues 157-369 Chain B 157–369（213 aa） Fragment：UNP residues 157-369	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；293 K；0.1M Tris, pH 8.5, 1.3M ammonium sulfate, 15% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.263
3LNH Crystal structure of E-cadherin EC12 W2A Deposited 2010-02-02	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：UNP residues 157-369 Chain B 157–369（213 aa） Fragment：UNP residues 157-369	Mutation：W2A Mutation：W2A	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；293 K；0.1M Tris, pH 8.5, 1.3M ammonium sulfate, 15% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.267
3LNI Crystal structure of E-cadherin EC12 E89A Deposited 2010-02-02	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：UNP residues 157-369 Chain B 157–369（213 aa） Fragment：UNP residues 157-369	Mutation：E89A Mutation：E89A	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.25M ammonium sulfate, 0.1M MES pH 6.5, 26% PEG 5000 monomethylether, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.228
3Q2L Mouse E-cadherin EC1-2 V81D mutant Deposited 2010-12-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：E-cadherin EC1-2 fragment, residues 157-369 Chain B 157–369（213 aa） Fragment：E-cadherin EC1-2 fragment, residues 157-369	Mutation：V81D Mutation：V81D	CA CALCIUM ION × 8 1PE PENTAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；10% (v/v) PEG 400, 0.1M sodium acetate pH4.6, 0.13M CaCl2, Cryoprotected by increasing PEG 400 to 30%, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.245
3Q2N Mouse E-cadherin EC1-2 L175D mutant Deposited 2010-12-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：E-cadherin EC1-2 fragment, residues 157-369 Chain B 157–369（213 aa） Fragment：E-cadherin EC1-2 fragment, residues 157-369	Mutation：L175D Mutation：L175D	CA CALCIUM ION × 8 PG4 TETRAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% (v/v) PEG 400, 0.1M sodium acetate pH4.6, 0.15M CaCl2 and croprotected by increasing PEG 400 to 30%., VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.73 Å R-free 0.224
3Q2V Crystal structure of mouse E-cadherin ectodomain Deposited 2010-12-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–700（544 aa） Fragment：UNP residues 157-700 Chain B 157–700（544 aa） Fragment：UNP residues 157-700	Not recorded	CA CALCIUM ION × 24 MN MANGANESE (II) ION × 2 MAN alpha-D-mannopyranose × 18	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；293 K；11% (w/v) PEG 5000 monomethyl ether (MME), 0.1M Bicine pH 8.5, 10mM CaCl2, 30mM MnCl2, 2% (v/v) dioxane, 4% (v/v) 1-butanol , VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.40 Å R-free 0.293
3QRB crystal structure of E-cadherin EC1-2 P5A P6A Deposited 2011-02-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：Cadherin 1 and Cadherin 2 Domains, UNP residues 157-369	Mutation：P161A, P162A	CA CALCIUM ION × 6 EDO 1,2-ETHANEDIOL × 4 PGE TRIETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；10% PEG8000, 10% ethylene glycol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.178
3QRB crystal structure of E-cadherin EC1-2 P5A P6A Deposited 2011-02-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 157–369（213 aa） Fragment：Cadherin 1 and Cadherin 2 Domains, UNP residues 157-369	Mutation：P161A, P162A	CA CALCIUM ION × 6 EDO 1,2-ETHANEDIOL × 4 PGE TRIETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；10% PEG8000, 10% ethylene glycol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.178
4QD2 Molecular basis for disruption of E-cadherin adhesion by botulinum neurotoxin A complex Deposited 2014-05-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 157–369（213 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；100mM Tris (pH8.0), 6% PEG8000, 200mM potassium acetate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.247
4QD2 Molecular basis for disruption of E-cadherin adhesion by botulinum neurotoxin A complex Deposited 2014-05-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain J 157–369（213 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；100mM Tris (pH8.0), 6% PEG8000, 200mM potassium acetate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.247
7AR4 Crystal structure of beta-catenin in complex with cyclic peptide inhibitor Deposited 2020-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain PaP 783–798（16 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.1 M HEPES, 4% PEG6000, 20 mM TRIS, 150 mM NaCl, 0.5 % Glycerol, 2 mM DTT	Resolution 2.60 Å R-free 0.242

19 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CADH1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–219； UniProt 157–374 Author chain B； PDBConstruct 2–219； UniProt 157–374

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ff5
Deposition date deposition_date	2000-07-25
Structure title title	STRUCTURE OF E-CADHERIN DOUBLE DOMAIN
Keywords keywords	E-cadherin, Ca-binding, CELL ADHESION; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.39 Å
Radius of gyration Rg (electron density) rg_electron	30.10 Å
Forward intensity I(0) i0	38779300.00
Molecular weight molecular_weight	48008.0 kDa
Excluded volume excluded_volume	59833 Å³
Envelope volume envelope_volume	78345 Å³
Hydration-shell volume shell_volume	23924 Å³
Envelope diameter envelope_diameter	100.8 Å
Shell Rg shell_rg	33.47 Å
Envelope Rg envelope_rg	30.71 Å
Shape Rg shape_rg	30.13 Å
Total Rg total_rg	30.34 Å
Total atoms total_atoms	3368
Residues n_residues	438
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	102.1 Å
Rg (real space) rg_real	30.59 Å
Rg uncertainty (real space) rg_real_error	0.87 Å
I(0) (real space) i0_real	3.8780e+07
I(0) uncertainty (real space) i0_real_error	5.6090e+05
Rg (reciprocal space) rg_reciprocal	30.51 Å
I(0) (reciprocal space) i0_reciprocal	38780000.0000
Solution quality estimate total_estimate	0.8619
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	35.4 Å
Skewness Skewness skewness	0.412
Kurtosis Kurtosis kurtosis	-0.478
Angular range angular_range	— – 0.2600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2598000.0000
Real-space data points n_real_points	53
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.874; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.762; Smooth: 0.815

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	EPITHELIAL CADHERIN
Molecular weight formula_weight	23919.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3633

MDWVIPPISCPENEKGEFPKNLVQIKSNRDKETKVFYSITGQGADKPPVGVFIIERETGWLKVTQPLDREAIAKYILYSHAVSSNGEAVEDPMEIVITVTDQNDNRPEFTQEVFEGSVAEGAVPGTSVMKVSATDADDDVNTYNAAIAYTIVSQDPELPHKNMFTVNRDTGVISVLTSGLDRESYPTYTLVVQAADLQGEGLSTTAKAVITVKDINDNA

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	265

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1ff5a1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.6 — Cadherin-like
Family Family family	b.1.6.1 — Cadherin

Domain ID domain_id	d1ff5a2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.6 — Cadherin-like
Family Family family	b.1.6.1 — Cadherin

Domain ID domain_id	d1ff5b1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.6 — Cadherin-like
Family Family family	b.1.6.1 — Cadherin

Domain ID domain_id	d1ff5b2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.6 — Cadherin-like
Family Family family	b.1.6.1 — Cadherin

CATH v4.4 (4 domains)

Domain ID domain_id	1ff5A01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	60 — Cadherins

Domain ID domain_id	1ff5A02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	60 — Cadherins

Domain ID domain_id	1ff5B01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	60 — Cadherins

Domain ID domain_id	1ff5B02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	60 — Cadherins

▶

8. Citations (1)

▶

Unit-cell length a length_a	122.500 Å
Unit-cell length b length_b	80.560 Å
Unit-cell length c length_c	73.440 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	113.98 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.930 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

fit	/app/data/saxs_computation/ff/1ff5/1ff5.fit
pddf	/app/data/pr_computation/ff/1ff5/1ff5.pr.out
profile	/app/data/saxs_computation/ff/1ff5/1ff5.dat

STRUCTURE OF E-CADHERIN DOUBLE DOMAIN

1. Protein Identity and Related Structures Protein Identity & Related Structures

EPITHELIAL CADHERIN

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

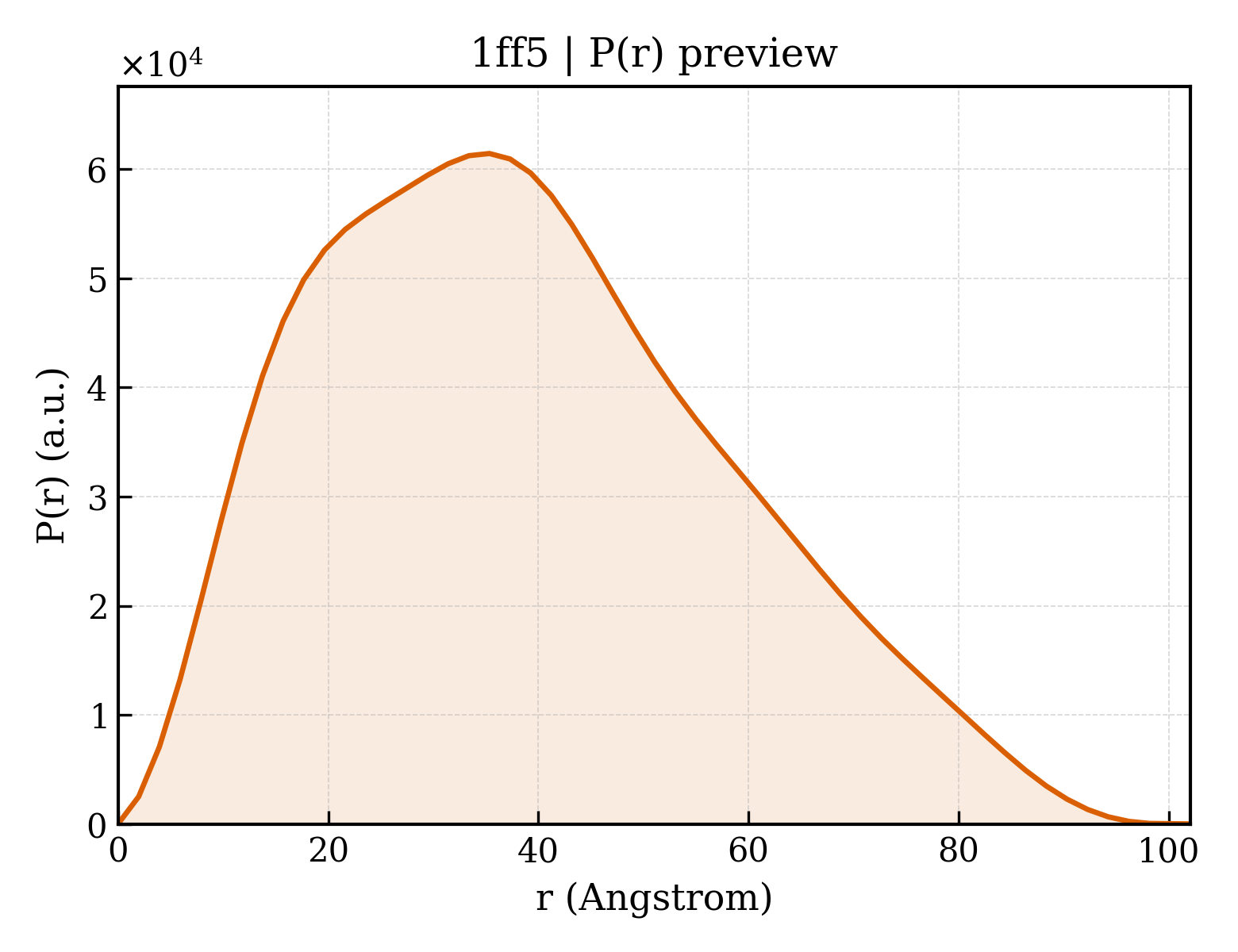

P(r) Distance Distribution P(r) Distribution
