SAXSdb — 1i7w

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-CATENIN

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 134–671 Chain C； UniProt 134–671	Fragment：ARMADILLO DOMAIN	EPITHELIAL-CADHERIN × 2 （P09803） ZN ZINC ION × 2 CL CHLORIDE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；polyethylene glycol monomethylether 5000, Tris-HCl, NaCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1I7W	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DOW CRYSTAL STRUCTURE OF A CHIMERA OF BETA-CATENIN AND ALPHA-CATENIN Deposited 1999-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 118–149（32 aa） Fragment：ALPHA-CATENIN BINDING REGION	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；PEG 2000 monomethylether, HEPES, urea, ethanol, Dithiothreitol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295.0K	Resolution 1.80 Å R-free 0.233
1I7X BETA-CATENIN/E-CADHERIN COMPLEX Deposited 2001-03-10	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 134–671（538 aa） Fragment：ARMADILLO DOMAIN Chain C 134–671（538 aa） Fragment：ARMADILLO DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；POLYETHYLENEIMINE TRIS-HCL ISOPROPANOL, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.00 Å R-free 0.242
1JPP The Structure of a beta-Catenin Binding Repeat from Adenomatous Polyposis Coli (APC) in Complex with beta-Catenin Deposited 2001-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 134–671（538 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；PEG 8000, sodium potassium phosphate, sodium chloride, DTT, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.274
1JPP The Structure of a beta-Catenin Binding Repeat from Adenomatous Polyposis Coli (APC) in Complex with beta-Catenin Deposited 2001-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 134–671（538 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；PEG 8000, sodium potassium phosphate, sodium chloride, DTT, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.274
1M1E Beta-catenin armadillo repeat domain bound to ICAT Deposited 2002-06-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 134–671（538 aa） Fragment：Armadillo Repeat Region (RESIDUES 134-671)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；MES, MPD, DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.228
1V18 The crystal structure of beta-catenin armadillo repeat complexed with a phosphorylated APC 20mer repeat. Deposited 2004-04-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 134–671（538 aa） Fragment：ARMADILLO REPEAT, REPEAT 3 OF APC, RESIDUES 134-671	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.50	Resolution 2.10 Å R-free 0.253
2BCT THE ARMADILLO REPEAT REGION FROM MURINE BETA-CATENIN Deposited 1997-07-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 150–665（516 aa） Fragment：ARMADILLO REPEAT REGION	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；10% (W/V) PEG 8000, 875 MM NACL, 200 MM TRIS-HCL, PH 8.5	Resolution 2.90 Å R-free 0.288
3BCT THE ARMADILLO REPEAT REGION FROM MURINE BETA-CATENIN Deposited 1997-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 193–662（470 aa） Fragment：ARMADILLO REPEAT REGION	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 1 URE UREA × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.5% (W/V) PEG 8000, 2.4 M UREA, 200 MM TRIS-HCL, PH 8.5	Resolution 2.10 Å R-free 0.260
3BCT THE ARMADILLO REPEAT REGION FROM MURINE BETA-CATENIN Deposited 1997-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 193–662（470 aa） Fragment：ARMADILLO REPEAT REGION	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 2 URE UREA × 16	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.5% (W/V) PEG 8000, 2.4 M UREA, 200 MM TRIS-HCL, PH 8.5	Resolution 2.10 Å R-free 0.260
3OUW Structure of beta-catenin with Lef-1 Deposited 2010-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 134–671（538 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；296 K；well solution: 4.2% PEG 4000, 100 mM sodium citrate. protein solution: 100 uM beta-cat-arm, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.91 Å R-free 0.256
3OUX Structure of beta-catenin with phosphorylated Lef-1 Deposited 2010-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 134–671（538 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；296 K；well solution: 7% PEG 3000, 100 mM sodium citrate. protein solution: 100 micro-M beta-cat-arm, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.40 Å R-free 0.264
4EV8 Crystal structure of mouse catenin beta-59 in 2.4M urea. Deposited 2012-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–671（538 aa）	Not recorded	URE UREA × 18	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.220
4EV9 Crystal Structure of Mouse Catenin beta-59 in 4.0M urea Deposited 2012-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–671（538 aa） Fragment：unp residues 134-671	Not recorded	URE UREA × 42	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；1.6~3.2 M Urea, 200mM Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.232
4EVA Crystal Structure of Mouse Catenin beta-59 in 5.6M urea Deposited 2012-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–671（538 aa） Fragment：unp residues 134-671	Not recorded	URE UREA × 38	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；1.6~3.2 M Urea, 200mM Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.228
4EVA Crystal Structure of Mouse Catenin beta-59 in 5.6M urea Deposited 2012-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 134–671（538 aa） Fragment：unp residues 134-671	Not recorded	URE UREA × 34	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；1.6~3.2 M Urea, 200mM Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.228
4EVP Crystal Structure of Mouse Catenin beta-59 in 7.2M urea Deposited 2012-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–671（538 aa） Fragment：unp residues 134-671	Not recorded	URE UREA × 43	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP	Resolution 2.25 Å R-free 0.225
4EVT Crystal Structure of Mouse Catenin beta-59 in 8.3M urea Deposited 2012-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–671（538 aa） Fragment：unp residues 134-671	Not recorded	URE UREA × 56	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；1.6~3.2 M Urea, 200mM Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.34 Å R-free 0.225
4ONS Structural and thermodynamic characterization of cadherin-beta-catenin-alpha-catenin complex formation Deposited 2014-01-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 78–151（74 aa） Fragment：alpha-catenin binding domain, UNP residues 78-151	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；283 K；100mM Tris-Cl, 22% polyethylene glycol monomethryl ether, pH 8.2, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.80 Å R-free 0.264
4ONS Structural and thermodynamic characterization of cadherin-beta-catenin-alpha-catenin complex formation Deposited 2014-01-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 78–151（74 aa） Fragment：alpha-catenin binding domain, UNP residues 78-151	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；283 K；100mM Tris-Cl, 22% polyethylene glycol monomethryl ether, pH 8.2, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.80 Å R-free 0.264

15 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CTNB1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–538； UniProt 134–671 Author chain C； PDBConstruct 1–538； UniProt 134–671

EPITHELIAL-CADHERIN

Mus musculus

UniProt P09803

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 734–884 Chain D； UniProt 734–884	Fragment：CYTOPLASMIC DOMAIN Non-standard monomer：Yes (specific site not provided by mmCIF)	BETA-CATENIN × 2 （Q02248） ZN ZINC ION × 2 CL CHLORIDE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；polyethylene glycol monomethylether 5000, Tris-HCl, NaCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1I7W	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EDH E-CADHERIN DOMAINS 1 AND 2 IN COMPLEX WITH CALCIUM Deposited 1996-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 156–380（225 aa） Chain B 156–380（225 aa）	Mutation：INS(MR-D1) Mutation：INS(MR-D1)	HG MERCURY (II) ION × 2 CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；1.2 M AMMONIUM SULFATE 0.01 M CALCIUM CHLORIDE 0.1 M TRIS-HCL BUFFER, PH 9.0 0.003 M SODIUM AZIDE	Resolution 2.00 Å R-free 0.262
1FF5 STRUCTURE OF E-CADHERIN DOUBLE DOMAIN Deposited 2000-07-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–374（218 aa） Fragment：DOUBLE DOMAIN Chain B 157–374（218 aa） Fragment：DOUBLE DOMAIN	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；50 mM ammonium sulfate, 50 mM NaOAc, 30% PEG 8000, pH 8.5, Tris-HCl, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.93 Å
1I7X BETA-CATENIN/E-CADHERIN COMPLEX Deposited 2001-03-10	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 734–884（151 aa） Fragment：CYTOPLASMIC DOMAIN Chain D 734–884（151 aa） Fragment：CYTOPLASMIC DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；POLYETHYLENEIMINE TRIS-HCL ISOPROPANOL, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.00 Å R-free 0.242
1Q1P E-Cadherin activation Deposited 2003-07-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 158–369（212 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.305
1Q1P E-Cadherin activation Deposited 2003-07-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 158–369（212 aa）	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.305
1SUH AMINO-TERMINAL DOMAIN OF EPITHELIAL CADHERIN IN THE CALCIUM BOUND STATE, NMR, 20 STRUCTURES Deposited 1996-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–300（145 aa） Fragment：AMINO-TERMINAL DOMAIN RESIDUES 1 - 104	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
2OMW Crystal structure of InlA S192N Y369S/mEC1 complex Deposited 2007-01-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 158–256（99 aa） Fragment：N-terminal domain of murine E-cadherin	Not recorded	CL CHLORIDE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；298 K；PEG 6000, LiCl, Na-Citrate, pH 5.2, vapor diffusion, hanging drop, temperature 298K	Resolution 1.85 Å R-free 0.207
2QVF mouse E-cadherin domains 1,2 Deposited 2007-08-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 157–369（213 aa） Fragment：Cadherin 1, Cadherin 2, UNP residues 157-369	Not recorded	CA CALCIUM ION × 8	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å R-free 0.286
3IFQ Interction of plakoglobin and beta-catenin with desmosomal cadherins Deposited 2009-07-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 778–884（107 aa） Fragment：residues 778-884 Chain D 778–884（107 aa） Fragment：residues 778-884	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289.5 K；17% PEG 3350, 0.1M Ammonium sulfate, 0.1M Tris-Cl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289.5K	Resolution 2.80 Å R-free 0.261
3IFQ Interction of plakoglobin and beta-catenin with desmosomal cadherins Deposited 2009-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 778–884（107 aa） Fragment：residues 778-884	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289.5 K；17% PEG 3350, 0.1M Ammonium sulfate, 0.1M Tris-Cl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289.5K	Resolution 2.80 Å R-free 0.261
3IFQ Interction of plakoglobin and beta-catenin with desmosomal cadherins Deposited 2009-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 778–884（107 aa） Fragment：residues 778-884	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289.5 K；17% PEG 3350, 0.1M Ammonium sulfate, 0.1M Tris-Cl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289.5K	Resolution 2.80 Å R-free 0.261
3LNE Crystal structure of E-cadherin EC12 K14E Deposited 2010-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：UNP residues 157-369	Mutation：K14E	CA CALCIUM ION × 6 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1M MES pH 6.5, 0.75M sodium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.219
3LNF Crystal structure of E-cadherin EC12 K14EW2A Deposited 2010-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 157–369（213 aa） Fragment：UNP residues 157-369	Mutation：K14E,W2A	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；1.2M ammonium sulfate, 0.1M Tris-Cl pH 8.5, 15% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.241
3LNF Crystal structure of E-cadherin EC12 K14EW2A Deposited 2010-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 157–369（213 aa） Fragment：UNP residues 157-369	Mutation：K14E,W2A	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；1.2M ammonium sulfate, 0.1M Tris-Cl pH 8.5, 15% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.241
3LNG Crystal structure of E-cadherin EC12 AA extension Deposited 2010-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：UNP residues 157-369 Chain B 157–369（213 aa） Fragment：UNP residues 157-369	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；293 K；0.1M Tris, pH 8.5, 1.3M ammonium sulfate, 15% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.263
3LNH Crystal structure of E-cadherin EC12 W2A Deposited 2010-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：UNP residues 157-369 Chain B 157–369（213 aa） Fragment：UNP residues 157-369	Mutation：W2A Mutation：W2A	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；293 K；0.1M Tris, pH 8.5, 1.3M ammonium sulfate, 15% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.267
3LNI Crystal structure of E-cadherin EC12 E89A Deposited 2010-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：UNP residues 157-369 Chain B 157–369（213 aa） Fragment：UNP residues 157-369	Mutation：E89A Mutation：E89A	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.25M ammonium sulfate, 0.1M MES pH 6.5, 26% PEG 5000 monomethylether, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.228
3Q2L Mouse E-cadherin EC1-2 V81D mutant Deposited 2010-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：E-cadherin EC1-2 fragment, residues 157-369 Chain B 157–369（213 aa） Fragment：E-cadherin EC1-2 fragment, residues 157-369	Mutation：V81D Mutation：V81D	CA CALCIUM ION × 8 1PE PENTAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；10% (v/v) PEG 400, 0.1M sodium acetate pH4.6, 0.13M CaCl2, Cryoprotected by increasing PEG 400 to 30%, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.245
3Q2N Mouse E-cadherin EC1-2 L175D mutant Deposited 2010-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：E-cadherin EC1-2 fragment, residues 157-369 Chain B 157–369（213 aa） Fragment：E-cadherin EC1-2 fragment, residues 157-369	Mutation：L175D Mutation：L175D	CA CALCIUM ION × 8 PG4 TETRAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% (v/v) PEG 400, 0.1M sodium acetate pH4.6, 0.15M CaCl2 and croprotected by increasing PEG 400 to 30%., VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.73 Å R-free 0.224
3Q2V Crystal structure of mouse E-cadherin ectodomain Deposited 2010-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–700（544 aa） Fragment：UNP residues 157-700 Chain B 157–700（544 aa） Fragment：UNP residues 157-700	Not recorded	CA CALCIUM ION × 24 MN MANGANESE (II) ION × 2 MAN alpha-D-mannopyranose × 18	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；293 K；11% (w/v) PEG 5000 monomethyl ether (MME), 0.1M Bicine pH 8.5, 10mM CaCl2, 30mM MnCl2, 2% (v/v) dioxane, 4% (v/v) 1-butanol , VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.40 Å R-free 0.293
3QRB crystal structure of E-cadherin EC1-2 P5A P6A Deposited 2011-02-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–369（213 aa） Fragment：Cadherin 1 and Cadherin 2 Domains, UNP residues 157-369	Mutation：P161A, P162A	CA CALCIUM ION × 6 EDO 1,2-ETHANEDIOL × 4 PGE TRIETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；10% PEG8000, 10% ethylene glycol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.178
3QRB crystal structure of E-cadherin EC1-2 P5A P6A Deposited 2011-02-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 157–369（213 aa） Fragment：Cadherin 1 and Cadherin 2 Domains, UNP residues 157-369	Mutation：P161A, P162A	CA CALCIUM ION × 6 EDO 1,2-ETHANEDIOL × 4 PGE TRIETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；10% PEG8000, 10% ethylene glycol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.178
4QD2 Molecular basis for disruption of E-cadherin adhesion by botulinum neurotoxin A complex Deposited 2014-05-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 157–369（213 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；100mM Tris (pH8.0), 6% PEG8000, 200mM potassium acetate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.247
4QD2 Molecular basis for disruption of E-cadherin adhesion by botulinum neurotoxin A complex Deposited 2014-05-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain J 157–369（213 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；100mM Tris (pH8.0), 6% PEG8000, 200mM potassium acetate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.247
7AR4 Crystal structure of beta-catenin in complex with cyclic peptide inhibitor Deposited 2020-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain PaP 783–798（16 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.1 M HEPES, 4% PEG6000, 20 mM TRIS, 150 mM NaCl, 0.5 % Glycerol, 2 mM DTT	Resolution 2.60 Å R-free 0.242

19 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CADH1_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–151； UniProt 734–884 Author chain D； PDBConstruct 1–151； UniProt 734–884

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1i7w
Deposition date deposition_date	2001-03-10
Structure title title	BETA-CATENIN/PHOSPHORYLATED E-CADHERIN COMPLEX
Keywords keywords	E-cadherin, cell adhesion, beta-catenin, protein-protein complex, extended interface, armadillo repeat, phosphoserine; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	42.82 Å
Radius of gyration Rg (electron density) rg_electron	43.37 Å
Forward intensity I(0) i0	227727000.00
Molecular weight molecular_weight	121980.0 kDa
Excluded volume excluded_volume	152620 Å³
Envelope volume envelope_volume	204770 Å³
Hydration-shell volume shell_volume	43135 Å³
Envelope diameter envelope_diameter	168.1 Å
Shell Rg shell_rg	42.92 Å
Envelope Rg envelope_rg	43.65 Å
Shape Rg shape_rg	43.40 Å
Total Rg total_rg	43.22 Å
Total atoms total_atoms	8522
Residues n_residues	1114
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	158.3 Å
Rg (real space) rg_real	43.35 Å
Rg uncertainty (real space) rg_real_error	2.01 Å
I(0) (real space) i0_real	2.2770e+08
I(0) uncertainty (real space) i0_real_error	4.3580e+06
Rg (reciprocal space) rg_reciprocal	42.82 Å
I(0) (reciprocal space) i0_reciprocal	227600000.0000
Solution quality estimate total_estimate	0.7794
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	51.3 Å
Skewness Skewness skewness	0.659
Kurtosis Kurtosis kurtosis	0.185
Angular range angular_range	— – 0.1850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	13750000.0000
Real-space data points n_real_points	38
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.598; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.682; Smooth: 0.652

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	BETA-CATENIN
Molecular weight formula_weight	58844.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	9360

HAVVNLINYQDDAELATRAIPELTKLLNDEDQVVVNKAAVMVHQLSKKEASRHAIMRSPQMVSAIVRTMQNTNDVETARCTAGTLHNLSHHREGLLAIFKSGGIPALVKMLGSPVDSVLFYAITTLHNLLLHQEGAKMAVRLAGGLQKMVALLNKTNVKFLAITTDCLQILAYGNQESKLIILASGGPQALVNIMRTYTYEKLLWTTSRVLKVLSVCSSNKPAIVEAGGMQALGLHLTDPSQRLVQNCLWTLRNLSDAATKQEGMEGLLGTLVQLLGSDDINVVTCAAGILSNLTCNNYKNKMMVCQVGGIEALVRTVLRAGDREDITEPAICALRHLTSRHQEAEMAQNAVRLHYGLPVVVKLLHPPSHWPLIKATVGLIRNLALCPANHAPLREQGAIPRLVQLLVRAHQDTQRRTSMGGTQQQFVEGVRMEEIVEGCTGALHILARDVHNRIVIRGLNTIPLFVQLLYSPIENIQRVAAGVLCELAQDKEAAEAIEAEGATAPLTELLHSRNEGVATYAAAVLFRMSEDKPQDYK

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	EPITHELIAL-CADHERIN
Molecular weight formula_weight	17244.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

RRRTVVKEPLLPPDDDTRDNVYYYDEEGGGEEDQDFDLSQLHRGLDARPEVTRNDVAPTLMSVPQYRPRPANPDEIGNFIDENLKAADSDPTAPPYDSLLVFDYEGSGSEAASLSSLNSSESDQDQDYDYLNEWGNRFKKLADMYGGGEDD

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	669

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1i7wa_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

Domain ID domain_id	d1i7wb_
Class class	j — Peptides
Fold Fold fold	j.71 — beta-Catenine bound non-globular protein regions
Superfamily Superfamily superfamily	j.71.1 — beta-Catenine bound non-globular protein regions
Family Family family	j.71.1.1 — beta-Catenine bound non-globular protein regions

Domain ID domain_id	d1i7wc_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

Domain ID domain_id	d1i7wd_
Class class	j — Peptides
Fold Fold fold	j.71 — beta-Catenine bound non-globular protein regions
Superfamily Superfamily superfamily	j.71.1 — beta-Catenine bound non-globular protein regions
Family Family family	j.71.1.1 — beta-Catenine bound non-globular protein regions

CATH v4.4 (4 domains)

Domain ID domain_id	1i7wA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	1i7wB00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	900 — TCF3-CBD (Catenin binding domain)
Homologous superfamily homologous superfamily	10 — TCF3-CBD (Catenin binding domain)

Domain ID domain_id	1i7wC00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	1i7wD00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	900 — TCF3-CBD (Catenin binding domain)
Homologous superfamily homologous superfamily	10 — TCF3-CBD (Catenin binding domain)

▶

8. Citations (4)

▶

Unit-cell length a length_a	168.600 Å
Unit-cell length b length_b	85.300 Å
Unit-cell length c length_c	115.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	107.90 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	100.000 Å
R factor r_factor	0.2080
R_work r_work	0.2060
R_free r_free	0.2450

fit	/app/data/saxs_computation/i7/1i7w/1i7w.fit
pddf	/app/data/pr_computation/i7/1i7w/1i7w.pr.out
profile	/app/data/saxs_computation/i7/1i7w/1i7w.dat

BETA-CATENIN/PHOSPHORYLATED E-CADHERIN COMPLEX

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-CATENIN

State in the Current Structure

Other States of the Same Protein in the Database

EPITHELIAL-CADHERIN

State in the Current Structure

Other States of the Same Protein in the Database

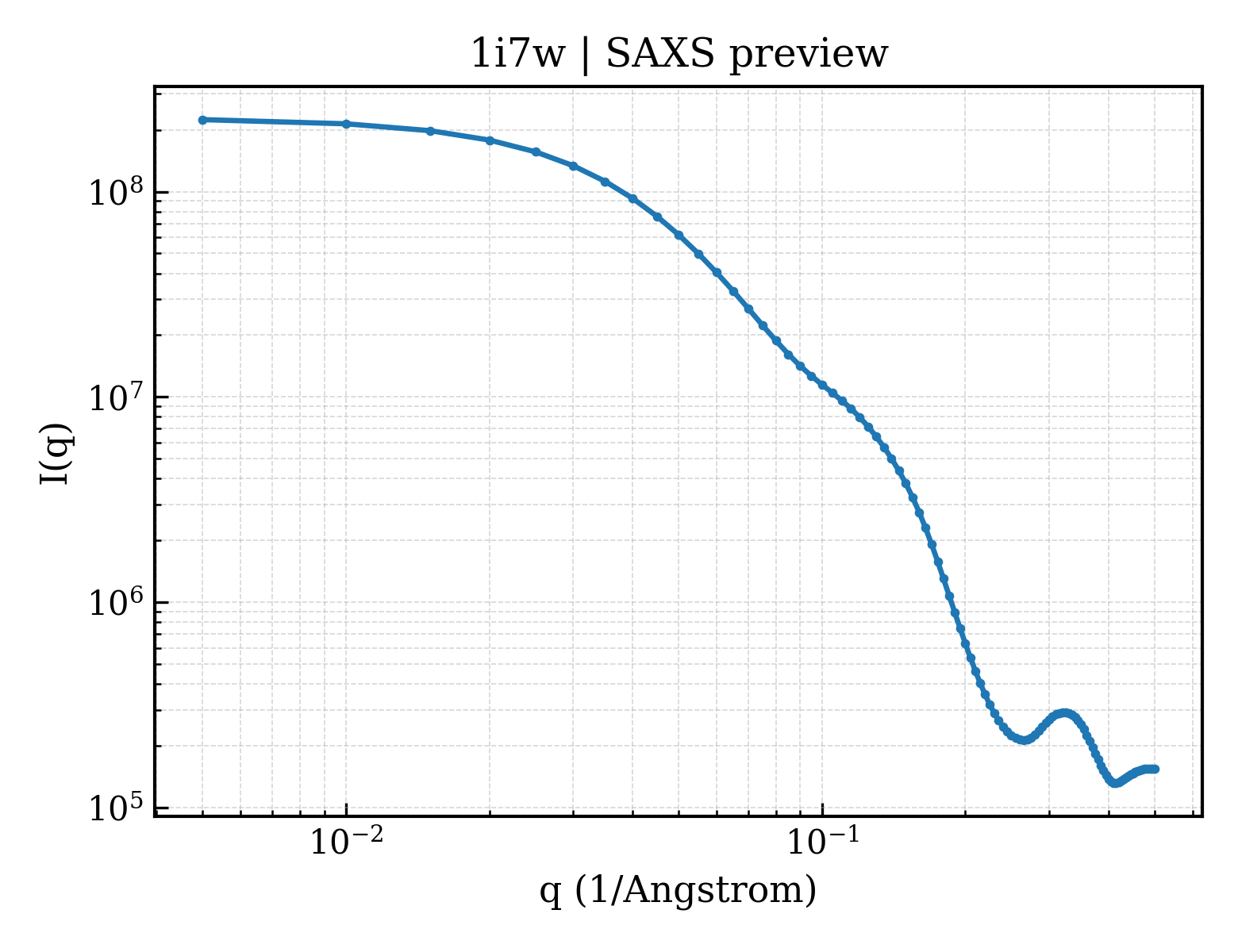

SAXS scattering curve SAXS Profile

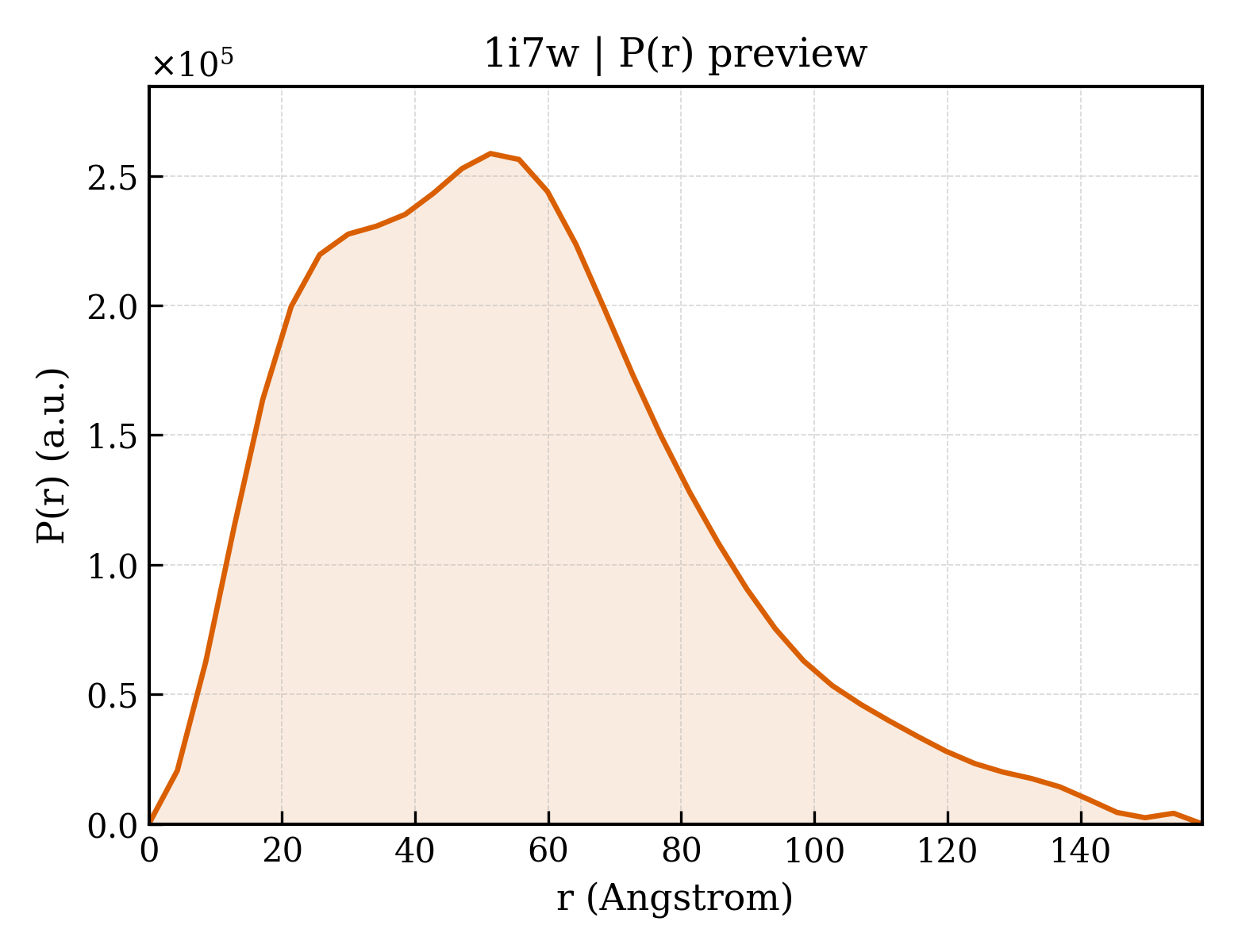

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

8. Citations (4)

9. Files and Curves (10)

Files (7)

Curves (3)
