1jpp

The Structure of a beta-Catenin Binding Repeat from Adenomatous Polyposis Coli (APC) in Complex with beta-Catenin

Method: X-RAY DIFFRACTION D_max: 315.2 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-CATENIN

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 134–671	Not recorded	ADENOMATOUS POLYPOSIS COLI PROTEIN × 1 （P25054）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；PEG 8000, sodium potassium phosphate, sodium chloride, DTT, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.274
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 134–671	Not recorded	ADENOMATOUS POLYPOSIS COLI PROTEIN × 1 （P25054） GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；PEG 8000, sodium potassium phosphate, sodium chloride, DTT, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.274

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1JPP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DOW CRYSTAL STRUCTURE OF A CHIMERA OF BETA-CATENIN AND ALPHA-CATENIN Deposited 1999-12-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 118–149（32 aa） Fragment：ALPHA-CATENIN BINDING REGION	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；PEG 2000 monomethylether, HEPES, urea, ethanol, Dithiothreitol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295.0K	Resolution 1.80 Å R-free 0.233
1I7W BETA-CATENIN/PHOSPHORYLATED E-CADHERIN COMPLEX Deposited 2001-03-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 134–671（538 aa） Fragment：ARMADILLO DOMAIN Chain C 134–671（538 aa） Fragment：ARMADILLO DOMAIN	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；polyethylene glycol monomethylether 5000, Tris-HCl, NaCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.245
1I7X BETA-CATENIN/E-CADHERIN COMPLEX Deposited 2001-03-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 134–671（538 aa） Fragment：ARMADILLO DOMAIN Chain C 134–671（538 aa） Fragment：ARMADILLO DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；POLYETHYLENEIMINE TRIS-HCL ISOPROPANOL, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.00 Å R-free 0.242
1M1E Beta-catenin armadillo repeat domain bound to ICAT Deposited 2002-06-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 134–671（538 aa） Fragment：Armadillo Repeat Region (RESIDUES 134-671)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；MES, MPD, DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.228
1V18 The crystal structure of beta-catenin armadillo repeat complexed with a phosphorylated APC 20mer repeat. Deposited 2004-04-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 134–671（538 aa） Fragment：ARMADILLO REPEAT, REPEAT 3 OF APC, RESIDUES 134-671	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.50	Resolution 2.10 Å R-free 0.253
2BCT THE ARMADILLO REPEAT REGION FROM MURINE BETA-CATENIN Deposited 1997-07-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 150–665（516 aa） Fragment：ARMADILLO REPEAT REGION	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；10% (W/V) PEG 8000, 875 MM NACL, 200 MM TRIS-HCL, PH 8.5	Resolution 2.90 Å R-free 0.288
3BCT THE ARMADILLO REPEAT REGION FROM MURINE BETA-CATENIN Deposited 1997-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 193–662（470 aa） Fragment：ARMADILLO REPEAT REGION	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 1 URE UREA × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.5% (W/V) PEG 8000, 2.4 M UREA, 200 MM TRIS-HCL, PH 8.5	Resolution 2.10 Å R-free 0.260
3BCT THE ARMADILLO REPEAT REGION FROM MURINE BETA-CATENIN Deposited 1997-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 193–662（470 aa） Fragment：ARMADILLO REPEAT REGION	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 2 URE UREA × 16	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.5% (W/V) PEG 8000, 2.4 M UREA, 200 MM TRIS-HCL, PH 8.5	Resolution 2.10 Å R-free 0.260
3OUW Structure of beta-catenin with Lef-1 Deposited 2010-09-15	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 134–671（538 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；296 K；well solution: 4.2% PEG 4000, 100 mM sodium citrate. protein solution: 100 uM beta-cat-arm, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.91 Å R-free 0.256
3OUX Structure of beta-catenin with phosphorylated Lef-1 Deposited 2010-09-15	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 134–671（538 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；296 K；well solution: 7% PEG 3000, 100 mM sodium citrate. protein solution: 100 micro-M beta-cat-arm, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.40 Å R-free 0.264
4EV8 Crystal structure of mouse catenin beta-59 in 2.4M urea. Deposited 2012-04-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–671（538 aa）	Not recorded	URE UREA × 18	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.220
4EV9 Crystal Structure of Mouse Catenin beta-59 in 4.0M urea Deposited 2012-04-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–671（538 aa） Fragment：unp residues 134-671	Not recorded	URE UREA × 42	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；1.6~3.2 M Urea, 200mM Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.232
4EVA Crystal Structure of Mouse Catenin beta-59 in 5.6M urea Deposited 2012-04-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–671（538 aa） Fragment：unp residues 134-671	Not recorded	URE UREA × 38	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；1.6~3.2 M Urea, 200mM Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.228
4EVA Crystal Structure of Mouse Catenin beta-59 in 5.6M urea Deposited 2012-04-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 134–671（538 aa） Fragment：unp residues 134-671	Not recorded	URE UREA × 34	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；1.6~3.2 M Urea, 200mM Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.228
4EVP Crystal Structure of Mouse Catenin beta-59 in 7.2M urea Deposited 2012-04-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–671（538 aa） Fragment：unp residues 134-671	Not recorded	URE UREA × 43	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP	Resolution 2.25 Å R-free 0.225
4EVT Crystal Structure of Mouse Catenin beta-59 in 8.3M urea Deposited 2012-04-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–671（538 aa） Fragment：unp residues 134-671	Not recorded	URE UREA × 56	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；1.6~3.2 M Urea, 200mM Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.34 Å R-free 0.225
4ONS Structural and thermodynamic characterization of cadherin-beta-catenin-alpha-catenin complex formation Deposited 2014-01-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 78–151（74 aa） Fragment：alpha-catenin binding domain, UNP residues 78-151	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；283 K；100mM Tris-Cl, 22% polyethylene glycol monomethryl ether, pH 8.2, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.80 Å R-free 0.264
4ONS Structural and thermodynamic characterization of cadherin-beta-catenin-alpha-catenin complex formation Deposited 2014-01-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 78–151（74 aa） Fragment：alpha-catenin binding domain, UNP residues 78-151	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；283 K；100mM Tris-Cl, 22% polyethylene glycol monomethryl ether, pH 8.2, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.80 Å R-free 0.264

15 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CTNB1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–538； UniProt 134–671 Author chain B； PDBConstruct 1–538； UniProt 134–671

ADENOMATOUS POLYPOSIS COLI PROTEIN

OrganismNot specified

UniProt P25054

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1021–1035	Not recorded	BETA-CATENIN × 1 （Q02248）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；PEG 8000, sodium potassium phosphate, sodium chloride, DTT, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.274
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 1021–1035	Not recorded	BETA-CATENIN × 1 （Q02248） GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；PEG 8000, sodium potassium phosphate, sodium chloride, DTT, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.274

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1JPP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DEB CRYSTAL STRUCTURE OF THE N-TERMINAL COILED COIL DOMAIN FROM APC Deposited 1999-11-14	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–55（54 aa） Fragment：N-TERMINAL COILED COIL DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；277 K；15% PEG 4000, 0.1M AMMONIUM ACETATE, 0.1M NA ACETATE, pH 4.8, VAPOR DIFFUSION, HANGING DROP	Resolution 2.40 Å R-free 0.277
1DEB CRYSTAL STRUCTURE OF THE N-TERMINAL COILED COIL DOMAIN FROM APC Deposited 1999-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–55（54 aa） Fragment：N-TERMINAL COILED COIL DOMAIN	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；277 K；15% PEG 4000, 0.1M AMMONIUM ACETATE, 0.1M NA ACETATE, pH 4.8, VAPOR DIFFUSION, HANGING DROP	Resolution 2.40 Å R-free 0.277
1DEB CRYSTAL STRUCTURE OF THE N-TERMINAL COILED COIL DOMAIN FROM APC Deposited 1999-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–55（54 aa） Fragment：N-TERMINAL COILED COIL DOMAIN Chain B 2–55（54 aa） Fragment：N-TERMINAL COILED COIL DOMAIN	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；277 K；15% PEG 4000, 0.1M AMMONIUM ACETATE, 0.1M NA ACETATE, pH 4.8, VAPOR DIFFUSION, HANGING DROP	Resolution 2.40 Å R-free 0.277
1DEB CRYSTAL STRUCTURE OF THE N-TERMINAL COILED COIL DOMAIN FROM APC Deposited 1999-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–55（54 aa） Fragment：N-TERMINAL COILED COIL DOMAIN Chain B 2–55（54 aa） Fragment：N-TERMINAL COILED COIL DOMAIN	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；277 K；15% PEG 4000, 0.1M AMMONIUM ACETATE, 0.1M NA ACETATE, pH 4.8, VAPOR DIFFUSION, HANGING DROP	Resolution 2.40 Å R-free 0.277
1DEB CRYSTAL STRUCTURE OF THE N-TERMINAL COILED COIL DOMAIN FROM APC Deposited 1999-11-14	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–55（54 aa） Fragment：N-TERMINAL COILED COIL DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；277 K；15% PEG 4000, 0.1M AMMONIUM ACETATE, 0.1M NA ACETATE, pH 4.8, VAPOR DIFFUSION, HANGING DROP	Resolution 2.40 Å R-free 0.277
1EMU STRUCTURE OF THE AXIN RGS-HOMOLOGOUS DOMAIN IN COMPLEX WITH A SAMP REPEAT FROM APC Deposited 2000-03-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2034–2049（16 aa） Fragment：THIRD SAMP REPEAT	Not recorded	GOL GLYCEROL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；MES, PEG 400, glycerol, DTT, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.221
1M5I Crystal Structure of the coiled coil region 129-250 of the tumor suppressor gene product APC Deposited 2002-07-09	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 126–250（125 aa） Fragment：coiled-coil region	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；16% PEG 3350, 100mM potassium iodide, 10mM strontium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.309
1T08 Crystal structure of beta-catenin/ICAT helical domain/unphosphorylated APC R3 Deposited 2004-04-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1484–1498（15 aa） Fragment：repeat 3 (RESIDUES 1484-1498)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；297 K；PEG3400, Potassium phosphate, pH 6.5, EVAPORATION, temperature 297K	Resolution 2.10 Å R-free 0.241
1TH1 Beta-catenin in complex with a phosphorylated APC 20aa repeat fragment Deposited 2004-05-31	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1362–1540（179 aa） Fragment：phosphorylated 20 amino acid repeat	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Tris, sidium chloride, PEG2000MME, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.257
1TH1 Beta-catenin in complex with a phosphorylated APC 20aa repeat fragment Deposited 2004-05-31	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1362–1540（179 aa） Fragment：phosphorylated 20 amino acid repeat	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Tris, sidium chloride, PEG2000MME, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.257
1V18 The crystal structure of beta-catenin armadillo repeat complexed with a phosphorylated APC 20mer repeat. Deposited 2004-04-09	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1482–1528（47 aa） Fragment：RESIDUES 1482-1528	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.50	Resolution 2.10 Å R-free 0.253
2RQU Solution structure of the complex between the DDEF1 SH3 domain and the APC SAMP1 motif Deposited 2009-12-14	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1578–1596（19 aa） Fragment：UNP residues 1578-1596	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；278 K；Pressure ambient NMR sample composition 0.5 mM [U-15N] DDEF1 SH3-1, 0.5 mM [U-15N] APC SAMP1-2, 5 mM sodium phosphate-3, 5 mM [U-2H] DTT-4, 0.02 % sodium azide-5, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-13C; U-15N] DDEF1 SH3-6, 0.5 mM [U-13C; U-15N] APC SAMP1-7, 5 mM sodium phosphate-8, 5 mM [U-2H] DTT-9, 0.02 % sodium azide-10, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-13C; U-15N] DDEF1 SH3-11, 0.5 mM [U-13C; U-15N] APC SAMP1-12, 5 mM sodium phosphate-13, 5 mM [U-2H] DTT-14, 0.02 % sodium phosphate-15, 100% D2O \| 100% D2O NMR sample composition 0.5 mM [U-15% 13C; U-15N] DDEF1 SH3-16, 0.5 mM [U-15% 13C; U-15N] APC SAMP1-17, 5 mM sodium phosphate-18, 5 mM [U-2H] DTT-19, 0.02 % sodium azide-20, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
3AU3 Crystal structure of armadillo repeat domain of APC Deposited 2011-01-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 396–732（337 aa） Fragment：Armadillo repeat, UNP residues 396-732	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100mM sodium acetate, 1.25M lithium citrate, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.10 Å R-free 0.232
3QHE Crystal structure of the complex between the armadillo repeat domain of adenomatous polyposis coli and the tyrosine-rich domain of Sam68 Deposited 2011-01-25	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 396–732（337 aa） Fragment：Armadillo repeat domain, residues 396-732	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；100mM BIS-TRIS (pH 5.5), 150mM NaCl, 20% PEG 3350, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.230
3QHE Crystal structure of the complex between the armadillo repeat domain of adenomatous polyposis coli and the tyrosine-rich domain of Sam68 Deposited 2011-01-25	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 396–732（337 aa） Fragment：Armadillo repeat domain, residues 396-732	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；100mM BIS-TRIS (pH 5.5), 150mM NaCl, 20% PEG 3350, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.230
3RL7 Crystal structure of hDLG1-PDZ1 complexed with APC Deposited 2011-04-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 2833–2843（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；287 K；0.8M Na2HPO4, 0.9M KH2PO4, pH 7.5, vapor diffusion, hanging drop, temperature 287K	Resolution 2.30 Å R-free 0.231
3RL7 Crystal structure of hDLG1-PDZ1 complexed with APC Deposited 2011-04-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 2833–2843（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；287 K；0.8M Na2HPO4, 0.9M KH2PO4, pH 7.5, vapor diffusion, hanging drop, temperature 287K	Resolution 2.30 Å R-free 0.231
3RL7 Crystal structure of hDLG1-PDZ1 complexed with APC Deposited 2011-04-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 2833–2843（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；287 K；0.8M Na2HPO4, 0.9M KH2PO4, pH 7.5, vapor diffusion, hanging drop, temperature 287K	Resolution 2.30 Å R-free 0.231
3RL7 Crystal structure of hDLG1-PDZ1 complexed with APC Deposited 2011-04-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 2833–2843（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；287 K；0.8M Na2HPO4, 0.9M KH2PO4, pH 7.5, vapor diffusion, hanging drop, temperature 287K	Resolution 2.30 Å R-free 0.231
3RL7 Crystal structure of hDLG1-PDZ1 complexed with APC Deposited 2011-04-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 2833–2843（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；287 K；0.8M Na2HPO4, 0.9M KH2PO4, pH 7.5, vapor diffusion, hanging drop, temperature 287K	Resolution 2.30 Å R-free 0.231
3RL7 Crystal structure of hDLG1-PDZ1 complexed with APC Deposited 2011-04-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 2833–2843（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；287 K；0.8M Na2HPO4, 0.9M KH2PO4, pH 7.5, vapor diffusion, hanging drop, temperature 287K	Resolution 2.30 Å R-free 0.231
3RL8 Crystal structure of hDLG1-PDZ2 complexed with APC Deposited 2011-04-19	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain F 2833–2843（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；287 K；0.8M Na2HPO4, 0.9M KH2PO4, pH 7.5, vapor diffusion, hanging drop, temperature 287K	Resolution 2.20 Å R-free 0.245
3T7U A NeW Crystal structure of APC-ARM Deposited 2011-07-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 407–775（369 aa） Fragment：ARM 1-7 domain, UNP residues 407-775	Not recorded	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；1.02M Sodium phosphate monobasic monohydrate, 0.18M Potassium phosphate dibasic, vapor diffusion, hanging drop, temperature 287K	Resolution 2.90 Å R-free 0.313
3T7U A NeW Crystal structure of APC-ARM Deposited 2011-07-31	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 407–775（369 aa） Fragment：ARM 1-7 domain, UNP residues 407-775	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；1.02M Sodium phosphate monobasic monohydrate, 0.18M Potassium phosphate dibasic, vapor diffusion, hanging drop, temperature 287K	Resolution 2.90 Å R-free 0.313
4G69 Structure of the Human Discs Large 1 PDZ2 - Adenomatous Polyposis Coli Cytoskeletal Polarity Complex Deposited 2012-07-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2833–2843（11 aa） Fragment：APC C-terminal peptide, UNP residues 2833-2843	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.25；300 K；Protein solution: 1.4 mM Dlg1 PDZ2, 1.7 mM APC, 100 mM NaCl, 25 mM Tris pH 7.0, 0.1% B-ME Well: 200 mM sodium acetate, 100 mM sodium cacodylate pH 6.25, 28% PEG 8000 Drop = 1:1 protein:well solution , VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.00 Å R-free 0.183
4YJE Crystal structure of APC-ARM in complexed with Amer1-A1 Deposited 2015-03-03	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 407–751（345 aa） Fragment：ARM DOMAIN, UNP RESIDUES 407-751	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；287 K；12% PEG 20000	Resolution 1.90 Å R-free 0.221
4YJL Crystal structure of APC-ARM in complexed with Amer1-A2 Deposited 2015-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 407–751（345 aa） Fragment：ARM DOMAIN, UNP RESIDUES 407-751	Not recorded	EDO 1,2-ETHANEDIOL × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；287 K；0.2M NACL, 10% PEG 8000	Resolution 2.10 Å R-free 0.225
4YJL Crystal structure of APC-ARM in complexed with Amer1-A2 Deposited 2015-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 407–751（345 aa） Fragment：ARM DOMAIN, UNP RESIDUES 407-751	Not recorded	EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；287 K；0.2M NACL, 10% PEG 8000	Resolution 2.10 Å R-free 0.225
4YJL Crystal structure of APC-ARM in complexed with Amer1-A2 Deposited 2015-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 407–751（345 aa） Fragment：ARM DOMAIN, UNP RESIDUES 407-751	Not recorded	EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；287 K；0.2M NACL, 10% PEG 8000	Resolution 2.10 Å R-free 0.225
4YJL Crystal structure of APC-ARM in complexed with Amer1-A2 Deposited 2015-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 407–751（345 aa） Fragment：ARM DOMAIN, UNP RESIDUES 407-751	Not recorded	EDO 1,2-ETHANEDIOL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；287 K；0.2M NACL, 10% PEG 8000	Resolution 2.10 Å R-free 0.225
4YJL Crystal structure of APC-ARM in complexed with Amer1-A2 Deposited 2015-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 407–751（345 aa） Fragment：ARM DOMAIN, UNP RESIDUES 407-751	Not recorded	EDO 1,2-ETHANEDIOL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；287 K；0.2M NACL, 10% PEG 8000	Resolution 2.10 Å R-free 0.225
4YJL Crystal structure of APC-ARM in complexed with Amer1-A2 Deposited 2015-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 407–751（345 aa） Fragment：ARM DOMAIN, UNP RESIDUES 407-751	Not recorded	EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；287 K；0.2M NACL, 10% PEG 8000	Resolution 2.10 Å R-free 0.225
4YK6 Crystal structure of APC-ARM in complexed with Amer1-A4 Deposited 2015-03-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 407–751（345 aa） Fragment：ARM DOMAIN, UNP RESIDUES 407-751	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；287 K；0.2M NACL, 10% PEG8000	Resolution 1.70 Å R-free 0.240
5B6G Protein-protein interaction Deposited 2016-05-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 407–751（345 aa） Fragment：UNP RESIDUES 407-751	Not recorded	SO4 SULFATE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；0.2 M Ammonium sulfate, 0.1 M Tris pH 8.0, 25 % w/v PEG 4000	Resolution 1.99 Å R-free 0.215
5IZ6 Protein-protein interaction Deposited 2016-03-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 407–751（345 aa） Fragment：UNP RESIDUES 407-751	Not recorded	SO4 SULFATE ION × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；0.2M Ammonium sulfate 0.1M Tris pH 8.0, 25% w/v PEG 3350	Resolution 2.15 Å R-free 0.206
5IZ8 Protein-protein interaction Deposited 2016-03-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 407–751（345 aa） Fragment：UNP RESIDUES 407-751	Not recorded	PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；0.2M Ammonium sulfate, 0.1M Tris pH 8.0, 25% w/v PEG 4000	Resolution 3.06 Å R-free 0.253
5IZ8 Protein-protein interaction Deposited 2016-03-25	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 407–751（345 aa） Fragment：UNP RESIDUES 407-751	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；0.2M Ammonium sulfate, 0.1M Tris pH 8.0, 25% w/v PEG 4000	Resolution 3.06 Å R-free 0.253
5IZ9 Protein-protein interaction Deposited 2016-03-25	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 407–751（345 aa） Fragment：UNP RESIDUES 407-751	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；0.2M Ammonium sulfate, 0.1M Tris pH 8.0, 25 % w/v PEG 4000	Resolution 2.93 Å R-free 0.282
5IZA Protein-protein interaction Deposited 2016-03-25	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 407–751（345 aa） Fragment：UNP RESIDUES 407-751	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；0.2M Ammonium sulfate, 0.1M Tris pH 8.0, 25% w/v PEG 4000	Resolution 1.50 Å R-free 0.159
5Z8H APC with an inhibitor Deposited 2018-01-31	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 407–741（335 aa）	Not recorded	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2M Ammonium sulfate 0.1M Tris pH 8.0, 25% w/v PEG 3350	Resolution 1.79 Å R-free 0.211
7F6M Crystal structure of APC complexed with a peptide inhibitor MAI-516 Deposited 2021-06-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 407–751（345 aa）	Not recorded	GOL GLYCEROL × 5 SO4 SULFATE ION × 2 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2M Ammonium sulfate 0.1M Tris pH 8.0, 25% w/v PEG 3350	Resolution 2.40 Å R-free 0.256
7F7O APC-Asef FP assay tracer Deposited 2021-06-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 407–738（332 aa）	Not recorded	4CI N-[3',6'-bis(oxidanyl)-3-oxidanylidene-spiro[2-benzofuran-1,9'-xanthene]-5-yl]methanethioamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2M Ammonium sulfate, 0.1M Tris pH 8.0, 25% w/v PEG 3350	Resolution 2.80 Å R-free 0.328
7XTY Crystal Structure of the second PDZ domain from human PTPN13 in complex with APC peptide Deposited 2022-05-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 2833–2843（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；289 K；0.1M citric acid (pH 3.5), 3M NaCl	Resolution 2.10 Å R-free 0.240
7XTY Crystal Structure of the second PDZ domain from human PTPN13 in complex with APC peptide Deposited 2022-05-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 2833–2843（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；289 K；0.1M citric acid (pH 3.5), 3M NaCl	Resolution 2.10 Å R-free 0.240
8GSJ APC-Asef tripeptide inhibitor Deposited 2022-09-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 407–738（332 aa）	Not recorded	K8C 2-methylsulfanylpyrimidine-4-carbaldehyde × 1 GLU GLUTAMIC ACID × 1 NAL BETA-(2-NAPHTHYL)-ALANINE × 1 LEU LEUCINE × 1 GJZ (1R,2S)-2-phenylcyclopropanamine × 1 GOL GLYCEROL × 4 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2M Ammonium sulfate, 0.1M Tris pH 8.0, 25% w/v PEG 4000	Resolution 2.10 Å R-free 0.256
8X2Q The Crystal Structure of APC from Biortus. Deposited 2023-11-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 126–250（125 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；(PEG-G2) 0.2M NaAc pH 7.0, 20% PEG 3350	Resolution 2.00 Å R-free 0.263

27 other PDB entries and 46 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	APC_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–15； UniProt 1021–1035 Author chain D； PDBConstruct 1–15； UniProt 1021–1035

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

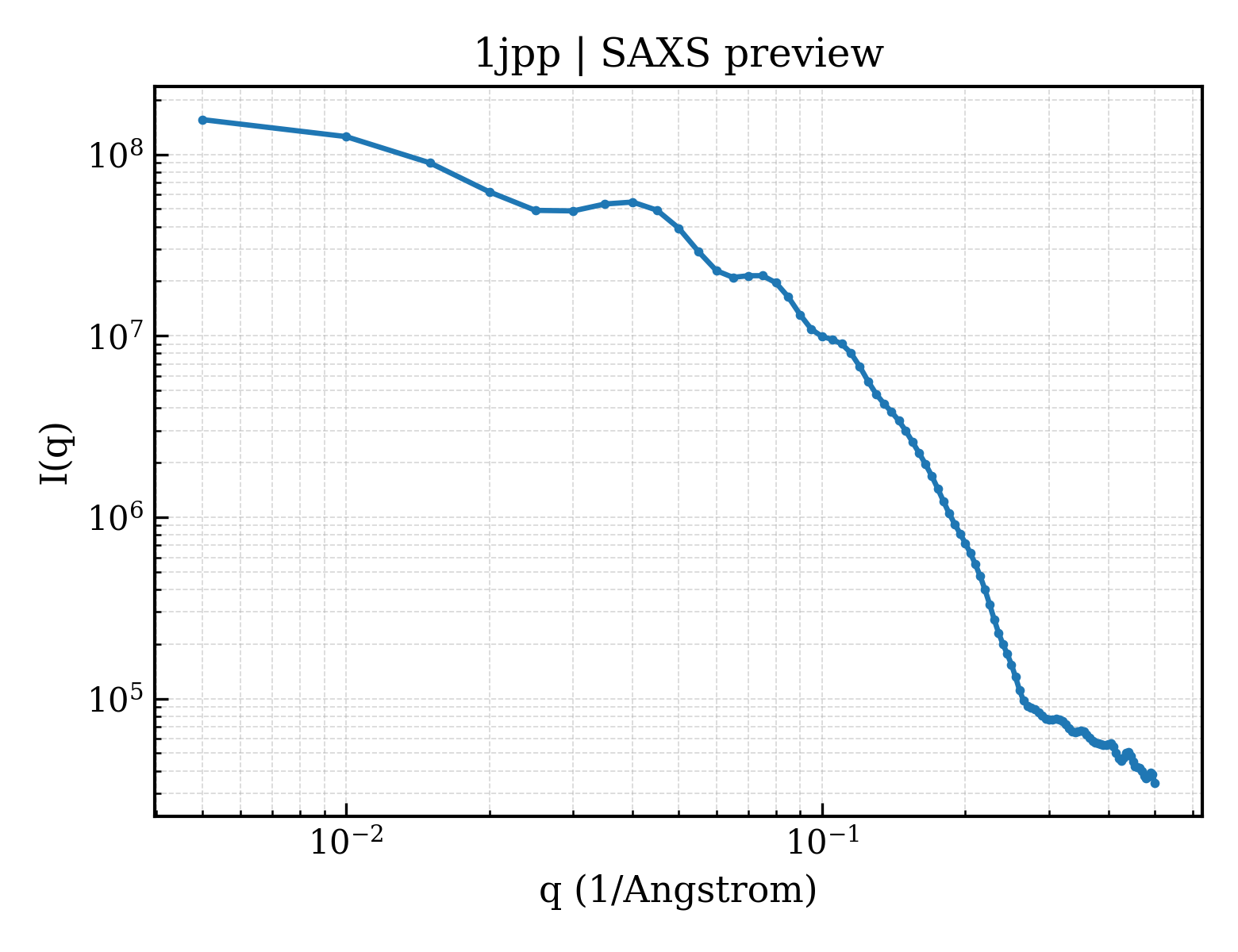

SAXS scattering curve SAXS Profile

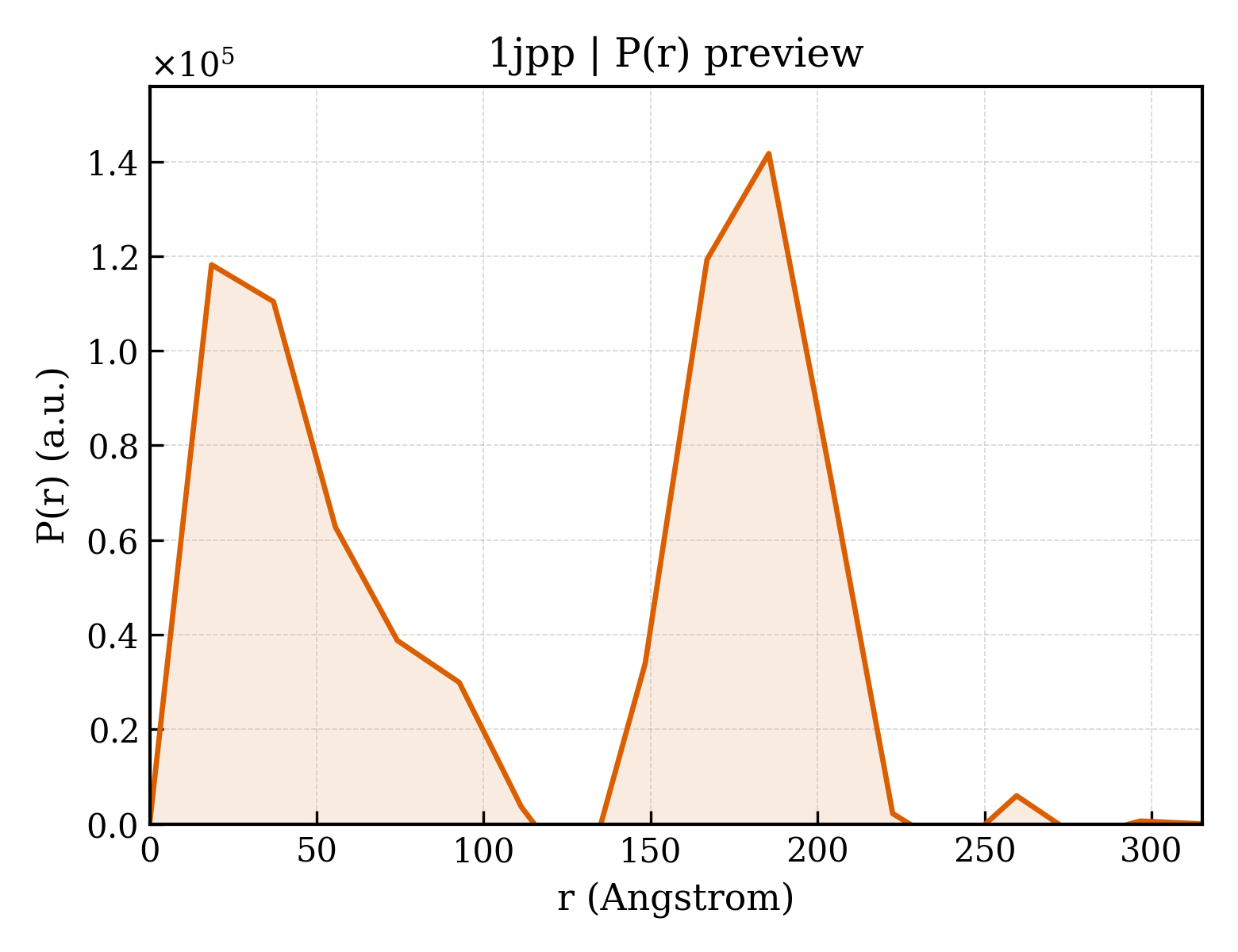

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jpp
Deposition date deposition_date	2001-08-02
Structure title title	The Structure of a beta-Catenin Binding Repeat from Adenomatous Polyposis Coli (APC) in Complex with beta-Catenin
Keywords keywords	Disease mutation, Anti-oncogene, CELL ADHESION; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	93.00 Å
Radius of gyration Rg (electron density) rg_electron	93.85 Å
Forward intensity I(0) i0	167332000.00
Molecular weight molecular_weight	111070.0 kDa
Excluded volume excluded_volume	139740 Å³
Envelope volume envelope_volume	363670 Å³
Hydration-shell volume shell_volume	32696 Å³
Envelope diameter envelope_diameter	229.5 Å
Shell Rg shell_rg	104.10 Å
Envelope Rg envelope_rg	80.95 Å
Shape Rg shape_rg	93.89 Å
Total Rg total_rg	93.80 Å
Total atoms total_atoms	7778
Residues n_residues	1026
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	315.2 Å
Rg (real space) rg_real	93.87 Å
Rg uncertainty (real space) rg_real_error	5.90 Å
I(0) (real space) i0_real	1.6730e+08
I(0) uncertainty (real space) i0_real_error	4.6150e+06
Rg (reciprocal space) rg_reciprocal	86.38 Å
I(0) (reciprocal space) i0_reciprocal	163800000.0000
Solution quality estimate total_estimate	0.5429
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	4
Primary peak position r_peak_primary	185.4 Å
Skewness Skewness skewness	-0.069
Kurtosis Kurtosis kurtosis	-1.756
Angular range angular_range	— – 0.0850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6255000.0000
Real-space data points n_real_points	18
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.000; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.053; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	BETA-CATENIN
Molecular weight formula_weight	58844.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7850

HAVVNLINYQDDAELATRAIPELTKLLNDEDQVVVNKAAVMVHQLSKKEASRHAIMRSPQMVSAIVRTMQNTNDVETARCTAGTLHNLSHHREGLLAIFKSGGIPALVKMLGSPVDSVLFYAITTLHNLLLHQEGAKMAVRLAGGLQKMVALLNKTNVKFLAITTDCLQILAYGNQESKLIILASGGPQALVNIMRTYTYEKLLWTTSRVLKVLSVCSSNKPAIVEAGGMQALGLHLTDPSQRLVQNCLWTLRNLSDAATKQEGMEGLLGTLVQLLGSDDINVVTCAAGILSNLTCNNYKNKMMVCQVGGIEALVRTVLRAGDREDITEPAICALRHLTSRHQEAEMAQNAVRLHYGLPVVVKLLHPPSHWPLIKATVGLIRNLALCPANHAPLREQGAIPRLVQLLVRAHQDTQRRTSMGGTQQQFVEGVRMEEIVEGCTGALHILARDVHNRIVIRGLNTIPLFVQLLYSPIENIQRVAAGVLCELAQDKEAAEAIEAEGATAPLTELLHSRNEGVATYAAAVLFRMSEDKPQDYK

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	ADENOMATOUS POLYPOSIS COLI PROTEIN
Molecular weight formula_weight	1786.9 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

LDTPINYSLKYSDEQ

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	72

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1jppa_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

Domain ID domain_id	d1jppb_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

CATH v4.4 (2 domains)

Domain ID domain_id	1jppA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	1jppB00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

▶

8. Citations (4)

▶

Unit-cell length a length_a	51.090 Å
Unit-cell length b length_b	69.255 Å
Unit-cell length c length_c	95.099 Å
Unit-cell angle α angle_alpha	68.70 °
Unit-cell angle β angle_beta	87.04 °
Unit-cell angle γ angle_gamma	85.32 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	28.270 Å
R factor r_factor	0.2340
R_work r_work	0.2340
R_free r_free	0.2740

fit	/app/data/saxs_computation/jp/1jpp/1jpp.fit
pddf	/app/data/pr_computation/jp/1jpp/1jpp.pr.out
profile	/app/data/saxs_computation/jp/1jpp/1jpp.dat

The Structure of a beta-Catenin Binding Repeat from Adenomatous Polyposis Coli (APC) in Complex with beta-Catenin

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-CATENIN

State in the Current Structure

Other States of the Same Protein in the Database

ADENOMATOUS POLYPOSIS COLI PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

8. Citations (4)

9. Files and Curves (10)

Files (7)

Curves (3)
