1emu

STRUCTURE OF THE AXIN RGS-HOMOLOGOUS DOMAIN IN COMPLEX WITH A SAMP REPEAT FROM APC

Method: X-RAY DIFFRACTION D_max: 59.0 Å Quality: GOOD

SAXS Profile

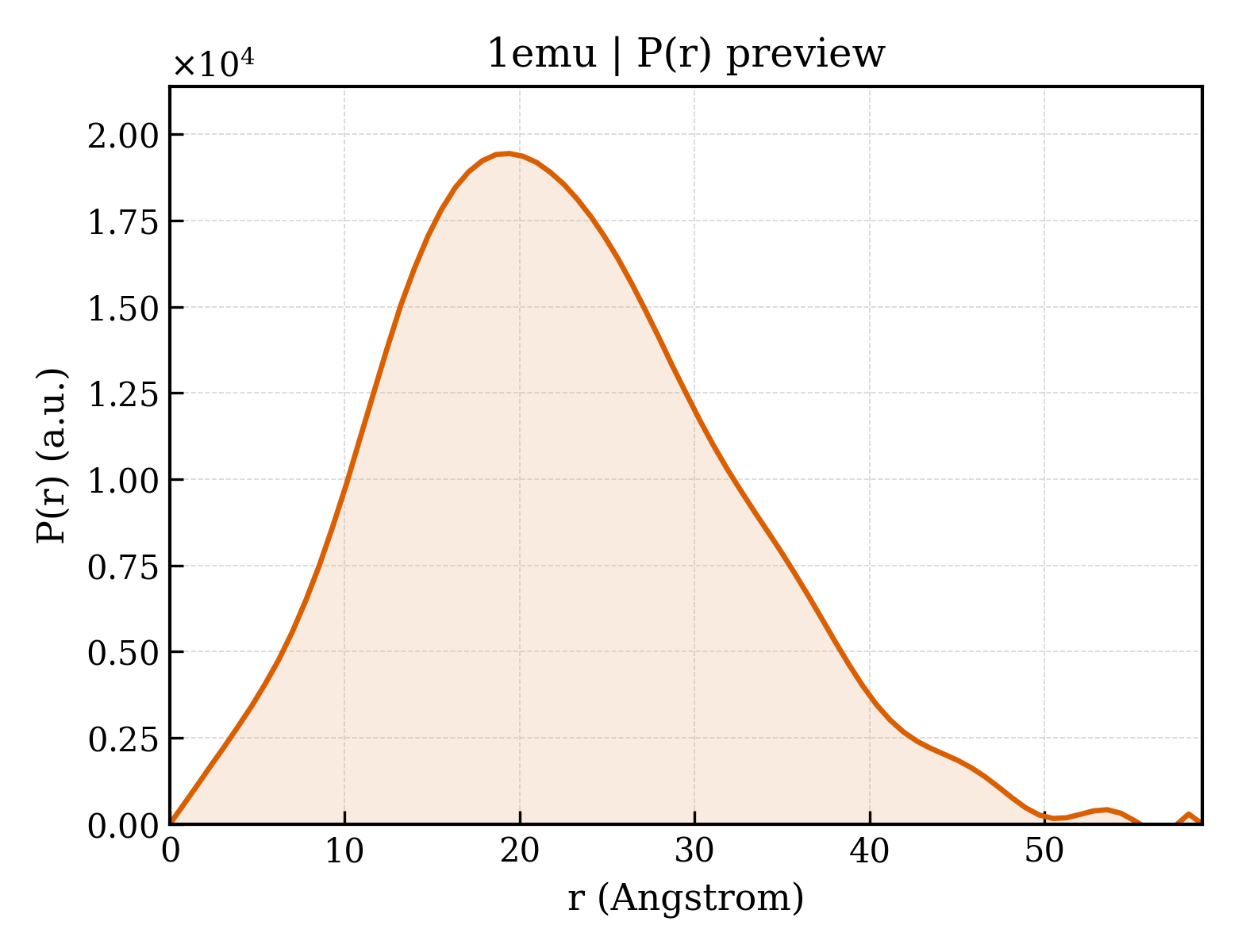

P(r) Distribution

▼

1. Structure Basics

entry_id	1emu
deposition_date	2000-03-17
title	STRUCTURE OF THE AXIN RGS-HOMOLOGOUS DOMAIN IN COMPLEX WITH A SAMP REPEAT FROM APC
keywords	RGS domain, SIGNALING PROTEIN; SIGNALING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	17.13 Å
rg_electron	16.19 Å
i0	5853470.00
molecular_weight	17703.0 kDa
excluded_volume	22237 Å³
envelope_volume	25594 Å³
shell_volume	13732 Å³
envelope_diameter	59.0 Å
shell_rg	21.62 Å
envelope_rg	16.59 Å
shape_rg	16.17 Å
total_rg	17.26 Å
total_atoms	1239
n_residues	148
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	59.0 Å
rg_real	17.11 Å
rg_real_error	0.43 Å
i0_real	5.8530e+06
i0_real_error	7.4450e+04
rg_reciprocal	17.12 Å
i0_reciprocal	5853000.0000
total_estimate	0.7775
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	19.4 Å
skewness	0.365
kurtosis	-0.167
angular_range	— – 0.4650 Å⁻¹
current_alpha	0.0000
highest_alpha	1500000.0000
n_real_points	77
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.711; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	AXIN
formula_weight	15349.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1337

PPYLKWAESLHSLLDDQDGISLFRTFLKQEGCADLLDFWFACTGFRKLEPCDSNEEKRLKLARAIYRKYILDNNGIVSRQTKPATKSFIKGCIMKQLIDPAMFDQAQTEIQATMEENTYPSFLKSDIYLEYT

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Bacteria

Entity 2 polymer

description	ADENOMATOUS POLYPOSIS COLI PROTEIN
formula_weight	1767.0 kDa
src_method	syn
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

SEDDLLQECISSAMPK

Entity 3 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	7

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	61

▶

6. Citations (1)

▶

length_a	30.600 Å
length_b	69.980 Å
length_c	71.960 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	1.900 Å
resolution_low	32.000 Å
r_factor	0.2050
r_work	0.2050
r_free	0.2210

fit	/app/data/saxs_computation/em/1emu/1emu.fit
pddf	/app/data/pr_computation/em/1emu/1emu.pr.out
profile	/app/data/saxs_computation/em/1emu/1emu.dat
