SAXSdb — 1ffw

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ffw
沉积日期 deposition_date	2000-07-26
结构标题 title	CHEY-BINDING DOMAIN OF CHEA IN COMPLEX WITH CHEY WITH A BOUND IMIDO DIPHOSPHATE
关键词 keywords	doubly wound (beta/alpha)5 fold, TRANSFERASE-SIGNALING PROTEIN COMPLEX; TRANSFERASE/SIGNALING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.01 Å
回转半径 Rg (电子) rg_electron	25.08 Å
零角强度 I(0) i0	29749000.00
分子量 molecular_weight	42772.0 kDa
排除体积 excluded_volume	53921 Å³
包络体积 envelope_volume	67282 Å³
水化壳体积 shell_volume	22816 Å³
包络直径 envelope_diameter	84.6 Å
壳层 Rg shell_rg	31.51 Å
包络 Rg envelope_rg	24.76 Å
形状 Rg shape_rg	25.08 Å
总 Rg total_rg	25.85 Å
总原子数 total_atoms	2993
残基数 n_residues	392
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	81.9 Å
Rg (实空间) rg_real	25.98 Å
Rg 误差 (实空间) rg_real_error	0.58 Å
I(0) (实空间) i0_real	2.9750e+07
I(0) 误差 (实空间) i0_real_error	4.6920e+05
Rg (倒空间) rg_reciprocal	25.99 Å
I(0) (倒空间) i0_reciprocal	29750000.0000
解质量估计 total_estimate	0.9025
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	25.5 Å
偏度 Skewness skewness	0.220
峰度 Kurtosis kurtosis	-0.601
角度范围 angular_range	— – 0.3050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	7756000.0000
实空间数据点数 n_real_points	62
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.947; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.907

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	CHEMOTAXIS PROTEIN CHEY
分子量 formula_weight	13981.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	3158

ADKELKFLVVDDFSTMRRIVRNLLKELGFNNVEEAEDGVDALNKLQAGGYGFVISDWNMPNMDGLELLKTIRADGAMSALPVLMVTAEAKKENIIAAAQAGASGYVVKPFTAATLEEKLNKIFEKLGM

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	CHEMOTAXIS PROTEIN CHEA
分子量 formula_weight	14479.3 kDa
EC 编号 ec_number	2.7.3.-
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

RQLALEAKGETPSAVTRLSVVAKSEPQDEQSRSQSARRIILSRLKAGEVDLLEEELGHLTTLTDVVKGADSLSAILPGDIAEDDITAVLCFVIEADQITFETVEVSPKISTPPVLKLAAEQAPTGRVEREKTTR

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	MANGANESE (II) ION
分子量 formula_weight	54.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	IMIDO DIPHOSPHATE
分子量 formula_weight	175.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	165

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1ffwa_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.1 — CheY-like
家族 Family family	c.23.1.1 — CheY-related

结构域编号 domain_id	d1ffwb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.24 — CheY-binding domain of CheA
家族 Family family	d.58.24.1 — CheY-binding domain of CheA

结构域编号 domain_id	d1ffwc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.1 — CheY-like
家族 Family family	c.23.1.1 — CheY-related

结构域编号 domain_id	d1ffwd_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.24 — CheY-binding domain of CheA
家族 Family family	d.58.24.1 — CheY-binding domain of CheA

CATH v4.4 (4 domains)

结构域编号 domain_id	1ffwA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

结构域编号 domain_id	1ffwB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	400 — CheY-binding domain of CheA

结构域编号 domain_id	1ffwC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

结构域编号 domain_id	1ffwD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	400 — CheY-binding domain of CheA

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	159.300 Å
晶胞边长 b length_b	53.400 Å
晶胞边长 c length_c	77.800 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	15.000 Å
R 因子 r_factor	0.2160
R_work r_work	0.2130
R_free r_free	0.2730

fit	/app/data/saxs_computation/ff/1ffw/1ffw.fit
pddf	/app/data/pr_computation/ff/1ffw/1ffw.pr.out
profile	/app/data/saxs_computation/ff/1ffw/1ffw.dat

CHEY-BINDING DOMAIN OF CHEA IN COMPLEX WITH CHEY WITH A BOUND IMIDO DIPHOSPHATE

SAXS 散射曲线 SAXS Profile

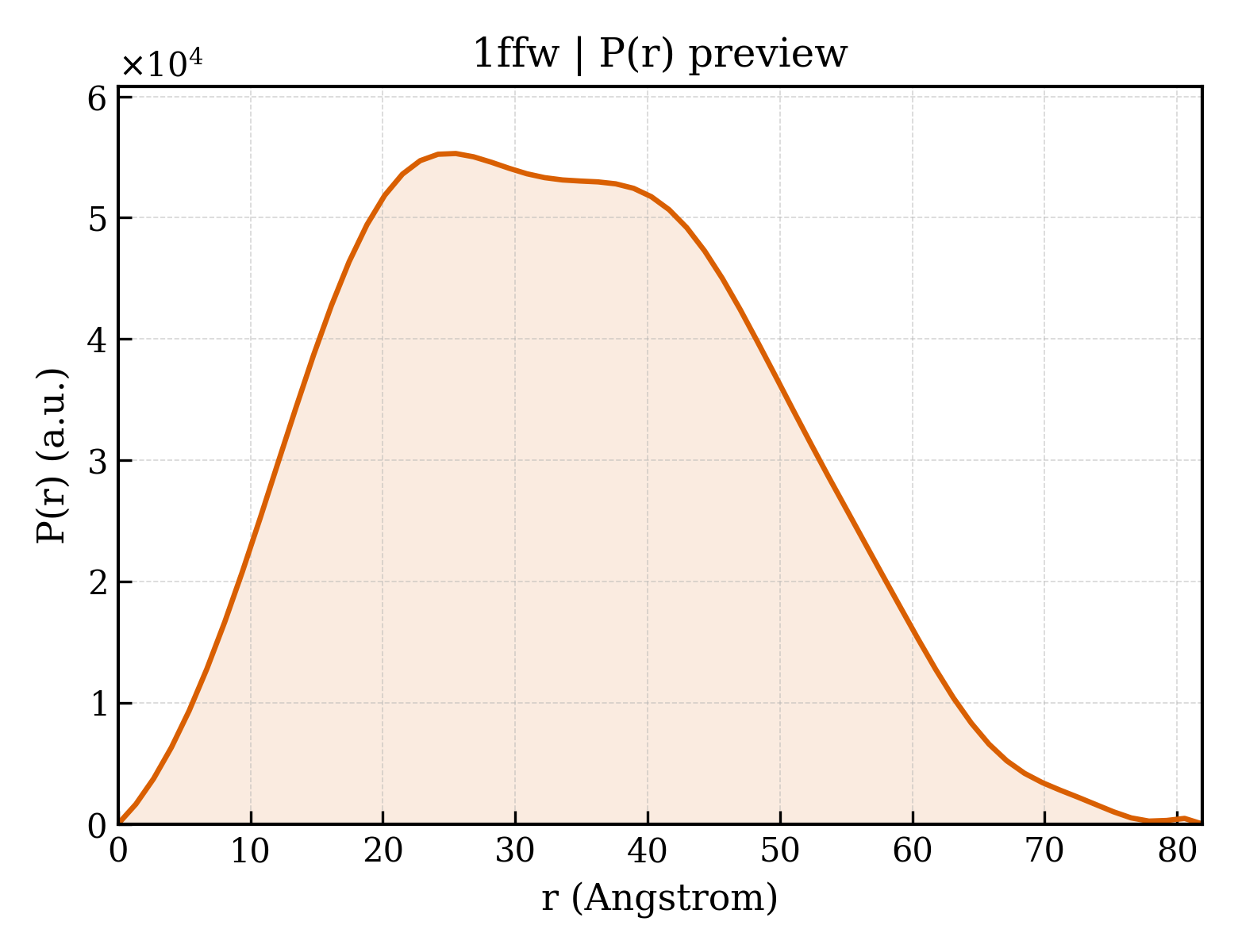

P(r) 距离分布 P(r) Distribution
