1eay
CHEY-BINDING (P2) DOMAIN OF CHEA IN COMPLEX WITH CHEY FROM ESCHERICHIA COLI
SAXS Profile

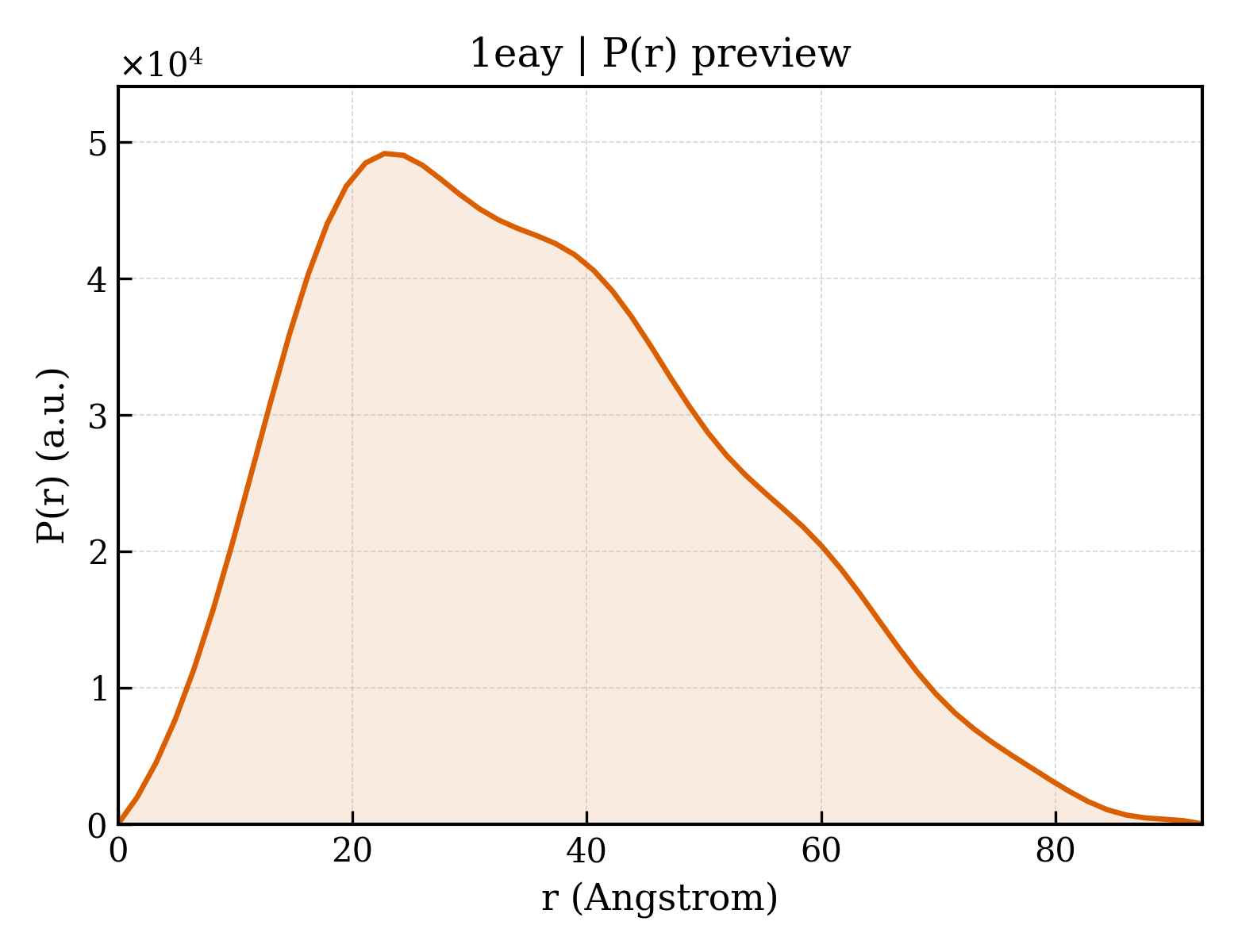

P(r) Distribution
1. Structure Basics
| entry_id | 1eay |
| deposition_date | 1998-04-23 |
| title | CHEY-BINDING (P2) DOMAIN OF CHEA IN COMPLEX WITH CHEY FROM ESCHERICHIA COLI |
| keywords | SIGNAL TRANSDUCTION COMPLEX, KINASE, RESPONSE REGULATOR, CHEMOTAXIS; SIGNAL TRANSDUCTION COMPLEX |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.72 Å |
| rg_electron | 27.28 Å |
| i0 | 27445000.00 |
| molecular_weight | 41776.0 kDa |
| excluded_volume | 52933 ų |
| envelope_volume | 65644 ų |
| shell_volume | 21736 ų |
| envelope_diameter | 95.2 Å |
| shell_rg | 32.14 Å |
| envelope_rg | 27.15 Å |
| shape_rg | 27.28 Å |
| total_rg | 27.86 Å |
| total_atoms | 2934 |
| n_residues | 392 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 92.5 Å |
| rg_real | 27.93 Å |
| rg_real_error | 0.67 Å |
| i0_real | 2.7440e+07 |
| i0_real_error | 3.6450e+05 |
| rg_reciprocal | 27.87 Å |
| i0_reciprocal | 27440000.0000 |
| total_estimate | 0.8575 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 22.7 Å |
| skewness | 0.433 |
| kurtosis | -0.471 |
| angular_range | — – 0.2850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 10760000.0000 |
| n_real_points | 58 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.829; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.783; Smooth: 0.872 |
