1d4z
CRYSTAL STRUCTURE OF CHEY-95IV, A HYPERACTIVE CHEY MUTANT
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1d4z |
| deposition_date | 1999-10-06 |
| title | CRYSTAL STRUCTURE OF CHEY-95IV, A HYPERACTIVE CHEY MUTANT |
| keywords | BACTERIAL CHEMOTAXIS, RESPONSE REGULATOR, SIGNALING PROTEIN; SIGNALING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.97 Å |
| rg_electron | 13.39 Å |
| i0 | 4121320.00 |
| molecular_weight | 14236.0 kDa |
| excluded_volume | 17800 ų |
| envelope_volume | 19664 ų |
| shell_volume | 12312 ų |
| envelope_diameter | 44.0 Å |
| shell_rg | 19.39 Å |
| envelope_rg | 13.64 Å |
| shape_rg | 13.38 Å |
| total_rg | 14.70 Å |
| total_atoms | 993 |
| n_residues | 128 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

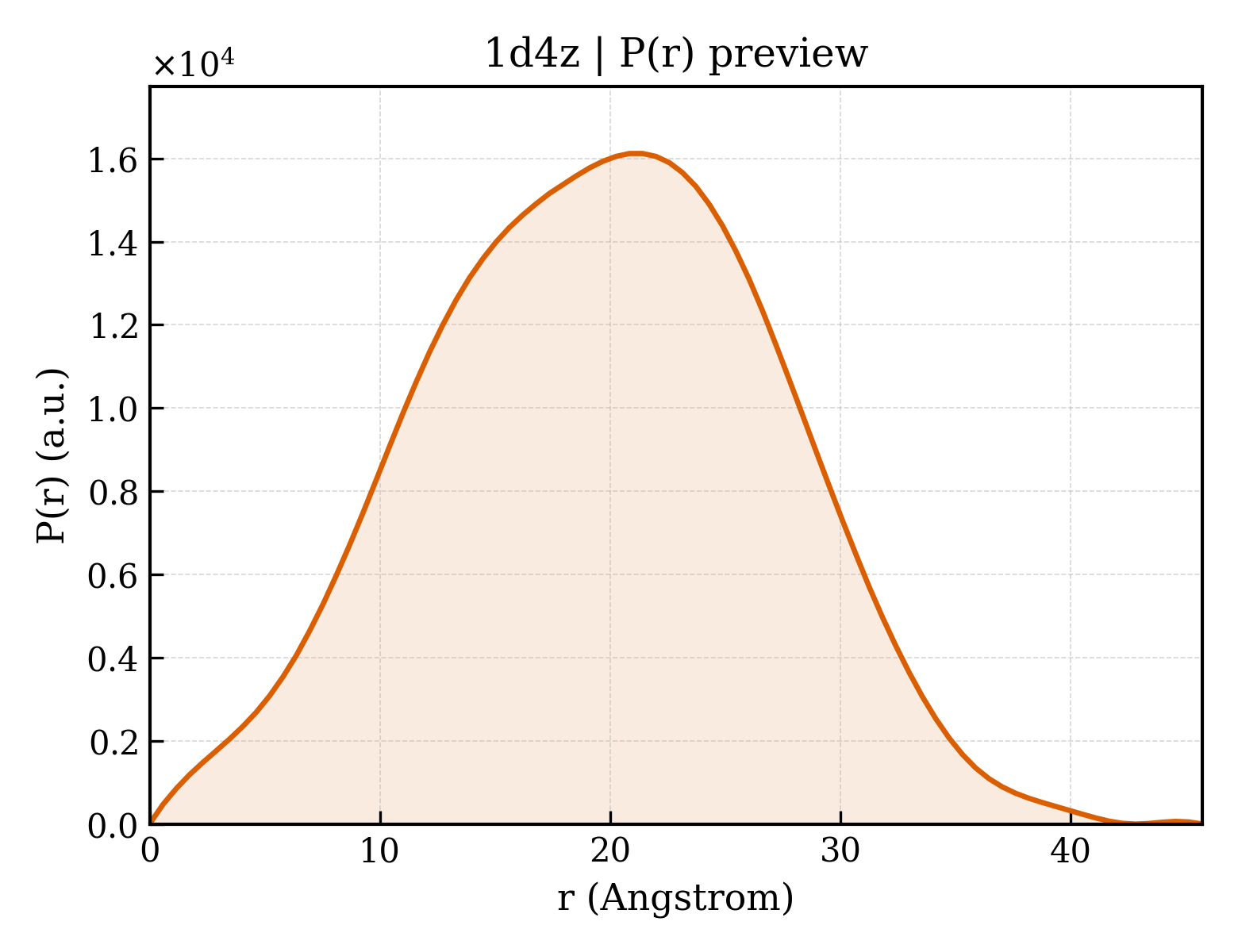

3. P(r) Analysis (GNOM)
| dmax | 45.7 Å |
| rg_real | 14.82 Å |
| rg_real_error | 0.29 Å |
| i0_real | 4.1210e+06 |
| i0_real_error | 5.2010e+04 |
| rg_reciprocal | 14.84 Å |
| i0_reciprocal | 4121000.0000 |
| total_estimate | 0.8888 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 44.5 Å |
| skewness | -0.016 |
| kurtosis | -0.431 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 934700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.864; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.985 |
