1ffx

TUBULIN:STATHMIN-LIKE DOMAIN COMPLEX

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (TUBULIN)

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	PROTEIN (TUBULIN) × 2 （P02554） PROTEIN (STATHMIN-LIKE DOMAIN OF RB3) × 1 GUANOSINE-5'-TRIPHOSPHATE × 2 GUANOSINE-5'-DIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBA_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–451； UniProt 1–451 Author chain C； PDBConstruct 1–451； UniProt 1–451

PROTEIN (TUBULIN)

OrganismNot specified

UniProt P02554

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	PROTEIN (TUBULIN) × 2 （P02550） PROTEIN (STATHMIN-LIKE DOMAIN OF RB3) × 1 GUANOSINE-5'-TRIPHOSPHATE × 2 GUANOSINE-5'-DIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBB_PIG
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–445； UniProt 1–445 Author chain D； PDBConstruct 1–445； UniProt 1–445

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ffx
Deposition date deposition_date	2000-07-26
Structure title title	TUBULIN:STATHMIN-LIKE DOMAIN COMPLEX
Keywords keywords	ALPHA-TUBULIN, BETA-TUBULIN, STATHMIN, MICROTUBULE, TUBULIN, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ffx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ffx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

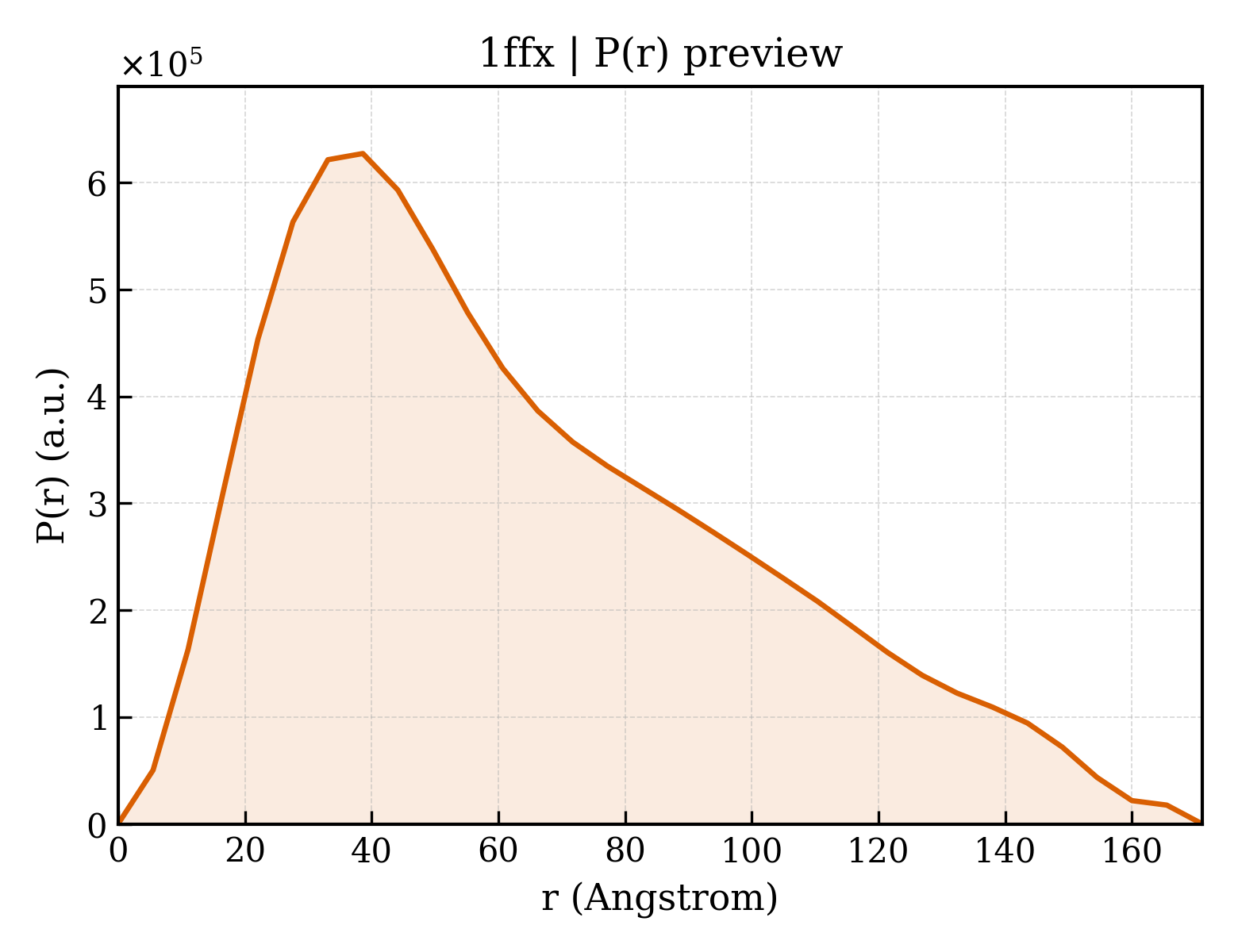

1ffx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	50.81 Å
Rg (electron density)	51.74 Å
Total Rg	51.58 Å
Atom count	13568
Residues	1757
Excluded volume	238930 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ffx__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	PROTEIN (TUBULIN)
Molecular weight formula_weight	50121.3 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	13568

MRECISIHVGQAGVQIGNACWELYCLEHGIQPDGQMPSDKTIGGGDDSFNTFFSETGAGKHVPRAVFVDLEPTVIDEVRTGTYRQLFHPEQLITGKEDAANNYARGHYTIGKEIIDLVLDRIRKLADQCTGLQGFSVFHSFGGGTGSGFTSLLMERLSVDYGKKSKLEFSIYPAPQVSTAVVEPYNSILTTHTTLEHSDCAFMVDNEAIYDICRRNLDIERPTYTNLNRLIGQIVSSITASLRFDGALNVDLTEFQTNLVPYPRAHFPLATYAPVISAEKAYHEQLSVAEITNACFEPANQMVKCDPRHGKYMACCLLYRGDVVPKDVNAAIATIKTKRTIQFVDWCPTGFKVGINYEPPTVVPGGDLAKVQRAVCMLSNTTAIAEAWARLDHKFDLMYAKRAFVHWYVGEGMEEGEFSEAREDMAALEKDYEEVGVDSVEGEGEEEGEEY

Entity 2 Entity 2 polymer

Description description	PROTEIN (TUBULIN)
Molecular weight formula_weight	49907.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MREIVHIQAGQCGNQIGAKFWEVISDEHGIDPTGSYHGDSDLQLERINVYYNEAAGNKYVPRAILVDLEPGTMDSVRSGPFGQIFRPDNFVFGQSGAGNNWAKGHYTEGAELVDSVLDVVRKESESCDCLQGFQLTHSLGGGTGSGMGTLLISKIREEYPDRIMNTFSVVPSPKVSDTVVEPYNATLSVHQLVENTDETYCIDNEALYDICFRTLKLTTPTYGDLNHLVSATMSGVTTCLRFPGQLNADLRKLAVNMVPFPRLHFFMPGFAPLTSRGSQQYRALTVPELTQQMFDAKNMMAACDPRHGRYLTVAAVFRGRMSMKEVDEQMLNVQNKNSSYFVEWIPNNVKTAVCDIPPRGLKMSATFIGNSTAIQELFKRISEQFTAMFRRKAFLHWYTGEGMDEMEFTEAESNMNDLVSEYQQYQDATADEQGEFEEEGEEDEA

Entity 3 Entity 3 polymer

Description description	PROTEIN (STATHMIN-LIKE DOMAIN OF RB3)
Molecular weight formula_weight	7762.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 17 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1ffxa_
Class class	i — Low resolution protein structures
Fold Fold fold	i.10 — Microtubule complexes
Superfamily Superfamily superfamily	i.10.1 — Microtubule complexes
Family Family family	i.10.1.1 — Microtubule complexes

Domain ID domain_id	d1ffxb_
Class class	i — Low resolution protein structures
Fold Fold fold	i.10 — Microtubule complexes
Superfamily Superfamily superfamily	i.10.1 — Microtubule complexes
Family Family family	i.10.1.1 — Microtubule complexes

Domain ID domain_id	d1ffxc_
Class class	i — Low resolution protein structures
Fold Fold fold	i.10 — Microtubule complexes
Superfamily Superfamily superfamily	i.10.1 — Microtubule complexes
Family Family family	i.10.1.1 — Microtubule complexes

Domain ID domain_id	d1ffxd_
Class class	i — Low resolution protein structures
Fold Fold fold	i.10 — Microtubule complexes
Superfamily Superfamily superfamily	i.10.1 — Microtubule complexes
Family Family family	i.10.1.1 — Microtubule complexes

Domain ID domain_id	d1ffxe_
Class class	i — Low resolution protein structures
Fold Fold fold	i.10 — Microtubule complexes
Superfamily Superfamily superfamily	i.10.1 — Microtubule complexes
Family Family family	i.10.1.1 — Microtubule complexes

CATH v4.4 (12 domains)

Domain ID domain_id	1ffxA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1440 — Tubulin/FtsZ, GTPase domain

Domain ID domain_id	1ffxA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	20 — Tubulin/FtsZ, C-terminal domain

Domain ID domain_id	1ffxA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	600 — Helix hairpin bin

Domain ID domain_id	1ffxB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1440 — Tubulin/FtsZ, GTPase domain

Domain ID domain_id	1ffxB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	20 — Tubulin/FtsZ, C-terminal domain

Domain ID domain_id	1ffxB03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	600 — Helix hairpin bin

Domain ID domain_id	1ffxC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1440 — Tubulin/FtsZ, GTPase domain

Domain ID domain_id	1ffxC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	20 — Tubulin/FtsZ, C-terminal domain

Domain ID domain_id	1ffxC03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	600 — Helix hairpin bin

Domain ID domain_id	1ffxD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1440 — Tubulin/FtsZ, GTPase domain

Domain ID domain_id	1ffxD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	20 — Tubulin/FtsZ, C-terminal domain

Domain ID domain_id	1ffxD03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	600 — Helix hairpin bin

▶

Unit-cell length a length_a	328.500 Å
Unit-cell length b length_b	328.500 Å
Unit-cell length c length_c	54.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	3.950 Å
Low-resolution limit resolution_low	7.000 Å
R factor r_factor	0.2670
R_work r_work	0.2670
R_free r_free	0.3670
