SAXSdb — 1fj0

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1fj0
沉积日期 deposition_date	2000-08-07
结构标题 title	STRUCTURE DETERMINATION OF THE FERRICYTOCHROME C2 FROM RHODOPSEUDOMONAS PALUSTRIS
关键词 keywords	ELECTRON CARRIER, HEME PROTEIN, ELECTRON TRANSPORT; ELECTRON TRANSPORT
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.47 Å
回转半径 Rg (电子) rg_electron	25.48 Å
零角强度 I(0) i0	43188700.00
分子量 molecular_weight	51459.0 kDa
排除体积 excluded_volume	64640 Å³
包络体积 envelope_volume	78407 Å³
水化壳体积 shell_volume	25730 Å³
包络直径 envelope_diameter	81.1 Å
壳层 Rg shell_rg	32.74 Å
包络 Rg envelope_rg	24.78 Å
形状 Rg shape_rg	25.46 Å
总 Rg total_rg	26.41 Å
总原子数 total_atoms	3608
残基数 n_residues	452
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	79.4 Å
Rg (实空间) rg_real	26.36 Å
Rg 误差 (实空间) rg_real_error	0.58 Å
I(0) (实空间) i0_real	4.3190e+07
I(0) 误差 (实空间) i0_real_error	6.3690e+05
Rg (倒空间) rg_reciprocal	26.40 Å
I(0) (倒空间) i0_reciprocal	43190000.0000
解质量估计 total_estimate	0.9175
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	38.4 Å
偏度 Skewness skewness	0.105
峰度 Kurtosis kurtosis	-0.658
角度范围 angular_range	— – 0.3000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6735000.0000
实空间数据点数 n_real_points	61
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.981; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.988

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	CYTOCHROME C2
分子量 formula_weight	12187.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	4264

QDAKAGEAVFKQCMTCHRADKNMVGPALAGVVGRKAGTAAGFTYSPLNHNSGEAGLVWTADNIVPYLADPNAFLKKFLTEKGKADQAVGVTKMTFKLANEQQRKDVVAYLATLK

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	HEME C
分子量 formula_weight	618.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	653

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1fj0a_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.3 — Cytochrome c
超家族 Superfamily superfamily	a.3.1 — Cytochrome c
家族 Family family	a.3.1.1 — monodomain cytochrome c

结构域编号 domain_id	d1fj0b_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.3 — Cytochrome c
超家族 Superfamily superfamily	a.3.1 — Cytochrome c
家族 Family family	a.3.1.1 — monodomain cytochrome c

结构域编号 domain_id	d1fj0c_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.3 — Cytochrome c
超家族 Superfamily superfamily	a.3.1 — Cytochrome c
家族 Family family	a.3.1.1 — monodomain cytochrome c

结构域编号 domain_id	d1fj0d_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.3 — Cytochrome c
超家族 Superfamily superfamily	a.3.1 — Cytochrome c
家族 Family family	a.3.1.1 — monodomain cytochrome c

CATH v4.4 (4 domains)

结构域编号 domain_id	1fj0A00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cytochrome c-like domain

结构域编号 domain_id	1fj0B00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cytochrome c-like domain

结构域编号 domain_id	1fj0C00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cytochrome c-like domain

结构域编号 domain_id	1fj0D00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cytochrome c-like domain

▶

7. 引用文献 (4)

▶

晶胞边长 a length_a	50.310 Å
晶胞边长 b length_b	71.530 Å
晶胞边长 c length_c	66.660 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	93.52 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.700 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	—
R_work r_work	0.1777
R_free r_free	0.2179

fit	/app/data/saxs_computation/fj/1fj0/1fj0.fit
pddf	/app/data/pr_computation/fj/1fj0/1fj0.pr.out
profile	/app/data/saxs_computation/fj/1fj0/1fj0.dat

STRUCTURE DETERMINATION OF THE FERRICYTOCHROME C2 FROM RHODOPSEUDOMONAS PALUSTRIS

SAXS 散射曲线 SAXS Profile

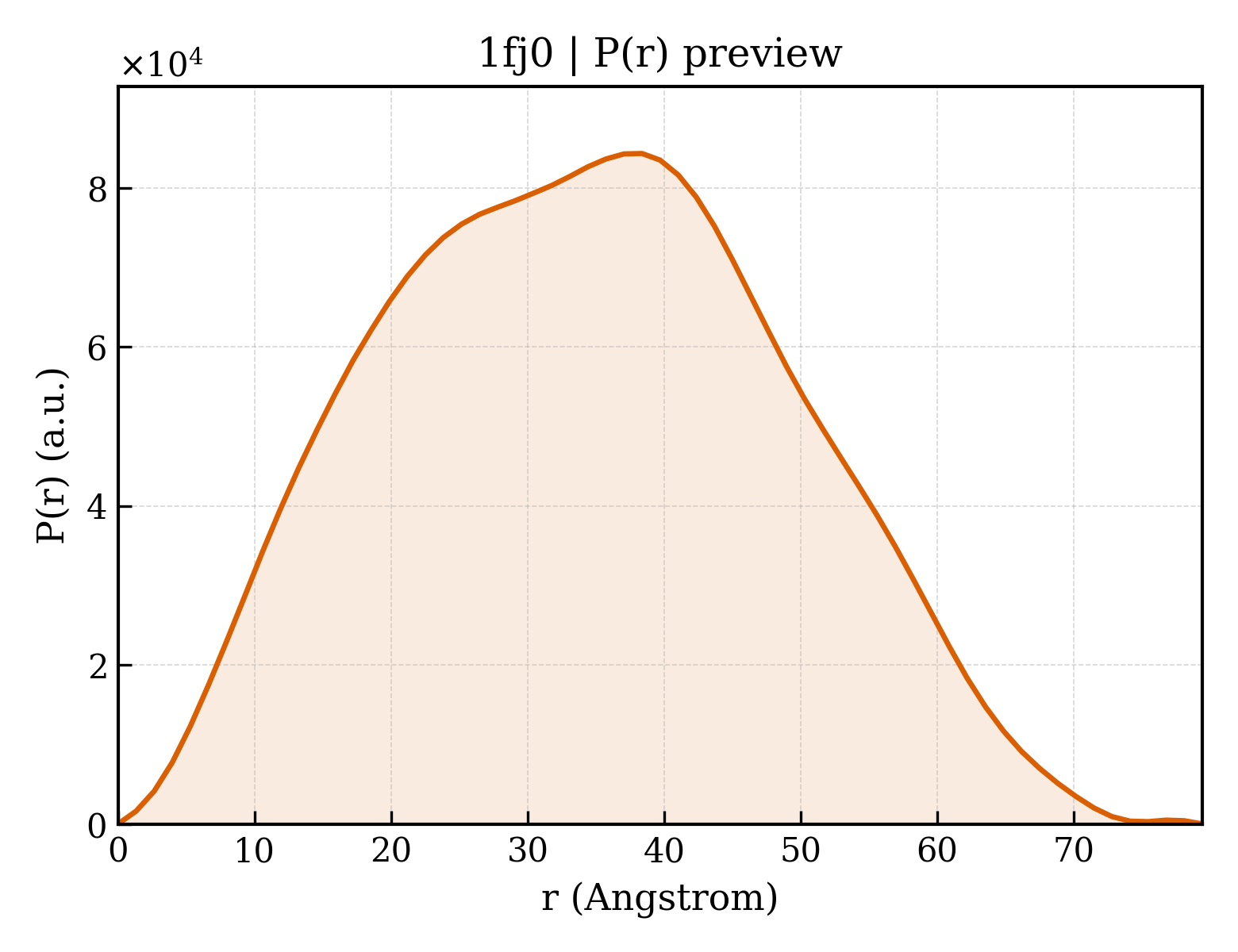

P(r) 距离分布 P(r) Distribution
