SAXSdb — 1i8o

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYTOCHROME C2

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 2 HEME C × 1 AMMONIA × 1 water × 1	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 4 HEME C × 2 AMMONIA × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYC22_RHOPA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–114； UniProt 1–114

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1i8o
Deposition date deposition_date	2001-03-15
Structure title title	RHODOPSEUDOMONAS PALUSTRIS CYT C2 AMMONIA COMPLEX AT 1.15 ANGSTROM RESOLUTION
Keywords keywords	ELECTRON TRANSPORT, CYTOCHROME, HEME, AMMONIA, OXIDIZED; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1i8o__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1i8o__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

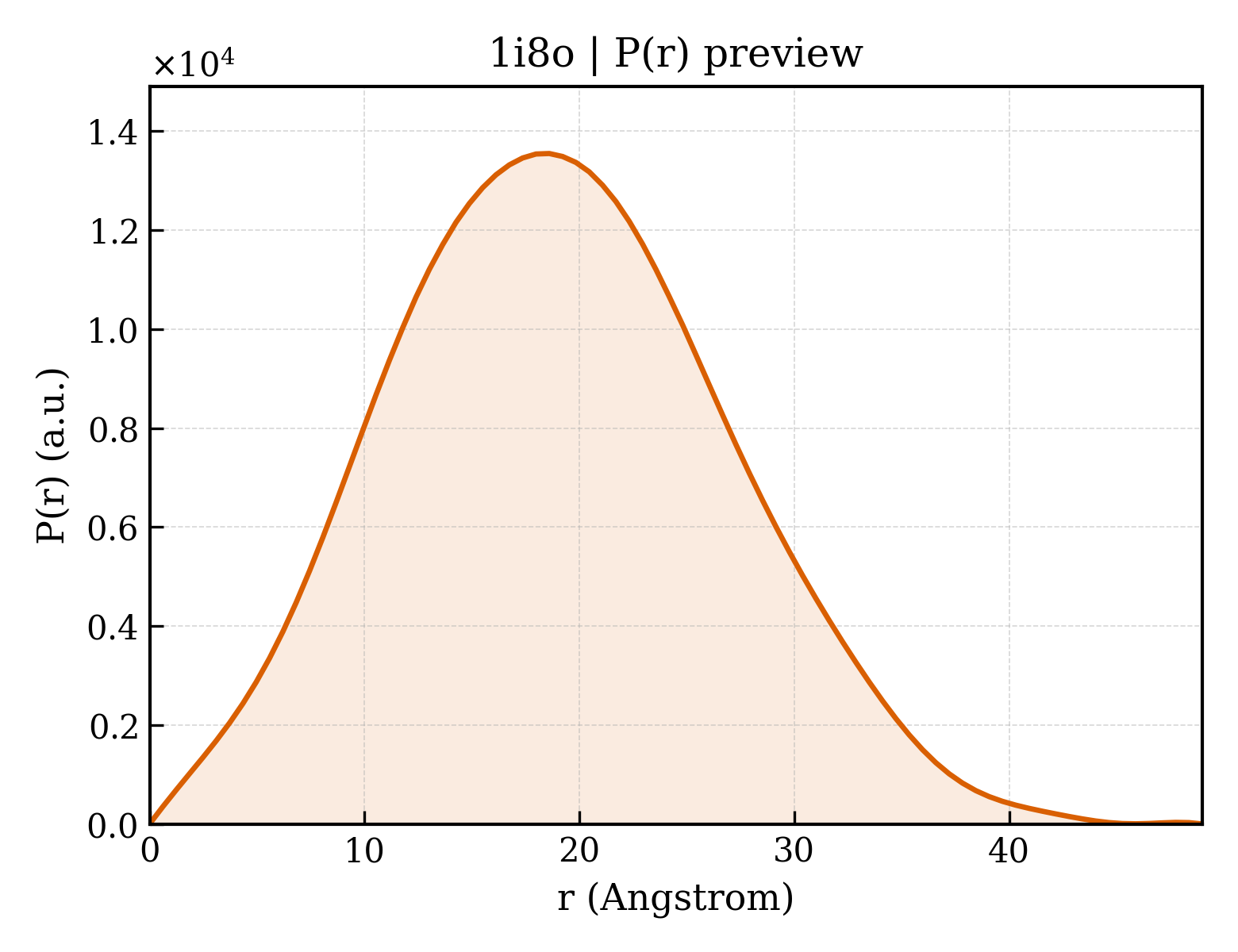

1i8o__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	14.62 Å
Rg (electron density)	13.26 Å
Total Rg	14.63 Å
Atom count	909
Residues	113
Excluded volume	16234 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1i8o__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1i8o__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CYTOCHROME C2
Molecular weight formula_weight	12187.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1151

QDAKAGEAVFKQCMTCHRADKNMVGPALAGVVGRKAGTAAGFTYSPLNHNSGEAGLVWTADNIVPYLADPNAFLKKFLTEKGKADQAVGVTKMTFKLANEQQRKDVVAYLATLK

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	HEME C
Molecular weight formula_weight	618.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	AMMONIA
Molecular weight formula_weight	17.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	239

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1i8oa_
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.1 — monodomain cytochrome c

CATH v4.4 (1 domains)

Domain ID domain_id	1i8oA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

▶

Unit-cell length a length_a	64.950 Å
Unit-cell length b length_b	64.950 Å
Unit-cell length c length_c	68.670 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	1.150 Å
Low-resolution limit resolution_low	15.200 Å
R factor r_factor	0.1401
R_work r_work	0.1345
R_free r_free	0.1616

RHODOPSEUDOMONAS PALUSTRIS CYT C2 AMMONIA COMPLEX AT 1.15 ANGSTROM RESOLUTION
