SAXSdb — 1fyf

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1fyf
沉积日期 deposition_date	2000-09-29
结构标题 title	CRYSTAL STRUCTURE OF A TRUNCATED FORM OF THREONYL-TRNA SYNTHETASE COMPLEXED WITH A SERYL ADENYLATE ANALOG
关键词 keywords	AMINO ACID RECOGNITION, ZINC ION, TRNA-SYNTHETASE, ADENYLATE ANALOG, DELETION MUTANT, LIGASE; LIGASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.49 Å
回转半径 Rg (电子) rg_electron	27.32 Å
零角强度 I(0) i0	147671000.00
分子量 molecular_weight	93966.0 kDa
排除体积 excluded_volume	116650 Å³
包络体积 envelope_volume	140090 Å³
水化壳体积 shell_volume	40920 Å³
包络直径 envelope_diameter	87.7 Å
壳层 Rg shell_rg	36.18 Å
包络 Rg envelope_rg	27.46 Å
形状 Rg shape_rg	27.31 Å
总 Rg total_rg	28.17 Å
总原子数 total_atoms	6593
残基数 n_residues	802
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	84.8 Å
Rg (实空间) rg_real	28.26 Å
Rg 误差 (实空间) rg_real_error	0.45 Å
I(0) (实空间) i0_real	1.4770e+08
I(0) 误差 (实空间) i0_real_error	2.0060e+06
Rg (倒空间) rg_reciprocal	28.34 Å
I(0) (倒空间) i0_reciprocal	147700000.0000
解质量估计 total_estimate	0.9069
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	37.9 Å
偏度 Skewness skewness	0.095
峰度 Kurtosis kurtosis	-0.547
角度范围 angular_range	— – 0.2800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	56730000.0000
实空间数据点数 n_real_points	57
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.956; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.935

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	THREONYL-TRNA SYNTHETASE
分子量 formula_weight	46725.2 kDa
EC 编号 ec_number	6.1.1.3
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7127

RDHRKIGKQLDLYHMQEEAPGMVFWHNDGWTIFRELEVFVRSKLKEYQYQEVKGPFMMDRVLWEKTGHWDNYKDAMFTTSSENREYCIKPMNCPGHVQIFNQGLKSYRDLPLRMAEFGSCHRNEPSGSLHGLMRVRGFTQDDAHIFCTEEQIRDEVNGCIRLVYDMYSTFGFEKIVVKLSTRPEKRIGSDEMWDRAEADLAVALEENNIPFEYQLGEGAFYGPKIEFTLYDCLDRAWQCGTVQLDFSLPSRLSASYVGEDNERKVPVMIHRAILGSMERFIGILTEEFAGFFPTWLAPVQVVIMNITDSQSEYVNELTQKLSNAGIRVKADLRNEKIGFKIREHTLRRVPYMLVCGDKEVESGKVAVRTRRGKDLGSMDVNEVIEKLQQEIRSRSLKQLEE

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	5'-O-(N-(L-SERYL)-SULFAMOYL)ADENOSINE
分子量 formula_weight	433.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	534

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1fyfa1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.51 — Anticodon-binding domain-like
超家族 Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
家族 Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

结构域编号 domain_id	d1fyfa2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.104 — Class II aaRS and biotin synthetases
超家族 Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
家族 Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

结构域编号 domain_id	d1fyfb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.51 — Anticodon-binding domain-like
超家族 Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
家族 Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

结构域编号 domain_id	d1fyfb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.104 — Class II aaRS and biotin synthetases
超家族 Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
家族 Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

CATH v4.4 (4 domains)

结构域编号 domain_id	1fyfA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	930 — BirA Bifunctional Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

结构域编号 domain_id	1fyfA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	800 — Anticodon-binding domain

结构域编号 domain_id	1fyfB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	930 — BirA Bifunctional Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

结构域编号 domain_id	1fyfB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	800 — Anticodon-binding domain

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	86.950 Å
晶胞边长 b length_b	109.520 Å
晶胞边长 c length_c	115.370 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.650 Å
最低分辨率 resolution_low	19.930 Å
R 因子 r_factor	0.2180
R_work r_work	0.2180
R_free r_free	0.2370

fit	/app/data/saxs_computation/fy/1fyf/1fyf.fit
pddf	/app/data/pr_computation/fy/1fyf/1fyf.pr.out
profile	/app/data/saxs_computation/fy/1fyf/1fyf.dat

CRYSTAL STRUCTURE OF A TRUNCATED FORM OF THREONYL-TRNA SYNTHETASE COMPLEXED WITH A SERYL ADENYLATE ANALOG

SAXS 散射曲线 SAXS Profile

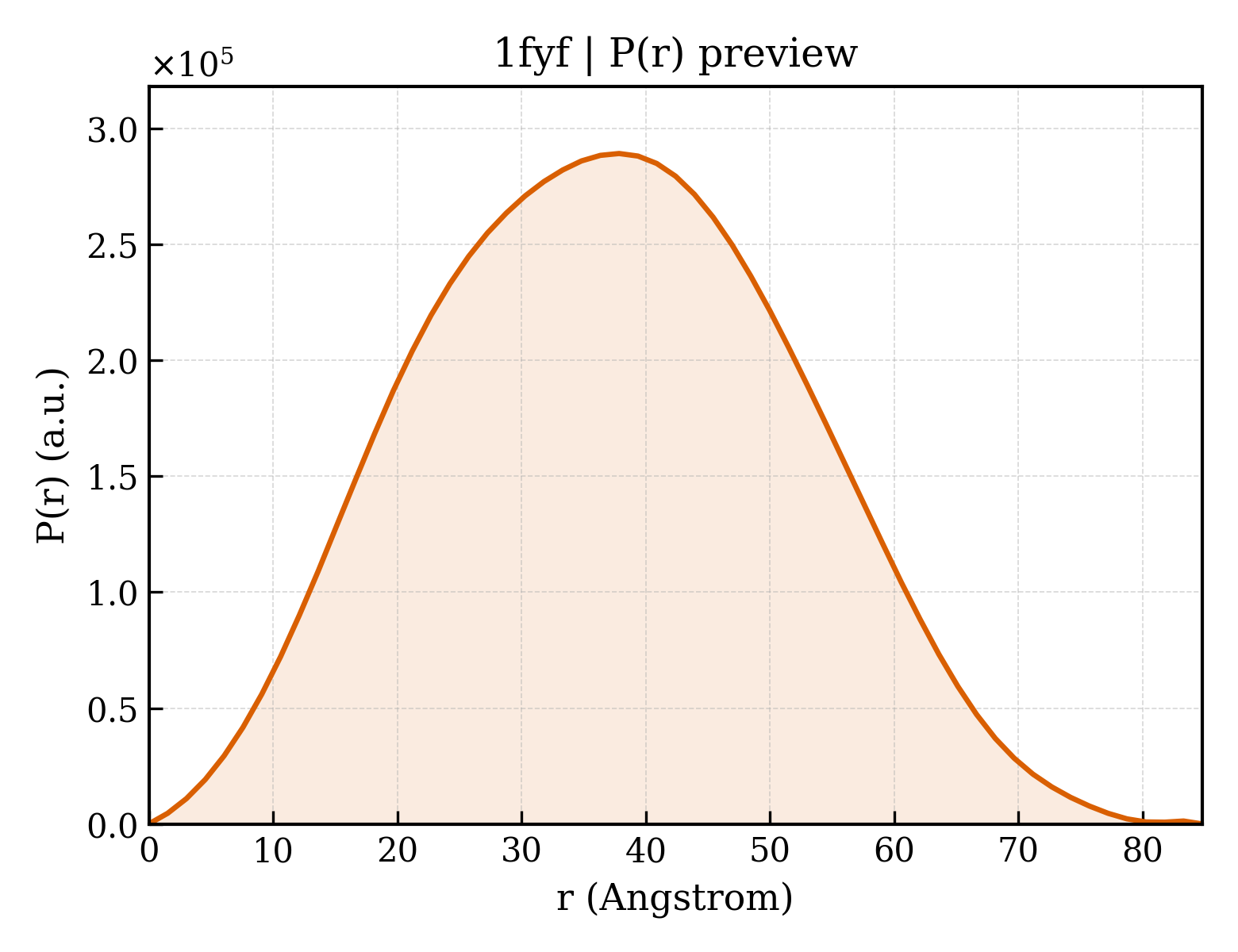

P(r) 距离分布 P(r) Distribution
