1fzd

STRUCTURE OF RECOMBINANT ALPHAEC DOMAIN FROM HUMAN FIBRINOGEN-420

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FIBRINOGEN-420

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 4 其他Polymer 4	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 3 ;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-alpha-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 CALCIUM ION × 4 water × 4	Consistent with protein count
2	Other combination	Homooligomer	Protein 4 其他Polymer 2	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CALCIUM ION × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIBA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–201； UniProt 666–866 Author chain B； PDBConstruct 1–201； UniProt 666–866 Author chain C； PDBConstruct 1–201； UniProt 666–866 Author chain D； PDBConstruct 1–201； UniProt 666–866 Author chain E； PDBConstruct 1–201； UniProt 666–866 Author chain F； PDBConstruct 1–201； UniProt 666–866 Author chain G； PDBConstruct 1–201； UniProt 666–866 Author chain H； PDBConstruct 1–201； UniProt 666–866

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fzd
Deposition date deposition_date	1998-06-22
Structure title title	STRUCTURE OF RECOMBINANT ALPHAEC DOMAIN FROM HUMAN FIBRINOGEN-420
Keywords keywords	BLOOD COAGULATION, FIBRINOGEN-420, ALPHAEC DOMAIN, FIBRINOGEN RELATED DOMAIN, GLYCOSYLATED PROTEIN; BLOOD COAGULATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fzd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1fzd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

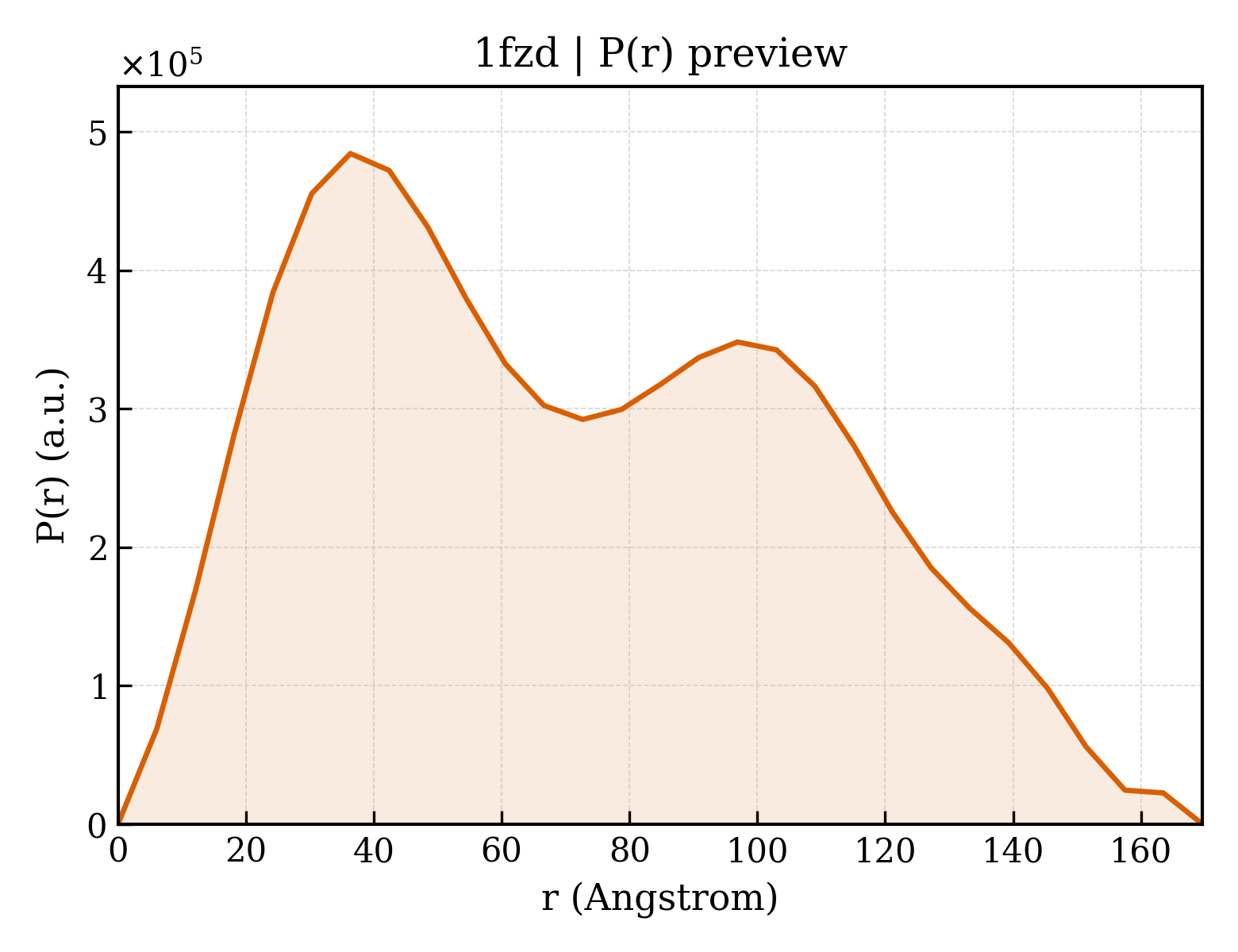

1fzd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.16 Å
Rg (electron density)	30.50 Å
Total Rg	31.21 Å
Atom count	6643
Residues	788
Excluded volume	114980 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fzd__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1fzd__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	FIBRINOGEN-420
Molecular weight formula_weight	22840.7 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	13595

ETSLGGWLLIQQRMDGSLNFNRTWQDYKRGFGSLNDEGEGEFWLGNDYLHLLTQRGSVLRVELEDWAGNEAYAEYHFRVGSEAEGYALQVSSYEGTAGDALIEGSVEEGAEYTSHNNMQFSTFDRDADQWEENCAEVYGGGWWYNNCQAANLNGIYYPGGSYDPRNNSPYEIENGVVWVSFRGADYSLRAVRMKIRPLVTQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Pichia pastoris

Entity 2 Entity 2 branched

Description description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1114.0 kDa
Source method src_method	man
Copy count entity_count	3

Entity 3 Entity 3 branched

Description description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-alpha-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1114.0 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	4

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	496

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1fzda_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

Domain ID domain_id	d1fzdb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

Domain ID domain_id	d1fzdc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

Domain ID domain_id	d1fzdd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

Domain ID domain_id	d1fzde_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

Domain ID domain_id	d1fzdf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

Domain ID domain_id	d1fzdg_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

Domain ID domain_id	d1fzdh_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

CATH v4.4 (16 domains)

Domain ID domain_id	1fzdA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	1fzdA02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	1fzdB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	1fzdB02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	1fzdC01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	1fzdC02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	1fzdD01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	1fzdD02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	1fzdE01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	1fzdE02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	1fzdF01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	1fzdF02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	1fzdG01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	1fzdG02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	1fzdH01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	1fzdH02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

▶

Unit-cell length a length_a	71.250 Å
Unit-cell length b length_b	105.180 Å
Unit-cell length c length_c	71.140 Å
Unit-cell angle α angle_alpha	104.60 °
Unit-cell angle β angle_beta	108.95 °
Unit-cell angle γ angle_gamma	71.47 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1990
R_work r_work	0.1950
R_free r_free	0.2550

STRUCTURE OF RECOMBINANT ALPHAEC DOMAIN FROM HUMAN FIBRINOGEN-420

1. Protein Identity and Related Structures Protein Identity & Related Structures

FIBRINOGEN-420

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1fzd__assembly_1__model_1

1fzd__assembly_1__model_1 | I(q)

1fzd__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 branched

Entity 3 Entity 3 branched

Entity 4 Entity 4 branched

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

CATH v4.4 (16 domains)

7. Citations (1)

STRUCTURE OF RECOMBINANT ALPHAEC DOMAIN FROM HUMAN FIBRINOGEN-420

1. Protein Identity and Related Structures Protein Identity & Related Structures

FIBRINOGEN-420

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1fzd__assembly_1__model_1

1fzd__assembly_1__model_1 | I(q)

1fzd__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 branched

Entity 3 Entity 3 branched

Entity 4 Entity 4 branched

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

CATH v4.4 (16 domains)

7. Citations (1)
