SAXSdb — 1g1i

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NON-STRUCTURAL GLYCOPROTEIN NSP4

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	CALCIUM ION × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O92323_9REOV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–43； UniProt 95–137 Author chain B； PDBConstruct 1–43； UniProt 95–137

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g1i
Deposition date deposition_date	2000-10-11
Structure title title	CRYSTAL STRUCTURE OF THE OLIGOMERIZATION DOMAIN FROM ROTAVIRUS NSP4
Keywords keywords	NS28, parallel coiled-coil, homo-tetramer, metal binding site, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1g1i__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1g1i__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

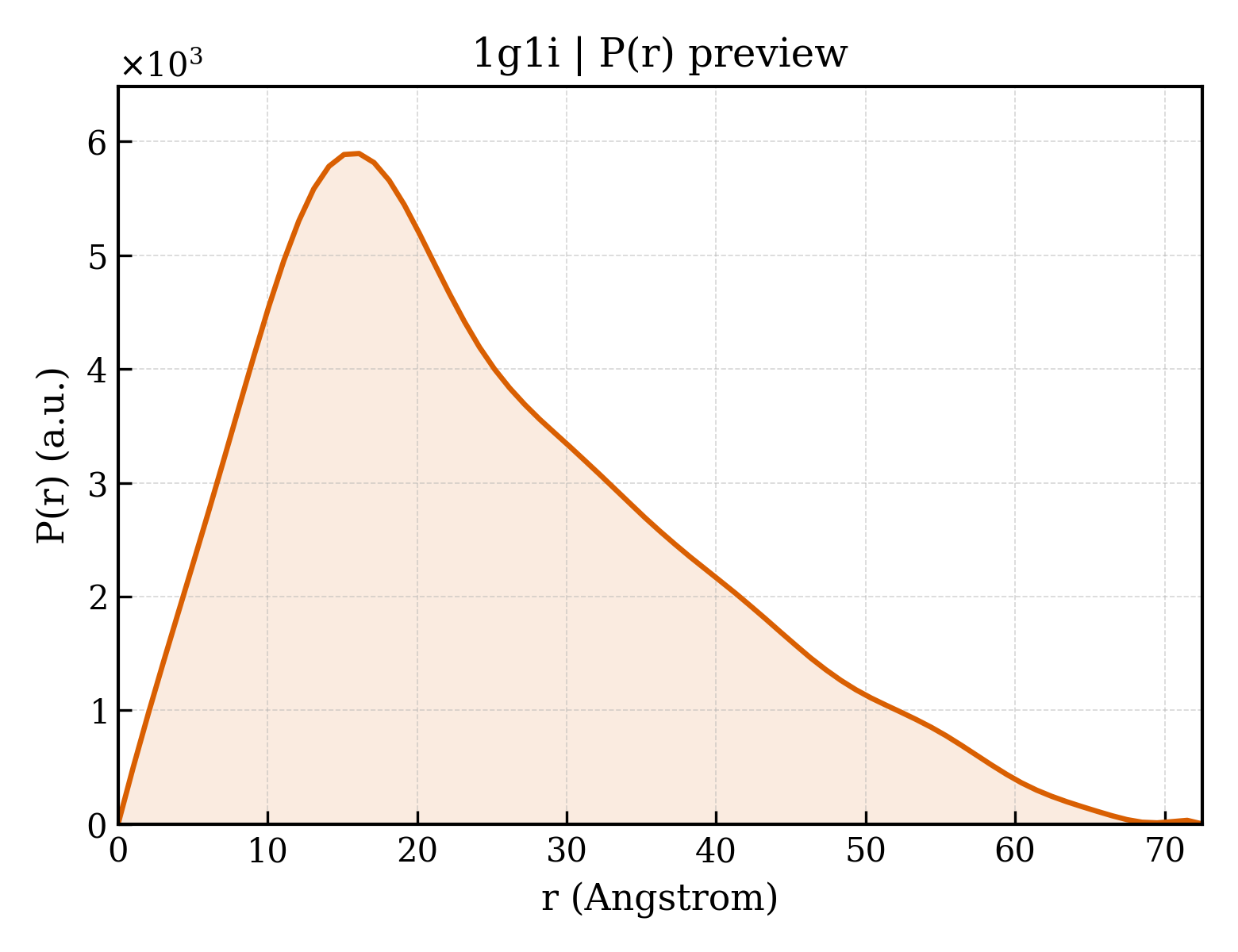

1g1i__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.14 Å
Rg (electron density)	19.94 Å
Total Rg	20.48 Å
Atom count	1403
Residues	168
Excluded volume	25380 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1g1i__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1g1ia_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.13 — Rotavirus nonstructural proteins
Family Family family	h.1.13.1 — NSP4 oligomerization domain

Domain ID domain_id	d1g1ib_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.13 — Rotavirus nonstructural proteins
Family Family family	h.1.13.1 — NSP4 oligomerization domain

CATH v4.4 (2 domains)

Domain ID domain_id	1g1iA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	430 —

Domain ID domain_id	1g1iB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	430 —

▶

Unit-cell length a length_a	35.470 Å
Unit-cell length b length_b	35.399 Å
Unit-cell length c length_c	60.937 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	14.070 Å
R factor r_factor	0.2350
R_work r_work	0.2350
R_free r_free	0.2450

Description description	NON-STRUCTURAL GLYCOPROTEIN NSP4
Molecular weight formula_weight	5404.3 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	784

CRYSTAL STRUCTURE OF THE OLIGOMERIZATION DOMAIN FROM ROTAVIRUS NSP4

1. Protein Identity and Related Structures Protein Identity & Related Structures

NON-STRUCTURAL GLYCOPROTEIN NSP4

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1g1i__assembly_1__model_1

1g1i__assembly_1__model_1 | I(q)

1g1i__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

7. Citations (1)

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	66

CRYSTAL STRUCTURE OF THE OLIGOMERIZATION DOMAIN FROM ROTAVIRUS NSP4

1. Protein Identity and Related Structures Protein Identity & Related Structures

NON-STRUCTURAL GLYCOPROTEIN NSP4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1g1i__assembly_1__model_1

1g1i__assembly_1__model_1 | I(q)

1g1i__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

7. Citations (1)
