1g59

GLUTAMYL-TRNA SYNTHETASE COMPLEXED WITH TRNA(GLU).

Method: X-RAY DIFFRACTION D_max: 149.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1g59
沉积日期 deposition_date	2000-10-31
结构标题 title	GLUTAMYL-TRNA SYNTHETASE COMPLEXED WITH TRNA(GLU).
关键词 keywords	;aminoacyl-tRNA synthetase, protein-RNA complex, transfer RNA, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Structural Genomics, LIGASE-RNA COMPLEX ;; LIGASE/RNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	52.20 Å
回转半径 Rg (电子) rg_electron	52.25 Å
零角强度 I(0) i0	517008000.00
分子量 molecular_weight	156290.0 kDa
排除体积 excluded_volume	181260 Å³
包络体积 envelope_volume	289870 Å³
水化壳体积 shell_volume	45648 Å³
包络直径 envelope_diameter	161.0 Å
壳层 Rg shell_rg	59.52 Å
包络 Rg envelope_rg	48.81 Å
形状 Rg shape_rg	52.24 Å
总 Rg total_rg	52.47 Å
总原子数 total_atoms	10820
残基数 n_residues	1086
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

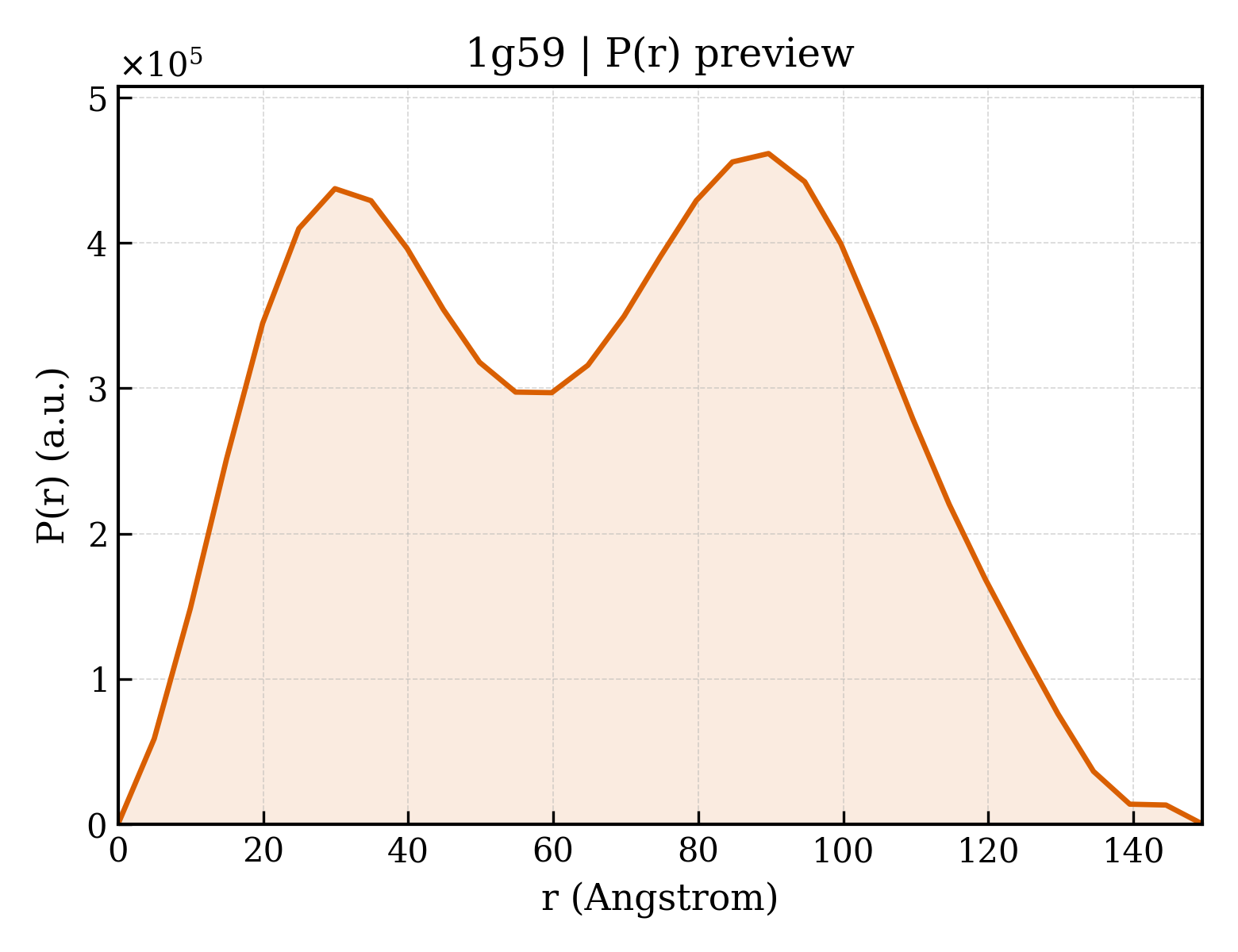

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	149.5 Å
Rg (实空间) rg_real	52.24 Å
Rg 误差 (实空间) rg_real_error	1.40 Å
I(0) (实空间) i0_real	5.1700e+08
I(0) 误差 (实空间) i0_real_error	8.5840e+06
Rg (倒空间) rg_reciprocal	52.14 Å
I(0) (倒空间) i0_reciprocal	516900000.0000
解质量估计 total_estimate	0.7562
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	89.7 Å
偏度 Skewness skewness	0.030
峰度 Kurtosis kurtosis	-1.071
角度范围 angular_range	— – 0.1500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	12060000.0000
实空间数据点数 n_real_points	31
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.707; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.704; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	TRNA(GLU)
分子量 formula_weight	24105.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B,D
原子数 atom_count	11092

GGCCCCAUCGUCUAGCGGUUAGGACGCGGCCCUCUCAAGGCCGAAACGGGGGUUCGAUUCCCCCUGGGGUCACCA

Entity 2 polymer

描述 description	GLUTAMYL-TRNA SYNTHETASE
分子量 formula_weight	53979.7 kDa
EC 编号 ec_number	6.1.1.17
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C

MVVTRIAPSPTGDPHVGTAYIALFNYAWARRNGGRFIVRIEDTDRARYVPGAEERILAALKWLGLSYDEGPDVAAPTGPYRQSERLPLYQKYAEELLKRGWAYRAFETPEELEQIRKEKGGYDGRARNIPPEEAEERARRGEPHVIRLKVPRPGTTEVKDELRGVVVYDNQEIPDVVLLKSDGYPTYHLANVVDDHLMGVTDVIRAEEWLVSTPIHVLLYRAFGWEAPRFYHMPLLRNPDKTKISKRKSHTSLDWYKAEGFLPEALRNYLCLMGFSMPDGREIFTLEEFIQAFTWERVSLGGPVFDLEKLRWMNGKYIREVLSLEEVAERVKPFLREAGLSWESEAYLRRAVELMRPRFDTLKEFPEKARYLFTEDYPVSEKAQRKLEEGLPLLKELYPRLRAQEEWTEAALEALLRGFAAEKGVKLGQVAQPLRAALTGSLETPGLFEILALLGKERALRRLERALA

来源 Source

来源生物 organism	Thermus thermophilus
NCBI 分类编号 ncbi_taxonomy_id	274
宿主生物 host_organism	Escherichia coli

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	272

▼

6. 折叠分类 (SCOP + CATH) 14 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1g59a1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.97 — An anticodon-binding domain of class I aminoacyl-tRNA synthetases
超家族 Superfamily superfamily	a.97.1 — An anticodon-binding domain of class I aminoacyl-tRNA synthetases
家族 Family family	a.97.1.1 — C-terminal domain of glutamyl-tRNA synthetase (GluRS)

结构域编号 domain_id	d1g59a2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
超家族 Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
家族 Family family	c.26.1.1 — Class I aminoacyl-tRNA synthetases (RS), catalytic domain

结构域编号 domain_id	d1g59c1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.97 — An anticodon-binding domain of class I aminoacyl-tRNA synthetases
超家族 Superfamily superfamily	a.97.1 — An anticodon-binding domain of class I aminoacyl-tRNA synthetases
家族 Family family	a.97.1.1 — C-terminal domain of glutamyl-tRNA synthetase (GluRS)

结构域编号 domain_id	d1g59c2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
超家族 Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
家族 Family family	c.26.1.1 — Class I aminoacyl-tRNA synthetases (RS), catalytic domain

CATH v4.4 (10 domains)

结构域编号 domain_id	1g59A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	620 — HUPs

结构域编号 domain_id	1g59A02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1160 — Glutamyl-tRNA Synthetase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Glutamyl-trna Synthetase; Domain 2

结构域编号 domain_id	1g59A03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	800 — Glutamyl-tRNA Synthetase; domain 3
同源超家族 H-superfamily homologous superfamily	10 — Glutamyl-tRNA Synthetase; Domain 3

结构域编号 domain_id	1g59A04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	8 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	70 — Glutamate-tRNA synthetase, class I, anticodon-binding domain 1

结构域编号 domain_id	1g59A05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	350 —

结构域编号 domain_id	1g59C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	620 — HUPs

结构域编号 domain_id	1g59C02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1160 — Glutamyl-tRNA Synthetase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Glutamyl-trna Synthetase; Domain 2

结构域编号 domain_id	1g59C03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	800 — Glutamyl-tRNA Synthetase; domain 3
同源超家族 H-superfamily homologous superfamily	10 — Glutamyl-tRNA Synthetase; Domain 3

结构域编号 domain_id	1g59C04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	8 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	70 — Glutamate-tRNA synthetase, class I, anticodon-binding domain 1

结构域编号 domain_id	1g59C05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	350 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	109.980 Å
晶胞边长 b length_b	218.670 Å
晶胞边长 c length_c	134.670 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.2190
R_work r_work	0.2180
R_free r_free	0.2980

fit	/app/data/saxs_computation/g5/1g59/1g59.fit
pddf	/app/data/pr_computation/g5/1g59/1g59.pr.out
profile	/app/data/saxs_computation/g5/1g59/1g59.dat
