SAXSdb — 1g97

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

N-ACETYLGLUCOSAMINE-1-PHOSPHATE URIDYLTRANSFERASE

Streptococcus pneumoniae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	MAGNESIUM ION × 3 SODIUM ION × 3 URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q97R46_STRPN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–459； UniProt 1–459

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g97
Deposition date deposition_date	2000-11-22
Structure title title	S.PNEUMONIAE GLMU COMPLEXED WITH UDP-N-ACETYLGLUCOSAMINE AND MG2+
Keywords keywords	;GlmU, acetyltransferase, uridyltransferase, pyrophosphorylase, left-handed beta-sheet helix, trimer, magnesium, UDP-N-acetylglucosamine, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1g97__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1g97__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

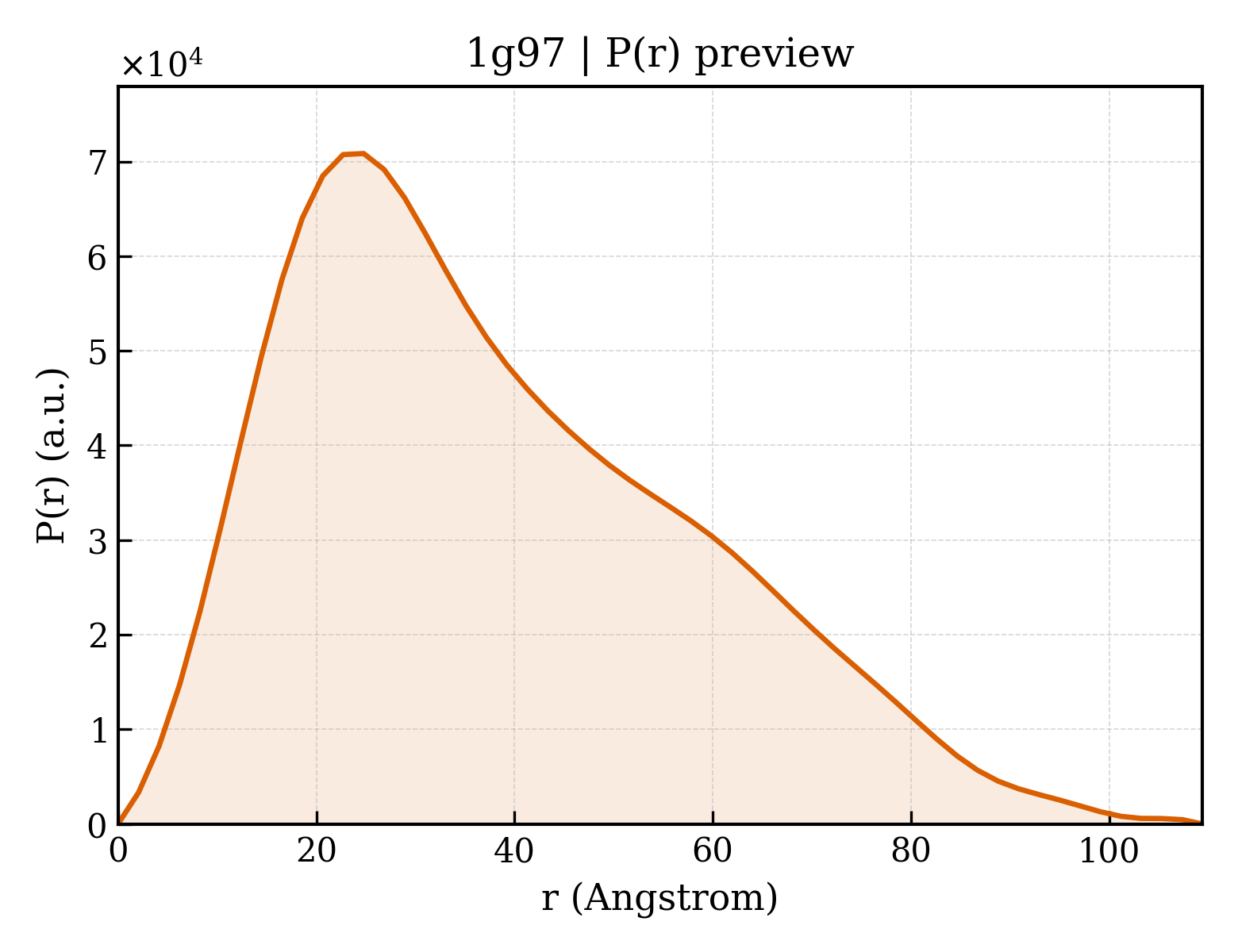

1g97__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.36 Å
Rg (electron density)	35.64 Å
Total Rg	36.01 Å
Atom count	10201
Residues	1338
Excluded volume	180690 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1g97__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	N-ACETYLGLUCOSAMINE-1-PHOSPHATE URIDYLTRANSFERASE
Molecular weight formula_weight	49398.4 kDa
EC 编号 ec_number	2.7.7.23
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3883

MSNFAIILAAGKGTRMKSDLPKVLHKVAGISMLEHVFRSVGAIQPEKTVTVVGHKAELVEEVLAGQTEFVTQSEQLGTGHAVMMTEPILEGLSGHTLVIAGDTPLITGESLKNLIDFHINHKNVATILTAETDNPFGYGRIVRNDNAEVLRIVEQKDATDFEKQIKEINTGTYVFDNERLFEALKNINTNNAQGEYYITDVIGIFRETGEKVGAYTLKDFDESLGVNDRVALATAESVMRRRINHKHMVNGVSFVNPEATYIDIDVEIASEVQIEANVTLKGQTKIGAETVLTNGTYVVDSTIGAGAVITNSMIEESSVADGVIVGPYAHIRPNSSLGAQVHIGNFVEVKGSSIGENTKAGHLTYIGNCEVGSNVNFGAGTITVNYDGKNKYKTVIGNNVFVGSNSTIIAPVELGDNSLVGAGSTITKDVPADAIAIGRGRQINKDEYATRLPHHPKNQ

Source Source

Source organism organism	Streptococcus pneumoniae
NCBI taxonomy ID ncbi_taxonomy_id	1313
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE
Molecular weight formula_weight	607.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	482

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1g97a1
Class class	b — All beta proteins
Fold Fold fold	b.81 — Single-stranded left-handed beta-helix
Superfamily Superfamily superfamily	b.81.1 — Trimeric LpxA-like enzymes
Family Family family	b.81.1.4 — GlmU C-terminal domain-like

Domain ID domain_id	d1g97a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.5 — UDP-glucose pyrophosphorylase

CATH v4.4 (2 domains)

Domain ID domain_id	1g97A01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	1g97A02
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	10 — UDP N-Acetylglucosamine Acyltransferase; domain 1
Homologous superfamily homologous superfamily	10 — Hexapeptide repeat proteins

▶

Unit-cell length a length_a	93.660 Å
Unit-cell length b length_b	93.660 Å
Unit-cell length c length_c	275.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	1.960 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.1880
R_free r_free	0.2210

S.PNEUMONIAE GLMU COMPLEXED WITH UDP-N-ACETYLGLUCOSAMINE AND MG2+
