1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1hm9
沉积日期 deposition_date	2000-12-05
结构标题 title	;CRYSTAL STRUCTURE OF S.PNEUMONIAE N-ACETYLGLUCOSAMINE-1-PHOSPHATE URIDYLTRANSFERASE, GLMU, BOUND TO ACETYL COENZYME A AND UDP-N-ACETYLGLUCOSAMINE ;
关键词 keywords	;ACETYLTRANSFERASE, BIFUNCTIONAL, DRUG DESIGN, PYROPHOSPHORYLASE, Rossmann-like fold, left-handed-beta-helix, trimer, domain-interchange, TRANSFERASE ;; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	56.23 Å
回转半径 Rg (电子) rg_electron	57.33 Å
零角强度 I(0) i0	159371000.00
分子量 molecular_weight	101570.0 kDa
排除体积 excluded_volume	126020 Å³
包络体积 envelope_volume	202970 Å³
水化壳体积 shell_volume	33335 Å³
包络直径 envelope_diameter	191.1 Å
壳层 Rg shell_rg	50.09 Å
包络 Rg envelope_rg	54.05 Å
形状 Rg shape_rg	57.40 Å
总 Rg total_rg	56.83 Å
总原子数 total_atoms	7118
残基数 n_residues	916
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	181.4 Å
Rg (实空间) rg_real	56.96 Å
Rg 误差 (实空间) rg_real_error	2.47 Å
I(0) (实空间) i0_real	1.5940e+08
I(0) 误差 (实空间) i0_real_error	3.5630e+06
Rg (倒空间) rg_reciprocal	55.57 Å
I(0) (倒空间) i0_reciprocal	159000000.0000
解质量估计 total_estimate	0.6585
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	25.9 Å
偏度 Skewness skewness	0.397
峰度 Kurtosis kurtosis	-0.756
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	3315000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.417; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.307; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	UDP-N-ACETYLGLUCOSAMINE-1-PHOSPHATE URIDYLTRANSFERASE
分子量 formula_weight	50539.6 kDa
EC 编号 ec_number	2.7.7.23
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	8084

MRGSHHHHHHSNFAIILAAGKGTRMKSDLPKVLHKVAGISMLEHVFRSVGAIQPEKTVTVVGHKAELVEEVLAGQTEFVTQSEQLGTGHAVMMTEPILEGLSGHTLVIAGDTPLITGESLKNLIDFHINHKNVATILTAETDNPFGYGRIVRNDNAEVLRIVEQKDATDFEKQIKEINTGTYVFDNERLFEALKNINTNNAQGEYYITDVIGIFRETGEKVGAYTLKDFDESLGVNDRVALATAESVMRRRINHKHMVNGVSFVNPEATYIDIDVEIAPEVQIEANVILKGQTKIGAETVLTNGTYVVDSTIGAGAVITNSMIEESSVADGVTVGPYAHIRPNSSLGAQVHIGNFVEVKGSSIGENTKAGHLTYIGNCEVGSNVNFGAGTITVNYDGKNKYKTVIGDNVFVGSNSTIIAPVELGDNSLVGAGSTITKDVPADAIAIGRGRQINKDEYATRLPHHPKNQ

来源 Source

来源生物 organism	Streptococcus pneumoniae
NCBI 分类编号 ncbi_taxonomy_id	1313
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 3 non-polymer

描述 description	ACETYL COENZYME *A
分子量 formula_weight	809.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE
分子量 formula_weight	607.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	694

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1hm9a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.81 — Single-stranded left-handed beta-helix
超家族 Superfamily superfamily	b.81.1 — Trimeric LpxA-like enzymes
家族 Family family	b.81.1.4 — GlmU C-terminal domain-like

结构域编号 domain_id	d1hm9a2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
超家族 Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
家族 Family family	c.68.1.5 — UDP-glucose pyrophosphorylase

结构域编号 domain_id	d1hm9b1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.81 — Single-stranded left-handed beta-helix
超家族 Superfamily superfamily	b.81.1 — Trimeric LpxA-like enzymes
家族 Family family	b.81.1.4 — GlmU C-terminal domain-like

结构域编号 domain_id	d1hm9b2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
超家族 Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
家族 Family family	c.68.1.5 — UDP-glucose pyrophosphorylase

CATH v4.4 (4 domains)

结构域编号 domain_id	1hm9A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

结构域编号 domain_id	1hm9A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	160 — 3 Solenoid
拓扑 Topology topology	10 — UDP N-Acetylglucosamine Acyltransferase; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Hexapeptide repeat proteins

结构域编号 domain_id	1hm9B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

结构域编号 domain_id	1hm9B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	160 — 3 Solenoid
拓扑 Topology topology	10 — UDP N-Acetylglucosamine Acyltransferase; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Hexapeptide repeat proteins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	89.509 Å
晶胞边长 b length_b	89.509 Å
晶胞边长 c length_c	278.753 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	18

空间群 space_group	H 3
空间群编号 int_tables_number	146
晶系 crystal_system	—

分辨率 resolution	1.750 Å
最低分辨率 resolution_low	29.140 Å
R 因子 r_factor	0.1830
R_work r_work	0.1830
R_free r_free	0.2190

fit	/app/data/saxs_computation/hm/1hm9/1hm9.fit
pddf	/app/data/pr_computation/hm/1hm9/1hm9.pr.out
profile	/app/data/saxs_computation/hm/1hm9/1hm9.dat

;CRYSTAL STRUCTURE OF S.PNEUMONIAE N-ACETYLGLUCOSAMINE-1-PHOSPHATE URIDYLTRANSFERASE, GLMU, BOUND TO ACETYL COENZYME A AND UDP-N-ACETYLGLUCOSAMINE ;

SAXS 散射曲线 SAXS Profile

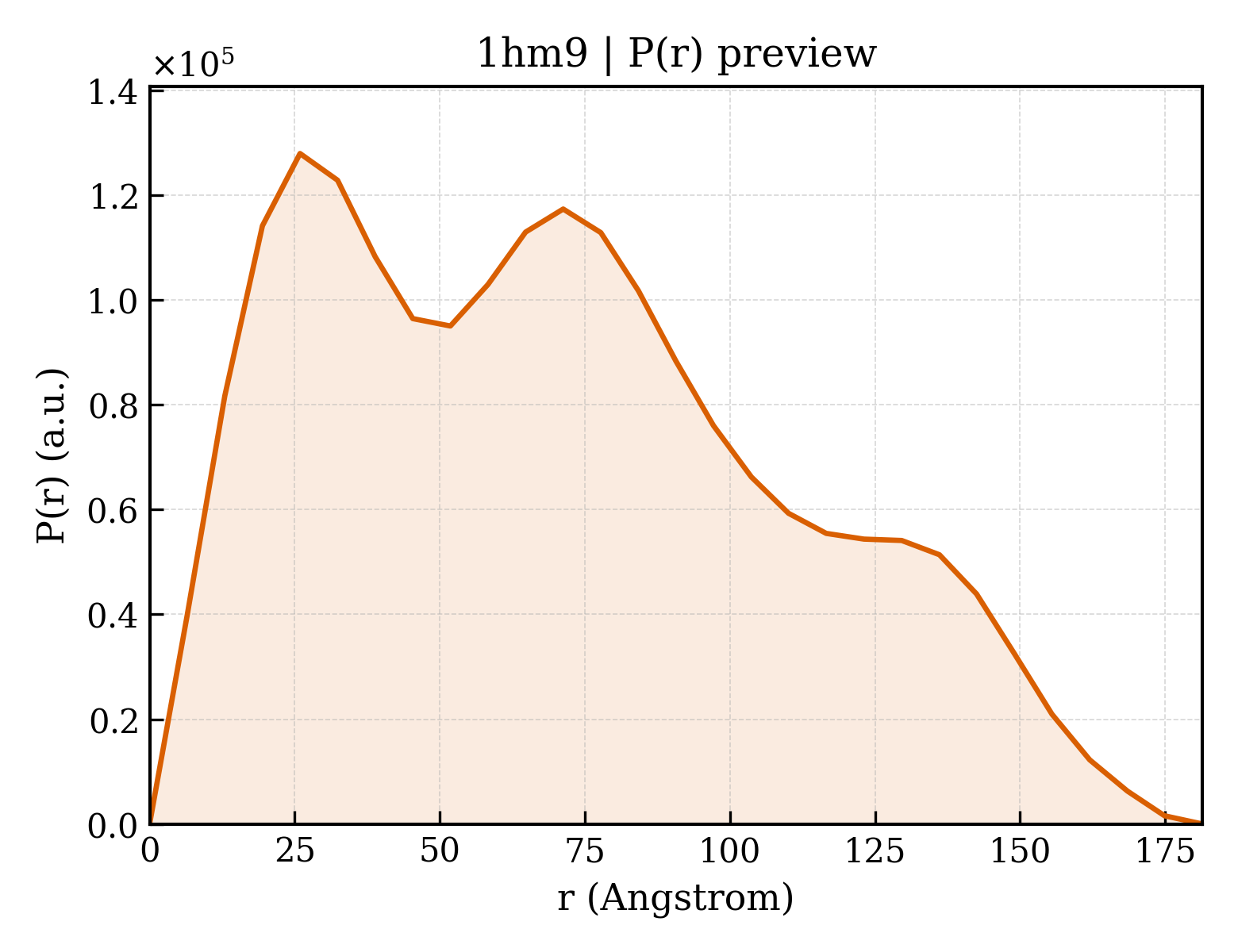

P(r) 距离分布 P(r) Distribution
